Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

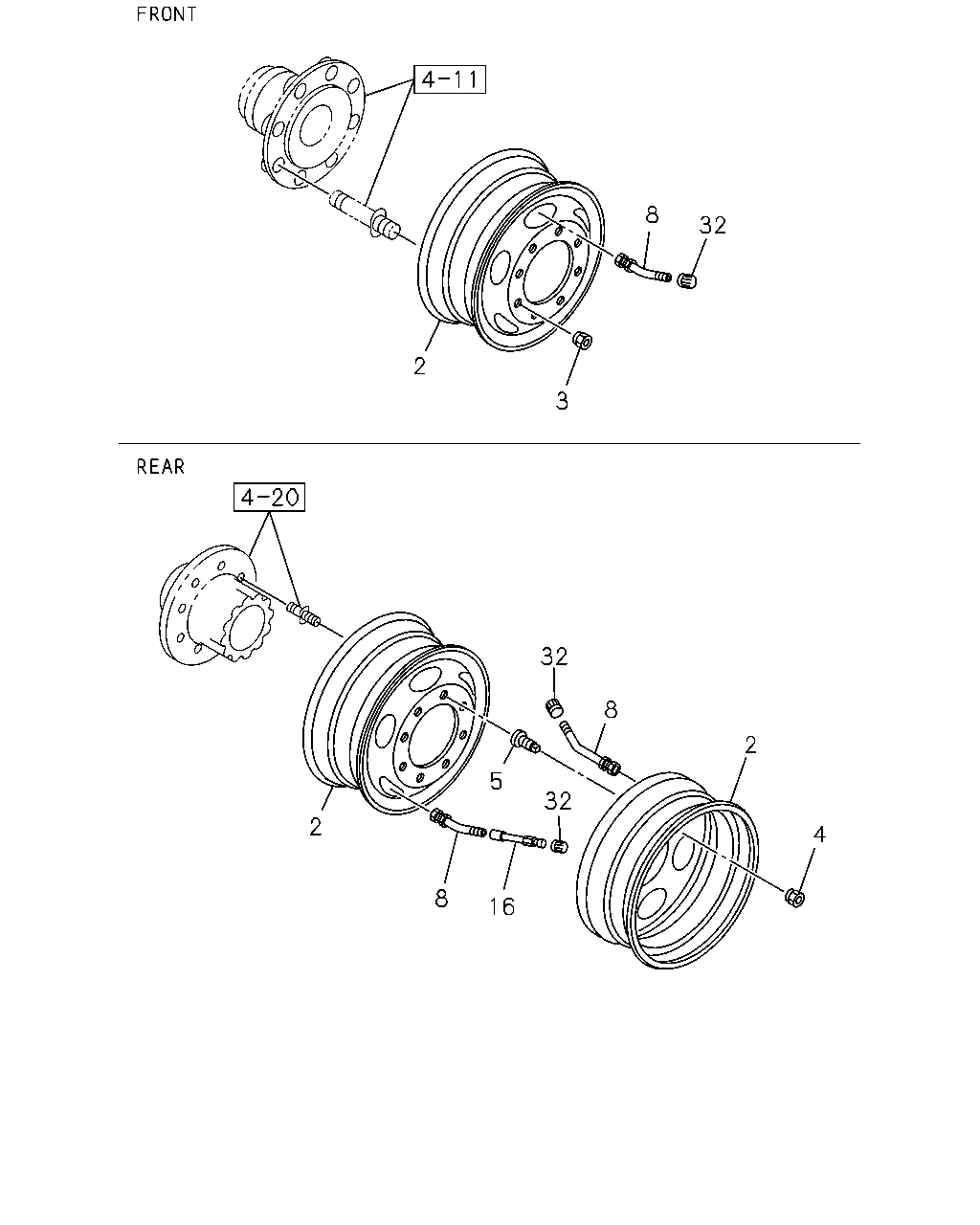

4-80 — ROAD WHEEL
(#128982) — 26 parça
4
2
8
2
32
5
16
8
2
8
3
32
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE
1-42350-758-0
01
1
1310-1310
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE
8-98232-031-0
01
1
1311-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE
1-42350-667-0
01
1
1310-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT
1-42350-758-0
02
1
1310-1310
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT
8-98232-031-0
02
1
1311-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR
1-42350-758-0
04
1
1310-1310
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR
8-98232-031-0
04
1
1311-
2
WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT
1-42350-667-0
02
1
1310-
2
WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REAR
1-42350-667-0
04
1
1310-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
1310-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
1310-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
08
1
1310-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
08
1
1310-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
08
1
1310-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
08
1
1310-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE
1-42370-048-0
01
1
1311-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT
1-42370-048-0
02
1
1311-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR
1-42370-048-0
04
1
1311-
8
VALVE; TIRE
SPARE
1-42370-020-3
01
1
1310-1310
8
VALVE; TIRE
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE
1-42370-020-3
01
1
1311-
8
VALVE; TIRE
FRONT
1-42370-020-3
02
1
1310-1310
8
VALVE; TIRE
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT
1-42370-020-3
02
1
1311-
8
VALVE; TIRE
REAR
1-42370-020-3
04
1
1310-1310
8
VALVE; TIRE
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REAR
1-42370-020-3
04
1
1311-
16
HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170
8-98167-052-0
02
1
1311-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>
1-42374-001-0
07
1
1310-
