2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#12898) — 20 parça

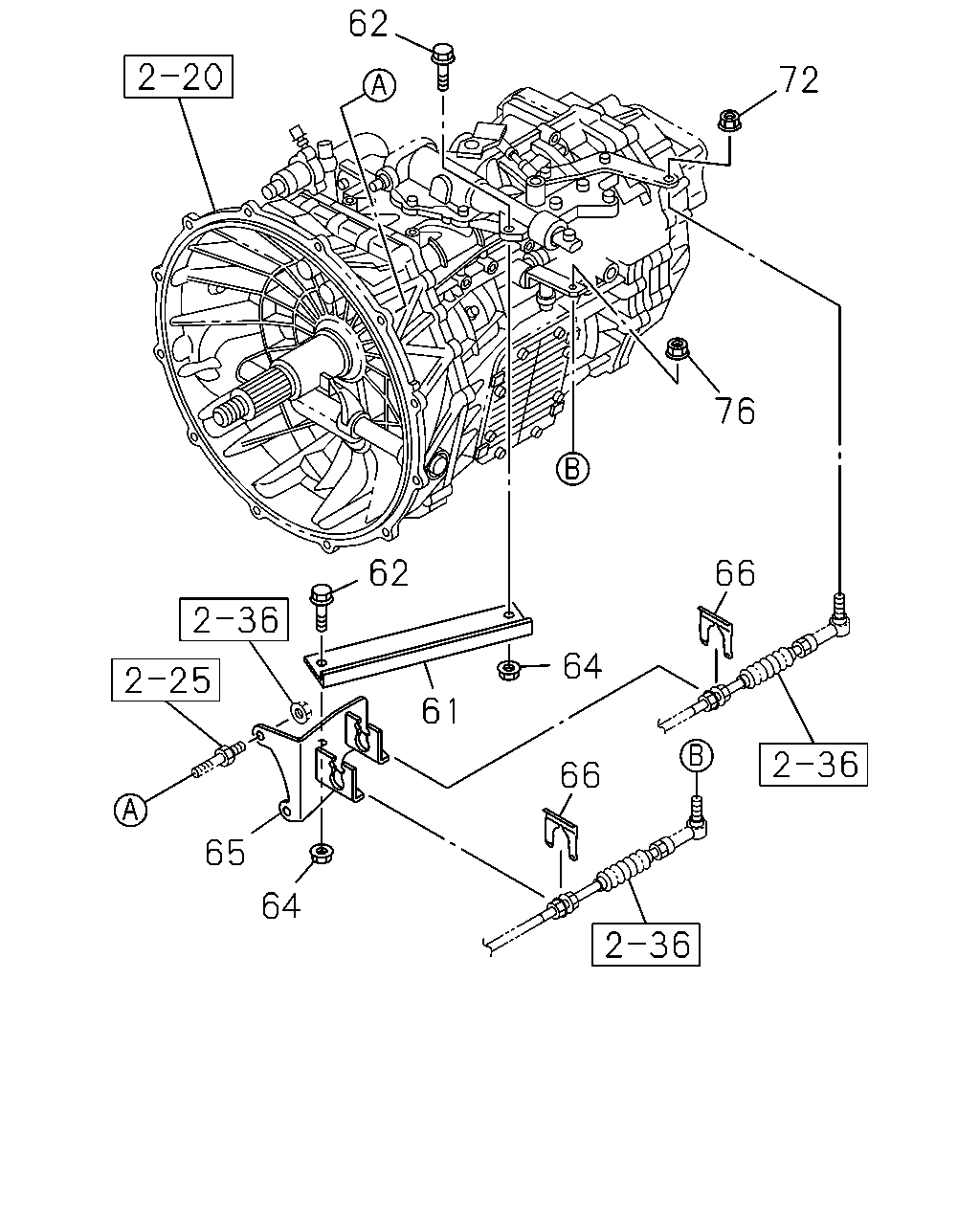

çizim 98491
62 72 76 62 66 64 61 66 65 64
BalonParca AdiParca NoAdetTipApplied Date
61 STAY; BRKT,TRANS CONT
MZW6P M/T<RSZ> 		1-33657-267-0 01 1 1103-
62 BOLT; STAY
MZW6P M/T<RSZ> M10X30 FLANGE THA 		0-28651-030-0 02 1 1103-
64 NUT; STAY
MZW6P M/T<RSZ> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T<Y5D> 		8-98017-430-1 01 1 0807-1102
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T<RSZ> 		8-98017-428-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T<Y5E> 		8-98060-386-0 01 1 0807-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0807-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0807-
76 NUT; BALL JOINT,SELECT WIRE
MZW6P M/T<RSZ> M8 FLANGE 		1-09440-049-0 01 1 1103-
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0807-1102
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T<Y5E> M10 FLANGE 		1-09440-056-0 01 1 1103-

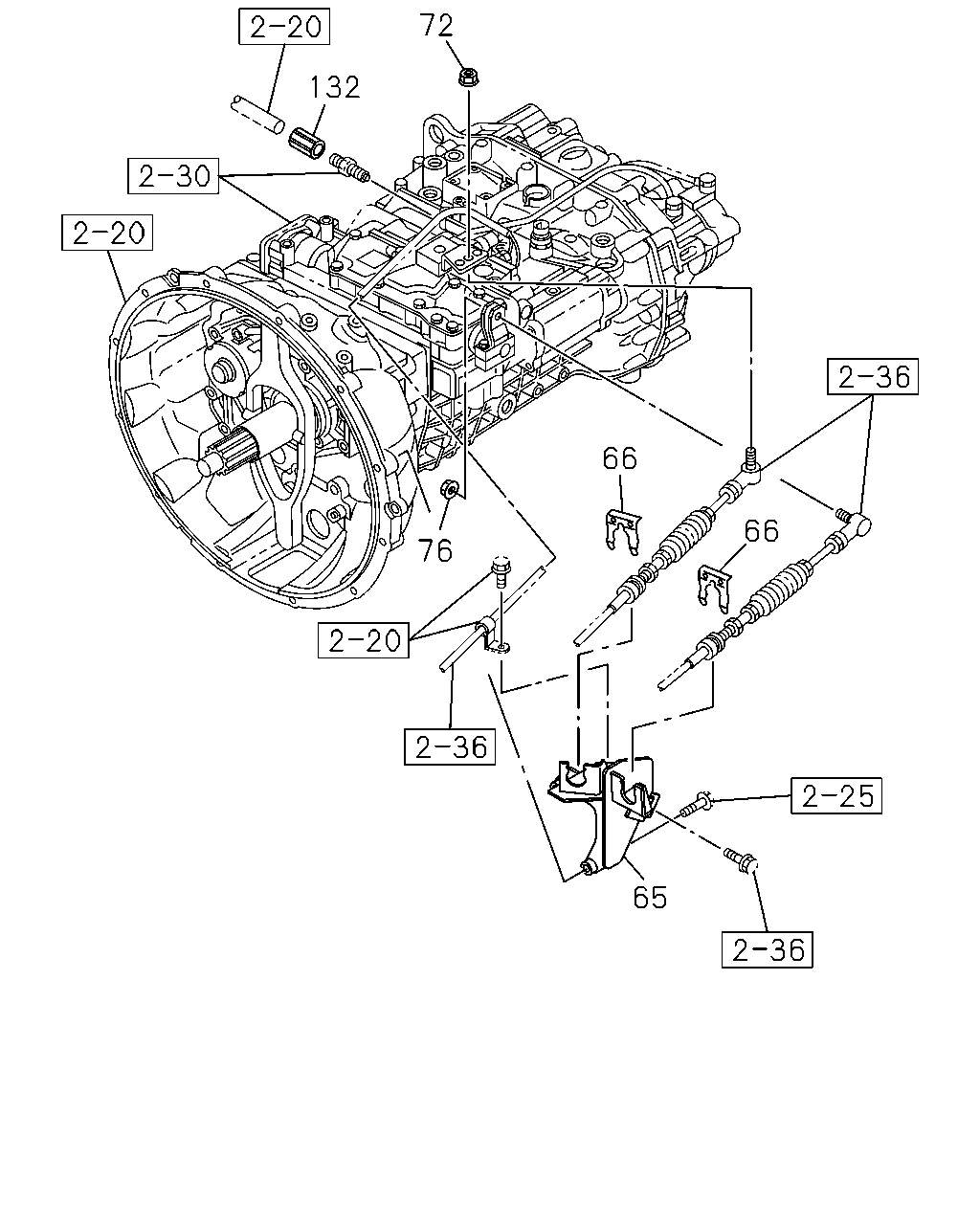

çizim 107150
72 132 66 66 76 65
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T<Y5D> 		8-98017-430-1 01 1 0807-1102
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T<RSZ> 		8-98017-428-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T<Y5E> 		8-98060-386-0 01 1 0807-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0807-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0807-
76 NUT; BALL JOINT,SELECT WIRE
MZW6P M/T<RSZ> M8 FLANGE 		1-09440-049-0 01 1 1103-
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0807-1102
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T<Y5E> M10 FLANGE 		1-09440-056-0 01 1 1103-
132 CONNECTOR; FLEX HOSE
ZF9S1110 M/T<Y5E> DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0807-
