4-50 — FRONT SUSPENSION
(#128978) — 30 parça
◀
[450A] FRONT STABILIZER SHAFT (4 parça)

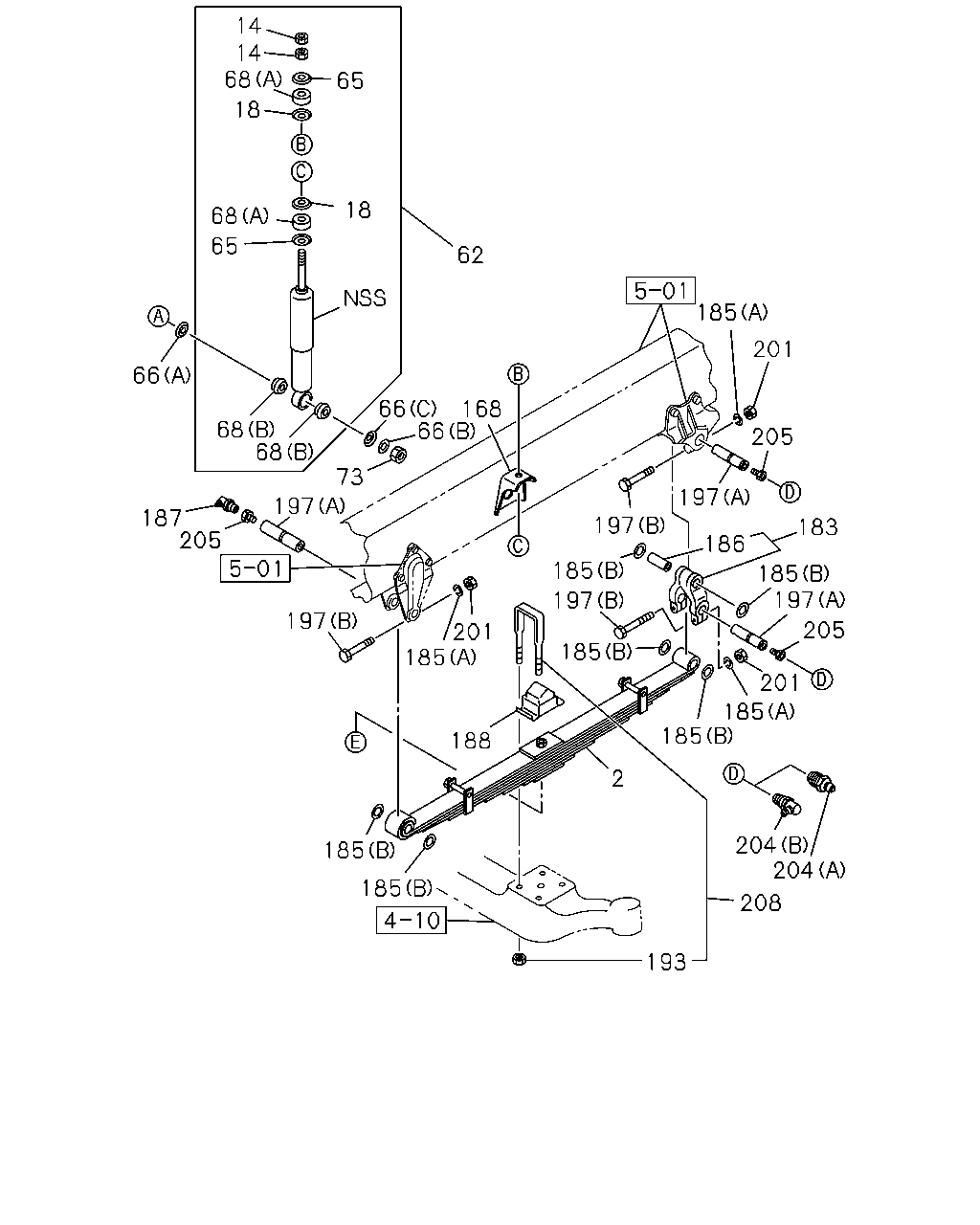

[450A] LEAF SPRING AND SHOCK ABSORBER (26 parça)
▶
138
377
140
377
137
137
377
140
377
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
8-98128-356-1
02
1
1310-
138
NUT; BRKT
M14
0-91110-514-0
06
1
1310-
140
BOLT; BRKT
M14X45
9-92061-445-0
06
1
1310-
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
12
1
1310-
14
68
65
14
18
68
18
62
65
66
68
66
68
187
197
73
66
168
185
205
201
197
185
185
185
185
188
2
193
208
204
185
197
197
185
201
186
197
201
185
185
183
197
205
205
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98010-512-0
02
1
1310-
14
NUT; S/ABS,UPR
M12
8-98010-412-0
04
1
1310-
18
WASHER; CENTERING,S/ABS
ID=16.8
1-51631-022-0
04
1
1310-
62
ABSORBER ASM; SHOCK,FRT
8-98021-302-0
02
1
1310-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1310-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1310-
66
WASHER; LK,S/ABS SETTING
(A) ID=23
1-51631-019-0
02
1
1310-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1310-
68
BUSHING; S/ABS
(B)
1-51631-009-1
04
1
1310-
68
BUSHING; S/ABS
(A)
9-51631-050-0
04
1
1310-
73
NUT; BRKT,SHOCK
M16
0-91110-516-0
02
1
1310-
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
1310-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1310-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1310-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1310-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1310-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1310-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-096-2
02
1
1310-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1310-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1310-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1310-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1310-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1310-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1310-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1310-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1310-
