4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#128974) — 55 parça

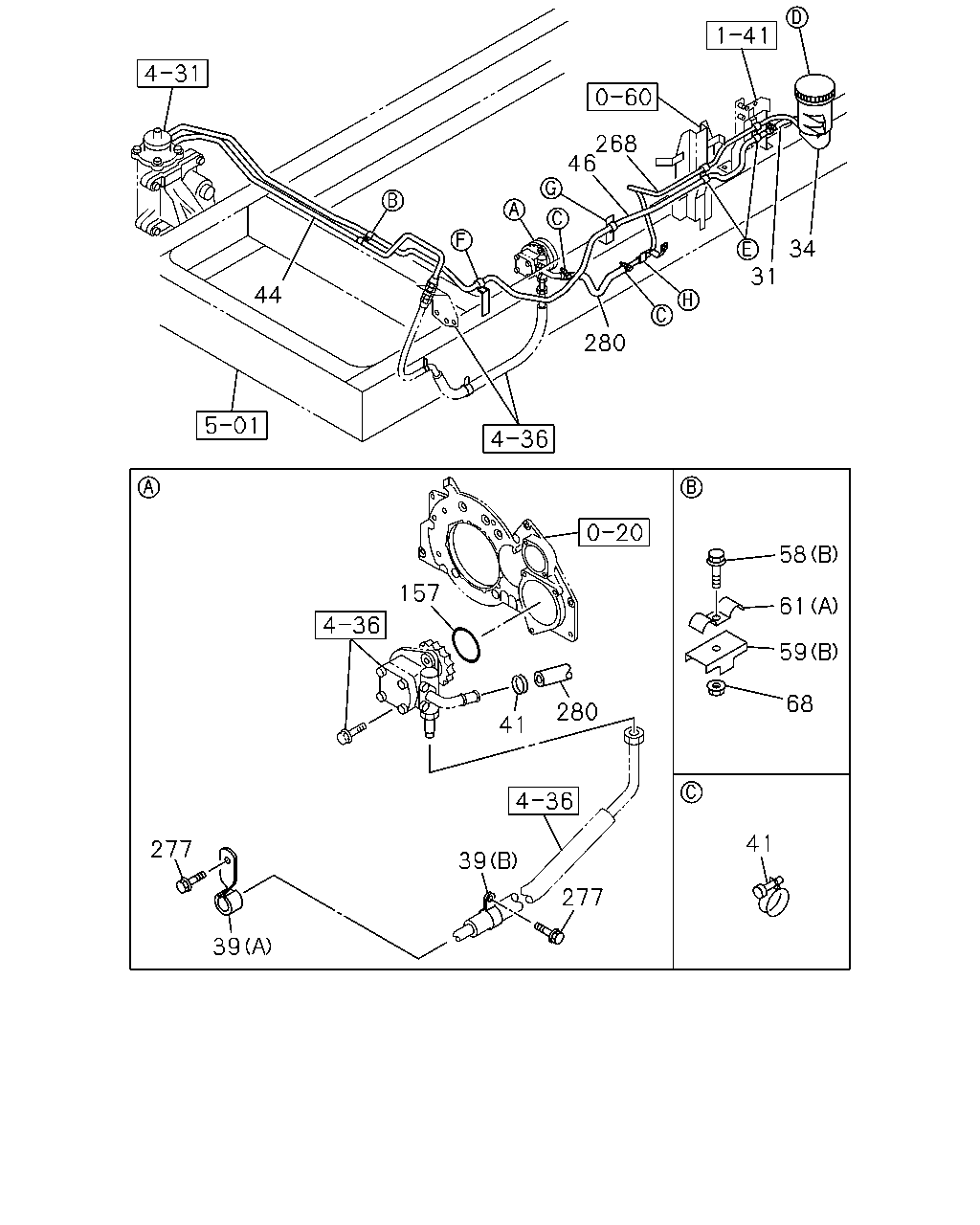

34 31 44 280 268 46 157 58 61 59 68 41 277 280 39 41 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1310-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1310-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1310-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1310-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION SEMI FLOATING<SDK> L=2775	8-98092-721-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=2696	8-98096-303-0	01	1	1310-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1310-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1310-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1310-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1310-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1310-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1310-
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1310-

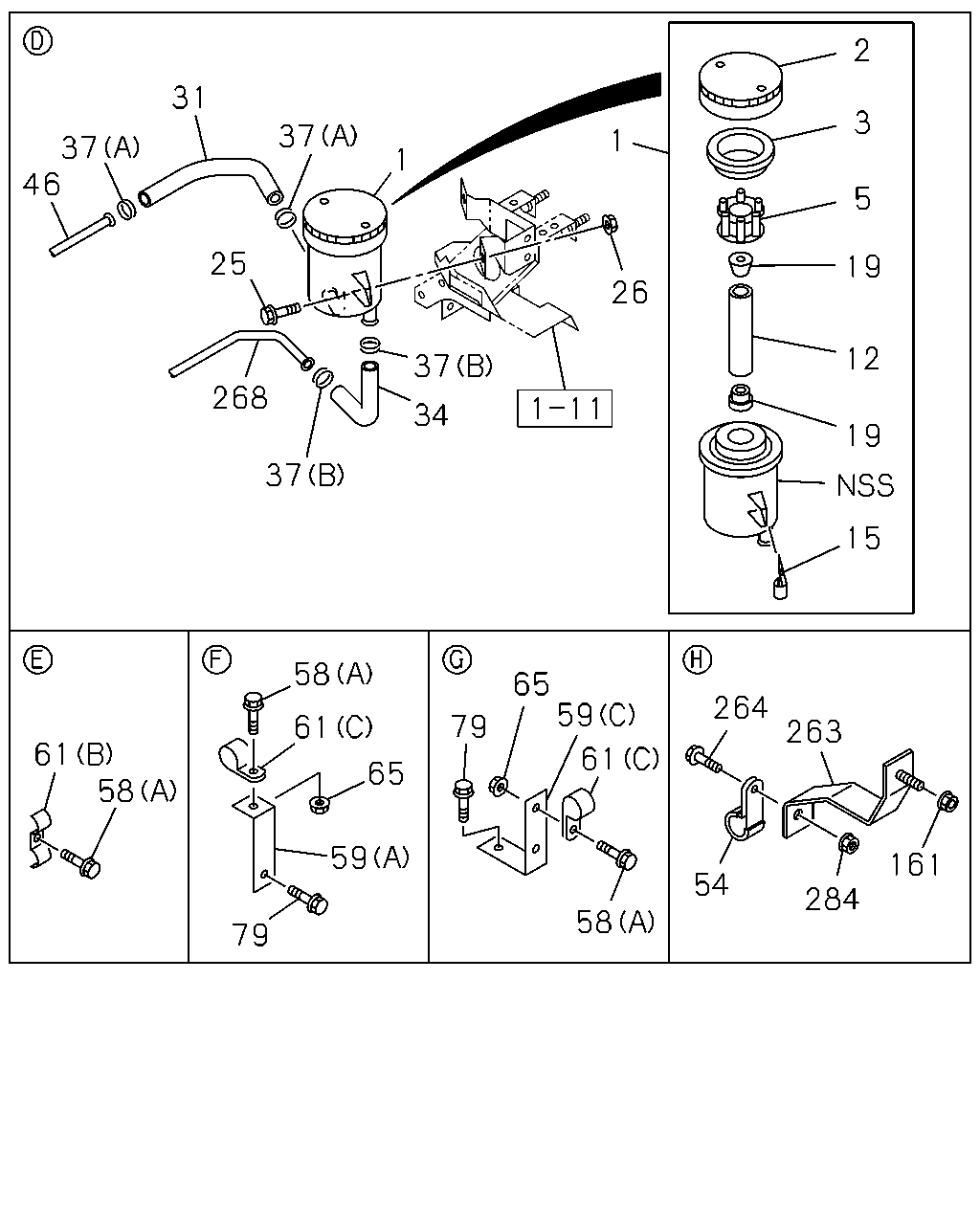

1 2 3 5 19 12 19 15 37 31 1 25 268 37 37 46 34 26 37 61 58 58 61 65 59 79 79 65 59 61 58 264 263 161 284 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1310-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1310-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1310-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1310-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1310-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1310-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1310-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1310-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1310-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1310-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION SEMI FLOATING<SDK> L=2775	8-98092-721-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=2696	8-98096-303-0	01	1	1310-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1310-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1310-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1310-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1310-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1310-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1310-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1310-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1310-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1310-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1310-
