◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#128971) — 25 parça

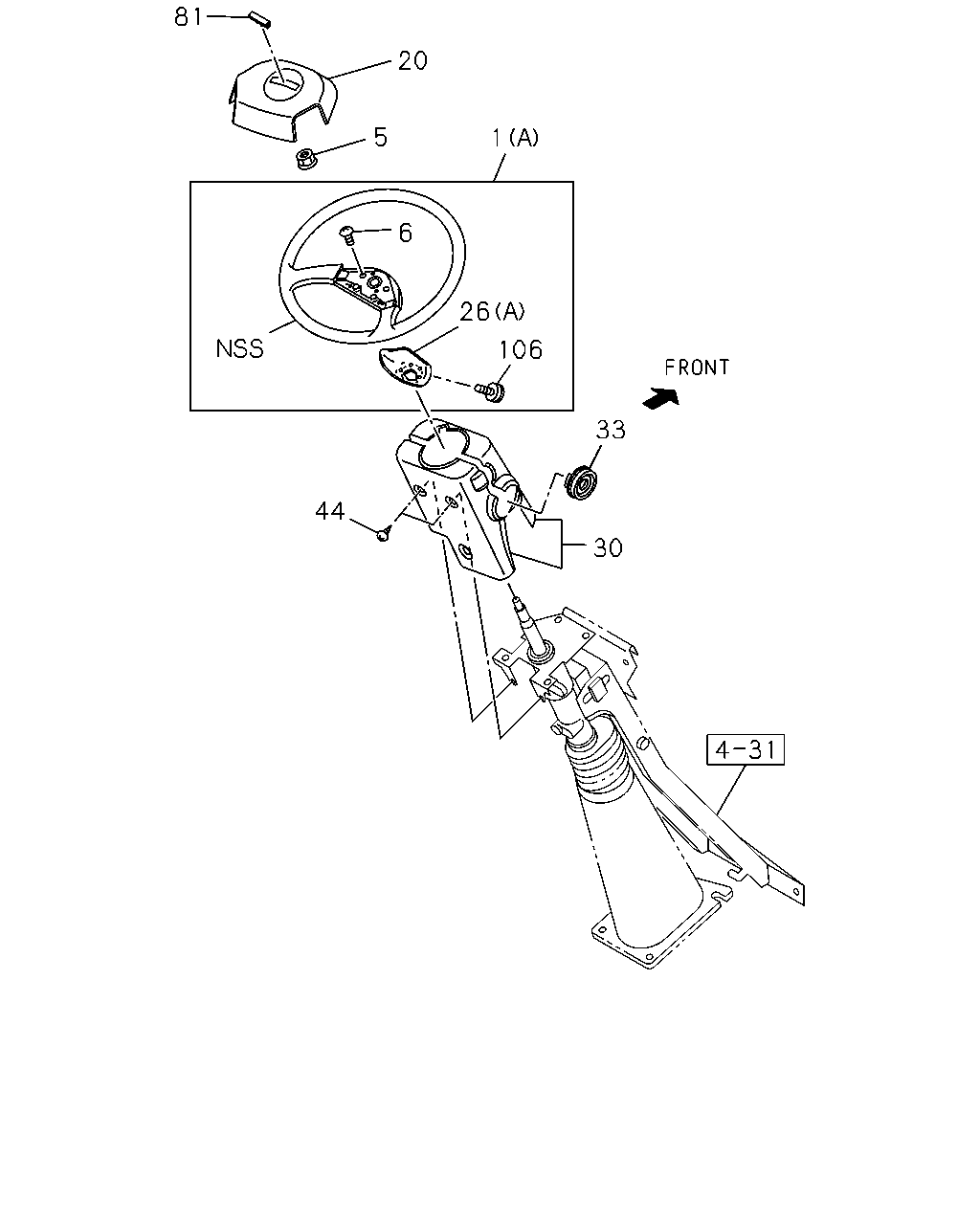

çizim 379847
81 20 5 1 6 26 106 33 30 44
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
AIR BAG DRIVER(AJ3) (B) DARK GRAY 		8-97423-998-0 01 1 1310-
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY 		8-97412-555-1 01 1 1310-
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1310-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3) M4X12 		8-97167-588-0 04 1 1310-
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97405-985-1 01 1 1310-
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3) (B) DARK GRAY 		8-97421-978-0 01 1 1310-
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY 		8-97409-275-2 01 1 1310-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 1310-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 1310-
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1310-
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1310-
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97405-986-0 01 1 1310-
106 BOLT; TORX 8-98231-397-0 02 1 1310-

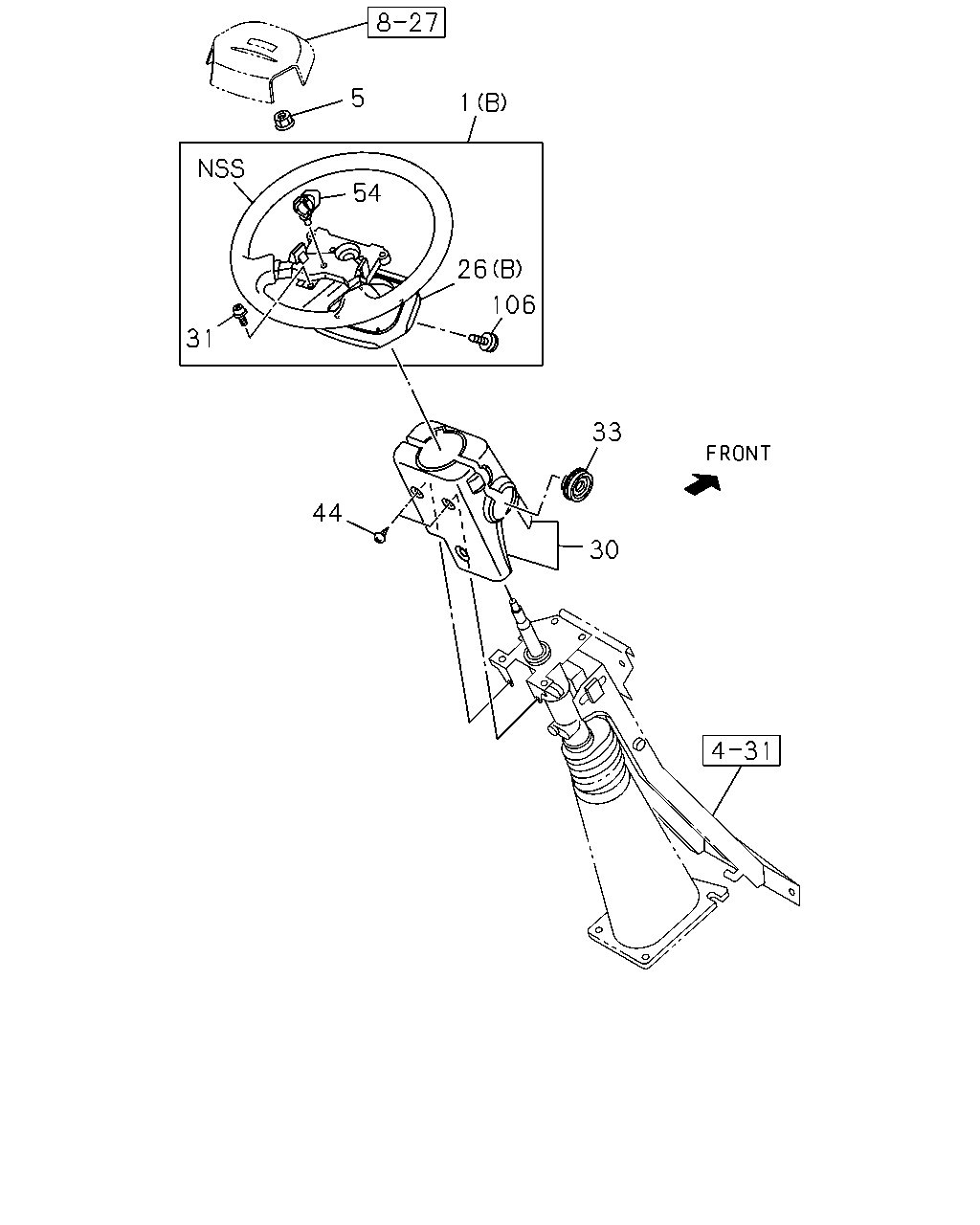

çizim 379881
33 30 44 31 54 1 5 106 26
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
AIR BAG DRIVER(AJ3) (B) DARK GRAY 		8-97423-998-0 01 1 1310-
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY 		8-97412-555-1 01 1 1310-
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1310-
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3) (B) DARK GRAY 		8-97421-978-0 01 1 1310-
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY 		8-97409-275-2 01 1 1310-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 1310-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 1310-
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3) M4X12 		8-97167-588-0 04 1 1310-
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1310-
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1310-
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3) 		8-98165-703-0 01 1 1310-
106 BOLT; TORX 8-98231-397-0 02 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
