◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#128970) — 72 parça

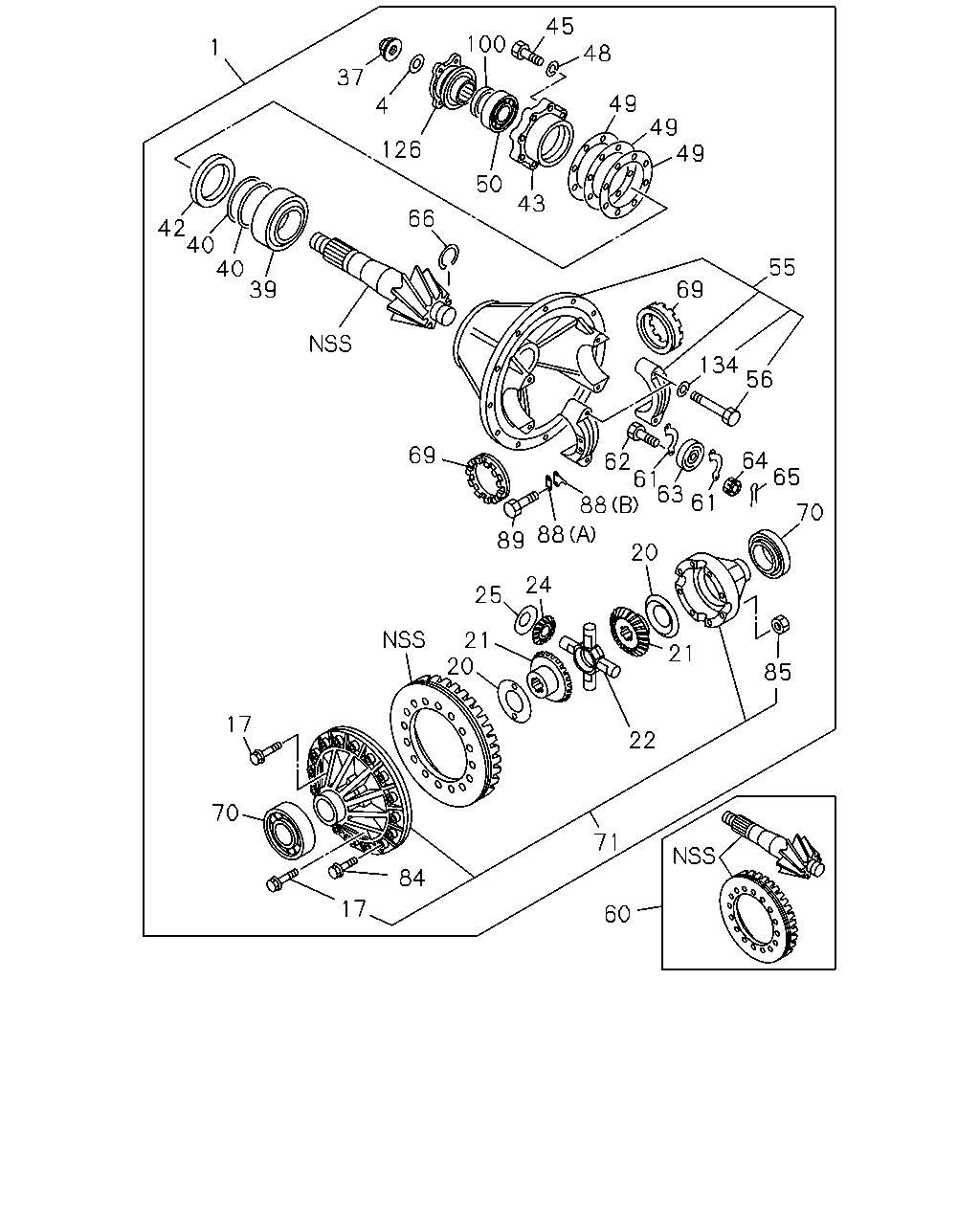

çizim 381435
69 55 134 62 88 88 89 69 20 63 61 85 21 22 71 60 84 17 70 17 21 24 25 20 61 65 64 56 70 66 43 50 126 4 37 100 45 49 48 49 39 40 49 1 42 40
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-257-0 01 1 1310-
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1310-
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 1310-
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 1310-
21 GEAR; SIDE,DIFF
Z=16 		1-41561-159-1 02 1 1310-
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 1310-
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 1310-
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 1310-
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 1310-
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 1310-
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 1310-
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 1310-
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 1310-
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 1310-
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 1310-
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 1310-
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 1310-
43 CAGE; FINAL PINION 1-41151-028-1 01 1 1310-
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 1310-
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1310-
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 1310-
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 1310-
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 1310-
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 1310-
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1310-
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1310-
55 CARRIER; DIFF 1-41110-052-0 01 1 1310-
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 1310-
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 1310-
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1310-
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 1310-
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1310-
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1310-
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1310-
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1310-
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1310-
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 1310-
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 1310-
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1310-
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 1310-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 1310-
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1310-
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1310-
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 1310-
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 1310-
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1310-
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1310-
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 1310-
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 1310-
