◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#12897) — 58 parça

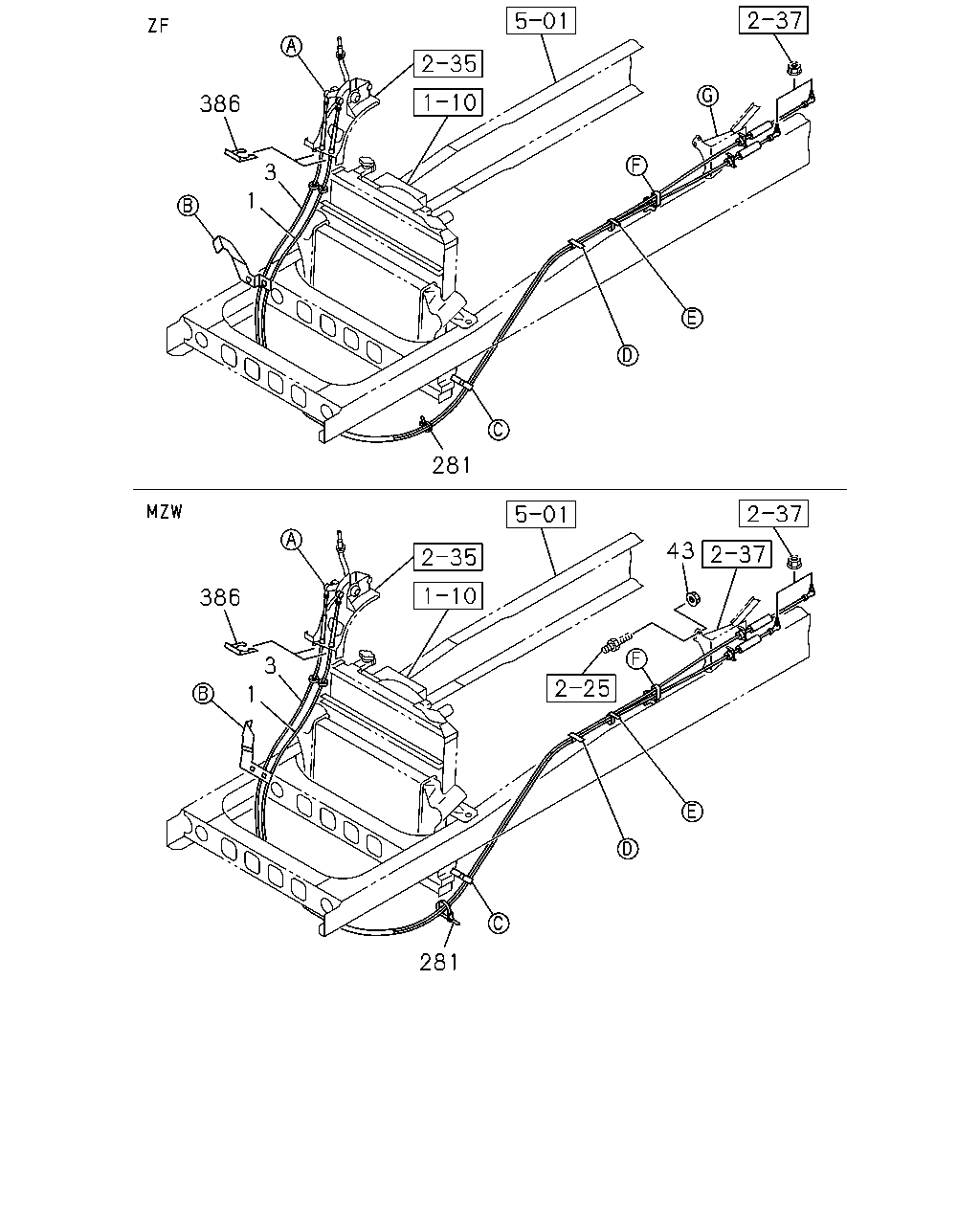

çizim 98288
386 3 1 281 43 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> MZW6P M/T<RSZ> L=3510 		8-98017-469-3 01 1 1103-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG<80L> ZF9S1110 M/T<Y5E> L=3600 THA 		8-98017-474-5 01 1 0807-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> ZF6S1000 M/T<Y5D> L=3510 		8-98017-477-2 01 1 0807-1102
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> ZF9S1110 M/T<Y5E> L=3535 THA 		8-98047-801-4 01 1 0807-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> MZW6P M/T<RSZ> L=3690 		8-98010-474-2 01 1 1103-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG<80L> ZF9S1110 M/T<Y5E> L=3560 		8-98017-495-3 01 1 0807-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> ZF6S1000 M/T<Y5D> L=3480 		8-98017-498-1 01 1 0807-1102
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> ZF9S1110 M/T<Y5E> L=3505 THA 		8-98047-815-2 01 1 0807-
43 NUT; BRKT
MZW6P M/T<RSZ> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
281 CLIP; BAND
6HK1-TCS ENG<80L> L=300 		1-09707-001-1 01 1 0807-0808
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0807-

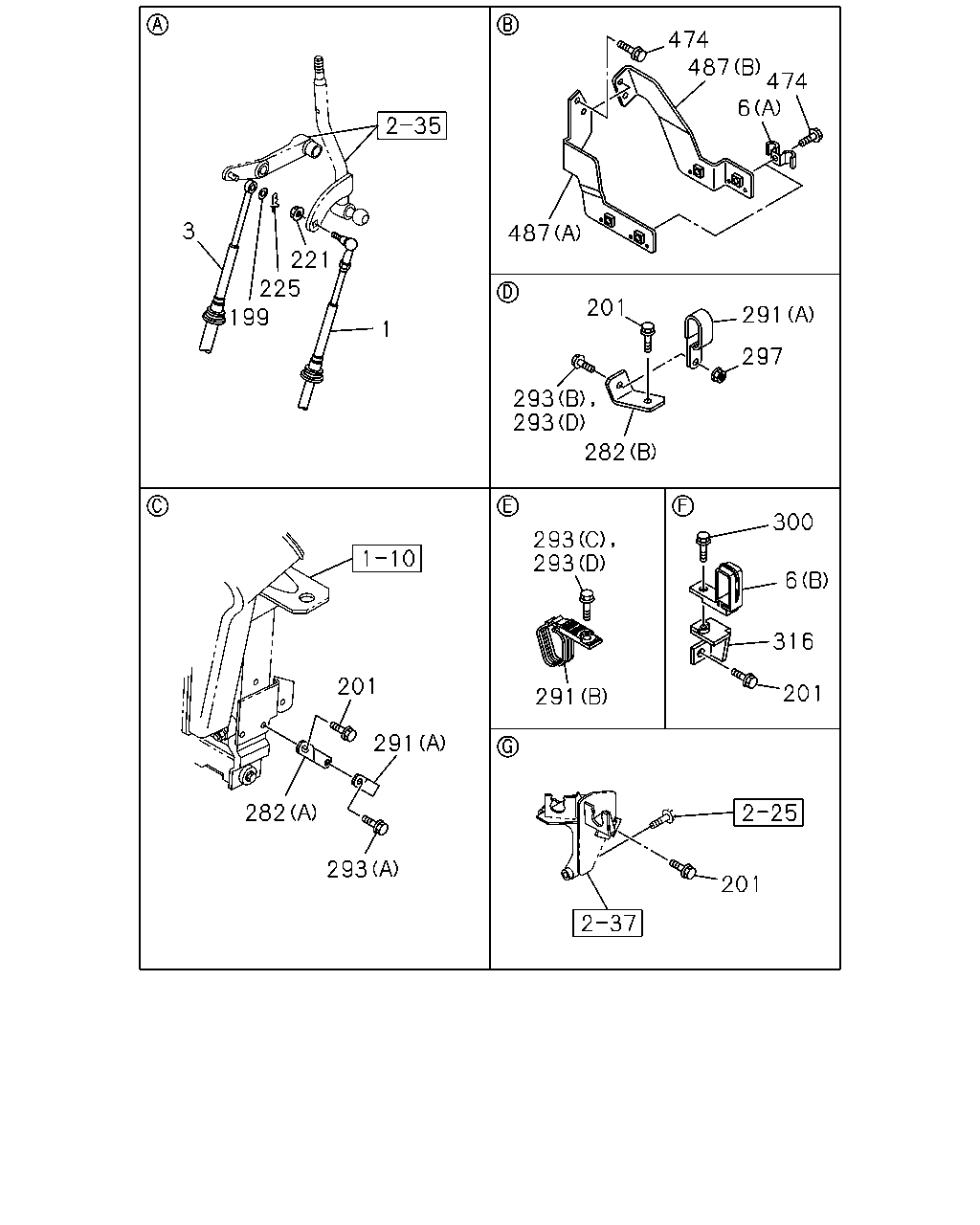

çizim 98373
474 487 474 6 3 487 221 225 201 291 199 1 297 293 293 282 300 293 293 6 316 201 201 291 291 282 293 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> MZW6P M/T<RSZ> L=3510 		8-98017-469-3 01 1 1103-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG<80L> ZF9S1110 M/T<Y5E> L=3600 THA 		8-98017-474-5 01 1 0807-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> ZF6S1000 M/T<Y5D> L=3510 		8-98017-477-2 01 1 0807-1102
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> ZF9S1110 M/T<Y5E> L=3535 THA 		8-98047-801-4 01 1 0807-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> MZW6P M/T<RSZ> L=3690 		8-98010-474-2 01 1 1103-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG<80L> ZF9S1110 M/T<Y5E> L=3560 		8-98017-495-3 01 1 0807-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> ZF6S1000 M/T<Y5D> L=3480 		8-98017-498-1 01 1 0807-1102
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> ZF9S1110 M/T<Y5E> L=3505 THA 		8-98047-815-2 01 1 0807-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0807-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0807-1102
6 CLIP; CABLE
ZF9S1110 M/T<Y5E> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1103-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0807-
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 02 1 0905-1102
201 BOLT; BRKT
ZF6S1000 M/T<Y5D> M16X25 FLANGE 		0-28851-625-0 01 1 0807-1102
201 BOLT; BRKT
ZF9S1110 M/T<Y5E> M12X35 FLANGE 		0-28151-235-0 01 1 0807-
201 BOLT; BRKT
M8X20 FLANGE THA 		0-28050-820-0 01 1 0807-0904
201 BOLT; BRKT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0905-1102
201 BOLT; BRKT
M8X20 FLANGE THA 		0-28050-820-0 01 1 1103-
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-0904
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-0904
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0905-1102
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1103-
201 BOLT; BRKT
ZF9S1110 M/T<Y5E> M8X16 FLANGE THA 		0-28050-816-0 01 1 1103-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0807-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0807-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG<80L> (A) 		8-98098-265-2 01 1 0807-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG<82L> (A) 		8-98010-418-0 01 1 0807-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0807-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0807-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0807-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1103-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807-0904
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0905-1102
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1103-
293 BOLT; CLIP,SHIFT TO SELECT
(D) M8X25 FLANGE THA 		0-28050-825-0 02 1 0807-1102
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X25 FLANGE THA 		0-28050-825-0 01 1 1103-
297 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0807-
300 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-1102
300 BOLT; CLIP
ZF9S1110 M/T<Y5E> M8X20 FLANGE THA 		0-28650-820-0 01 1 1103-
316 BRACKET; CLIP 8-98086-439-0 01 1 0807-1102
316 BRACKET; CLIP
ZF9S1110 M/T<Y5E> 		8-98086-439-0 01 1 1103-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0807-
487 BRACKET; CONT CABLE
6HK1-TCS ENG<80L> (A) 		8-98100-413-0 01 1 0807-
487 BRACKET; CONT CABLE
6HK1-TCN ENG<82L> (B) 		8-98021-920-2 01 1 0807-1012
487 BRACKET; CONT CABLE
6HK1-TCN ENG<82L> (B) 		8-98183-009-0 01 1 1101-
