◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#128966) — 164 parça

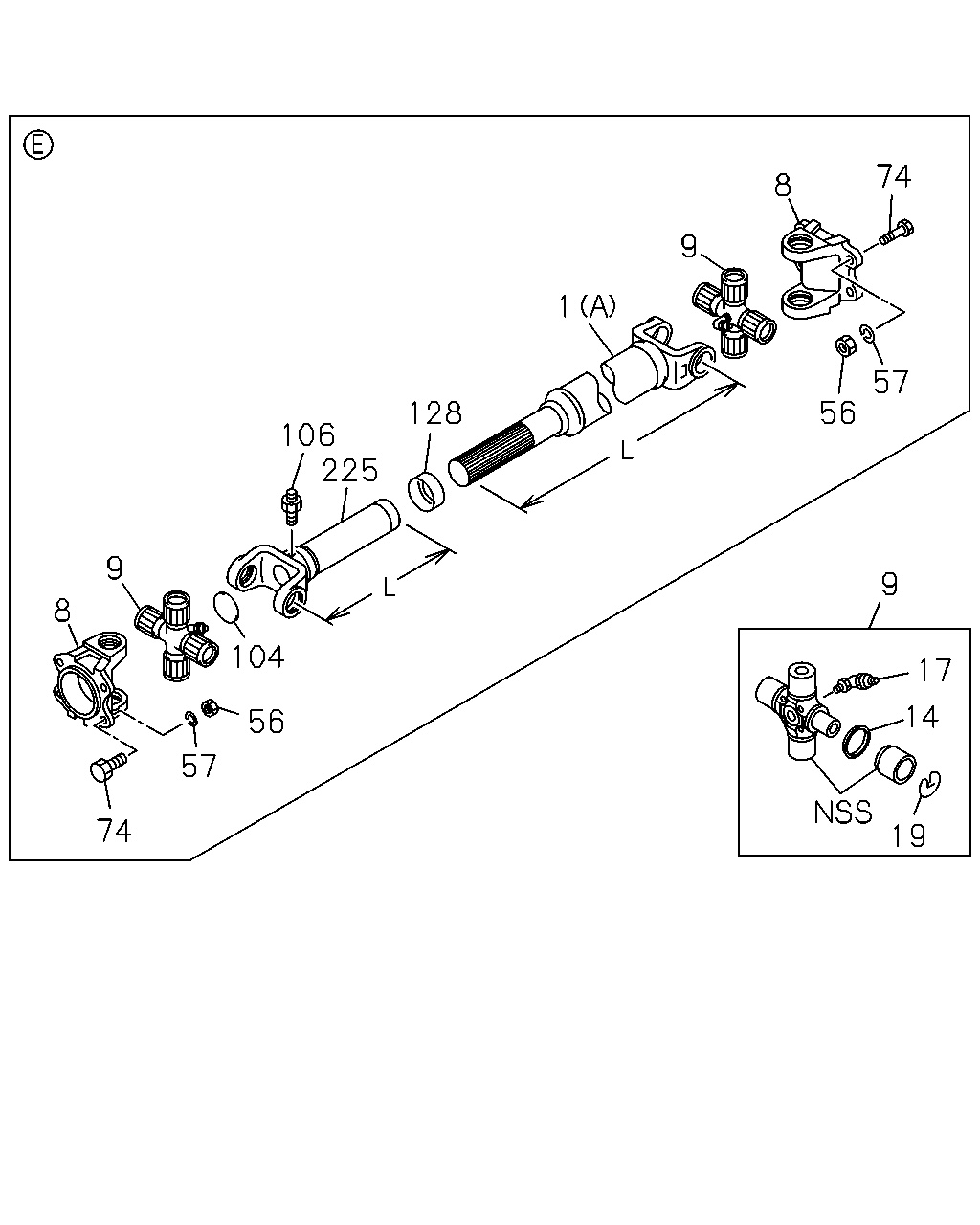

çizim 380423
8 74 57 56 9 17 14 19 9 1 128 225 106 104 9 8 57 74 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439 		8-98069-598-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98090-935-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1310- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1310- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1310- ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1310- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1310- ● ●

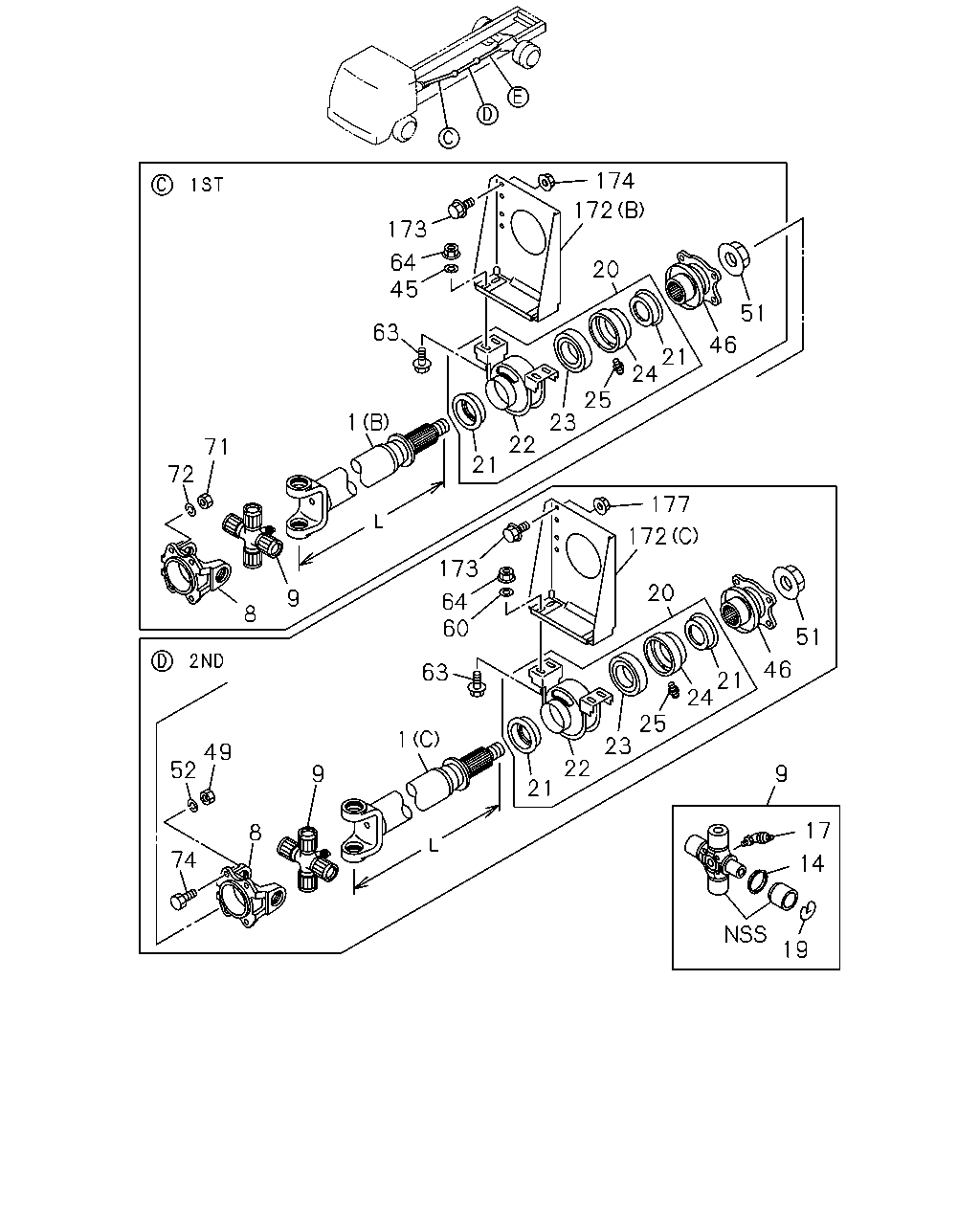

çizim 381493
174 172 20 21 46 51 25 24 177 20 172 51 46 21 24 25 23 22 21 173 45 64 63 1 9 8 71 72 9 63 64 60 173 1 49 52 74 9 17 14 19 21 22 23 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439 		8-98069-598-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98090-935-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1310- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1310- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1310- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1310- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1310- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1310- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-102-0 01 1 1310- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●

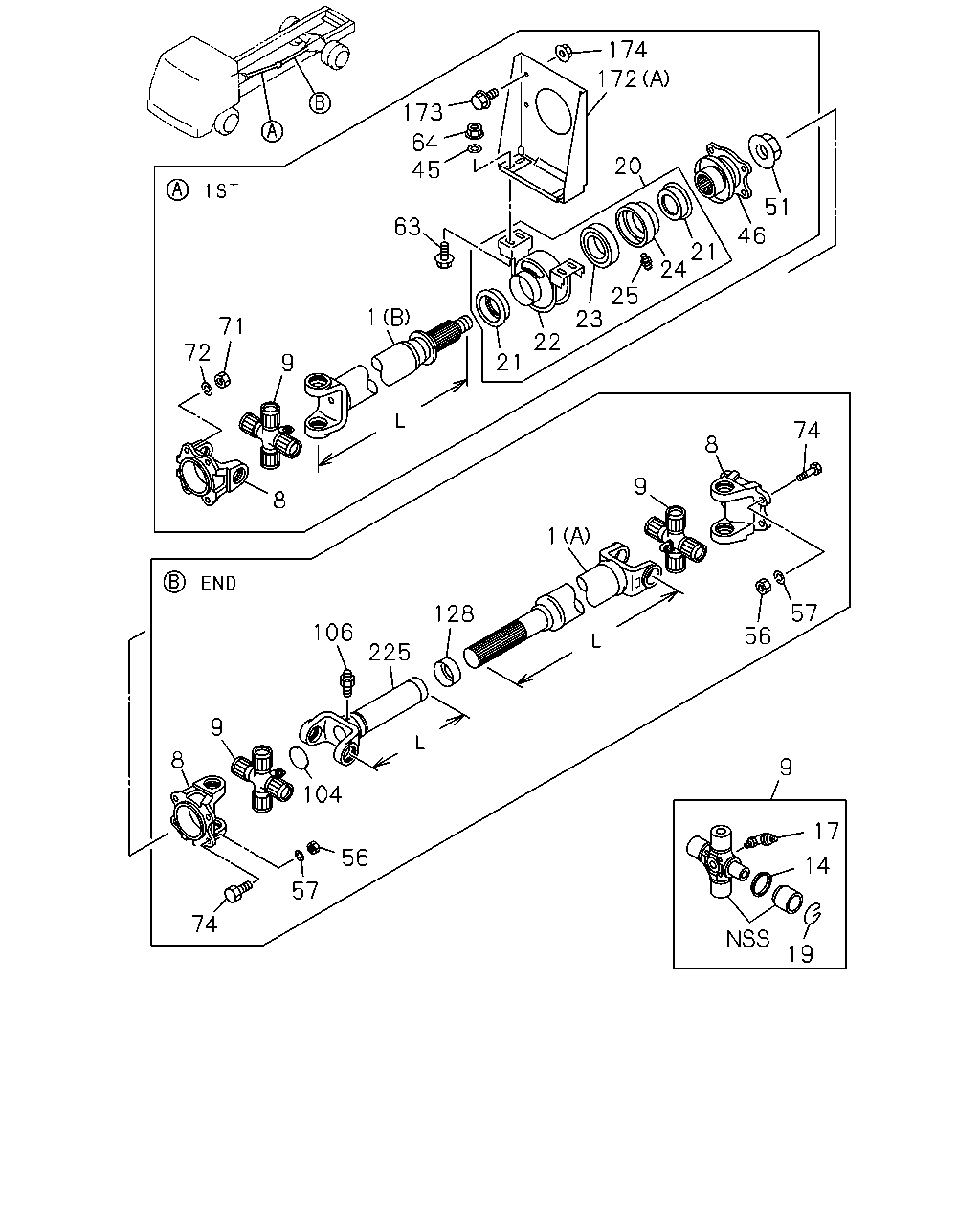

çizim 381767
72 71 1 63 45 64 173 21 22 23 25 24 21 46 51 74 8 57 56 9 1 128 225 106 104 56 57 9 17 14 19 20 74 9 8 8 9 174 172
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439 		8-98069-598-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98090-935-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1310- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1310- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1310- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1310- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1310- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1310- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1310- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1310- ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1310- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-102-0 01 1 1310- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
