Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#128964) — 61 parça
◀

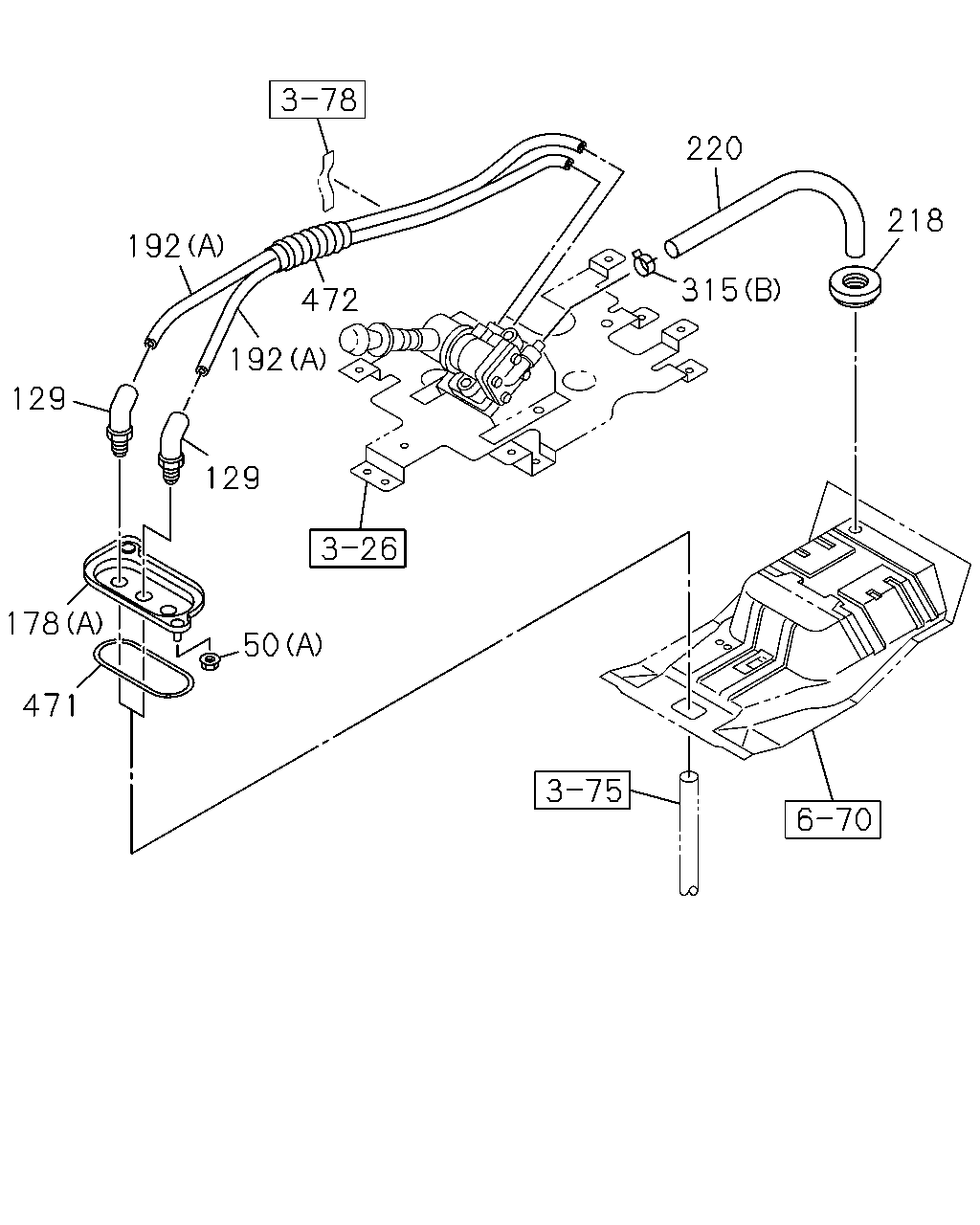

[377A] CAB SIDE (19 parça)

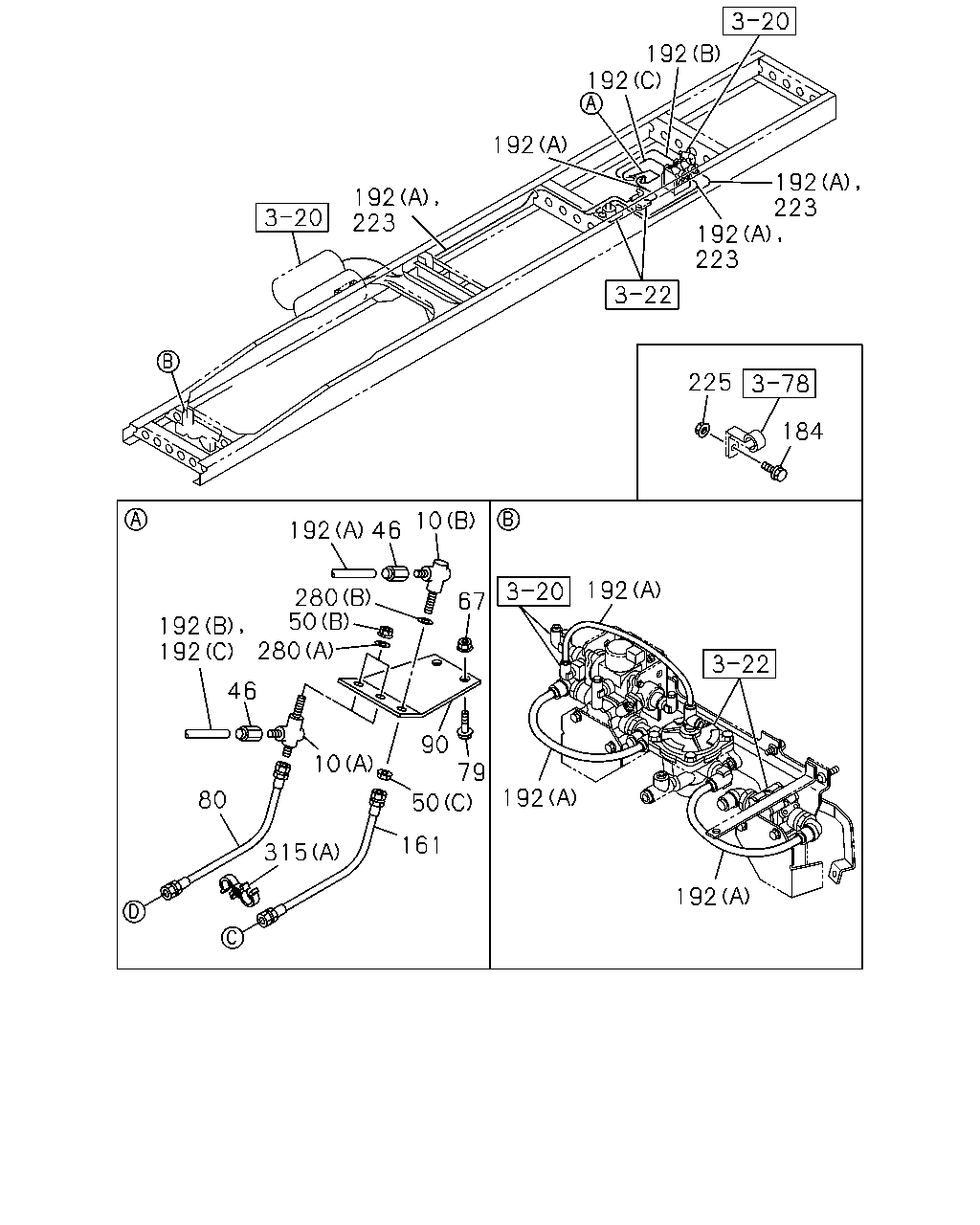

[377A] FRAME SIDE (24 parça)

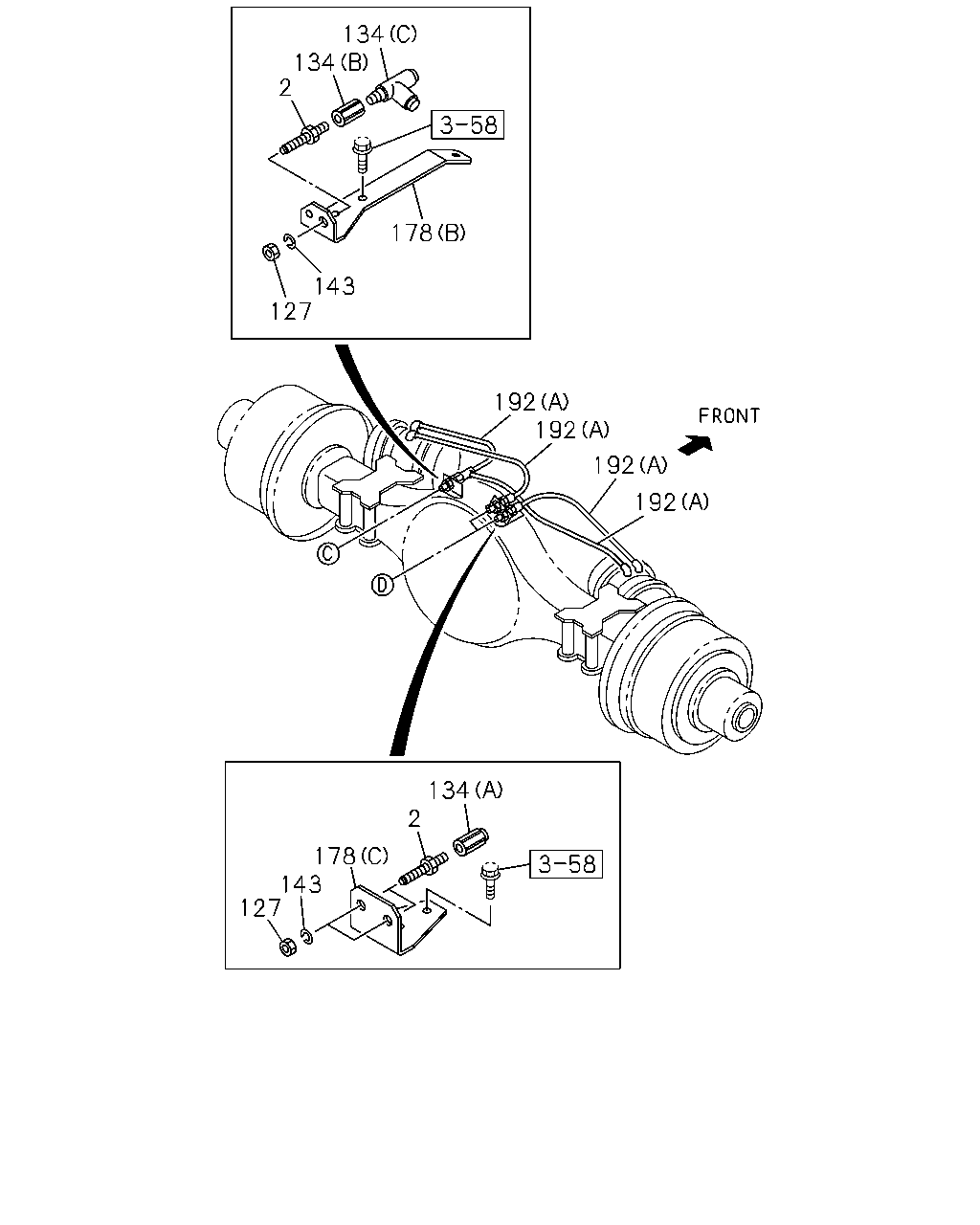

[377A] REAR AXLE SIDE (18 parça)
▶
192
192
472
315
218
220
50
178
471
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
1310-
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
1310-
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1310-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
02
1
1310-
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
1310-
178
BRACKET; UNION
(B)
8-98057-822-0
01
1
1310-
178
BRACKET; UNION
(C)
8-98057-823-0
01
1
1310-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
1310-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1310-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1310-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1310-
315
CLIP
(B) ID=14
8-94238-572-0
01
1
1310-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
1310-
471
SEAL; BRKT
1-79738-832-0
01
1
1310-
472
TUBE; SPUTTER
8-98067-708-0
01
1
1310-
184
225
223
192
223
192
192
192
192
192
223
10
46
192
67
280
192
192
79
90
50
161
315
80
10
50
280
192
192
192
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
(B) M16 ELBOW
0-92135-210-0
01
1
1310-
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
02
1
1310-
46
NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
03
1
1310-
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
1310-
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
1310-
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1310-
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
1310-
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1310-
80
HOSE; FLEX,POWER CHAMBER
L=580
1-09363-772-0
02
1
1310-
90
BRACKET; PIPE UNION
1-47477-851-1
01
1
1310-
161
HOSE; FLEX,QUICK RELEASE VLV
L=580
1-09363-772-0
01
1
1310-
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1310-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
1310-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1310-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1310-
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
280
WASHER; LK
(A) ID=12.2
0-91510-812-0
02
1
1310-
280
WASHER; LK
(B) ID=16.2
0-91510-816-0
01
1
1310-
315
CLIP
(B) ID=14
8-94238-572-0
01
1
1310-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
1310-
192
192
192
192
178
134
134
2
143
127
134
2
178
143
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 L=74
0-92123-310-0
01
1
1310-
2
UNION; AIR PIPE
M16 L=74
0-92123-310-0
02
1
1310-
127
NUT; UNION
M16
0-91111-516-0
01
1
1310-
127
NUT; UNION
M16
0-91111-516-0
02
1
1310-
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1310-
134
CONNECTOR
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1310-
134
CONNECTOR
(C) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
1310-
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
01
1
1310-
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
02
1
1310-
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
1310-
178
BRACKET; UNION
(B)
8-98057-822-0
01
1
1310-
178
BRACKET; UNION
(C)
8-98057-823-0
01
1
1310-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
1310-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1310-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1310-
