Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#128958) — 16 parça
◀

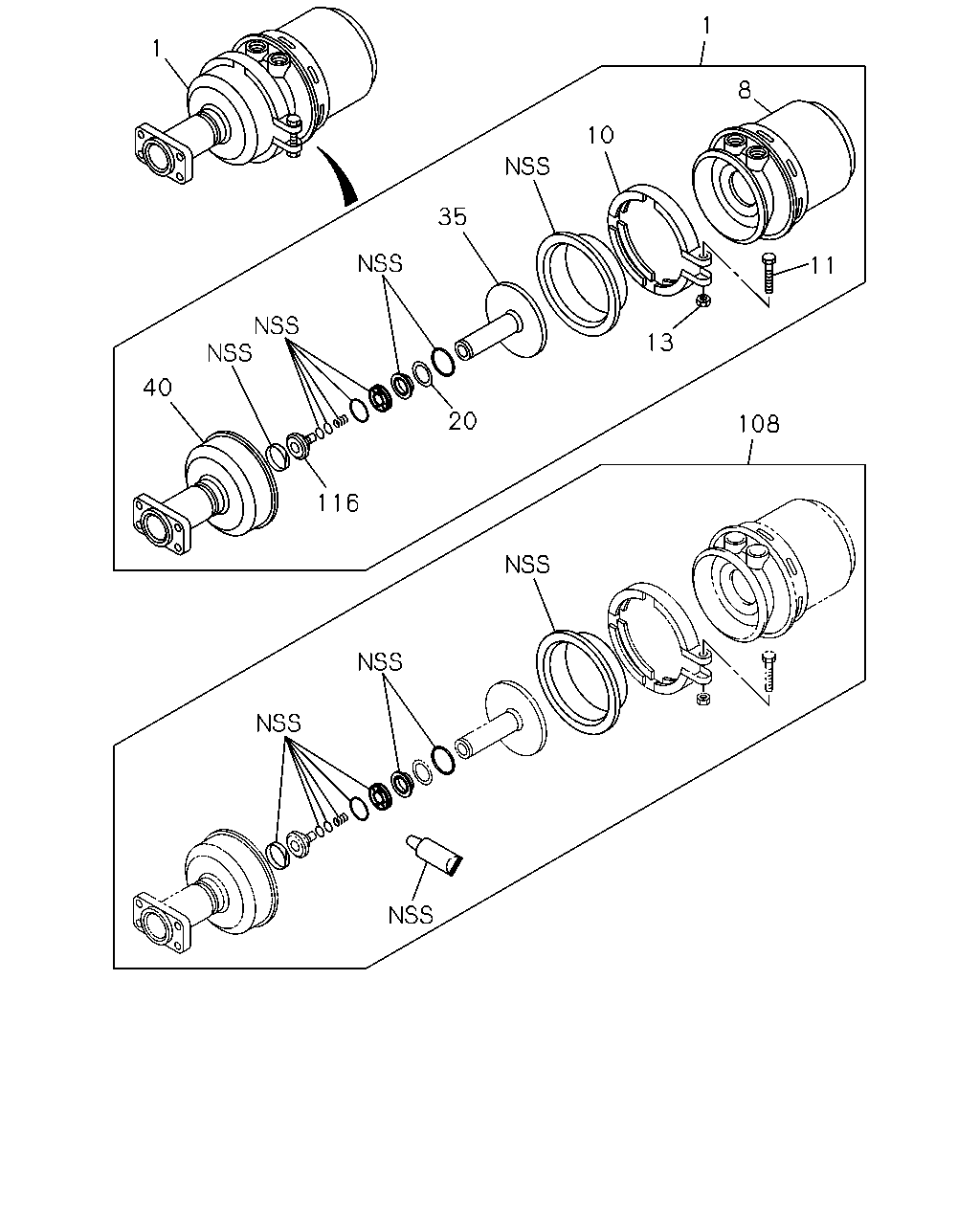

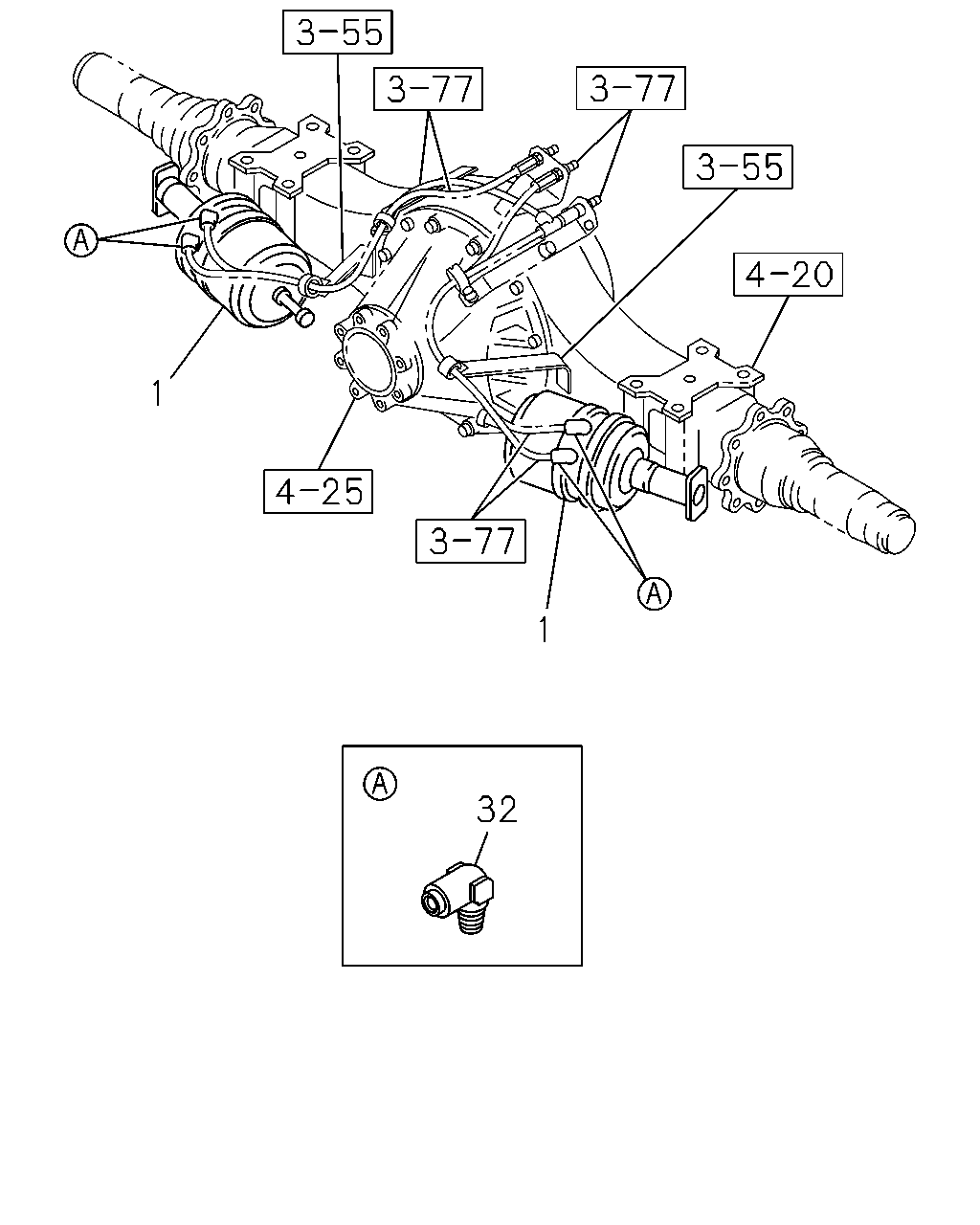

[341A] NO.2 (3 parça)
[341A] NO.1 (13 parça)
▶
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
8-98236-220-0
01
1
1310-
1
CHAMBER ASM; SPRING
8-98236-221-0
01
1
1310-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1310-
1
40
116
20
35
10
1
8
11
13
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
8-98236-220-0
01
1
1310-
1
CHAMBER ASM; SPRING
8-98236-221-0
01
1
1310-
8
SHELL; CYL,SPR CHAMBER
1-48251-173-1
01
1
1310-
8
SHELL; CYL,SPR CHAMBER
1-48251-174-1
01
1
1310-
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
1310-
11
BOLT; CLAMP RING
1-48269-232-0
02
1
1310-
13
NUT; CLAMP RING
1-48269-233-0
02
1
1310-
20
RING; RET
1-48269-236-0
02
1
1310-
35
PLATE; ROD END,SPR CHAMBER
1-48269-253-0
02
1
1310-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
1310-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
1310-
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
1310-
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
1310-
