3-22 — AIR CONTROL PARTS (#128954) — 131 parça
çizim 380136

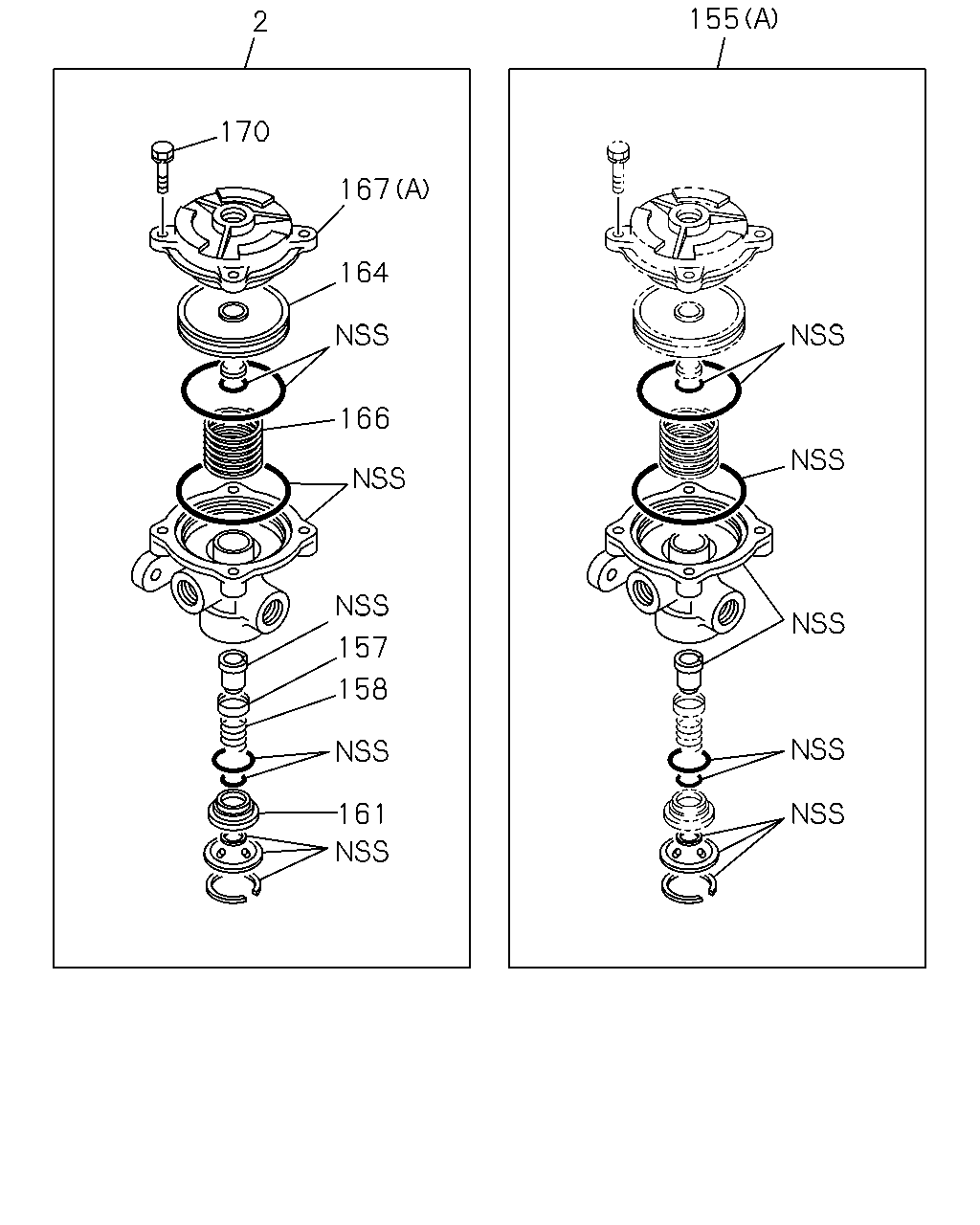

2 170 167 164 166 157 158 161 155
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
2 VALVE; RELAY 1-48210-875-0 02 1 1310-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1310-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1310-
157 RETAINER; VALVE 1-48213-002-0 02 1 1310-
158 SPRING; VALVE 1-47819-089-0 02 1 1310-
161 GUIDE; VALVE 1-48129-014-0 02 1 1310-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1310-
166 SPRING; PISTON 1-47819-090-0 02 1 1310-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1310-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1310-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1310-
çizim 380138

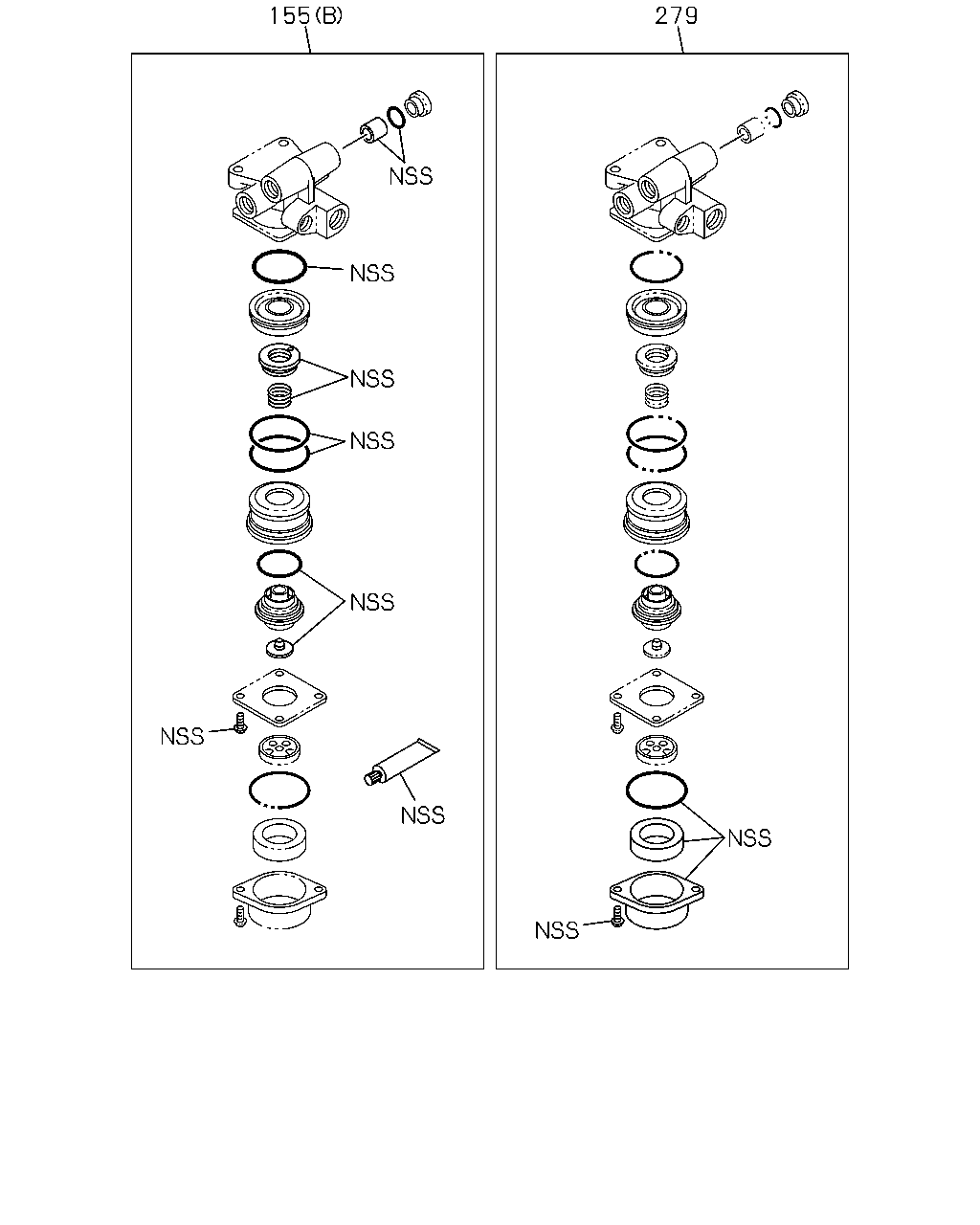

155 279
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1310-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1310-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1310-
çizim 380557

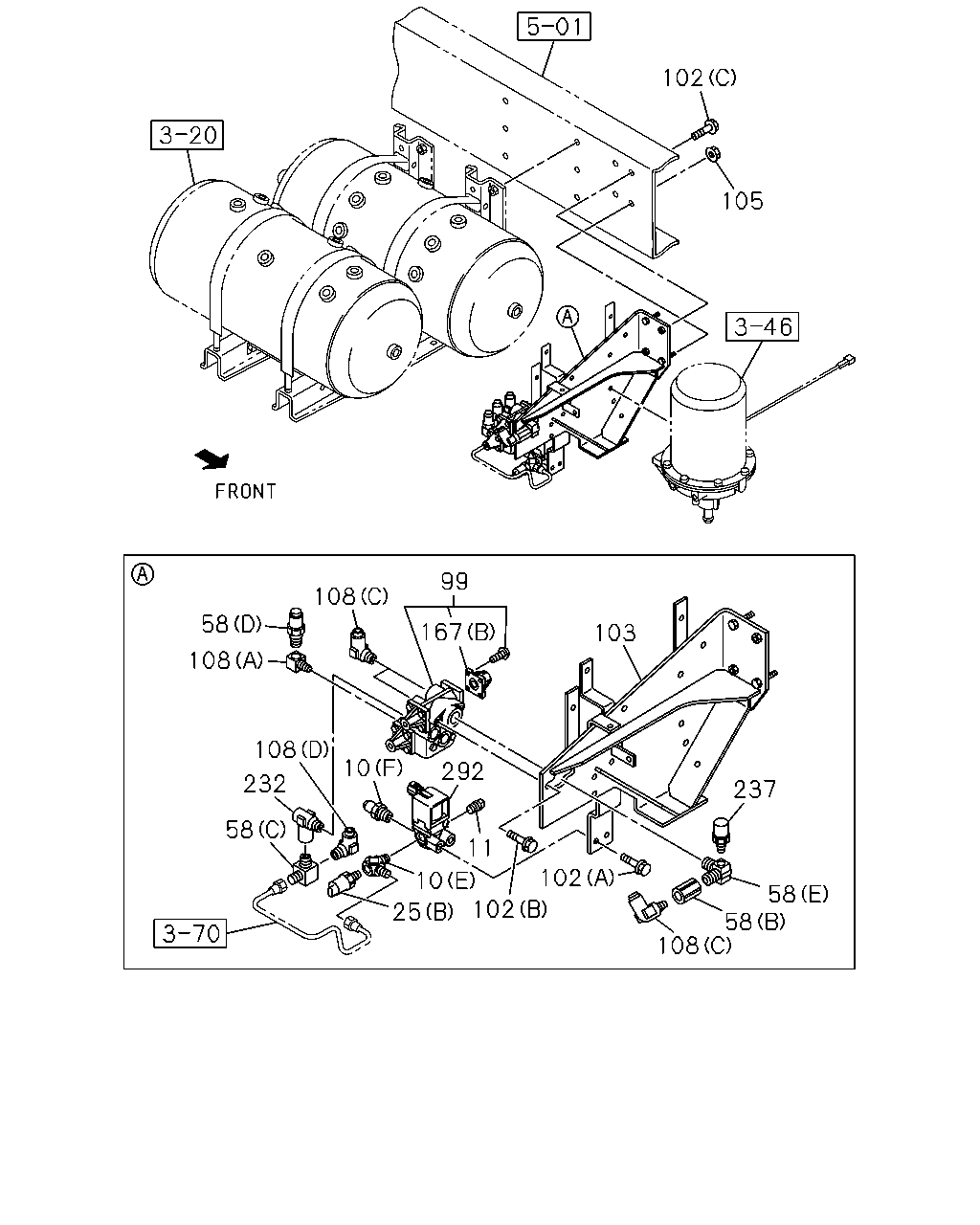

102 105 58 108 99 167 103 237 58 58 108 102 292 10 108 108 232 58 10 25 11 102
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
10 CONNECTOR
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1310-
10 CONNECTOR
(E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1310-
10 CONNECTOR
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1310-
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1310-
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1310-
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
11 PLUG
PT1/4 		9-99204-513-0 01 1 1310-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1310-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1310-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1310-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1310-
58 ADAPTER
(C) 		8-98148-475-0 01 1 1310-
99 VALVE; PROTECTION 1-48110-288-3 01 1 1310-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
103 BRACKET; PROTECTION VALVE 8-98226-215-0 01 1 1310-
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 1310-
108 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1310-
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1310-
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1310-
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1310-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1310-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1310-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1310-
237 VALVE; SAFETY 1-48320-012-2 01 1 1310-
292 VALVE ASM; MAGNETIC 1-82563-871-2 01 1 1310-
çizim 380580

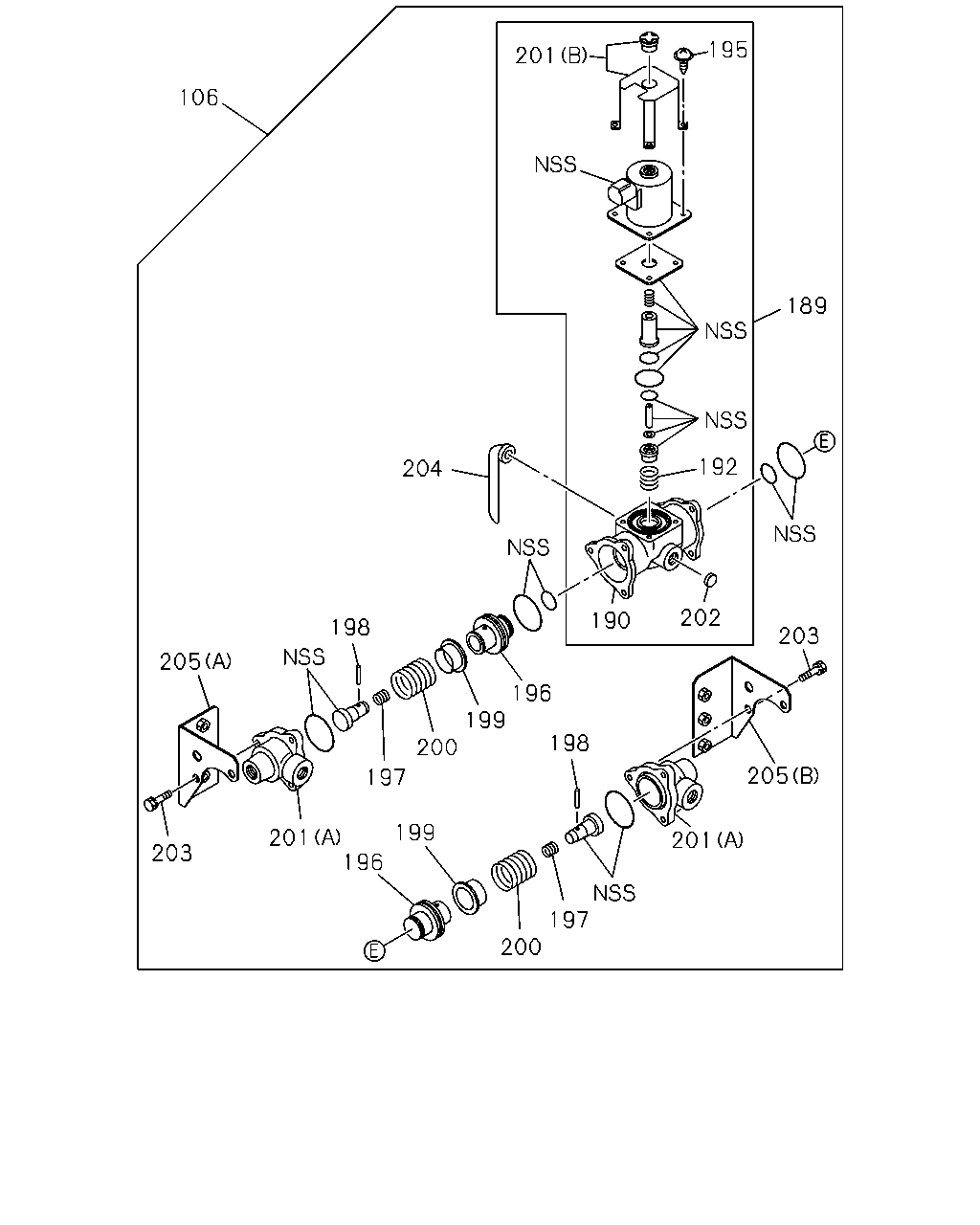

106 201 195 189 192 202 190 203 204 198 205 203 196 197 199 199 200 196 197 200 201 205 201 198
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1310-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1310-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1310-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1310-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1310-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1310-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1310-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1310-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1310-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1310-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1310-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1310-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1310-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1310-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1310-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1310-
çizim 380627

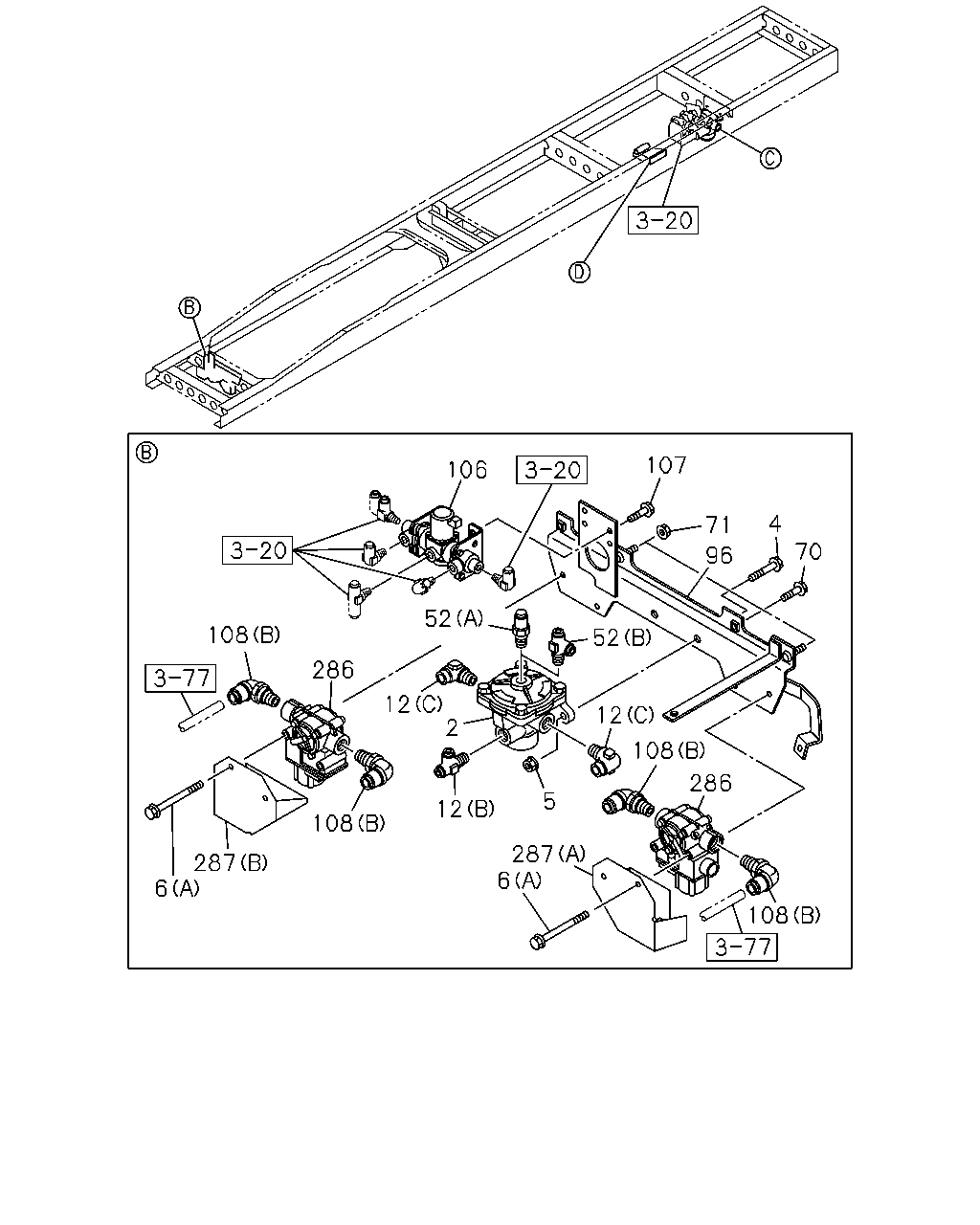

108 6 287 108 286 12 52 106 2 12 6 287 5 107 71 96 4 70 108 286 108 12 52
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
2 VALVE; RELAY 1-48210-875-0 02 1 1310-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1310-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1310-
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1310-1410
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411-
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1310-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1310-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1310-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1310-
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1310-
96 BRACKET 8-98074-613-3 01 1 1310-1410
96 BRACKET 8-98273-496-0 01 1 1411-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1310-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1310-
108 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1310-
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1310-
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1310-
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1310-
286 MODULATOR; FRT 1-48240-115-0 02 1 1310-1410
286 MODULATOR; FRT 8-98215-454-0 02 1 1411-
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1310-1410
287 COVER; MODULATOR
(B) 		8-98273-493-0 01 1 1411-
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 1310-1410
287 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1411-
çizim 380704

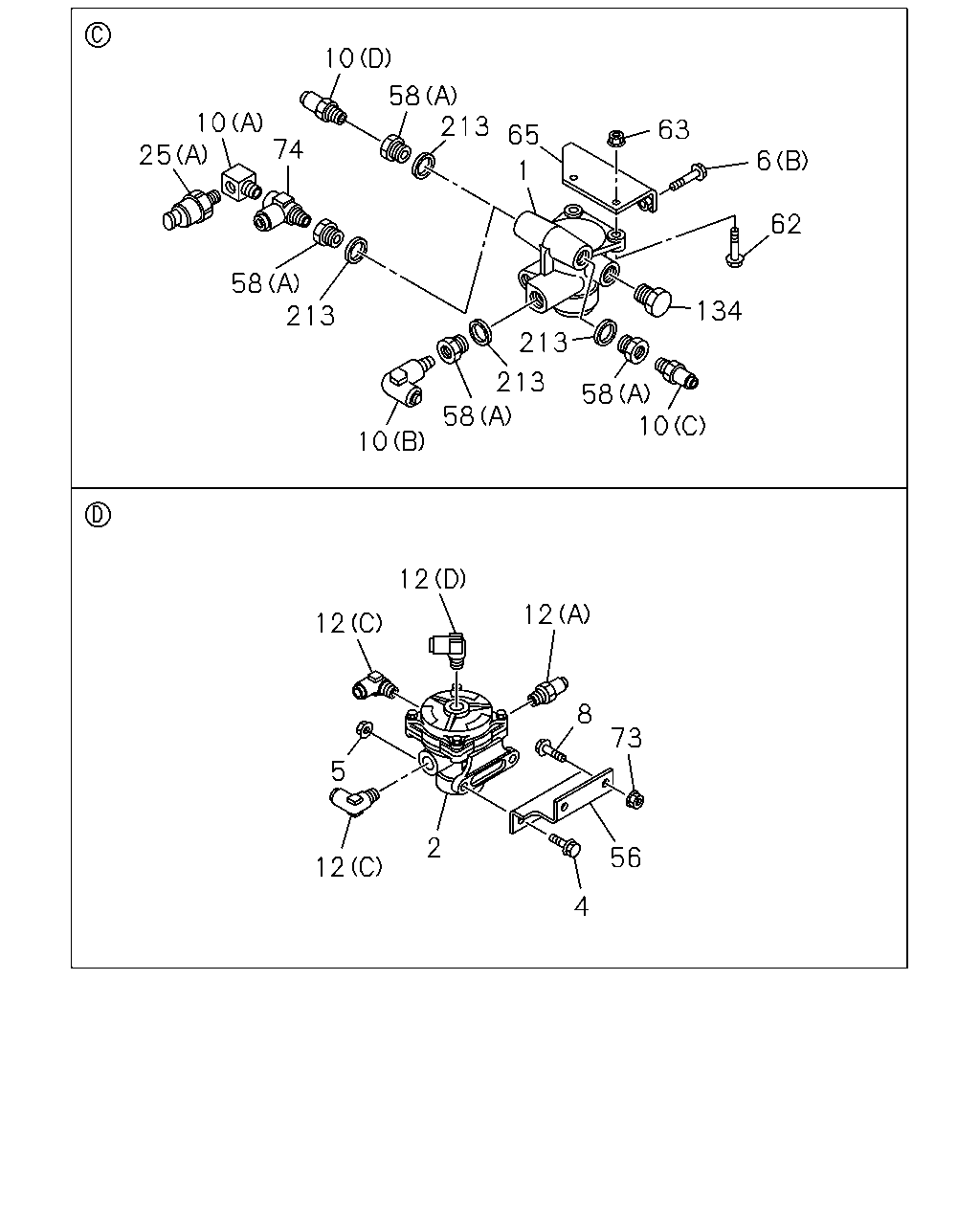

25 10 74 10 58 213 65 63 6 62 134 58 213 213 58 10 213 58 12 12 12 8 73 56 4 2 12 5 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
2 VALVE; RELAY 1-48210-875-0 02 1 1310-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1310-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1310-
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1310-1410
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411-
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1310-
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1310-
10 CONNECTOR
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1310-
10 CONNECTOR
(E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1310-
10 CONNECTOR
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1310-
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1310-
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1310-
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1310-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1310-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1310-
56 BRACKET; RELAY VLV 8-98126-366-0 01 1 1310-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1310-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1310-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1310-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1310-
58 ADAPTER
(C) 		8-98148-475-0 01 1 1310-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1310-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1310-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1310-
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
74 CONNECTOR; 3WAY
DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1310-
134 PLUG; RELAY VALVE
M22 		1-09661-502-0 01 1 1310-
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1310-
çizim 381580

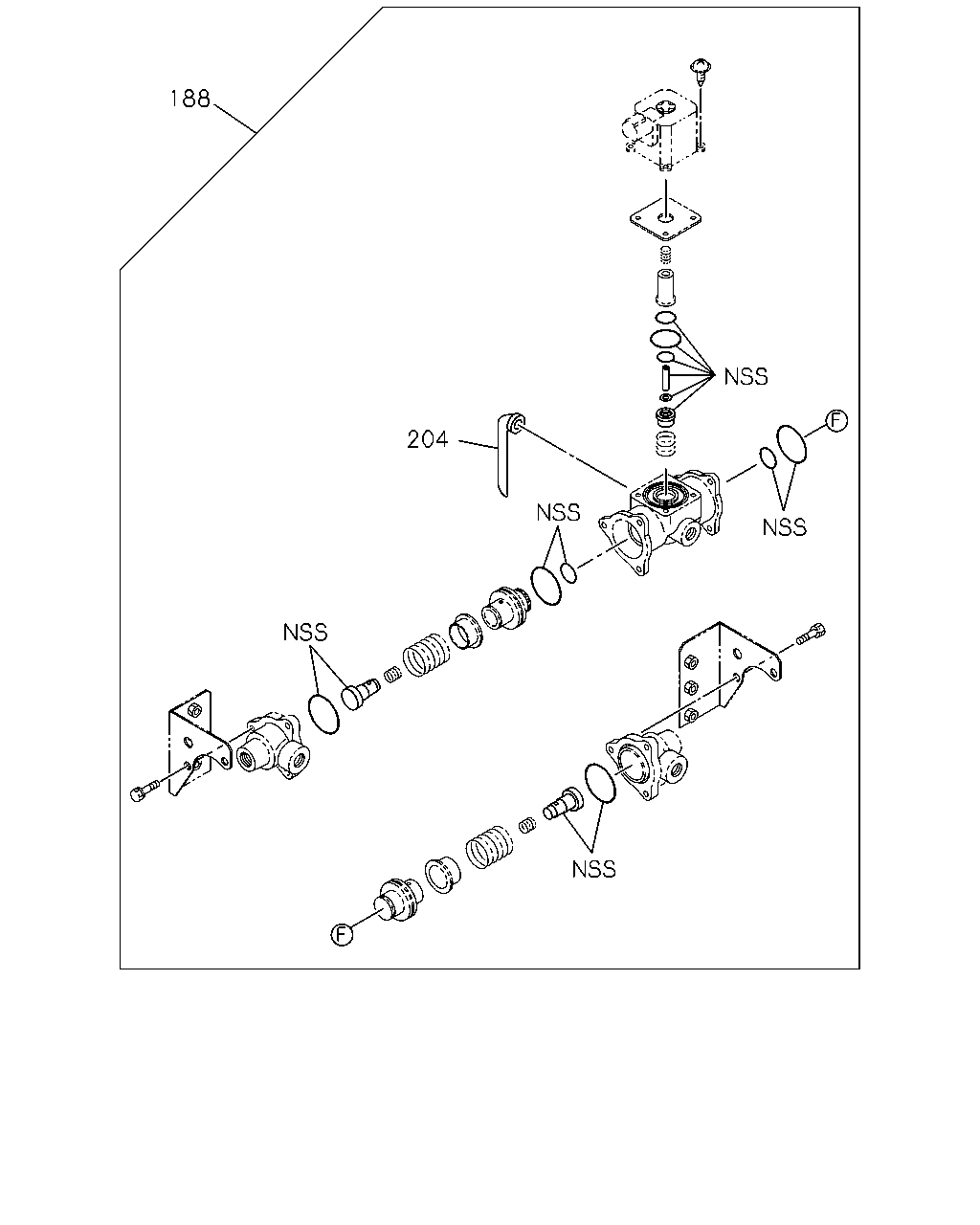

188 204
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1310-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310-
çizim 433398
241
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1310-
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1310-
