Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#128949) — 53 parça
◀

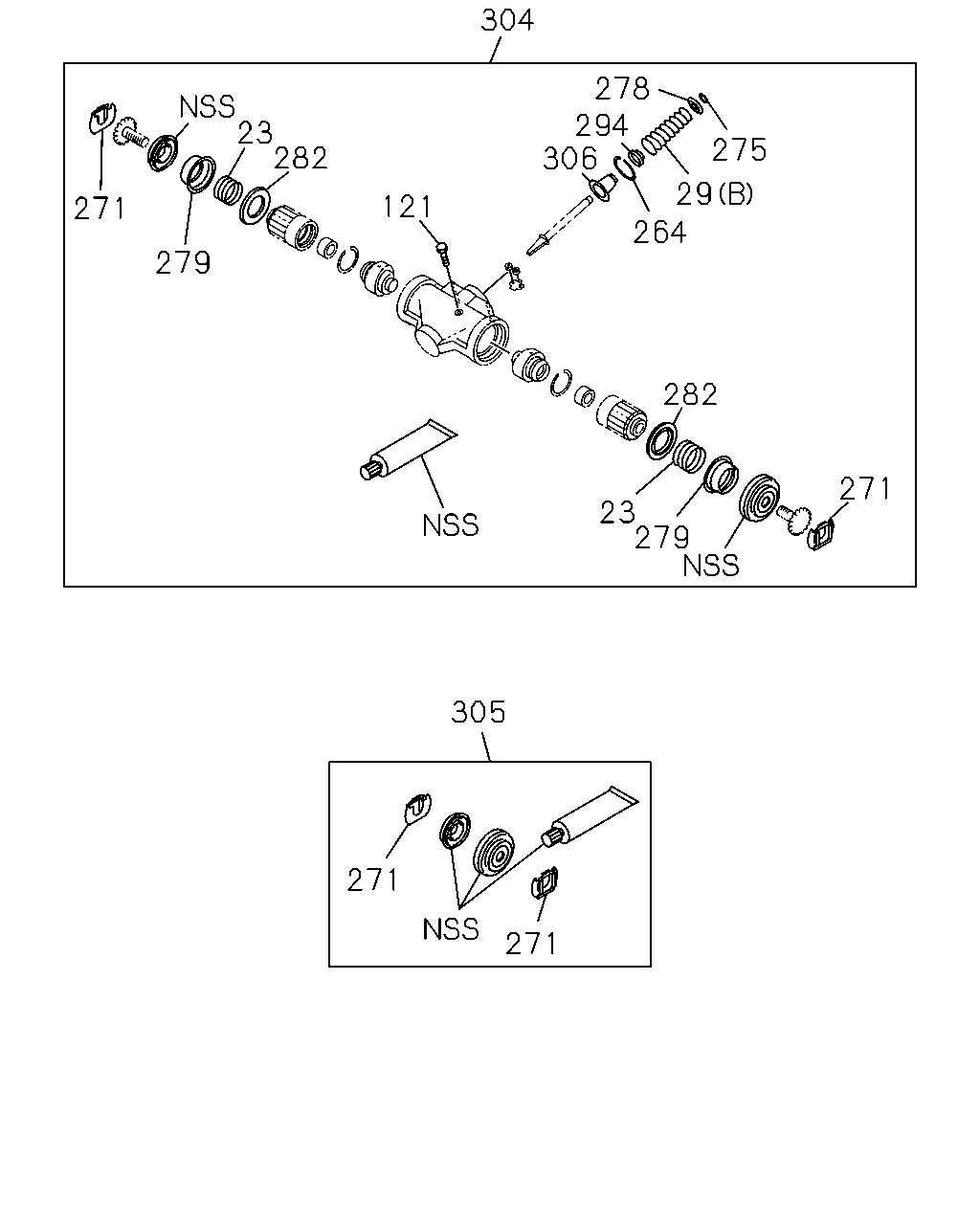

[301A] NO.2 (14 parça)

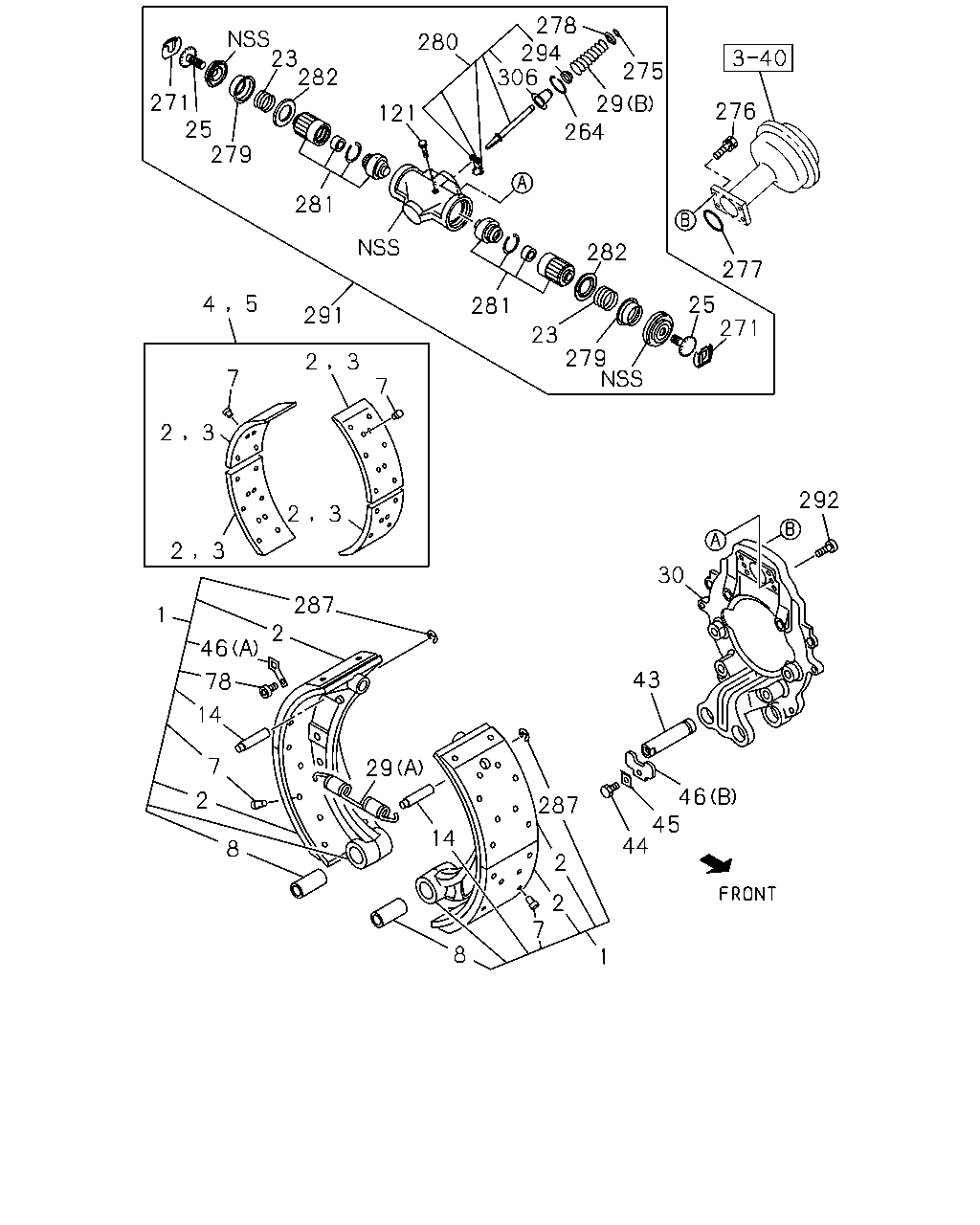

[301A] NO.1 (39 parça)
▶
304
271
279
23
282
121
278
294
306
275
29
264
282
23
271
279
305
271
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
1-47629-196-0
04
1
1310-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
04
1
1310-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1310-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1310-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1310-
271
CLIP; ADJ
1-47621-017-0
04
1
1310-
275
RING; RETAINER
1-47649-031-0
02
1
1310-
278
RETAINER; SPRING
1-47649-020-0
02
1
1310-
279
CAGE; SPRING
1-47629-192-0
04
1
1310-
282
RING; DRIVE
1-47629-200-0
04
1
1310-
294
BOOT; WEDGE
1-47649-042-0
02
1
1310-
304
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
1310-
305
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
1310-
306
CAP; EXPANDER
1-47649-044-0
02
1
1310-
1
8
7
2
2
287
14
29
8
2
14
46
1
2
7
2
3
2
3
4
5
2
3
291
7
2
3
287
30
43
44
45
46
292
271
25
279
23
281
281
279
25
271
23
282
280
121
306
294
278
264
29
275
276
277
282
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING
1-47170-316-0
01
1
1310-
1
SHOE; BRK,FRT
TRAILING
1-47170-317-0
01
1
1310-
1
SHOE; BRK,FRT
LEADING
1-47170-318-0
01
1
1310-
1
SHOE; BRK,FRT
TRAILING
1-47170-319-0
01
1
1310-
2
LINING; FRT BRK SHOE,STANDARD
1-47126-698-0
08
1
1310-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-699-0
08
1
1310-
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
1310-
4
LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS
1-87610-128-0
01
1
1310-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
1310-
7
RIVET; LINING,FRT BRK
L=15.5
1-09732-053-0
80
1
1310-
8
BUSHING; BRK SHOE
1-47112-020-0
04
1
1310-
14
PIN; SHOE RETURN SPR
1-47119-177-1
04
1
1310-
23
SPRING; COIL
1-47629-196-0
04
1
1310-
25
SCREW; ADJ,FRT WHEEL CYL
1-47623-035-2
04
1
1310-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
04
1
1310-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1310-
30
BRACKET; ANCHOR,FRT
8-98091-252-0
02
1
1310-
43
PIN; ANCHOR
L=115.5
1-47131-044-0
04
1
1310-
44
BOLT; LOCK,ANCHOR PIN
M10X16
1-47139-173-0
02
1
1310-
45
WASHER; LK
1-47133-011-0
02
1
1310-
46
PLATE; LOCK
(A)
1-47119-152-0
04
1
1310-
46
PLATE; LOCK
(B)
1-47133-010-0
02
1
1310-
78
BOLT; LK,PLATE
1-47119-153-0
04
1
1310-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1310-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1310-
271
CLIP; ADJ
1-47621-017-0
04
1
1310-
275
RING; RETAINER
1-47649-031-0
02
1
1310-
276
BOLT; CHAMBER
M10X42.5
1-47139-163-0
08
1
1310-
277
RING; CHAMBER
1-48259-231-0
02
1
1310-
278
RETAINER; SPRING
1-47649-020-0
02
1
1310-
279
CAGE; SPRING
1-47629-192-0
04
1
1310-
280
WEDGE; FRT WHEEL CYL
1-47640-012-0
02
1
1310-
281
SLEEVE
1-47629-247-1
04
1
1310-
282
RING; DRIVE
1-47629-200-0
04
1
1310-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1310-
291
EXPANDER
1-47601-087-0
02
1
1310-
292
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
1310-
294
BOOT; WEDGE
1-47649-042-0
02
1
1310-
306
CAP; EXPANDER
1-47649-044-0
02
1
1310-
