◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#128942) — 33 parça

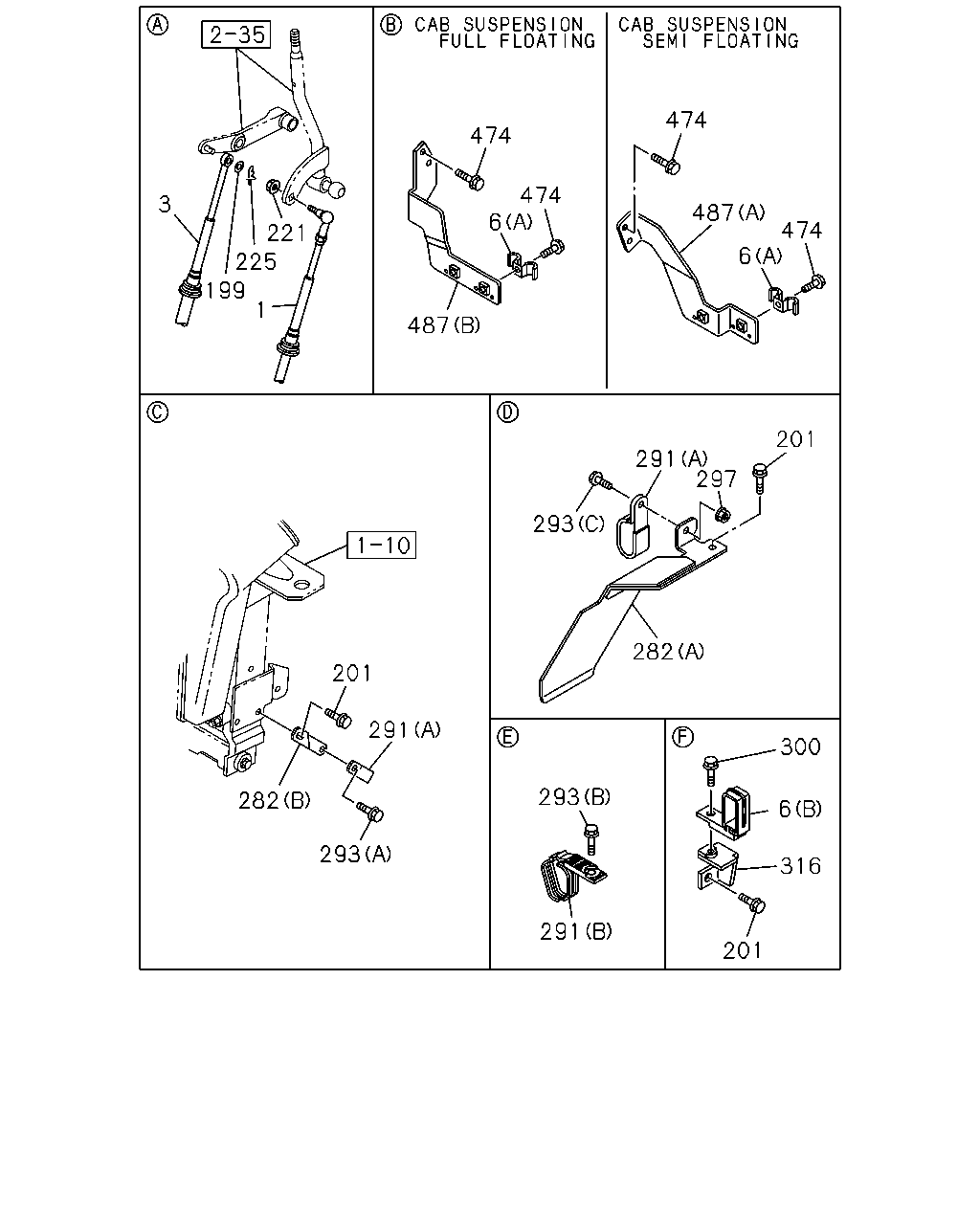

çizim 380591
201 316 6 300 293 291 293 291 201 282 293 282 291 201 297 6 474 487 474 487 6 474 474 199 225 221 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 1310-
3 CABLE; SELECT,TRANS CONT
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1310-
3 CABLE; SELECT,TRANS CONT
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1310-
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1310-
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1310-
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1310-
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1310-
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1310-
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98010-418-0 01 1 1310-
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98171-762-0 01 1 1310-
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1310-
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1310-
300 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
316 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 1310-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 1310-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1310-
487 BRACKET; CONT CABLE
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98183-009-0 01 1 1310-
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98180-729-0 01 1 1310-

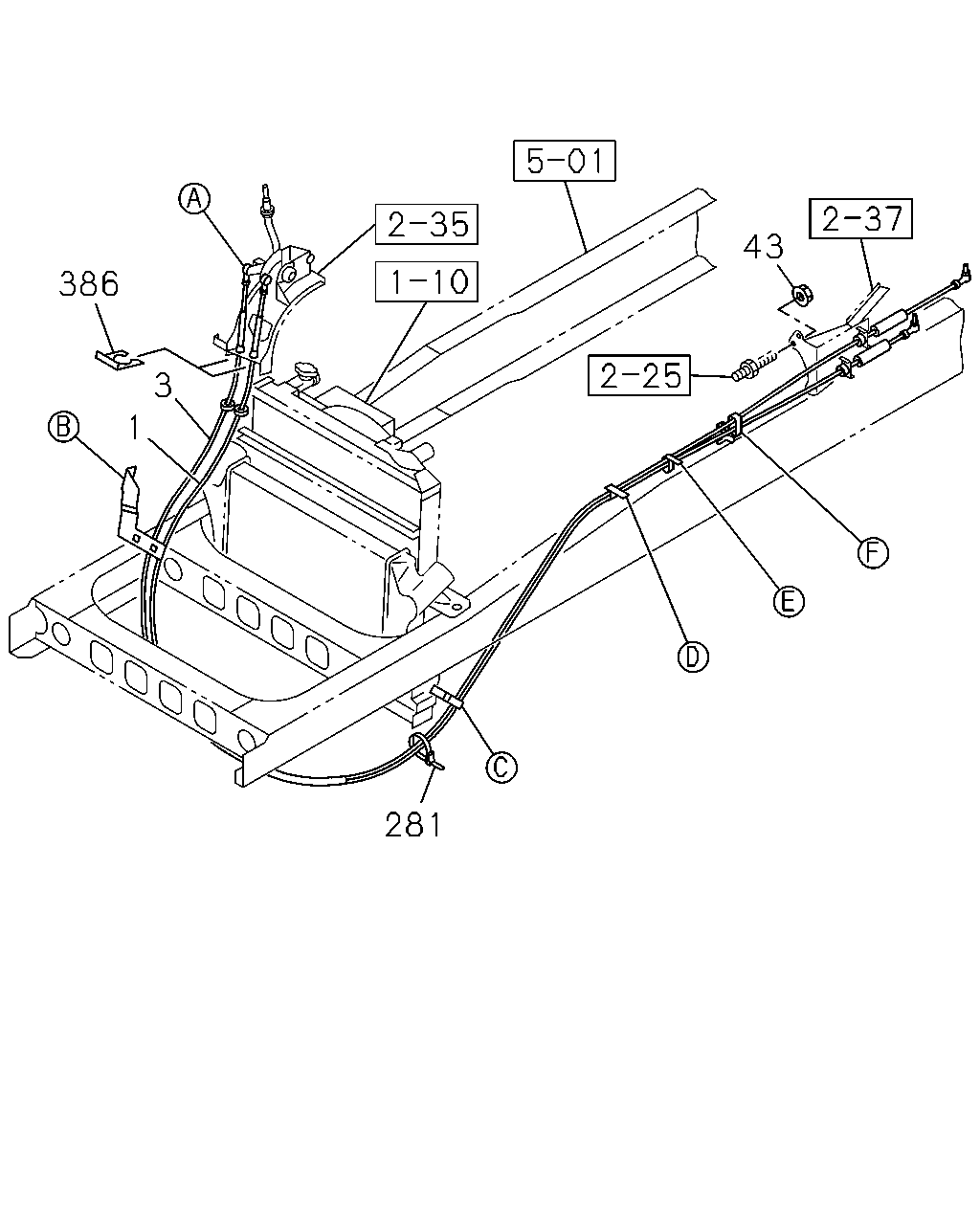

çizim 381121
43 281 3 1 386
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 1310-
3 CABLE; SELECT,TRANS CONT
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1310-
3 CABLE; SELECT,TRANS CONT
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1310-
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1310-
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1310-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
