Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#128940) — 272 parça

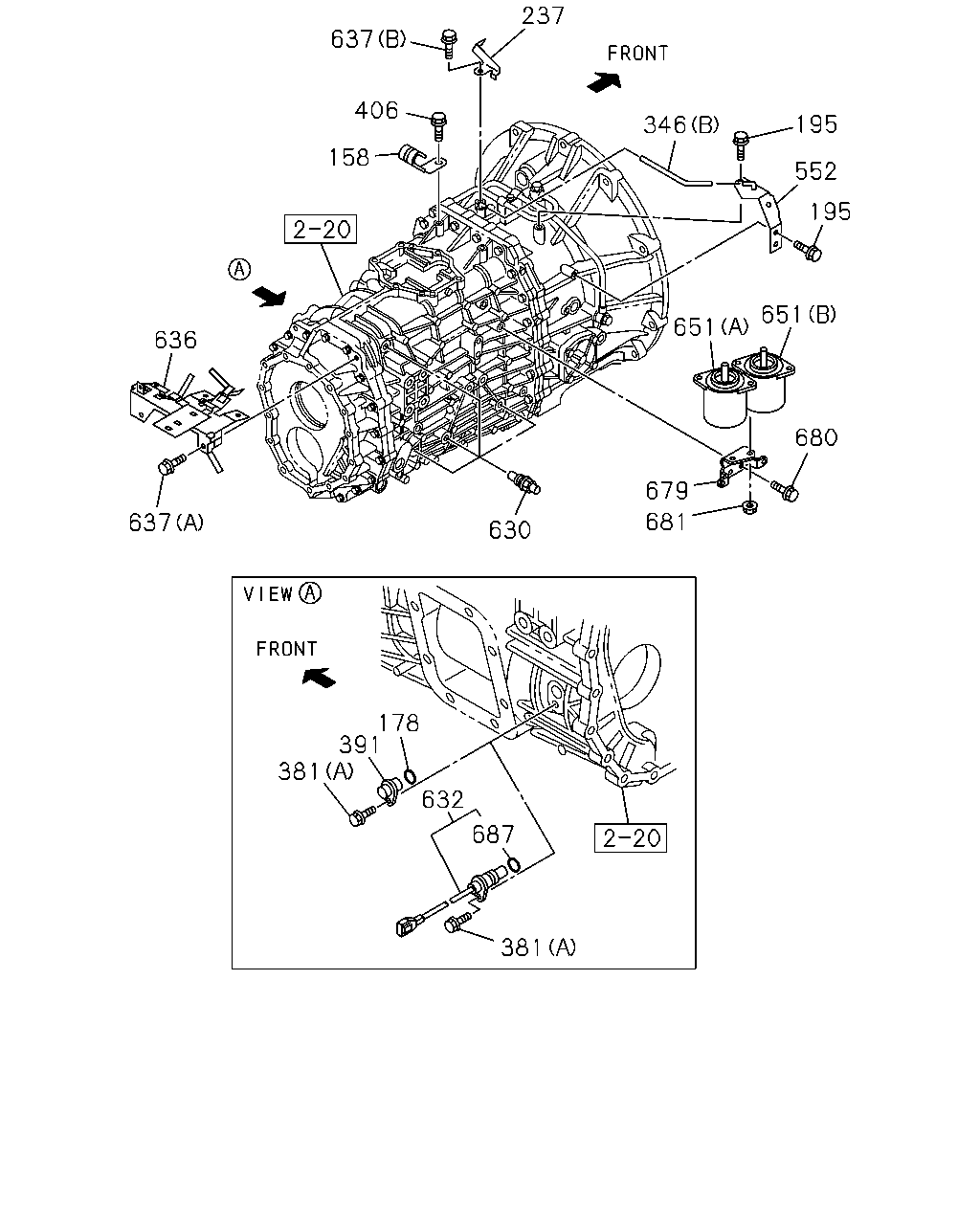

637 237 406 158 636 637 630 679 681 680 651 651 195 552 195 346 381 687 632 391 381 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1310-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1310-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1310-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1310-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1310-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1310-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1310-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1310-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1310-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1310-
630	DETENT ASM	8-98019-536-0	04	1	1310-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1310-
636	BRACKET; CLIP	8-97610-096-2	01	1	1310-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1310-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1310-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1310-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1310-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1310-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1310-

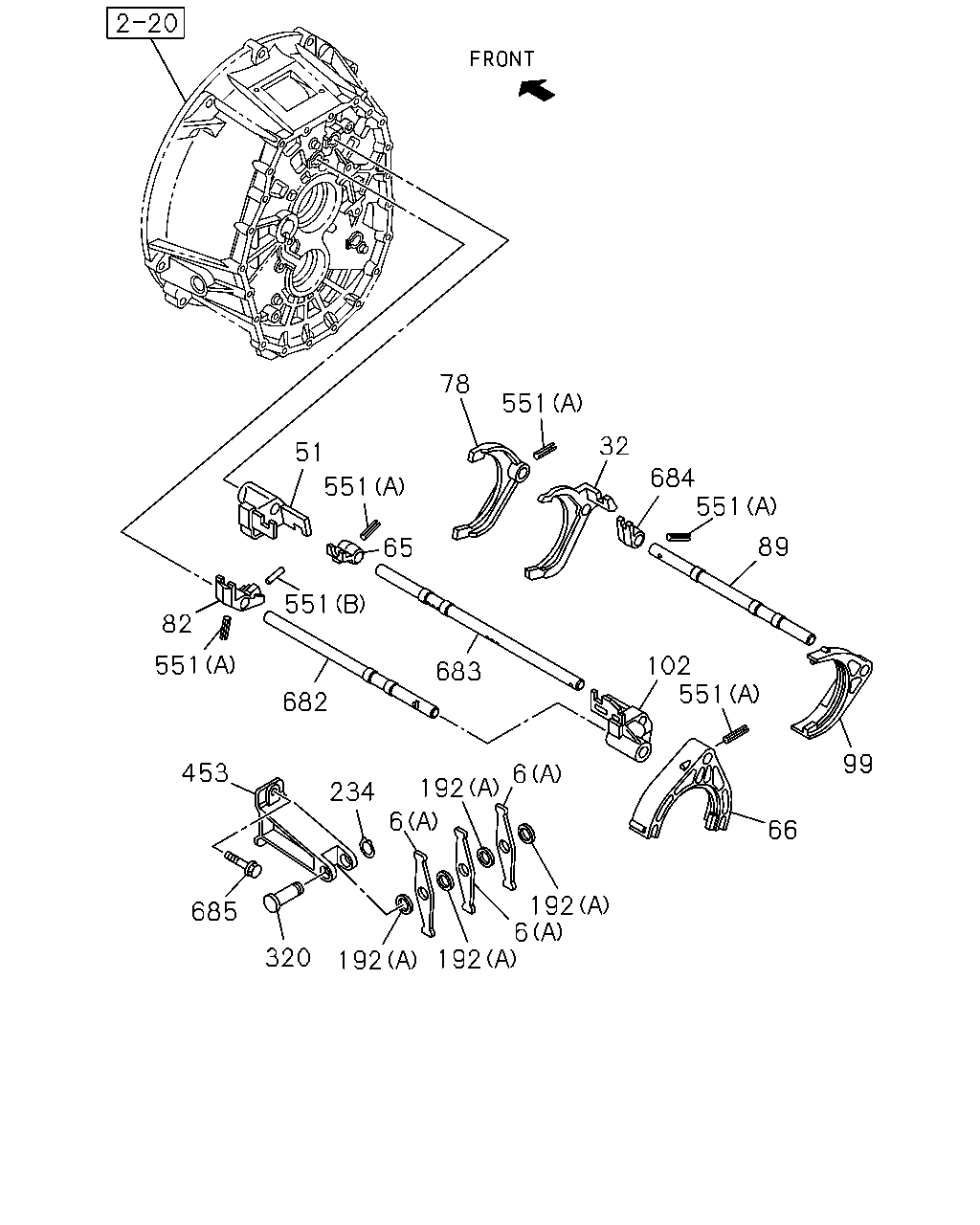

192 192 320 685 453 551 682 82 551 683 192 234 6 6 192 6 66 99 551 102 65 551 51 78 551 32 684 551 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1310-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1310-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1310-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1310-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1310-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1310-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1310-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1310-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1310-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1310-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1310-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1310-
320	SHAFT; LEVER	8-97377-928-0	01	1	1310-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1310-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1310-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1310-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1310-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1310-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1310-

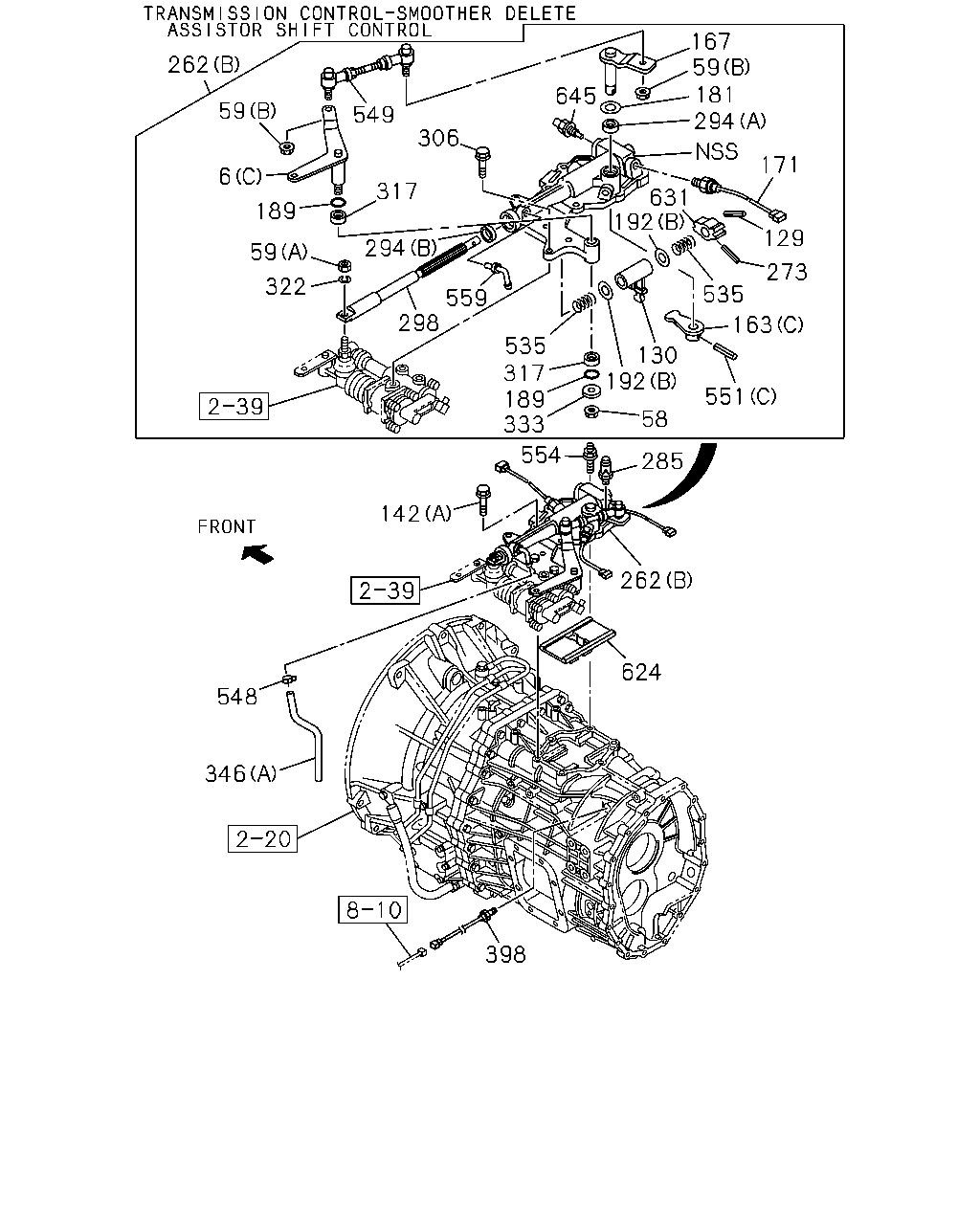

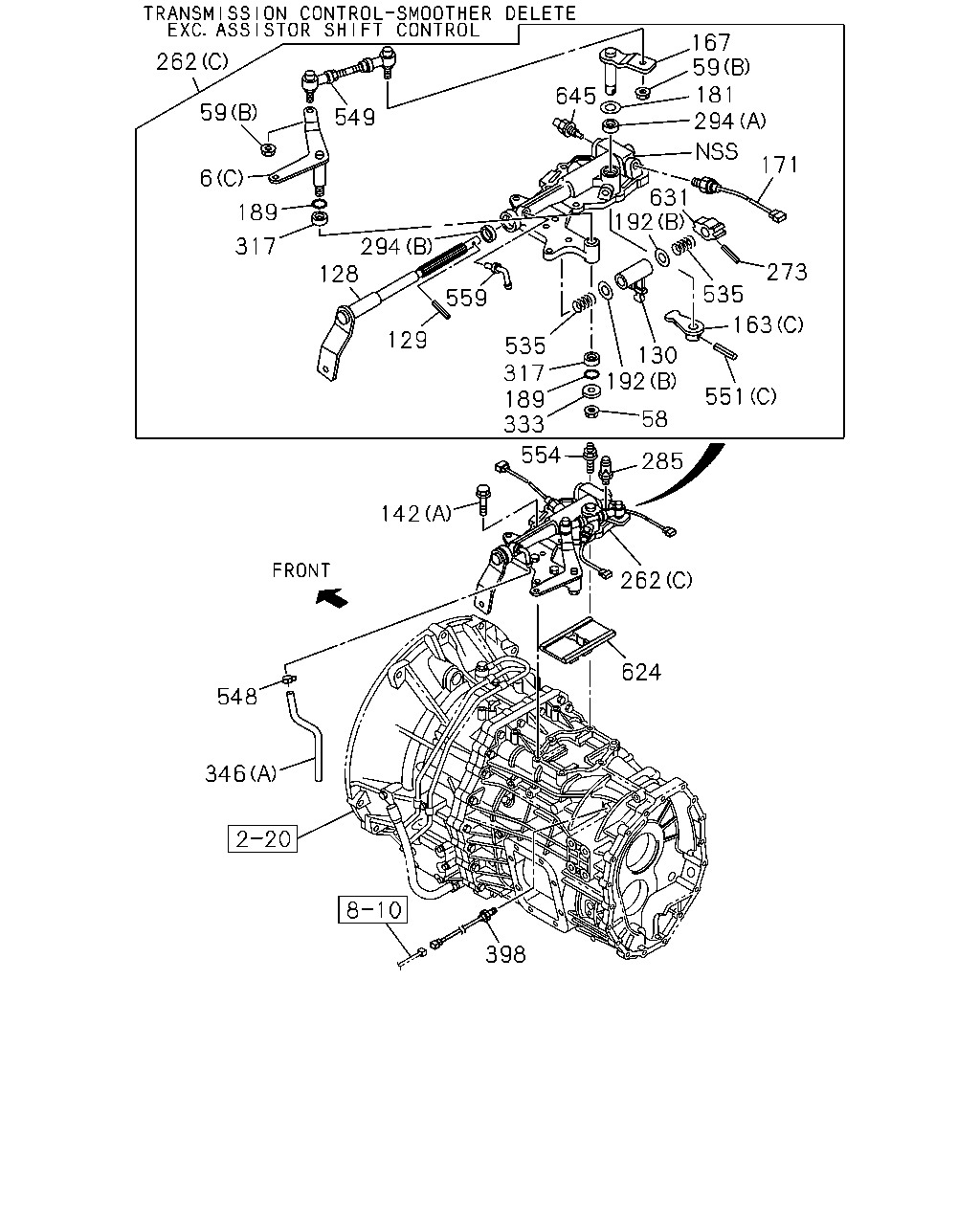

167 59 181 294 171 129 273 535 130 192 551 58 285 262 624 142 554 333 189 317 535 298 559 322 59 189 6 59 262 549 317 645 306 294 192 631 163 398 346 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1310-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1310-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1310-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1310-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1310-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1310-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1310-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1310-1312
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1310-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1310-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1310-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1310-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1310-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1310-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1310-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1310-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1310-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1310-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1310-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1310-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1310-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1310-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1310-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1310-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1310-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1310-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1310-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1310-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1310-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1310-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1310-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1310-

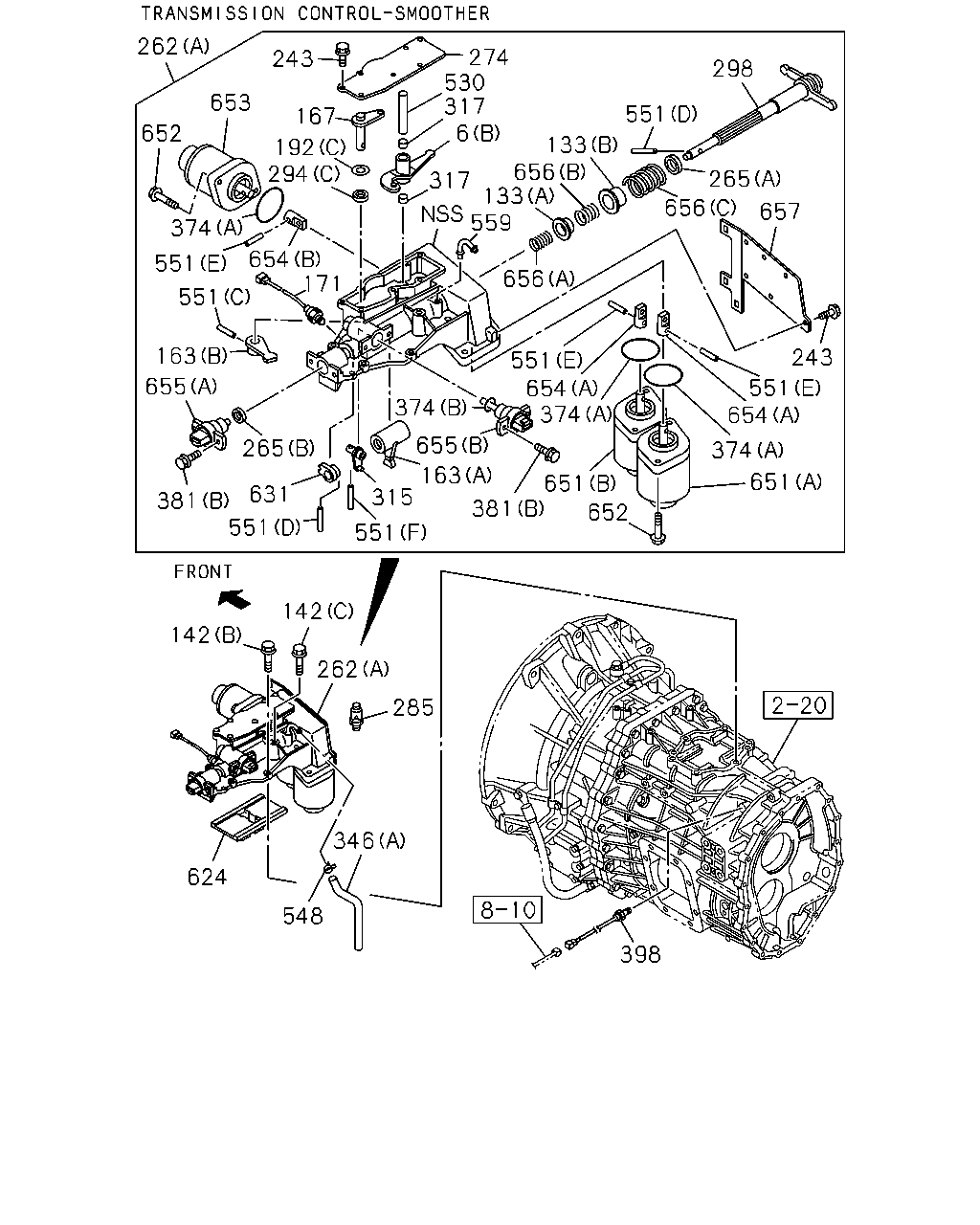

398 548 346 285 262 142 142 624 551 631 381 265 655 163 551 551 374 652 653 262 243 167 192 294 654 171 317 6 317 530 274 133 656 133 559 551 298 265 656 657 243 551 654 651 374 656 551 654 374 651 381 551 652 163 655 374 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1310-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1310-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1310-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1310-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1310-1312
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1310-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1310-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1310-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1310-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1310-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1310-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1310-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1310-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1310-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1310-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1310-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1310-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1310-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1310-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1310-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1310-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1310-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1310-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1310-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1310-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1310-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1310-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1310-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1310-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1310-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1310-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1310-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1310-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1310-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1310-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1310-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1310-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1310-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1310-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1310-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1310-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1310-

398 346 548 624 626 142 554 333 189 317 535 130 58 192 285 551 163 535 273 171 295 181 59 167 645 549 59 262 6 317 189 294 129 559 192 631 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1310-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1310-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1310-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1310-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1310-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1310-
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1310-1507
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1310-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1310-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1310-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1310-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1310-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1310-1312
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1310-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1310-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1310-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1310-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1310-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1310-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1310-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1310-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1310-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1310-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1310-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1310-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1310-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1310-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1310-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1310-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1310-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1310-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1310-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1310-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1310-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1310-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1310-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1310-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1310-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1310-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1310-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1310-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
