Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30A - GEAR SHIFTER AND QUADRANT BOX
▶
2-30A — GEAR SHIFTER AND QUADRANT BOX
(#12894) — 425 parça
Tümü
A - ZF9S1110 M/T
B - ZF6S1000 M/T
◀
[230A] ZF6S1000 NO.3 (31 parça)
[230A] ZF6S1000 NO.5 (6 parça)
[230A] ZF9S1110 NO.8 (22 parça)
[230A] ZF9S1110 NO.9 (4 parça)
[230A] ZF9S1110 NO.1 (24 parça)
[230A] ZF9S1110 NO.5 (26 parça)
[230A] ZF9S1110 NO.4 (36 parça)
[230A] ZF9S1110 NO.2 (39 parça)
[230A] ZF6S1000 NO.4 (28 parça)
[230A] ZF9S1110 NO.3 (21 parça)
[230A] ZF9S1110 NO.6 (55 parça)
[230A] ZF6S1000 NO.1 (15 parça)
[230A] ZF9S1110 NO.7 (41 parça)
[230A] ZF6S1000 NO.2 (77 parça)
▶

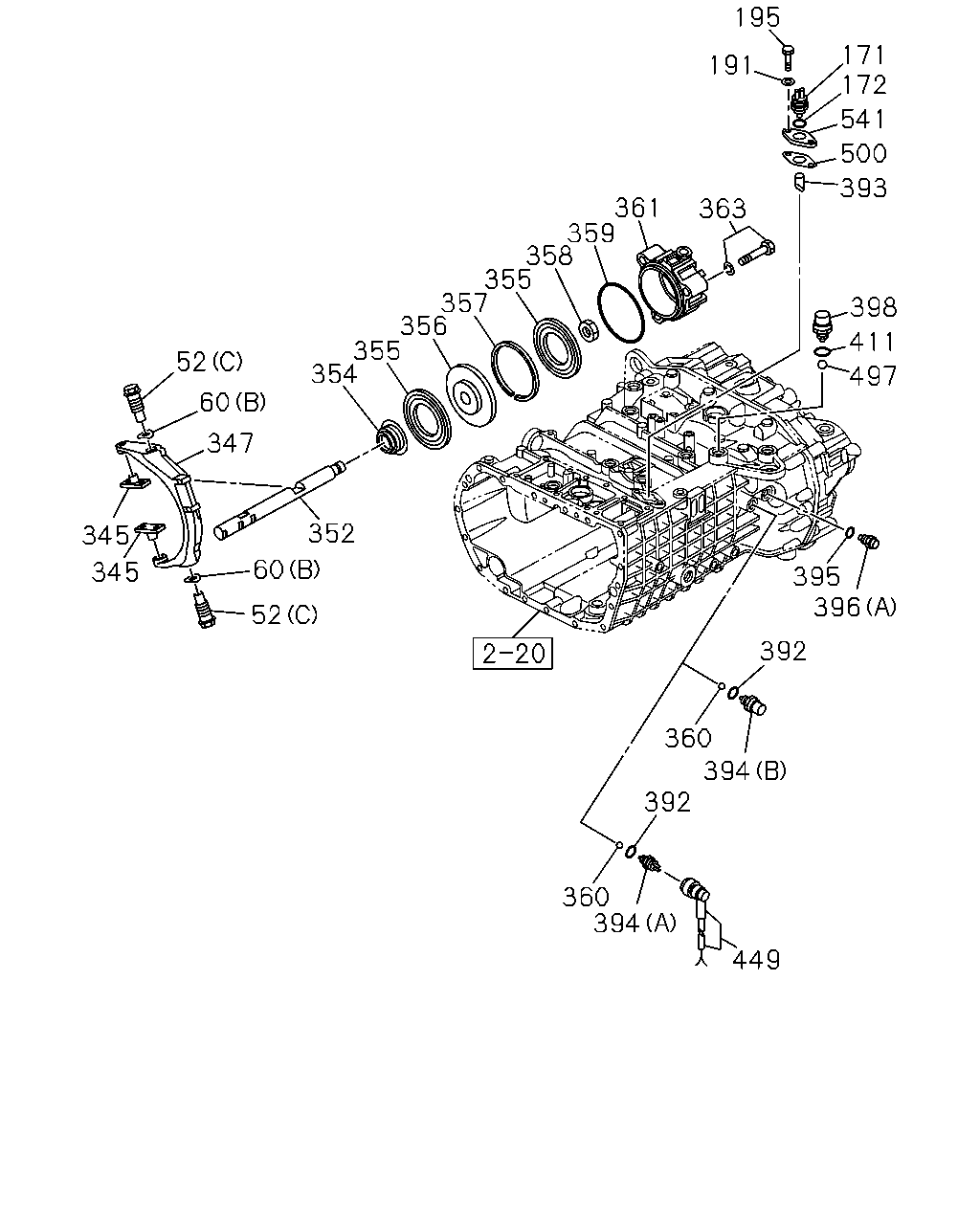

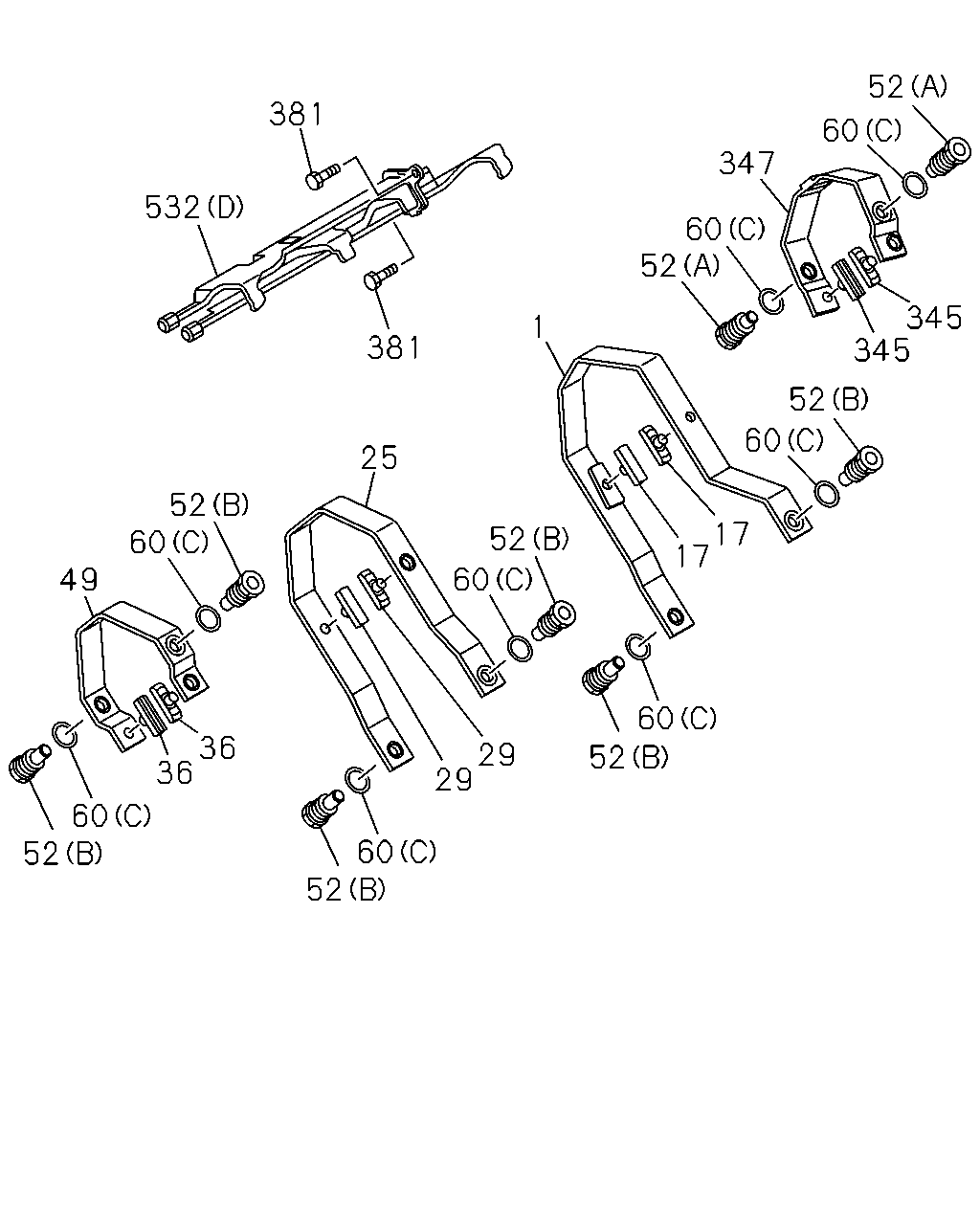

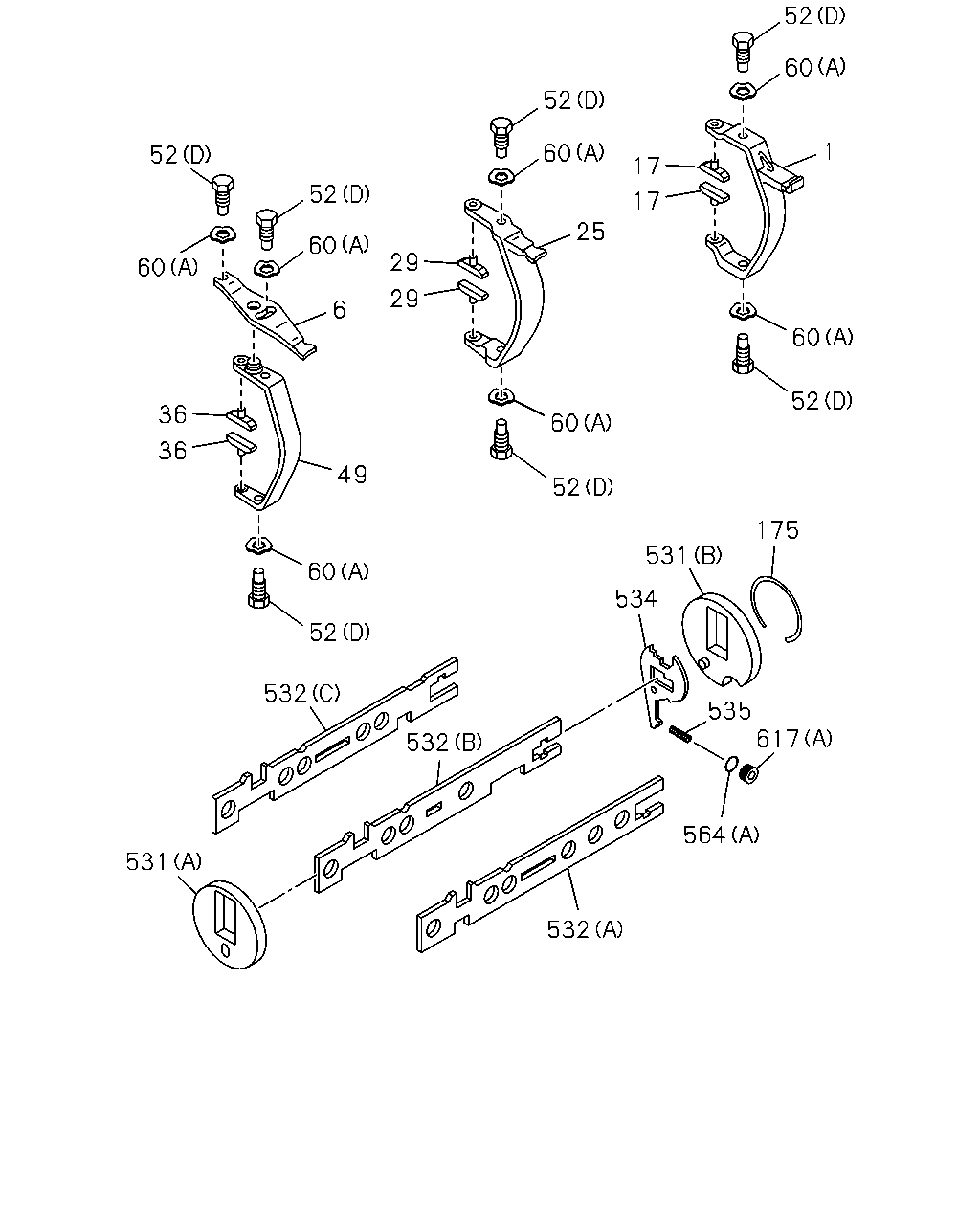

52
381
60
347
532
60
52
345
345
1
381
52
60
25
52
60
17
17
52
49
60
60
52
36
36
29
29
60
52
60
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-645-0
01
1
0807-0912
●
1
ARM; SHIFT,1ST & REV
1-33511-657-0
01
1
1001-
●
1
ARM; SHIFT,1ST & REV
1-33511-647-0
01
1
0807-1102
●
17
BLOCK; SHIFT,1ST & REV
1-33519-172-0
02
1
0807-
●
17
BLOCK; SHIFT,1ST & REV
1-33519-081-0
02
1
0807-1102
●
25
ARM; SHIFT,2ND & 3RD
1-33511-642-0
01
1
0807-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-648-0
01
1
0807-1102
●
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
0807-1102
●
●
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
1103-
●
36
BLOCK; SHIFT,4TH & 5TH
1-33519-170-0
02
1
0807-
●
36
BLOCK; SHIFT,4TH & 5TH
1-33519-173-0
02
1
0807-1102
●
49
ARM; SHIFT,4TH & 5TH
1-33511-640-0
01
1
0807-
●
49
ARM; SHIFT,4TH & 5TH
1-33511-649-0
01
1
0807-1102
●
52
BOLT; SHIFT ARM
(C)
1-33519-058-0
02
1
0807-1305
●
52
BOLT; SHIFT ARM
(C) THA
1-33519-196-0
02
1
1302-
●
52
BOLT; SHIFT ARM
(D)
1-33519-084-0
07
1
0807-1305
●
52
BOLT; SHIFT ARM
(D) THA
1-33519-190-0
07
1
1302-
●
52
BOLT; SHIFT ARM
(A)
1-33519-174-0
02
1
0807-1102
●
52
BOLT; SHIFT ARM
(B)
1-33519-175-0
06
1
0807-1102
●
60
WASHER; LK
(B)
1-33519-059-0
02
1
0807-1305
●
60
WASHER; LK
(A)
1-33519-085-0
07
1
0807-1305
●
60
WASHER; LK
(C)
1-33519-085-0
08
1
0807-1102
●
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-095-0
02
1
0807-
●
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-173-0
02
1
0807-1102
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-529-0
01
1
0807-
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-646-0
01
1
0807-1102
●
381
BOLT
1-33519-178-0
02
1
0807-1102
●
532
PLATE; SHIFT FORK
(A)
1-33531-492-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(B)
1-33531-493-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(C)
1-33531-494-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(D)
1-33519-177-0
01
1
0807-1102
●

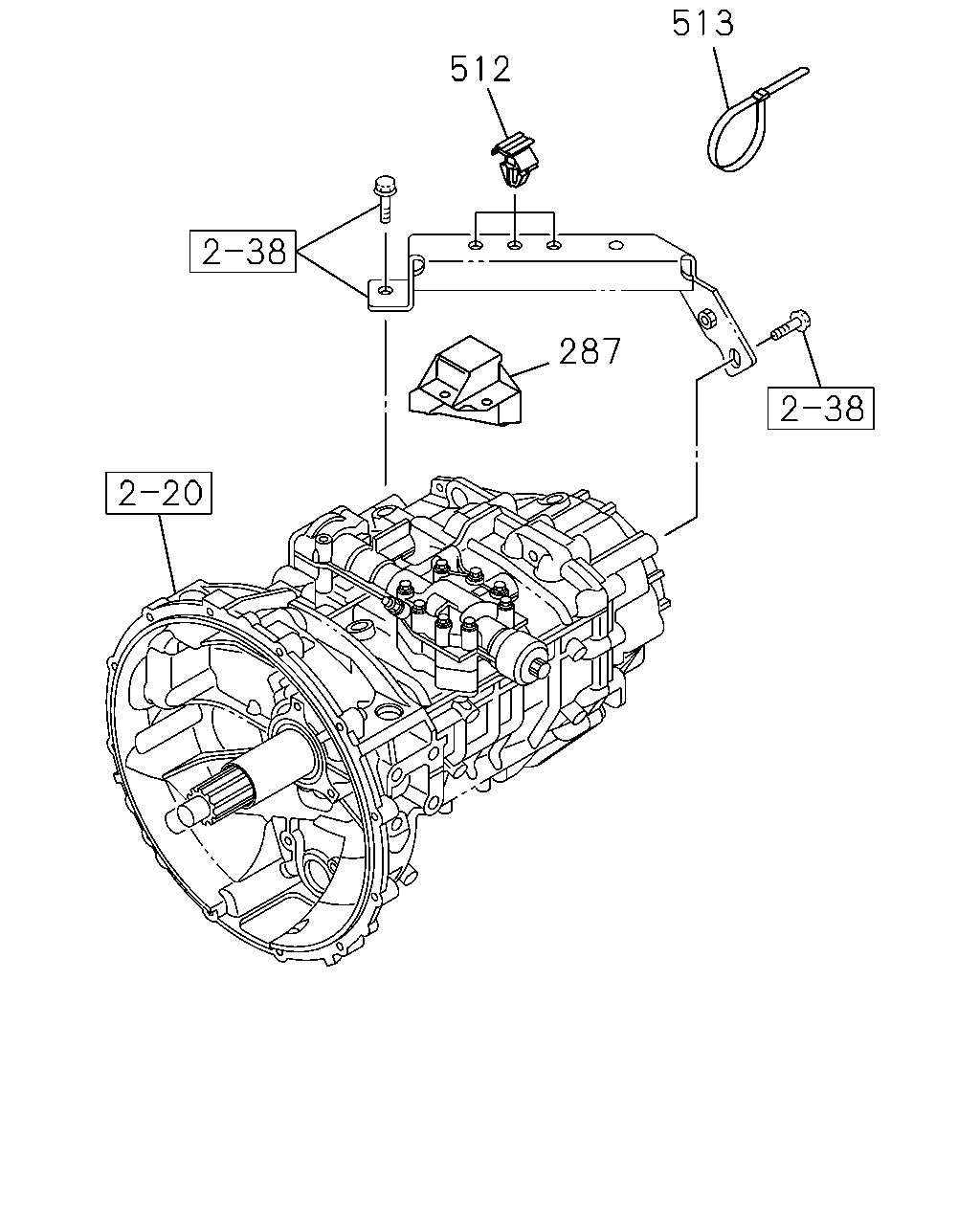

513
512
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
287
COVER; AIR BREATHER
8-98124-836-0
01
1
0807-1102
●
287
COVER; AIR BREATHER
1-34141-026-0
01
1
0807-
●
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
03
1
0807-1102
●
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
04
1
0807-
●
513
CLIP; BAND
L=250 THA
5-09707-030-1
02
1
0807-1102
●
513
CLIP; BAND
L=250 THA
5-09707-030-1
05
1
0807-
●

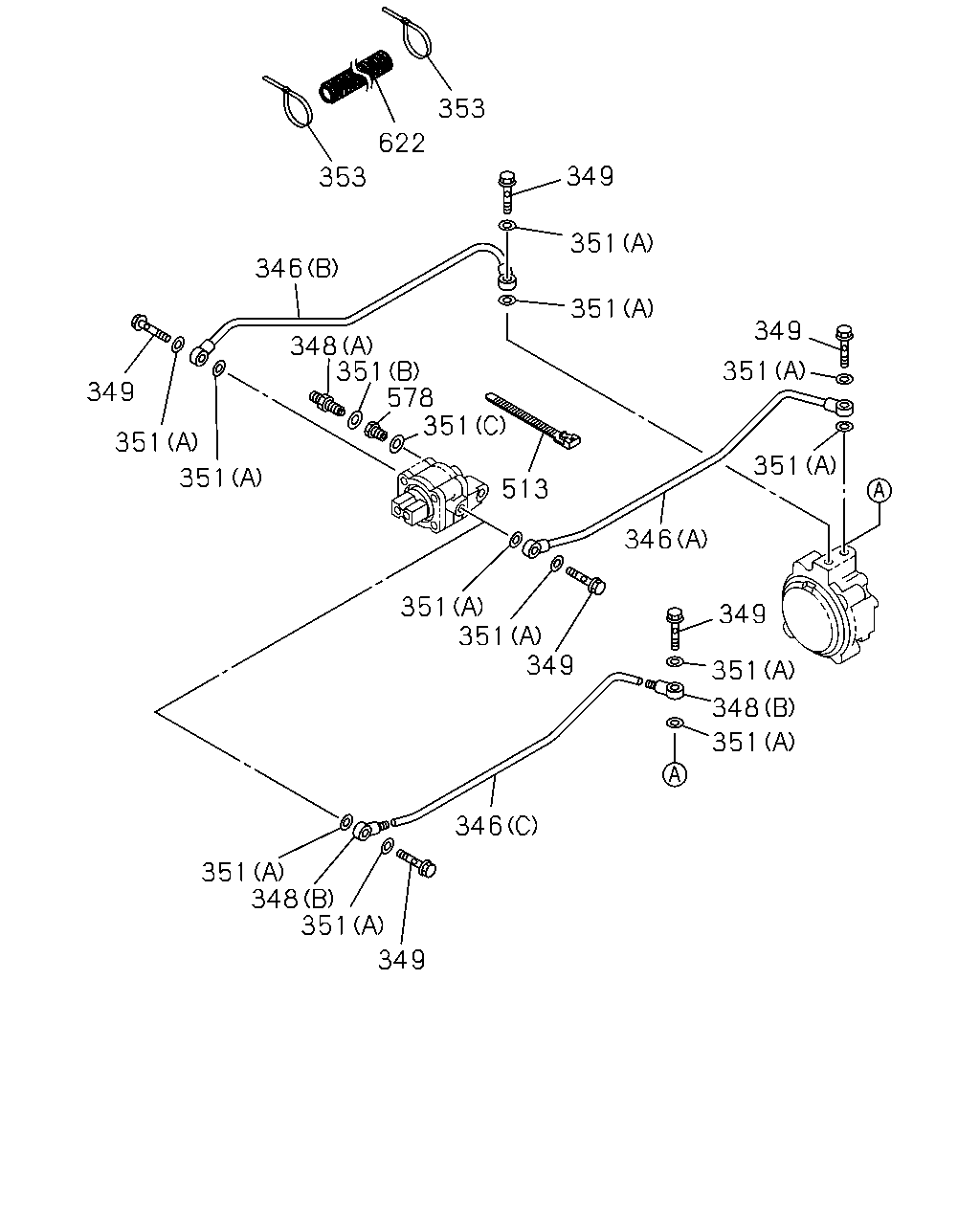

353
622
349
353
351
346
351
349
348
351
578
351
351
349
351
351
351
513
346
351
351
349
349
351
348
351
346
351
348
351
349
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
346
HOSE; AIR
(A)
1-33549-403-0
01
1
0807-0912
●
346
HOSE; AIR
(C)
1-33549-400-0
01
1
1001-1305
●
346
HOSE; AIR
(C) THA
1-33549-618-0
01
1
1302-
●
346
HOSE; AIR
(B)
1-33549-443-0
01
1
0807-1305
●
346
HOSE; AIR
(B) THA
1-33549-598-0
01
1
1302-
●
348
CONNECTOR; AIR HOSE
(B)
1-33549-139-0
04
1
1001-1305
●
348
CONNECTOR; AIR HOSE
(B) THA
1-33549-593-0
04
1
1302-
●
348
CONNECTOR; AIR HOSE
(A) M12 STRAIGHT
1-09654-246-0
01
1
0807-
●
349
BOLT; EYE,AIR HOSE
1-33549-155-0
04
1
0807-0912
●
349
BOLT; EYE,AIR HOSE
1-33549-573-0
04
1
1001-1305
●
349
BOLT; EYE,AIR HOSE
M14 THA
1-33549-592-0
04
1
1302-
●
351
GASKET; CONNECTOR
(C)
1-33549-554-0
01
1
1001-
●
351
GASKET; CONNECTOR
(A)
1-33549-444-0
08
1
0807-1305
●
351
GASKET; CONNECTOR
(A) THA
1-33549-578-0
08
1
1302-
●
351
GASKET; CONNECTOR
(B) ID=12.2
1-09630-084-0
01
1
0807-1312
●
351
GASKET; CONNECTOR
(B) ID=12.2
8-98251-344-0
01
1
1401-
●
353
CLIP; AIR HOSE
1-33549-475-0
02
1
0807-
●
513
CLIP; BAND
L=250 THA
5-09707-030-1
02
1
0807-1102
●
513
CLIP; BAND
L=250 THA
5-09707-030-1
05
1
0807-
●
578
CONNECTOR
1-33549-553-0
01
1
1001-
●
622
TUBE; CORRUGATE
1-83129-021-0
01
1
0807-1004
●
622
TUBE; CORRUGATE
L=100 ID=22 L=350
1-83129-017-0
01
1
1005-
●

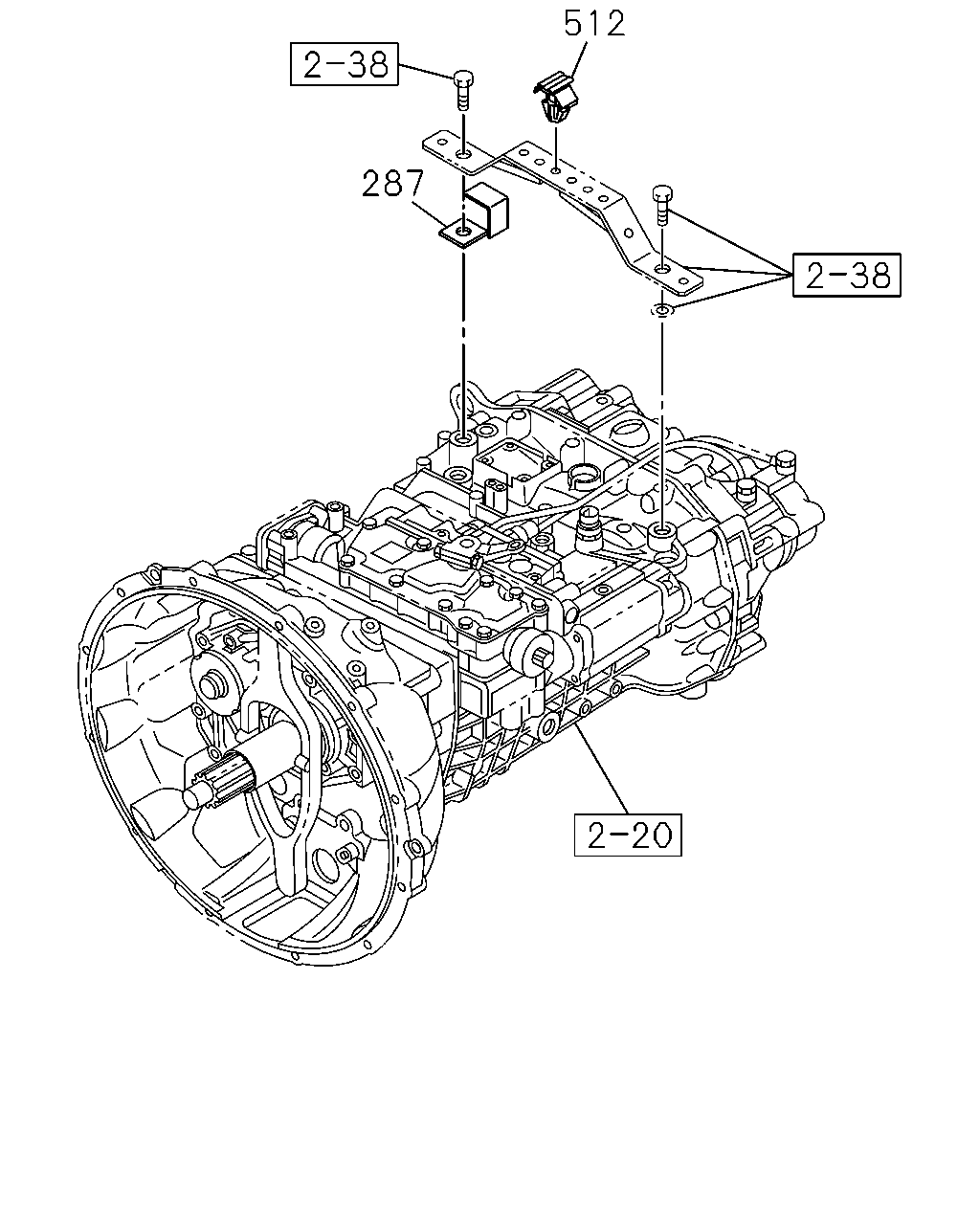

512
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
287
COVER; AIR BREATHER
8-98124-836-0
01
1
0807-1102
●
287
COVER; AIR BREATHER
1-34141-026-0
01
1
0807-
●
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
03
1
0807-1102
●
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
04
1
0807-
●

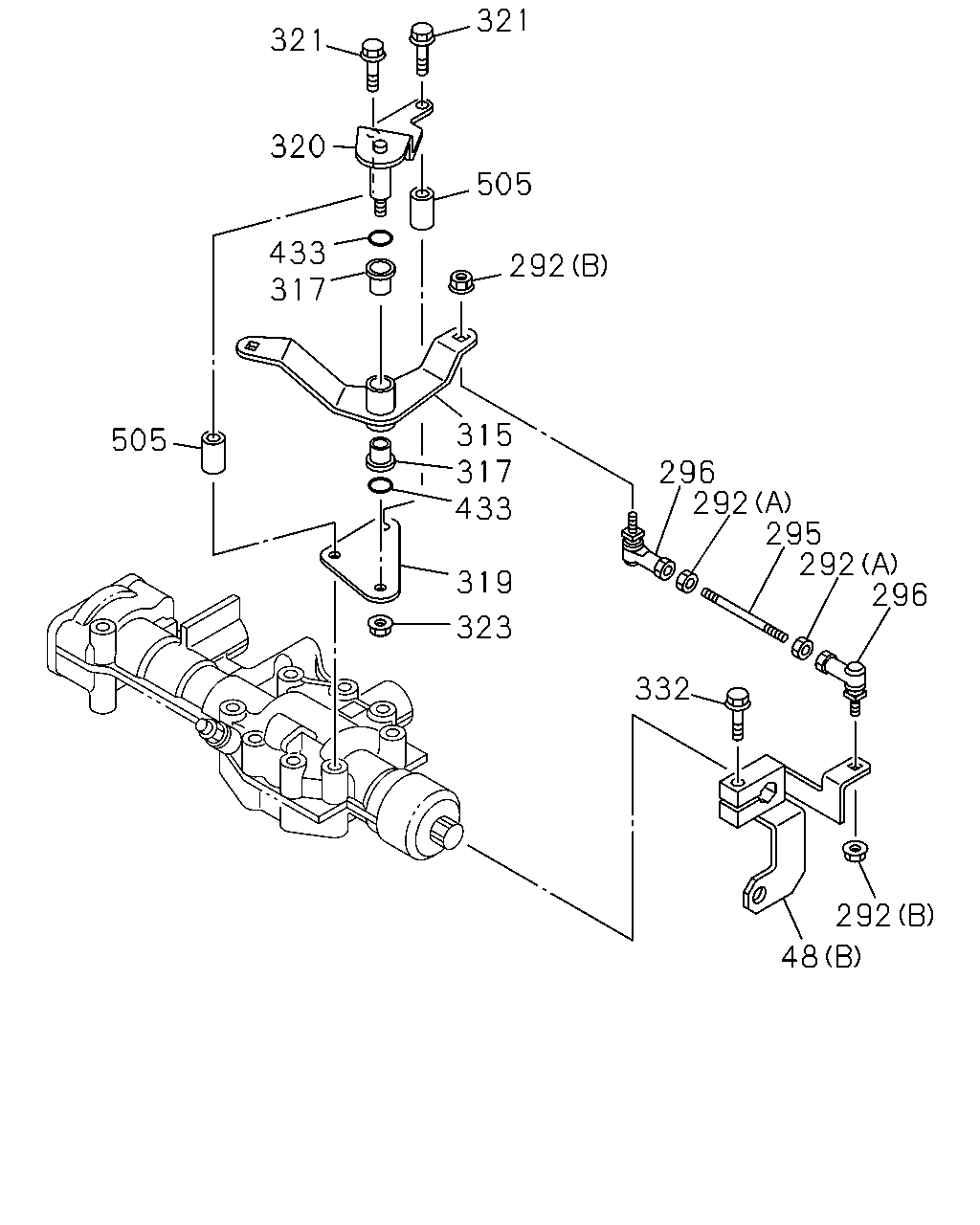

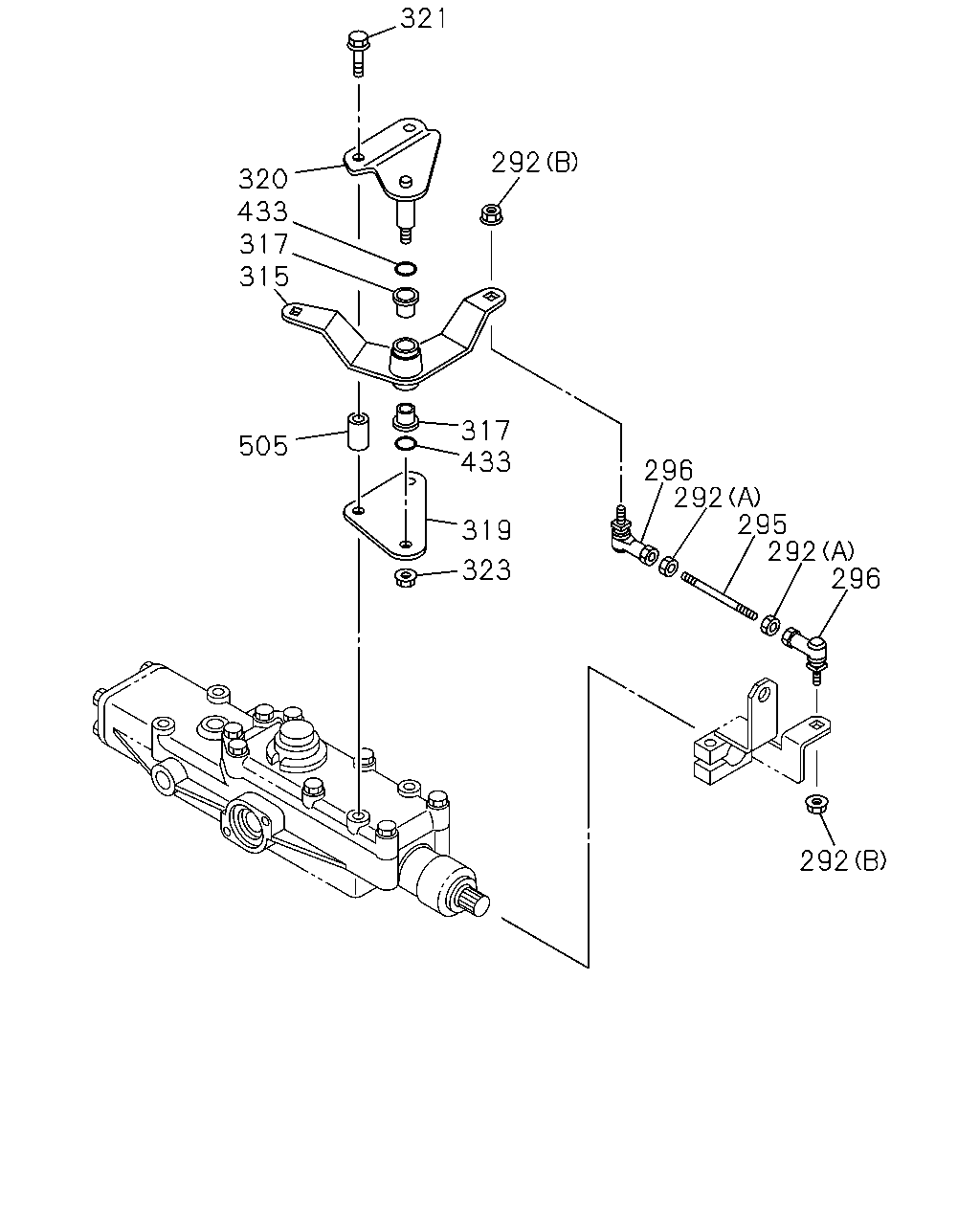

321
292
320
433
317
315
317
433
505
296
292
295
292
296
319
323
292
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
0807-1102
●
●
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
1103-
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0807-1102
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1103-
●
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
0807-1102
●
●
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
1103-
●
296
ROD END
1-09760-108-0
02
1
0807-1102
●
●
296
ROD END
1-09760-108-0
02
1
1103-
●
315
LEVER; SELECT
8-98085-738-0
01
1
0807-
●
315
LEVER; SELECT
8-98071-417-0
01
1
0807-1102
●
317
BUSHING; LEVER
1-09330-119-0
02
1
0807-1102
●
●
317
BUSHING; LEVER
1-09330-119-0
02
1
1103-
●
319
BRACKET; SELECT LEVER
8-98085-740-0
01
1
0807-
●
319
BRACKET; SELECT LEVER
8-98071-419-0
01
1
0807-1102
●
320
SHAFT; LEVER
8-98085-739-0
01
1
0807-
●
320
SHAFT; LEVER
8-98071-418-0
01
1
0807-1102
●
321
BOLT; BRKT,RELAY LEVER
1-09040-100-0
02
1
0807-1102
●
321
BOLT; BRKT,RELAY LEVER
M8X130 FLANGE
0-28065-813-0
02
1
0807-
●
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
0807-1102
●
●
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
1103-
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0807-1102
●
●
433
GASKET; BUSHING
1-09623-594-0
02
1
1103-
●
505
SPACER; BRKT
1-11349-149-0
02
1
0807-1102
●
505
SPACER; BRKT
L=24.5
1-33659-186-1
02
1
0807-
●
165
289
165
165
271
90
430
298
569
304
90
332
265
264
42
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
CAP; QUAD BOX
(B)
1-33549-111-0
01
1
0807-1305
●
42
CAP; QUAD BOX
(B) THA
1-33549-589-0
01
1
1302-
●
42
CAP; QUAD BOX
(A)
1-33549-509-0
01
1
0807-1102
●
48
LEVER; 4TH,SHIFT
(B)
8-98081-304-1
01
1
0807-1102
●
48
LEVER; 4TH,SHIFT
(A)
8-98085-725-0
01
1
0807-
●
90
RING; SNAP,SHIFT ROD
1-33549-494-0
02
1
0807-
●
90
RING; SNAP,SHIFT ROD
1-33549-511-0
01
1
0807-1102
●
165
LEVER; SHIFT
(A)
1-33549-488-0
01
1
0807-
●
165
LEVER; SHIFT
(B)
1-33549-489-0
01
1
0807-
●
165
LEVER; SHIFT
(C)
1-33549-490-0
01
1
0807-1305
●
165
LEVER; SHIFT
(C) THA
1-33549-603-0
01
1
1302-
●
264
SEAL; DUST,SHAFT
1-33549-119-0
01
1
0807-
●
265
SEAL; OIL,SHIFT
1-33549-118-0
01
1
0807-
●
265
SEAL; OIL,SHIFT
1-33549-544-0
01
1
0807-1102
●
271
BUSHING; QUAD BOX
1-33549-124-0
01
1
0807-
●
271
BUSHING; QUAD BOX
1-33549-318-0
01
1
0807-1102
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33549-491-0
01
1
0807-
●
298
SHAFT; SHIFT LEVER
1-33522-205-0
01
1
0807-
●
298
SHAFT; SHIFT LEVER
1-33522-206-0
01
1
0807-1102
●
304
BLOCK; SHIFT SHAFT
1-33549-492-0
01
1
0807-
●
304
BLOCK; SHIFT SHAFT
1-33549-546-0
01
1
0807-1102
●
332
BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER
8-98038-710-0
01
1
0807-1102
●
332
BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA
0-28650-840-0
01
1
0807-
●
430
PIN; SPR,SHIFT ROD
1-33549-493-0
01
1
0807-
●
430
PIN; SPR,SHIFT ROD
1-33529-130-0
01
1
0807-1102
●
569
PIN; QUADRANT BOX
1-33529-128-0
02
1
0807-
●

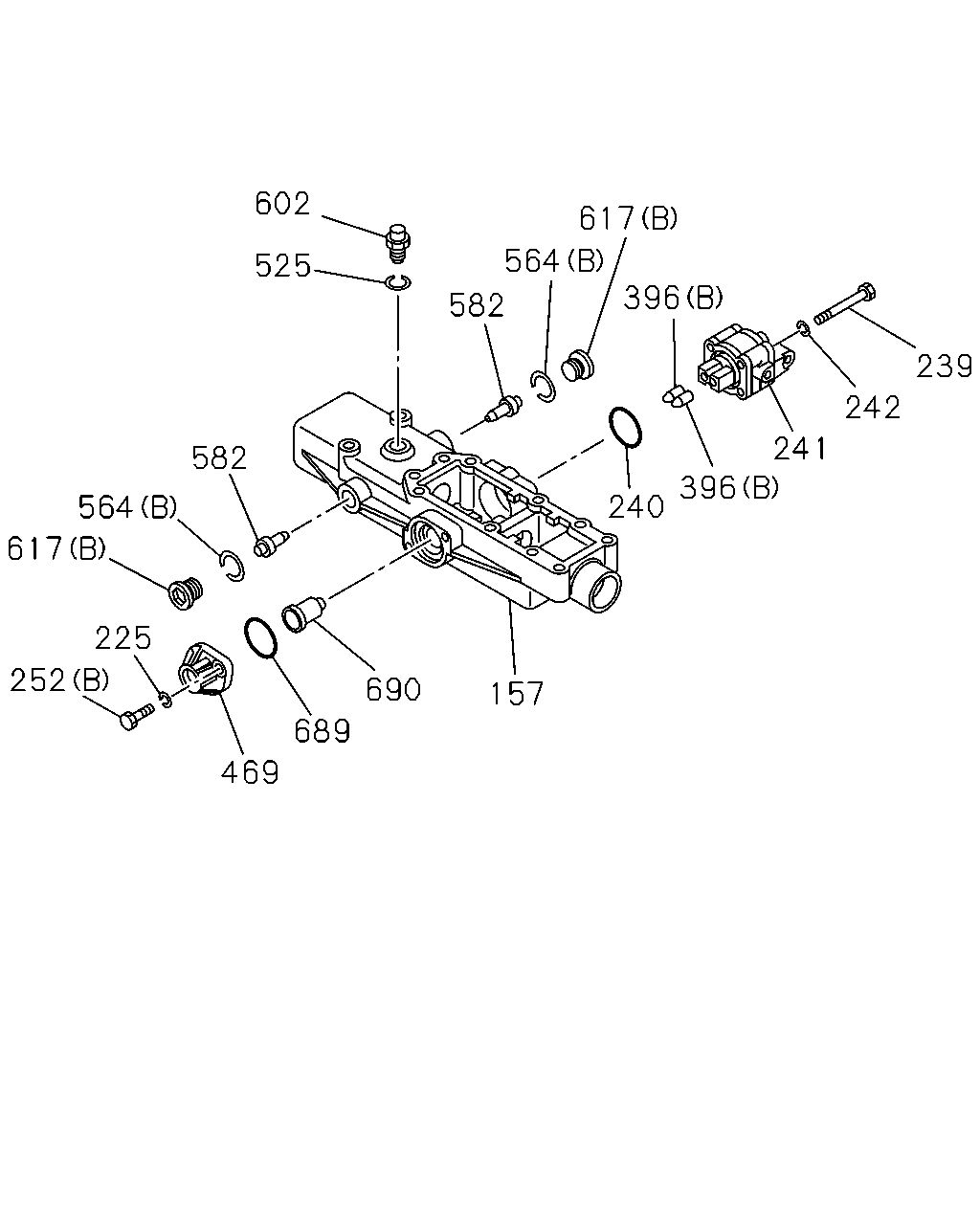

602
617
564
525
396
582
239
242
241
396
582
240
564
617
225
252
690
157
689
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
157
BOX; QUAD,TRANS
1-33549-485-0
01
1
0807-0912
●
157
BOX; QUAD,TRANS
1-33549-570-0
01
1
1001-
●
157
BOX; QUAD,TRANS
1-33541-543-0
01
1
0807-1102
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
14
1
0807-1305
●
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1302-
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
01
1
0807-1102
●
239
BOLT; CUT OFF VALVE
1-33549-302-0
04
1
0807-1305
●
239
BOLT; CUT OFF VALVE
THA
1-33549-585-0
04
1
1302-
●
240
GASKET; CUT OFF VALVE
1-33549-198-0
01
1
0807-
●
241
VALVE; CUT OFF
1-33549-495-0
01
1
0807-
●
242
WASHER; CUT OFF VALVE
1-33549-159-0
04
1
0807-1305
●
242
WASHER; CUT OFF VALVE
THA
1-33549-583-0
04
1
1302-
●
252
BOLT; SIDE COVER
(B) M8X30
1-33549-172-0
02
1
0807-1305
●
252
BOLT; SIDE COVER
(B) M8X30 THA
1-33549-581-0
02
1
1302-
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
0807-1102
●
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
1103-1305
●
252
BOLT; SIDE COVER
(A) M8X20 THA
1-33549-591-0
04
1
1302-
●
396
PLUNGER; SHIFT ROD
(A)
1-33519-073-0
01
1
0807-1305
●
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1302-
●
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
0807-
●
469
COVER; SPRING,QUAD BOX
1-33549-216-0
01
1
0807-
●
525
RING; DETENT
1-33549-497-0
01
1
0807-0912
●
525
RING; DETENT
1-33119-286-0
01
1
1001-
●
564
SEAL; RING
(B)
1-33119-249-0
02
1
0807-
●
564
SEAL; RING
(A)
1-33549-444-0
01
1
0807-1305
●
564
SEAL; RING
(A) THA
1-33549-578-0
01
1
1302-
●
582
BOLT; SPRING GUIDE
1-33549-487-0
02
1
0807-
●
602
PLUNGER; DETENT
1-33549-498-0
01
1
0807-0912
●
602
PLUNGER; DETENT
1-33119-285-0
01
1
1001-1305
●
602
PLUNGER; DETENT
THA
1-33119-618-0
01
1
1302-
●
617
PLUG
(B)
1-33119-171-0
02
1
0807-1305
●
617
PLUG
(B) THA
1-33119-619-0
02
1
1302-
●
617
PLUG
(A)
1-34129-061-0
01
1
0807-1305
●
617
PLUG
(A) THA
1-33539-109-0
01
1
1302-
●
689
GASKET; COVER
1-33542-063-0
01
1
0807-
●
690
PIN; STOP
1-33549-496-0
01
1
0807-
●

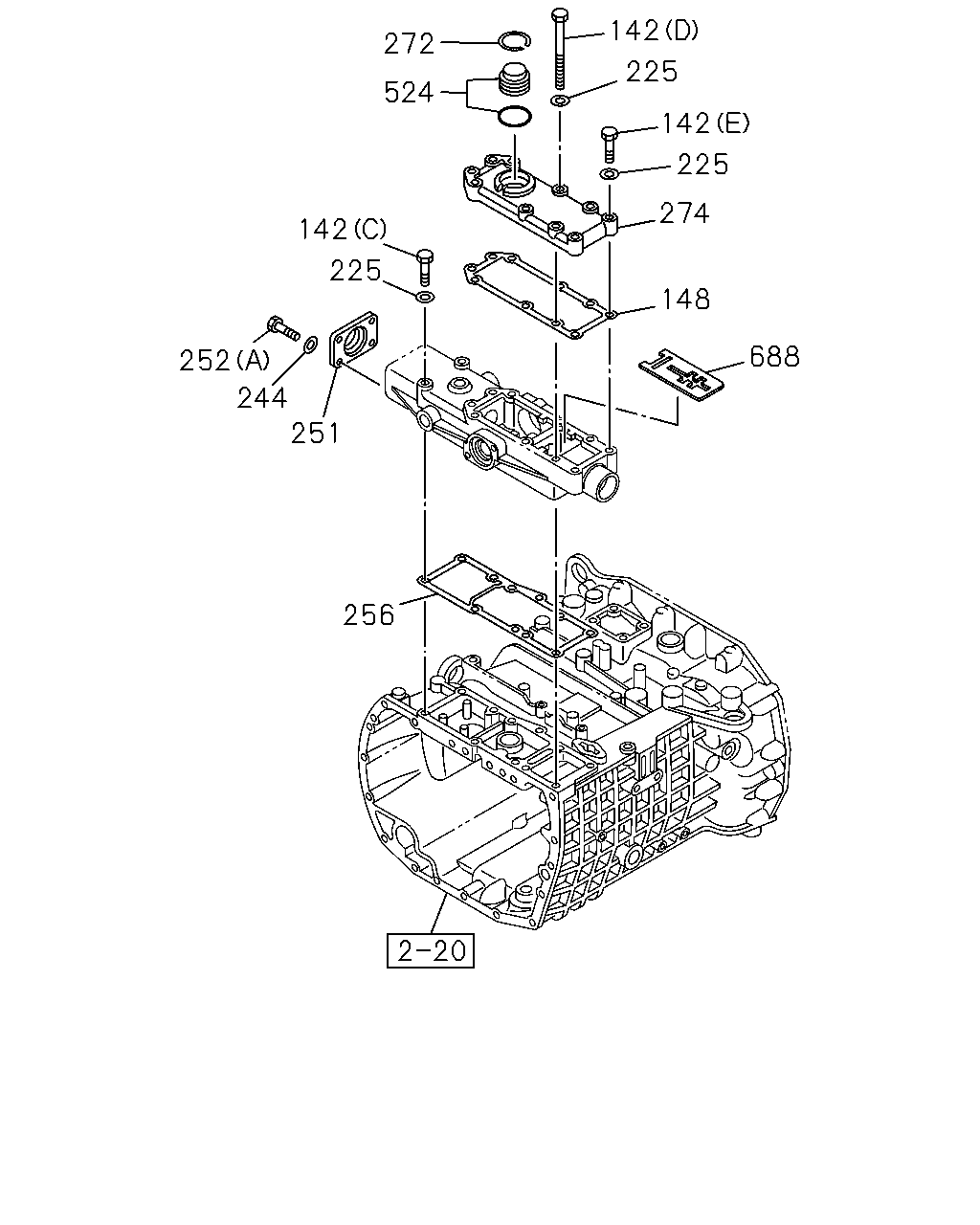

142
272
225
524
142
225
274
142
225
148
688
252
244
251
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

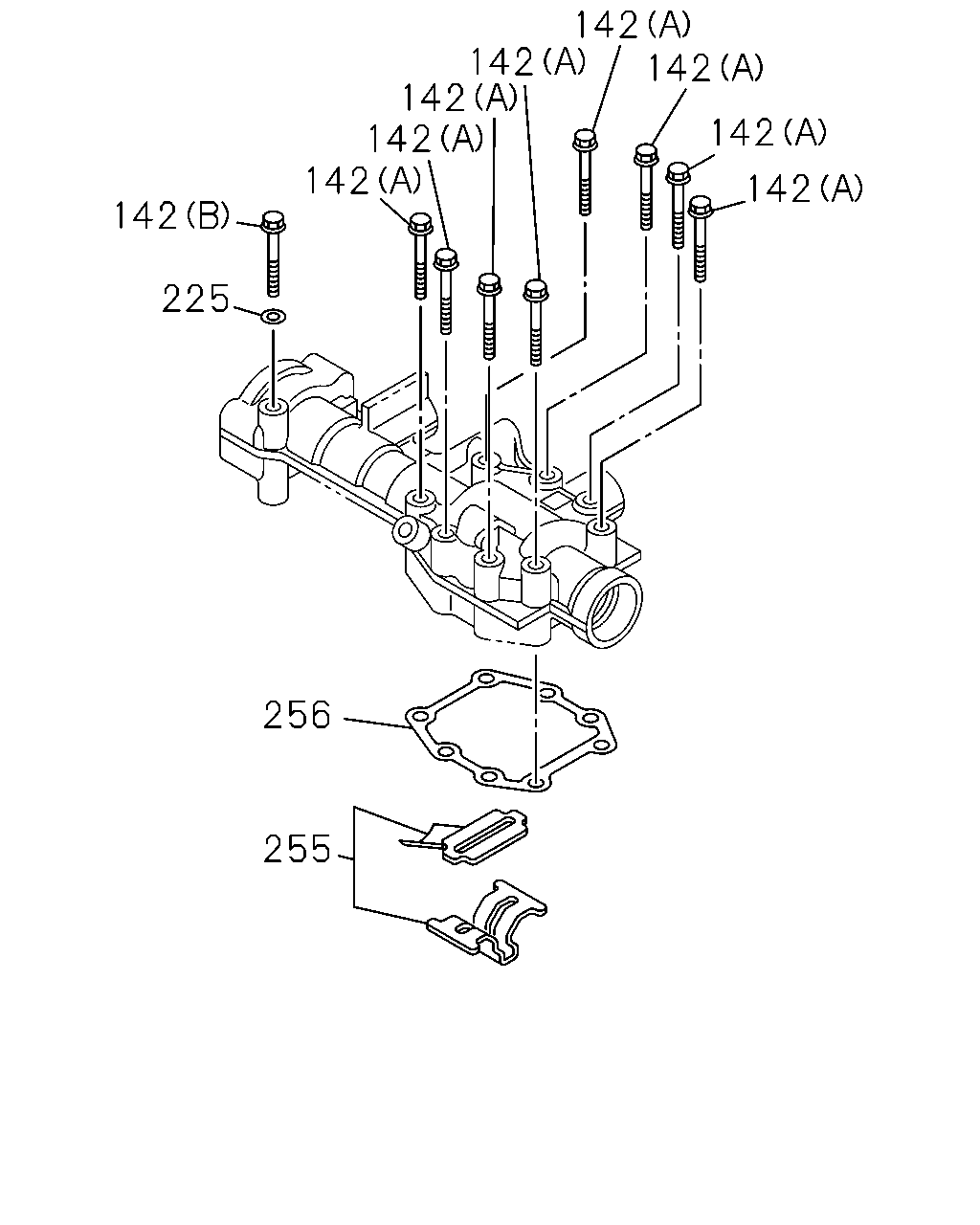

142
BOLT; QUAD BOX
(C) M8X75
1-09089-015-0
02
1
0807-1305
●
142
BOLT; QUAD BOX
(C) M8X100 THA
1-33549-582-0
06
1
1302-
●
142
BOLT; QUAD BOX
(D)
1-33549-486-0
06
1
0807-1305
●
142
BOLT; QUAD BOX
(D) M8X75 THA
1-33549-584-0
02
1
1302-
●
142
BOLT; QUAD BOX
(E)
1-34129-116-0
04
1
0807-1305
●
142
BOLT; QUAD BOX
(E) M8X40 THA
1-33549-587-0
04
1
1302-
●
142
BOLT; QUAD BOX
(A) M8X80
1-33549-256-0
08
1
0807-1102
●
142
BOLT; QUAD BOX
(B)
1-33549-290-0
01
1
0807-1102
●
148
GASKET; QUAD BOX
1-33542-064-0
01
1
0807-
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
14
1
0807-1305
●
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1302-
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
01
1
0807-1102
●
244
WASHER; LK,COVER
1-33549-159-0
04
1
0807-1102
●
●
244
WASHER; LK,COVER
1-33549-159-0
04
1
1103-1305
●
244
WASHER; LK,COVER
THA
1-33549-583-0
04
1
1302-
●
251
COVER; SIDE
1-33549-478-0
01
1
0807-1102
●
●
251
COVER; SIDE
1-33549-478-0
01
1
1103-1305
●
251
COVER; SIDE
THA
1-33549-590-0
01
1
1302-
●
252
BOLT; SIDE COVER
(B) M8X30
1-33549-172-0
02
1
0807-1305
●
252
BOLT; SIDE COVER
(B) M8X30 THA
1-33549-581-0
02
1
1302-
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
0807-1102
●
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
1103-1305
●
252
BOLT; SIDE COVER
(A) M8X20 THA
1-33549-591-0
04
1
1302-
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-062-0
01
1
0807-0912
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-065-0
01
1
1001-
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-504-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
1-44519-217-0
01
1
0807-
●
272
RING; SNAP,QUAD BOX
T=1.85
1-33549-514-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.35
1-33549-515-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.75
1-33549-516-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.45
1-33549-517-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.65
1-33549-518-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.55
1-33549-519-0
01
1
0807-1102
●
274
COVER; SHAFT,QUAD BOX
1-33549-499-0
01
1
0807-0912
●
274
COVER; SHAFT,QUAD BOX
1-33549-571-0
01
1
1001-1305
●
274
COVER; SHAFT,QUAD BOX
THA
1-33549-579-0
01
1
1302-
●
524
DETENT; QUAD BOX
1-33549-501-0
01
1
0807-
●
688
SHIFT; INTERLOCK
1-33549-500-0
01
1
0807-0912
●
688
SHIFT; INTERLOCK
1-33549-572-0
01
1
1001-
●
321
321
320
505
433
317
292
315
317
433
505
296
292
295
292
296
319
323
332
292
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
LEVER; 4TH,SHIFT
(B)
8-98081-304-1
01
1
0807-1102
●
48
LEVER; 4TH,SHIFT
(A)
8-98085-725-0
01
1
0807-
●
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
0807-1102
●
●
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
1103-
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0807-1102
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1103-
●
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
0807-1102
●
●
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
1103-
●
296
ROD END
1-09760-108-0
02
1
0807-1102
●
●
296
ROD END
1-09760-108-0
02
1
1103-
●
315
LEVER; SELECT
8-98085-738-0
01
1
0807-
●
315
LEVER; SELECT
8-98071-417-0
01
1
0807-1102
●
317
BUSHING; LEVER
1-09330-119-0
02
1
0807-1102
●
●
317
BUSHING; LEVER
1-09330-119-0
02
1
1103-
●
319
BRACKET; SELECT LEVER
8-98085-740-0
01
1
0807-
●
319
BRACKET; SELECT LEVER
8-98071-419-0
01
1
0807-1102
●
320
SHAFT; LEVER
8-98085-739-0
01
1
0807-
●
320
SHAFT; LEVER
8-98071-418-0
01
1
0807-1102
●
321
BOLT; BRKT,RELAY LEVER
1-09040-100-0
02
1
0807-1102
●
321
BOLT; BRKT,RELAY LEVER
M8X130 FLANGE
0-28065-813-0
02
1
0807-
●
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
0807-1102
●
●
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
1103-
●
332
BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER
8-98038-710-0
01
1
0807-1102
●
332
BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA
0-28650-840-0
01
1
0807-
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0807-1102
●
●
433
GASKET; BUSHING
1-09623-594-0
02
1
1103-
●
505
SPACER; BRKT
1-11349-149-0
02
1
0807-1102
●
505
SPACER; BRKT
L=24.5
1-33659-186-1
02
1
0807-
●

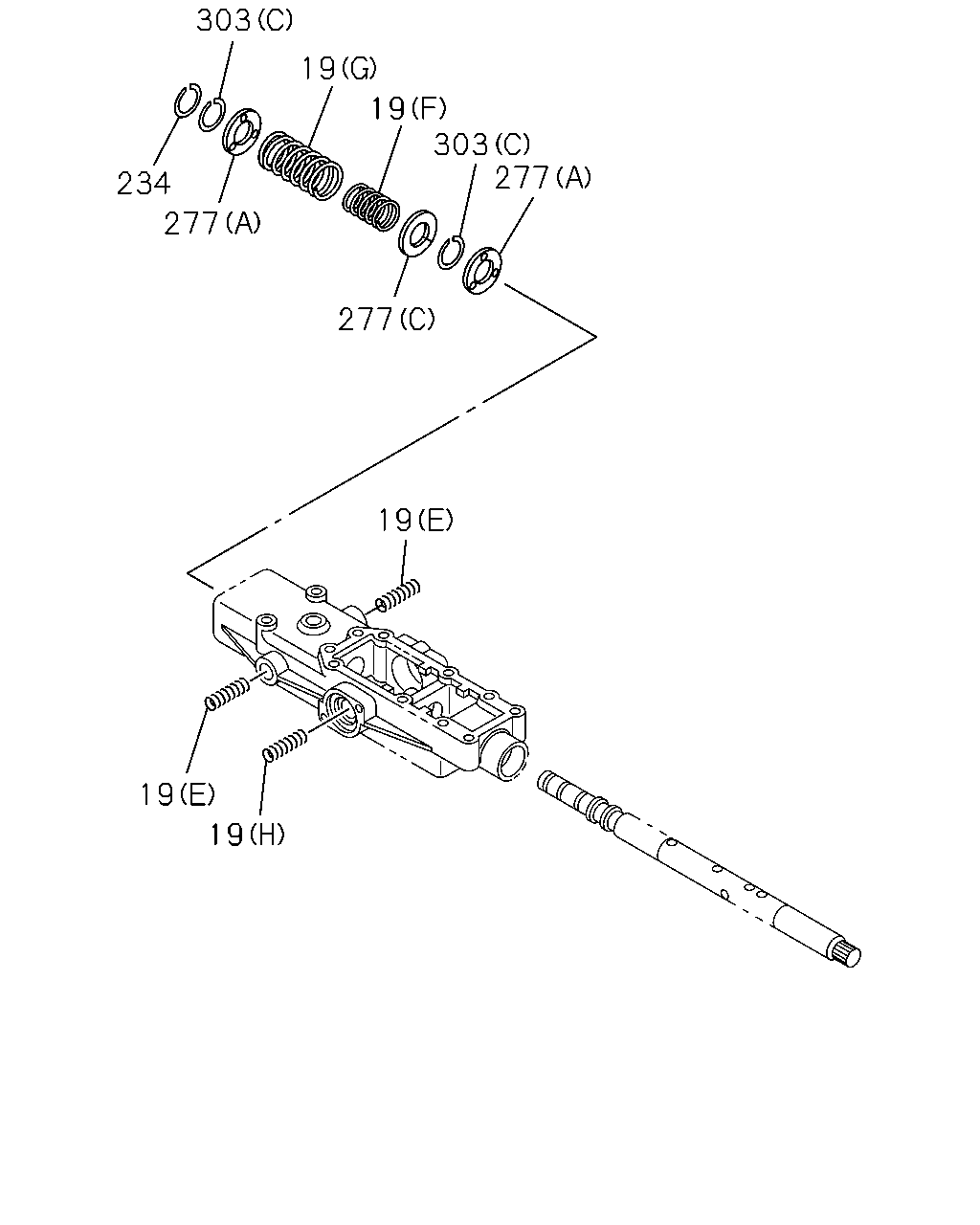

19
19
19
277
277
303
19
19
303
277
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(G)
1-33539-092-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(G)
1-33539-027-0
01
1
1001-
●
19
SPRING; COIL COMP
(F)
1-33539-093-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(F)
1-33539-104-0
01
1
1001-
●
19
SPRING; COIL COMP
(H)
1-33539-094-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(H)
1-33549-221-0
01
1
1001-
●
19
SPRING; COIL COMP
(E)
1-33539-030-0
02
1
0807-
●
19
SPRING; COIL COMP
(C)
1-33539-022-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(B)
1-33539-031-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(A)
1-33539-096-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(D)
1-33549-520-0
01
1
0807-1102
●
234
RING; SNAP
1-44519-224-0
01
1
0807-
●
277
PLATE; SPRING SEAT
(A)
1-33539-039-0
02
1
0807-1305
●
277
PLATE; SPRING SEAT
(A)
1-33539-039-0
01
1
0807-1102
●
277
PLATE; SPRING SEAT
(A) THA
1-33539-107-0
02
1
1302-
●
277
PLATE; SPRING SEAT
(B)
1-33539-095-0
01
1
0807-1102
●
277
PLATE; SPRING SEAT
(C)
1-33539-042-0
01
1
0807-1102
●
●
277
PLATE; SPRING SEAT
(C)
1-33539-042-0
01
1
1103-1305
●
303
RING; SNAP,SHAFT
(C)
1-33539-040-0
02
1
0807-
●
303
RING; SNAP,SHAFT
(A)
1-33539-040-0
01
1
0807-1102
●
303
RING; SNAP,SHAFT
(B)
1-44519-224-0
01
1
0807-1102
●
195
171
172
191
541
500
393
361
359
358
355
357
356
355
354
363
398
411
52
497
60
347
352
345
60
345
395
396
52
392
360
394
392
360
394
449
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
52
BOLT; SHIFT ARM
(C)
1-33519-058-0
02
1
0807-1305
●
52
BOLT; SHIFT ARM
(C) THA
1-33519-196-0
02
1
1302-
●
52
BOLT; SHIFT ARM
(D)
1-33519-084-0
07
1
0807-1305
●
52
BOLT; SHIFT ARM
(D) THA
1-33519-190-0
07
1
1302-
●
52
BOLT; SHIFT ARM
(A)
1-33519-174-0
02
1
0807-1102
●
52
BOLT; SHIFT ARM
(B)
1-33519-175-0
06
1
0807-1102
●
60
WASHER; LK
(B)
1-33519-059-0
02
1
0807-1305
●
60
WASHER; LK
(A)
1-33519-085-0
07
1
0807-1305
●
60
WASHER; LK
(C)
1-33519-085-0
08
1
0807-1102
●
171
SWITCH; NEUTRAL
1-82440-095-0
01
1
0807-0912
●
171
SWITCH; NEUTRAL
1-33119-587-0
01
1
1001-1305
●
171
SWITCH; NEUTRAL
THA
1-33119-627-0
01
1
1302-
●
171
SWITCH; NEUTRAL
1-33549-469-0
01
1
0807-1102
●
172
GASKET; NEUTRAL SW
1-33119-249-0
01
1
0807-
●
191
WASHER; LK
1-36129-007-0
02
1
0807-1305
●
191
WASHER; LK
THA
1-33549-583-0
02
1
1302-
●
195
BOLT
1-33119-301-0
02
1
0807-1305
●
195
BOLT
IMA
1-33119-593-0
02
1
1302-
●
195
BOLT
1-33549-512-0
01
1
0807-1102
●
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-095-0
02
1
0807-
●
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-173-0
02
1
0807-1102
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-529-0
01
1
0807-
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-646-0
01
1
0807-1102
●
352
ROD; SHIFT,RANGE CHANGE
1-33531-495-0
01
1
0807-1305
●
352
ROD; SHIFT,RANGE CHANGE
THA
1-33531-047-0
01
1
1302-
●
354
SEAL; AIR CYL
1-33519-045-0
01
1
0807-
●
355
CUP; PISTON,AIR CYL
1-33519-088-0
02
1
0807-1305
●
356
PISTON; AIR CYL
1-33519-087-0
01
1
0807-1305
●
356
PISTON; AIR CYL
THA
1-33519-197-0
01
1
1302-
●
357
RING; GUIDE,AIR CYL
1-33519-090-0
01
1
0807-1305
●
358
NUT; SHIFT ROD
1-33519-049-0
01
1
0807-1305
●
358
NUT; SHIFT ROD
THA
1-33519-188-0
01
1
1302-
●
359
GASKET; AIR CYL
1-33519-093-0
01
1
0807-
●
360
BALL; AIR CYL
1-33119-252-0
01
1
0807-
●
361
CYLINDER; AIR,SHIFT
1-33519-092-0
01
1
0807-
●
363
BOLT; AIR CYL
M10X70
1-33119-522-0
03
1
0807-1305
●
363
BOLT; AIR CYL
M10X70 THA
1-33119-616-0
03
1
1302-
●
392
GASKET; PLUG & SW
1-33119-249-0
01
1
0807-
●
393
PIN; SW
1-33119-298-0
01
1
0807-
●
393
PIN; SW
1-33549-513-0
01
1
0807-1102
●
394
SWITCH; RANGE CHANGE
(A)
1-82440-095-0
01
1
0807-0912
●
394
SWITCH; RANGE CHANGE
(B)
1-33119-587-0
01
1
1001-1305
●
394
SWITCH; RANGE CHANGE
(B) THA
1-33119-627-0
01
1
1302-
●
395
GASKET; PLUNGER
1-33519-171-0
01
1
0807-
●
396
PLUNGER; SHIFT ROD
(A)
1-33519-073-0
01
1
0807-1305
●
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1302-
●
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
0807-
●
398
SWITCH; REV LAMP
1-82440-080-1
01
1
0807-0912
●
398
SWITCH; REV LAMP
1-38119-062-0
01
1
1001-
●
411
GASKET; REV LAMP SW
1-33119-249-0
01
1
0807-
●
449
HARNESS; NEUTRAL SW
1-82659-152-0
01
1
0807-0912
●
497
BALL; SWITCH
1-33119-252-0
01
1
0807-
●
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-299-0
01
1
0807-
●
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
0807-1102
●
541
PLATE; SWITCH
1-33119-300-0
01
1
0807-
●
142
142
142
142
142
142
142
142
142
225
256
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
142
BOLT; QUAD BOX
(C) M8X75
1-09089-015-0
02
1
0807-1305
●
142
BOLT; QUAD BOX
(C) M8X100 THA
1-33549-582-0
06
1
1302-
●
142
BOLT; QUAD BOX
(D)
1-33549-486-0
06
1
0807-1305
●
142
BOLT; QUAD BOX
(D) M8X75 THA
1-33549-584-0
02
1
1302-
●
142
BOLT; QUAD BOX
(E)
1-34129-116-0
04
1
0807-1305
●
142
BOLT; QUAD BOX
(E) M8X40 THA
1-33549-587-0
04
1
1302-
●
142
BOLT; QUAD BOX
(A) M8X80
1-33549-256-0
08
1
0807-1102
●
142
BOLT; QUAD BOX
(B)
1-33549-290-0
01
1
0807-1102
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
14
1
0807-1305
●
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1302-
●
225
WASHER; LK,QUAD BOX
1-33549-159-0
01
1
0807-1102
●
255
PLATE; DIST,QUAD BOX
1-33549-505-0
01
1
0807-1102
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-062-0
01
1
0807-0912
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-065-0
01
1
1001-
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-504-0
01
1
0807-1102
●
52
52
1
52
17
52
17
25
29
60
29
6
60
52
36
60
36
49
52
175
531
60
534
52
532
535
617
532
564
531
532
60
60
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-645-0
01
1
0807-0912
●
1
ARM; SHIFT,1ST & REV
1-33511-657-0
01
1
1001-
●
1
ARM; SHIFT,1ST & REV
1-33511-647-0
01
1
0807-1102
●
6
LEVER; RELAY
1-33511-641-0
01
1
0807-0912
●
6
LEVER; RELAY
1-33511-658-0
01
1
1001-
●
17
BLOCK; SHIFT,1ST & REV
1-33519-172-0
02
1
0807-
●
17
BLOCK; SHIFT,1ST & REV
1-33519-081-0
02
1
0807-1102
●
25
ARM; SHIFT,2ND & 3RD
1-33511-642-0
01
1
0807-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-648-0
01
1
0807-1102
●
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
0807-1102
●
●
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
1103-
●
36
BLOCK; SHIFT,4TH & 5TH
1-33519-170-0
02
1
0807-
●
36
BLOCK; SHIFT,4TH & 5TH
1-33519-173-0
02
1
0807-1102
●
49
ARM; SHIFT,4TH & 5TH
1-33511-640-0
01
1
0807-
●
49
ARM; SHIFT,4TH & 5TH
1-33511-649-0
01
1
0807-1102
●
52
BOLT; SHIFT ARM
(C)
1-33519-058-0
02
1
0807-1305
●
52
BOLT; SHIFT ARM
(C) THA
1-33519-196-0
02
1
1302-
●
52
BOLT; SHIFT ARM
(D)
1-33519-084-0
07
1
0807-1305
●
52
BOLT; SHIFT ARM
(D) THA
1-33519-190-0
07
1
1302-
●
52
BOLT; SHIFT ARM
(A)
1-33519-174-0
02
1
0807-1102
●
52
BOLT; SHIFT ARM
(B)
1-33519-175-0
06
1
0807-1102
●
60
WASHER; LK
(B)
1-33519-059-0
02
1
0807-1305
●
60
WASHER; LK
(A)
1-33519-085-0
07
1
0807-1305
●
60
WASHER; LK
(C)
1-33519-085-0
08
1
0807-1102
●
175
RING; STOPPER,SHIFT LEVER
1-33539-088-0
01
1
0807-0912
●
175
RING; STOPPER,SHIFT LEVER
1-33539-103-0
01
1
1001-
●
531
PLATE; BEARING
(A)
1-33539-044-0
01
1
0807-
●
531
PLATE; BEARING
(B)
1-33539-047-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(A)
1-33531-492-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(B)
1-33531-493-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(C)
1-33531-494-0
01
1
0807-
●
532
PLATE; SHIFT FORK
(D)
1-33519-177-0
01
1
0807-1102
●
534
LEVER; LOCK,SHIFT PLATE
1-33539-087-0
01
1
0807-
●
535
SPRING; LEVER
1-33539-049-0
01
1
0807-
●
564
SEAL; RING
(B)
1-33119-249-0
02
1
0807-
●
564
SEAL; RING
(A)
1-33549-444-0
01
1
0807-1305
●
564
SEAL; RING
(A) THA
1-33549-578-0
01
1
1302-
●
617
PLUG
(B)
1-33119-171-0
02
1
0807-1305
●
617
PLUG
(B) THA
1-33119-619-0
02
1
1302-
●
617
PLUG
(A)
1-34129-061-0
01
1
0807-1305
●
617
PLUG
(A) THA
1-33539-109-0
01
1
1302-
●
252
244
252
244
252
244
277
303
664
552
19
500
340
157
19
121
252
244
251
303
19
277
277
171
390
397
121
178
19
272
393
285
507
304
90
195
271
265
430
298
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(G)
1-33539-092-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(G)
1-33539-027-0
01
1
1001-
●
19
SPRING; COIL COMP
(F)
1-33539-093-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(F)
1-33539-104-0
01
1
1001-
●
19
SPRING; COIL COMP
(H)
1-33539-094-0
01
1
0807-0912
●
19
SPRING; COIL COMP
(H)
1-33549-221-0
01
1
1001-
●
19
SPRING; COIL COMP
(E)
1-33539-030-0
02
1
0807-
●
19
SPRING; COIL COMP
(C)
1-33539-022-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(B)
1-33539-031-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(A)
1-33539-096-0
01
1
0807-1102
●
19
SPRING; COIL COMP
(D)
1-33549-520-0
01
1
0807-1102
●
42
CAP; QUAD BOX
(B)
1-33549-111-0
01
1
0807-1305
●
42
CAP; QUAD BOX
(B) THA
1-33549-589-0
01
1
1302-
●
42
CAP; QUAD BOX
(A)
1-33549-509-0
01
1
0807-1102
●
90
RING; SNAP,SHIFT ROD
1-33549-494-0
02
1
0807-
●
90
RING; SNAP,SHIFT ROD
1-33549-511-0
01
1
0807-1102
●
121
PLUG; DETENT SPR
(A)
1-33549-487-0
01
1
0807-1102
●
121
PLUG; DETENT SPR
(B)
1-33549-521-0
01
1
0807-1102
●
157
BOX; QUAD,TRANS
1-33549-485-0
01
1
0807-0912
●
157
BOX; QUAD,TRANS
1-33549-570-0
01
1
1001-
●
157
BOX; QUAD,TRANS
1-33541-543-0
01
1
0807-1102
●
171
SWITCH; NEUTRAL
1-82440-095-0
01
1
0807-0912
●
171
SWITCH; NEUTRAL
1-33119-587-0
01
1
1001-1305
●
171
SWITCH; NEUTRAL
THA
1-33119-627-0
01
1
1302-
●
171
SWITCH; NEUTRAL
1-33549-469-0
01
1
0807-1102
●
178
GASKET; PLUG
1-33379-007-0
01
1
0807-1102
●
195
BOLT
1-33119-301-0
02
1
0807-1305
●
195
BOLT
IMA
1-33119-593-0
02
1
1302-
●
195
BOLT
1-33549-512-0
01
1
0807-1102
●
244
WASHER; LK,COVER
1-33549-159-0
04
1
0807-1102
●
●
244
WASHER; LK,COVER
1-33549-159-0
04
1
1103-1305
●
244
WASHER; LK,COVER
THA
1-33549-583-0
04
1
1302-
●
251
COVER; SIDE
1-33549-478-0
01
1
0807-1102
●
●
251
COVER; SIDE
1-33549-478-0
01
1
1103-1305
●
251
COVER; SIDE
THA
1-33549-590-0
01
1
1302-
●
252
BOLT; SIDE COVER
(B) M8X30
1-33549-172-0
02
1
0807-1305
●
252
BOLT; SIDE COVER
(B) M8X30 THA
1-33549-581-0
02
1
1302-
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
0807-1102
●
●
252
BOLT; SIDE COVER
(A)
1-33119-296-0
04
1
1103-1305
●
252
BOLT; SIDE COVER
(A) M8X20 THA
1-33549-591-0
04
1
1302-
●
265
SEAL; OIL,SHIFT
1-33549-118-0
01
1
0807-
●
265
SEAL; OIL,SHIFT
1-33549-544-0
01
1
0807-1102
●
271
BUSHING; QUAD BOX
1-33549-124-0
01
1
0807-
●
271
BUSHING; QUAD BOX
1-33549-318-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
1-44519-217-0
01
1
0807-
●
272
RING; SNAP,QUAD BOX
T=1.85
1-33549-514-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.35
1-33549-515-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.75
1-33549-516-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.45
1-33549-517-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.65
1-33549-518-0
01
1
0807-1102
●
272
RING; SNAP,QUAD BOX
T=1.55
1-33549-519-0
01
1
0807-1102
●
277
PLATE; SPRING SEAT
(A)
1-33539-039-0
02
1
0807-1305
●
277
PLATE; SPRING SEAT
(A)
1-33539-039-0
01
1
0807-1102
●
277
PLATE; SPRING SEAT
(A) THA
1-33539-107-0
02
1
1302-
●
277
PLATE; SPRING SEAT
(B)
1-33539-095-0
01
1
0807-1102
●
277
PLATE; SPRING SEAT
(C)
1-33539-042-0
01
1
0807-1102
●
●
277
PLATE; SPRING SEAT
(C)
1-33539-042-0
01
1
1103-1305
●
285
BREATHER; AIR,QUAD BOX
1-36122-004-0
01
1
0807-1102
●
298
SHAFT; SHIFT LEVER
1-33522-205-0
01
1
0807-
●
298
SHAFT; SHIFT LEVER
1-33522-206-0
01
1
0807-1102
●
303
RING; SNAP,SHAFT
(C)
1-33539-040-0
02
1
0807-
●
303
RING; SNAP,SHAFT
(A)
1-33539-040-0
01
1
0807-1102
●
303
RING; SNAP,SHAFT
(B)
1-44519-224-0
01
1
0807-1102
●
304
BLOCK; SHIFT SHAFT
1-33549-492-0
01
1
0807-
●
304
BLOCK; SHIFT SHAFT
1-33549-546-0
01
1
0807-1102
●
340
NUT; BRKT
M8
1-21719-024-0
01
1
0807-1102
●
390
GASKET; NEUTRAL SW
1-33119-249-0
01
1
0807-1102
●
393
PIN; SW
1-33119-298-0
01
1
0807-
●
393
PIN; SW
1-33549-513-0
01
1
0807-1102
●
397
BUSHING; PLUNGER
1-33549-522-0
01
1
0807-1102
●
430
PIN; SPR,SHIFT ROD
1-33549-493-0
01
1
0807-
●
430
PIN; SPR,SHIFT ROD
1-33529-130-0
01
1
0807-1102
●
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-299-0
01
1
0807-
●
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
0807-1102
●
507
ADAPTER; BREATHER
1-33549-545-0
01
1
0807-1102
●
552
BRACKET
1-33549-523-0
01
1
0807-1102
●
664
SWITCH
1-38119-062-0
01
1
0807-1102
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
