2-26 — MANUAL TRANSMISSION GEAR (#128939) — 136 parça

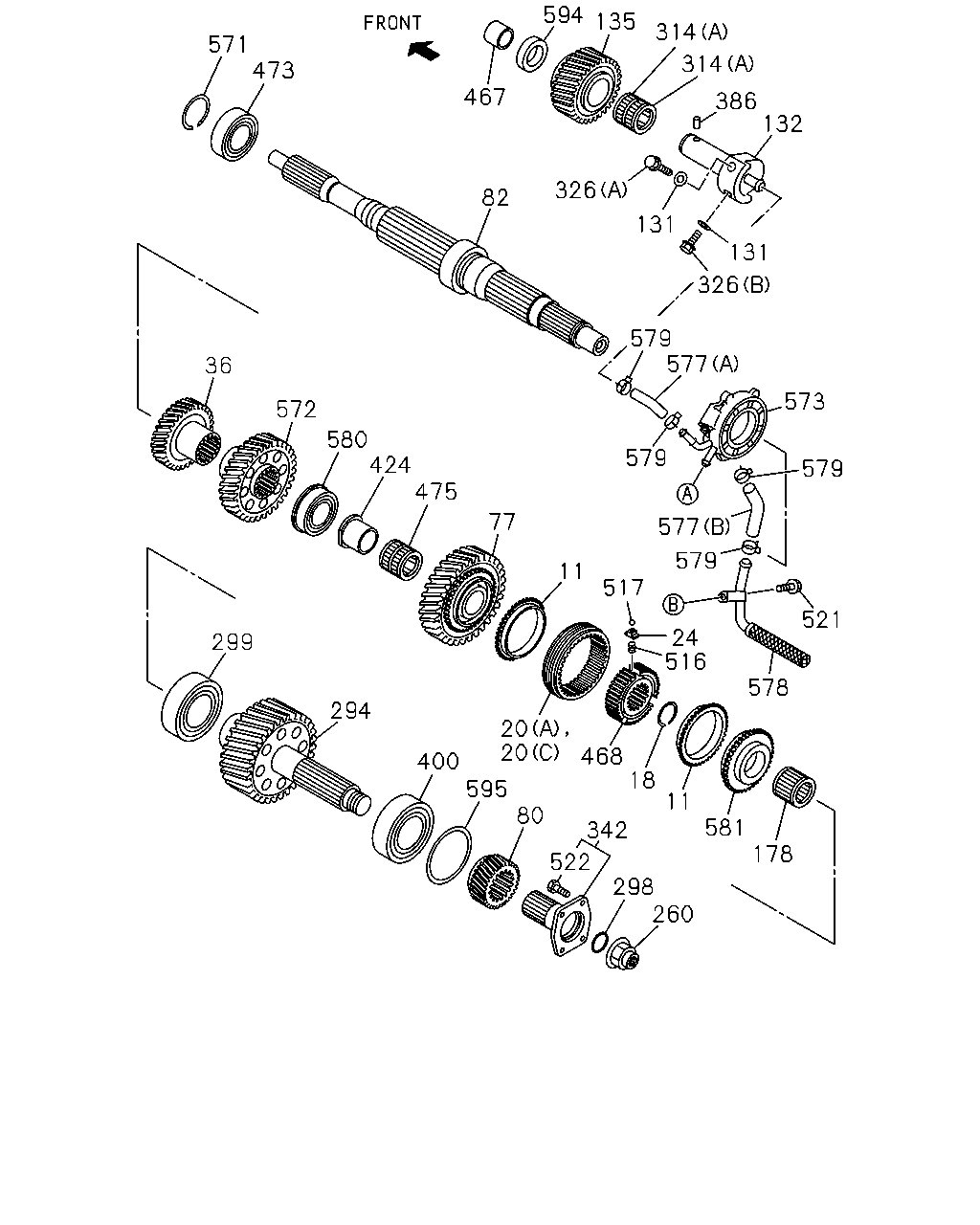

çizim 380979
260 178 581 11 18 468 342 298 522 80 595 400 294 299 20 20 578 516 24 517 11 77 475 424 580 572 36 521 579 577 579 579 573 577 579 326 131 131 326 82 467 594 135 314 314 386 132 473 571
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1310-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1310-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1310-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1310-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1310-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1310-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1310-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1310-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26 		8-98245-057-0 01 1 1310-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98245-058-0 01 1 1310-1507
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98292-396-0 01 1 1508-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310-
132 SHAFT; REV 8-98009-372-0 01 1 1310-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1310-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1310-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1310-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1310-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1310-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1310-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1310-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1310-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1310-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1310-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1310-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1310-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1310-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1310-
467 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1310-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1310-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1310-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1310-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1310-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1310-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1310-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1310-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1310-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1310-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1310-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1310-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1310-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1310-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1310-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1310-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1310-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1310-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1310-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1310-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1310-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1310-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1310-
çizim 381528
241 95 314 106 582 586 585 584 516 24 517 39 20 20 241 105 104 502 582 590 589 108 588 118 325 593 15 505 596 223 320 20 20 516 517 24 587 579 579 577 174 582 563 561 57 84 93 592 398 174 58
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1310-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1310-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1310-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1310-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1310-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1310-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1310-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1310-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1310-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1310-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1310-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1310-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1310-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1310-
174 SYNCHRONIZER ASM; 2ND-3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1310-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1310-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1310-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1310-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1310-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1310-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1310-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1310-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1310-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1310-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1310-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1310-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1310-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1310-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1310-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1310-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1310-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1310-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1310-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1310-1508
584 RING; BLOCK,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-98034-770-0 01 1 1509-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1310-1508
585 RING; OUTSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1509-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1310-1508
586 RING; INSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1509-
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1310-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1310-1508
588 RING; BLOCK,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-306-1 01 1 1509-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1310-1508
589 RING; OUTSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1509-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1310-1508
590 RING; INSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1509-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1310-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1310-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1310-
