Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

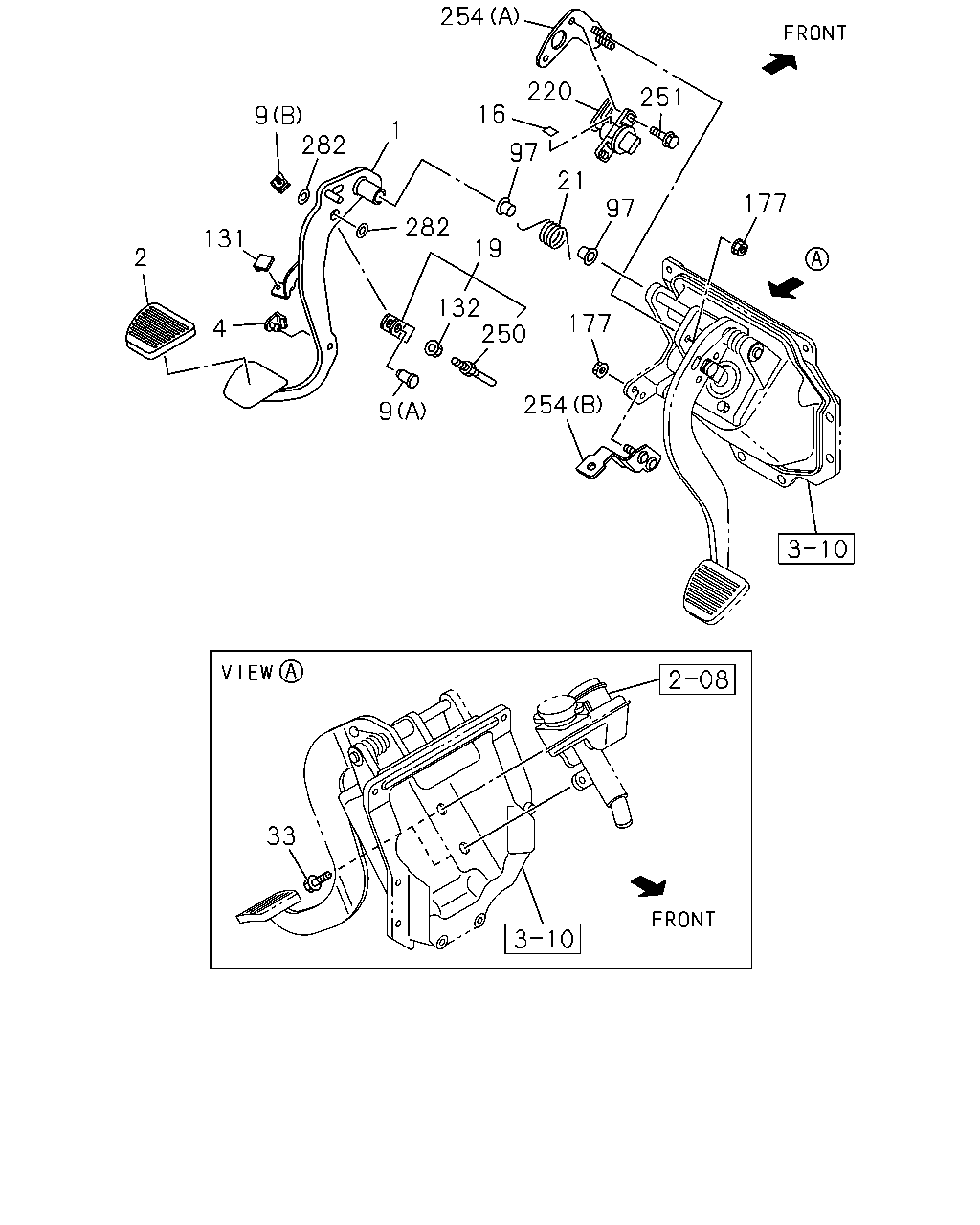

2-03 — CLUTCH PEDAL AND CONTROL
(#128932) — 21 parça
177
177
254
250
132
19
9
282
1
282
9
131
4
2
97
16
220
254
251
21
97
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-375-1
01
1
1310-
1
PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
8-97613-941-1
01
1
1310-
2
COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98056-865-0
01
1
1310-
4
STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98079-251-0
01
1
1310-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98007-161-0
01
1
1310-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-657-0
01
1
1310-
16
SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 30X30
8-98142-344-0
01
1
1310-
19
ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-406-1
01
1
1310-
21
SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-560-0
01
1
1310-
33
BOLT; CLU M/CYL TO BRKT
15" CLUTCH(RE9) M12X20 FLANGE
0-28051-220-0
02
1
1310-
97
BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-94238-596-0
02
1
1310-
131
STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97302-305-0
01
1
1310-
132
NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
01
1
1310-
177
NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
04
1
1310-
177
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
1310-
220
SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
1-80250-014-0
01
1
1310-
250
ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97615-589-0
01
1
1310-
251
BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16
0-52000-616-0
02
1
1310-
254
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98021-376-1
01
1
1310-
254
BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98021-377-1
01
1
1310-
282
SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98070-329-0
02
1
1310-
