2-26B — MANUAL TRANSMISSION GEAR (#12893) — 165 parça

398 506 325 593 15 174 582 104 105 118 20 20 320 596 223 592 516 517 24 587 579 588 589 590 582 108 174 577 579 582 106 586 585 584 516 517 24 84 93 241 20 20 57 314 95 241 563 582 561 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1103-
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1103-1107
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) Z=45	8-97241-296-1	02	1	1108-1210
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1211-1308
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1103-1107
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) Z=45	8-98034-769-0	01	1	1108-1210
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1103-
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1103-1501
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1103-
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1103-
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1103-
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1103-
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1103-
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1103-1107
104	GEAR; 4TH,COUNTER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=29	8-98168-502-0	01	1	1108-1203
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1103-
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1103-
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1103-1107
108	SHAFT; COUNTER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27-42-26	8-98160-120-0	01	1	1108-1209
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501
108	SHAFT; COUNTER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27-42-26	8-98303-643-0	01	1	1502-
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1103-
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1103-
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1103-
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1103-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1103-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1103-
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1103-1501
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1103-
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1103-
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1103-
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1103-
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1103-
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1103-
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1103-
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1103-
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1103-1107
577	HOSE; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-98033-981-0	04	1	1108-1205
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1103-1107
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1108-
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	06	1	1103-1107
579	CLAMP; HOSE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16 THA	8-97329-628-0	10	1	1108-1205
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1206-
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1103-
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1103-1107
584	RING; BLOCK,2ND EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=45	8-98034-770-0	01	1	1108-1210
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1211-1308
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1103-1508
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1103-1107
586	RING; INSIDE,2ND EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97241-312-1	01	1	1108-1210
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1211-1308
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	1103-1107
587	CASE; PUMP,COUNTER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97377-959-0	01	1	1108-1205
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501
587	CASE; PUMP,COUNTER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98303-650-0	01	1	1502-
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1103-1107
588	RING; BLOCK,3RD EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=45	8-97241-306-1	01	1	1108-1209
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1210-1308
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1103-1508
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1103-1107
590	RING; INSIDE,3RD EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97241-312-1	01	1	1108-1209
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1210-1308
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1103-
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1103-
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1103-

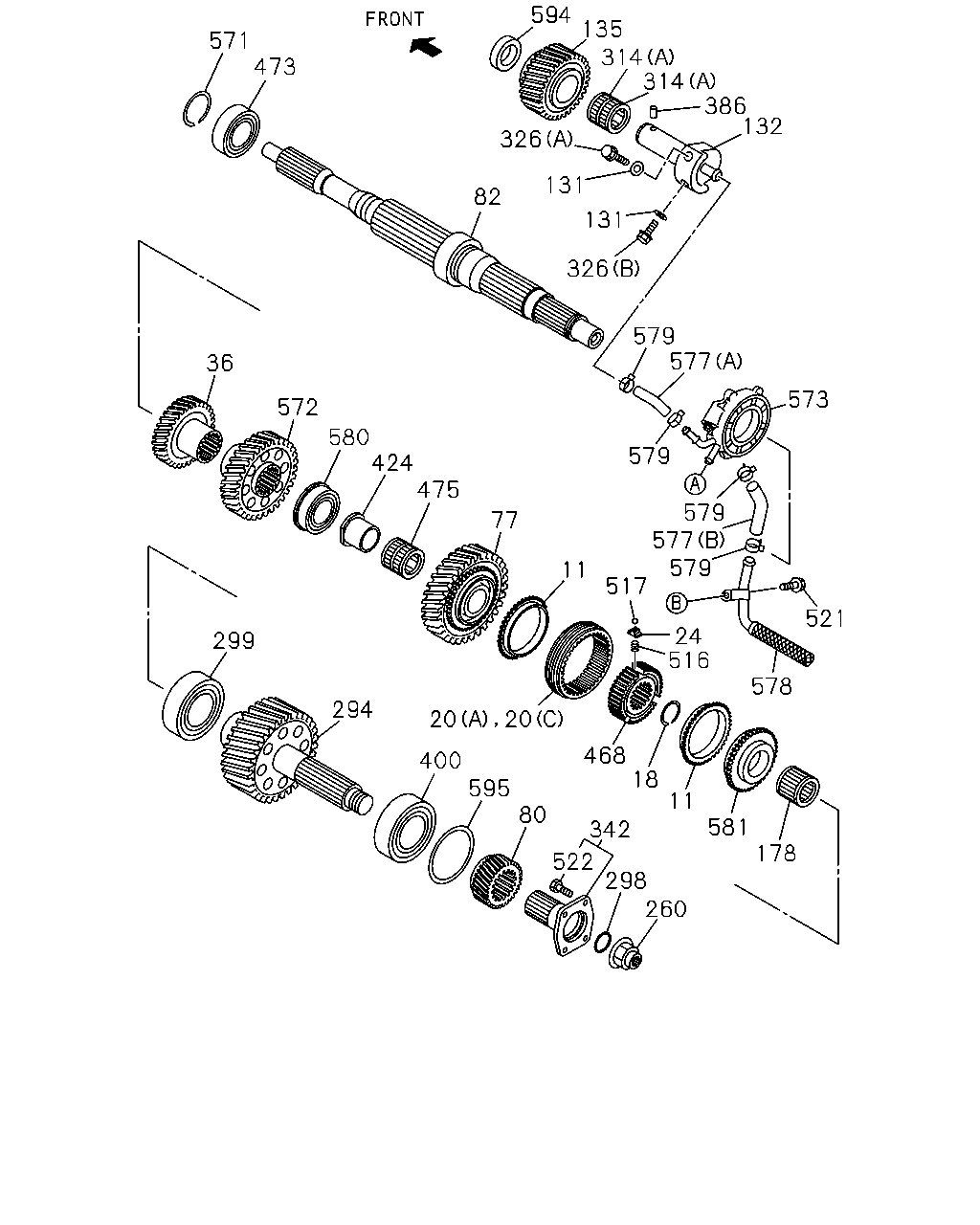

571 473 36 572 580 424 475 77 11 299 294 400 595 80 522 298 260 342 20 20 468 18 11 581 178 578 516 24 517 521 579 577 579 579 577 573 579 326 131 131 326 82 594 135 314 314 386 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1103-
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1103-
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1103-1107
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) Z=45	8-97241-296-1	02	1	1108-1210
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1211-1308
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1103-1107
20	SLEEVE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) Z=45	8-98034-769-0	01	1	1108-1210
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1103-
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1103-
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1103-1107
77	GEAR; 6TH,MAINSHAFT EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=46	8-98049-406-1	01	1	1108-1203
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1103-
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1103-1107
82	SHAFT; MAIN,TRANS EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=13-21-19-26	8-98140-880-0	01	1	1108-1308
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1103-
132	SHAFT; REV	8-98009-372-0	01	1	1103-
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1103-
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1103-
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1103-
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1103-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1103-
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1103-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1103-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1103-
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1103-
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1103-
342	FLANGE; OUTPUT	8-98155-332-0	01	1	1103-1107
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98155-332-0	01	1	1108-
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1103-
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1103-
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1103-
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1103-
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1103-
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1103-
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1103-
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1103-
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1103-
521	BOLT M8X12 FLANGE THA	0-28050-812-0	01	1	1103-
522	BOLT; FLANGE M16X51 W/MARK	1-46219-086-0	04	1	1103-1107
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M16X51 W/MARK	1-46219-086-0	04	1	1108-
571	RING; SNAP,BRG	8-97377-951-0	01	1	1103-
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1103-
573	PUMP ASM; OIL	8-98044-683-0	01	1	1103-1107
573	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98044-683-0	01	1	1108-1205
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1103-1107
577	HOSE; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-98033-981-0	04	1	1108-1205
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1103-1107
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1108-
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1103-1107
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1108-
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	06	1	1103-1107
579	CLAMP; HOSE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16 THA	8-97329-628-0	10	1	1108-1205
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1206-
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1103-
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1103-
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1103-
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1103-
