1-50 — EXHAUST PIPE AND SILENCER (#128929) — 102 parça

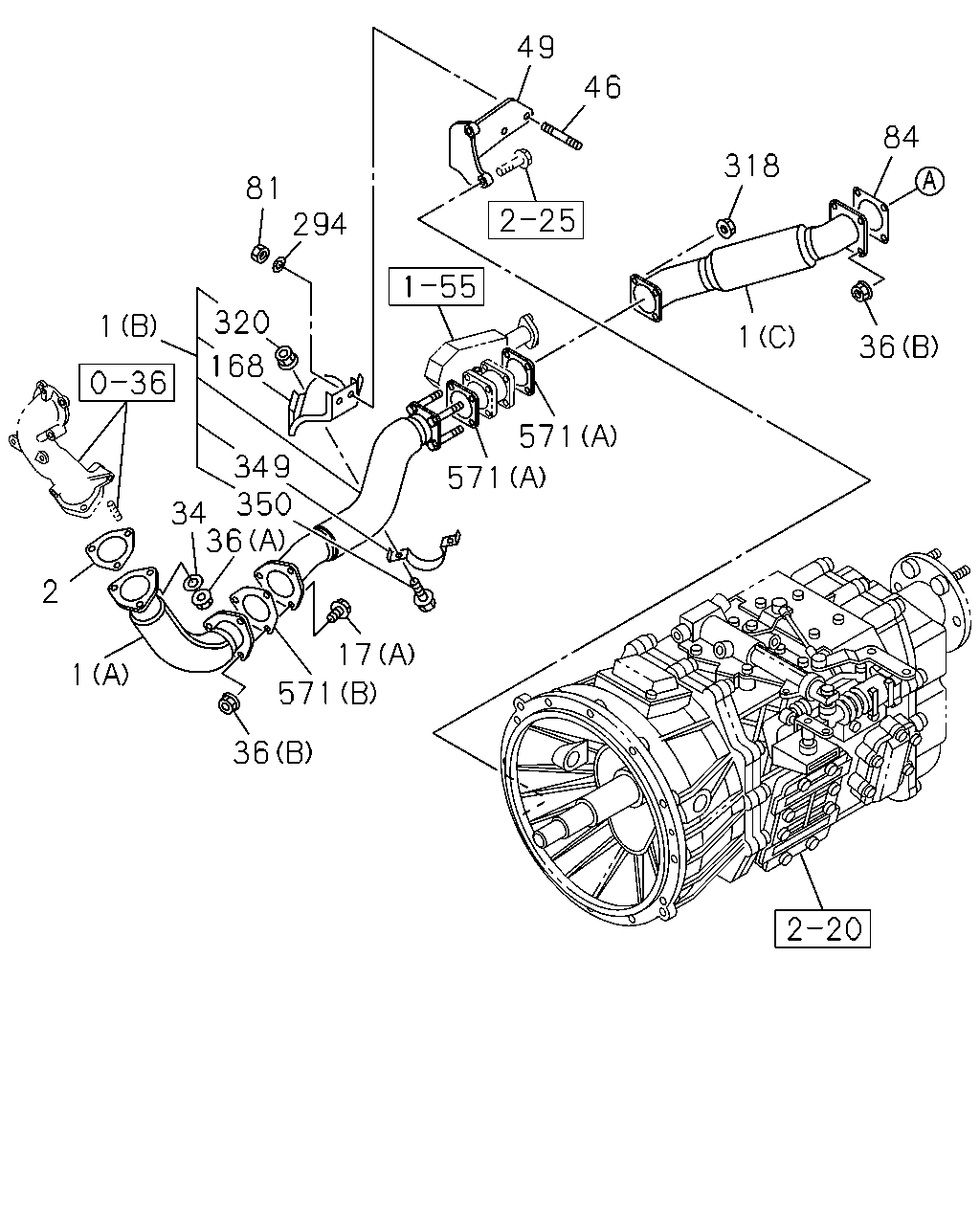

çizim 379590
49 46 318 84 1 36 571 571 81 294 320 168 1 2 34 349 350 36 1 17 571 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98096-668-2 01 1 1310-
1 PIPE; EXH
(A) 		8-98234-511-0 01 1 1310-
1 PIPE; EXH
(B) 		8-98234-516-1 01 1 1310-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1310-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1310-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1310-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1310-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1310-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1310-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1310-
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-495-0 01 1 1310-
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-493-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1310-
168 BRACKET; EXH PIPE,FRT 8-98221-369-1 01 1 1310-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1310-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1310-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1310-
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1310-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 1310-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1310-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1310-
çizim 379948
70 36 56 226 60 506 12 17 81 107 62 226 121 81
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98236-535-0 01 1 1310-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1310-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1310-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1310-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98070-639-0 01 1 1310-1310
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1310-1310
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1310-1310
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1310-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1310-

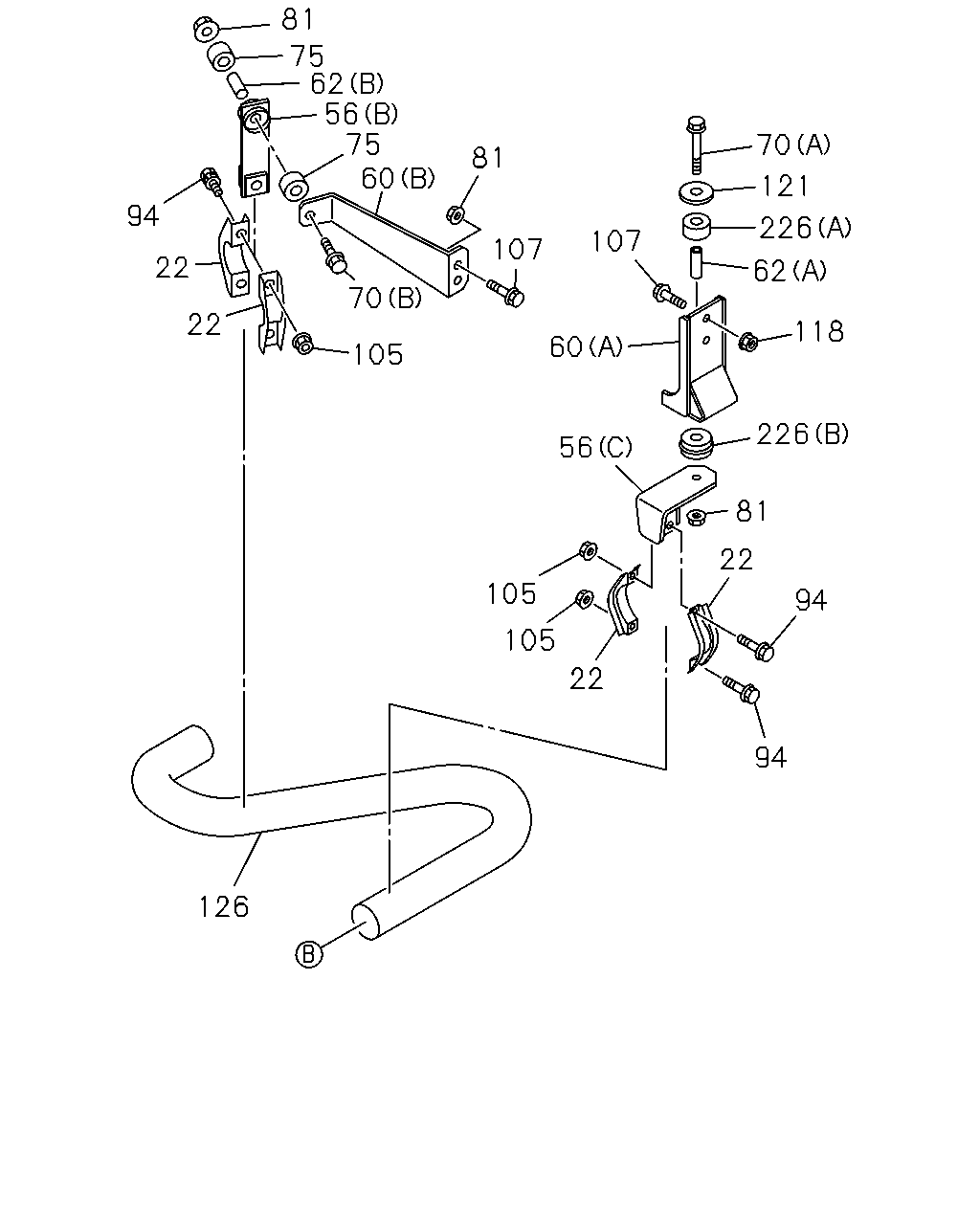

çizim 380076
60 75 56 62 75 81 81 107 70 22 22 94 105 107 70 121 226 62 118 60 56 226 81 22 94 105 105 22 126 94
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98070-639-0 01 1 1310-1310
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1310-1310
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1310-1310
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1310-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1310-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1310-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
126 PIPE; EXH,RR 8-98069-920-0 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
