◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#12892) — 564 parça

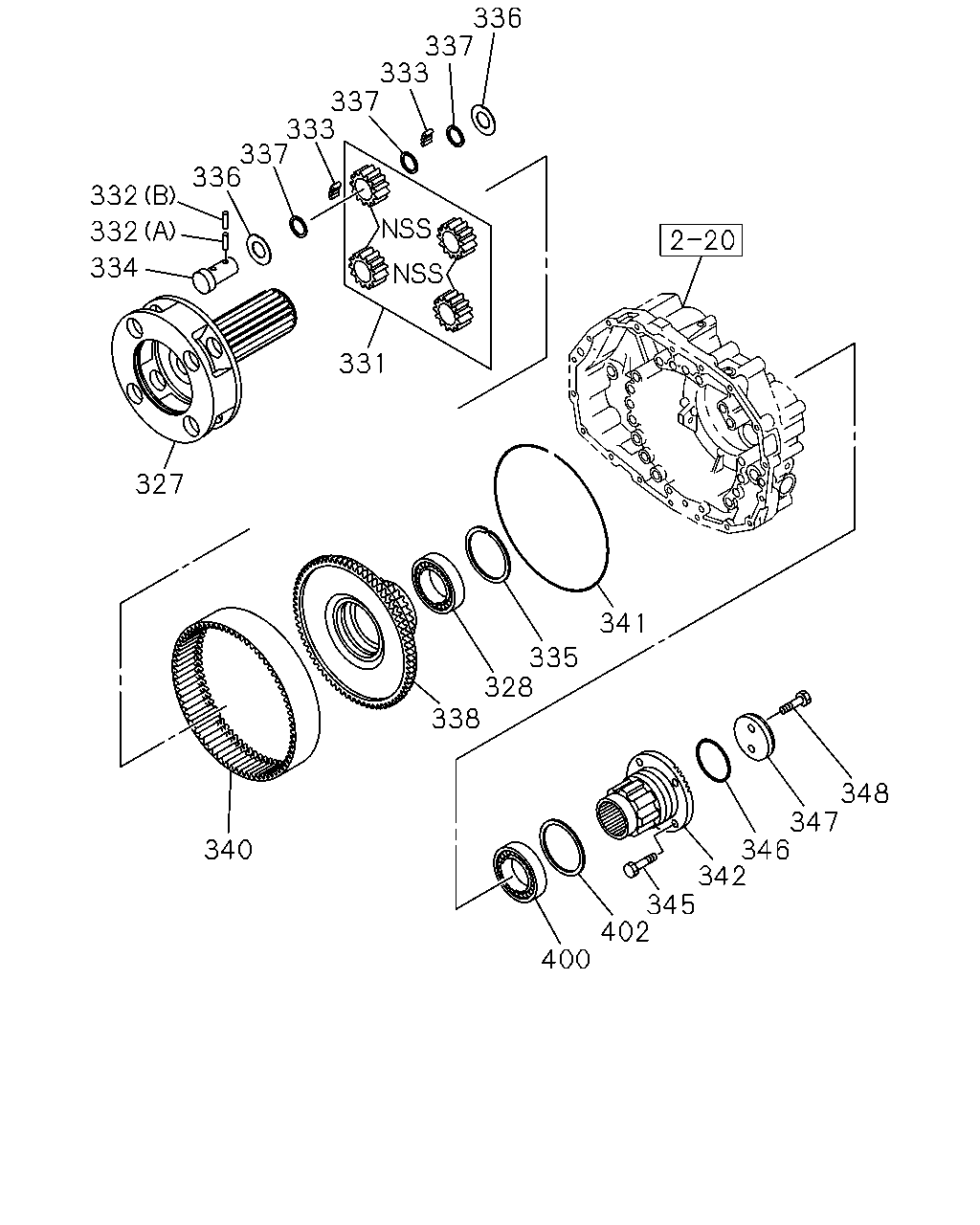

çizim 98191
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date A B
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0807- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 0807- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0807- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0807- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0807- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0807- ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 0807- ●
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0807- ●
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0807- ●
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0807- ●
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0807- ●
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0807- ●
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0807- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0807- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0807- ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0807- ●
340 GEAR; RING 1-33339-095-0 01 1 0807-0912 ●
340 GEAR; RING 1-33339-099-0 01 1 1001- ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0807- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0807- ●
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0807-1102 ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0807- ●
345 BOLT; FLANGE TO YOKE
SCREW 		1-37249-210-0 04 1 0807-1102 ●
346 GASKET; FLANGE 1-37249-156-0 01 1 0807- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0807- ●
347 WASHER; FLANGE 1-37249-211-0 01 1 0807-1102 ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0807-1305 ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0807-1102 ●
348 BOLT; SHAFT
THA 		1-37249-215-0 02 1 1302- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0807- ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 0807-0912 ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 0807-0912 ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 0807-0912 ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 0807-0912 ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 0807-0912 ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 0807-0912 ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 0807-0912 ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 0807-0912 ●
402 SHIM
T=1.40 		1-33139-072-0 01 1 0807-0912 ●
402 SHIM
T=1.30 		1-33139-073-0 01 1 0807-0912 ●

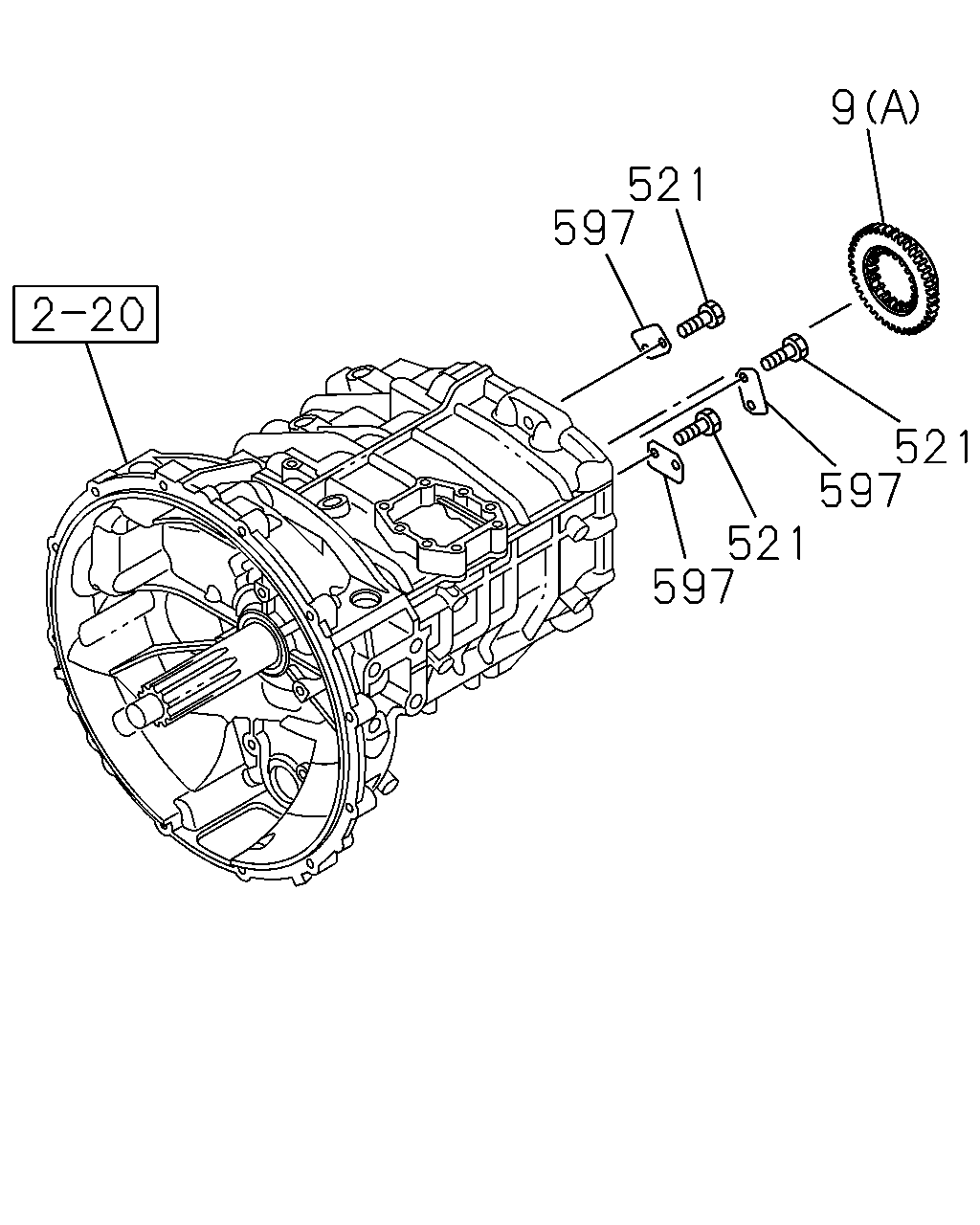

çizim 98273
9 521 597 521 597 521 597
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0807- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0807-1102 ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0807-1102 ●
521 BOLT 1-33129-003-0 06 1 0807-1102 ●
597 WASHER; TAB 1-33219-329-0 03 1 0807-1102 ●

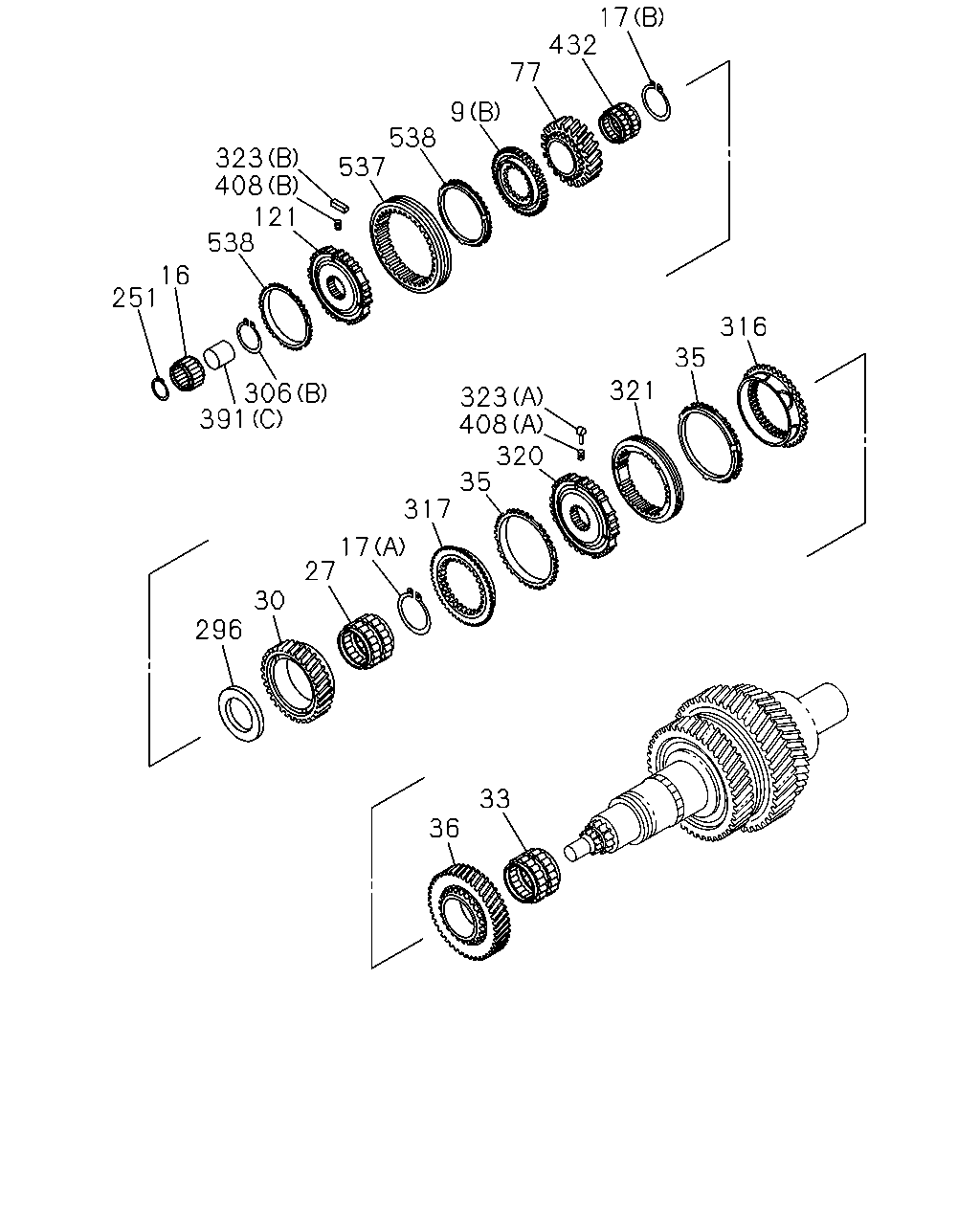

çizim 98311
17 432 77 9 538 537 323 408 121 538 16 251 316 35 321 306 391 323 408 320 35 317 17 27 30 296 33 36
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0807- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0807-1102 ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0807-1102 ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0807- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0807-1102 ●
17 RING; SNAP,4TH GEAR
(A) 		1-33259-115-0 01 1 0807-1102 ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-118-0 01 1 0807-1102 ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0807-0912 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1001- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0807-1102 ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0807- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0807-1102 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0807-0912 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1001- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0807-1102 ●
35 RING; BLOCK,4TH & 3RD 1-33265-498-0 02 1 0807-1102 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0807- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0807-1102 ●
77 GEAR; 6TH,MAINSHAFT 1-33252-483-0 01 1 0807-1102 ●
121 HUB; CLU,6TH 1-33261-299-0 01 1 0807-1102 ●
251 RING; SNAP 1-33239-363-0 01 1 0807-1102 ●
296 WASHER; THRUST 1-33259-117-0 01 1 0807-1102 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.20 		1-33319-061-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.15 		1-33319-062-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.10 		1-33319-063-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.05 		1-33319-064-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.00 		1-33319-065-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.95 		1-33319-066-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.90 		1-33319-067-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.85 		1-33319-068-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.80 		1-33319-069-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.75 		1-33319-070-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.70 		1-33319-071-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.65 		1-33319-072-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.60 		1-33319-073-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.55 		1-33319-074-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.50 		1-33319-075-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.45 		1-33319-076-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.40 		1-33319-077-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.35 		1-33319-078-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.30 		1-33319-079-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.25 		1-33319-080-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.20 		1-33319-081-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.15 		1-33319-082-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.10 		1-33319-083-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.5 		1-43319-021-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.4 		1-43319-101-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.3 		1-43319-102-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.0 		1-43319-103-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.1 		1-43319-104-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.2 		1-43319-105-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-111-0 01 1 0807-1102 ●
306 RING; SNAP,MAINSHAFT
(B) 		1-38249-037-0 01 1 0807-1102 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0807- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0807-1102 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0807- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0807-1102 ●
320 HUB; CLU,4TH & 3RD 1-33261-297-0 01 1 0807-1102 ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-241-0 01 1 0807-1102 ●
323 INSERT
(C) 		1-33263-027-0 09 1 0807- ●
323 INSERT
(B) 		1-33263-043-0 03 1 0807-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102 ● ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 0807-1102 ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 0807-1102 ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 0807-1102 ●
408 SPRING
(C) 		1-33269-038-0 09 1 0807- ●
408 SPRING
(D) 		1-33269-039-0 09 1 0807- ●
408 SPRING
(B) 		1-33269-099-0 03 1 0807-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ●
432 BEARING; NEEDLE,4TH 1-33259-119-0 01 1 0807-1102 ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-120-0 01 1 0807-1102 ●
538 RING; BLOCK,5TH & 6TH 1-33259-121-0 02 1 0807-1102 ●

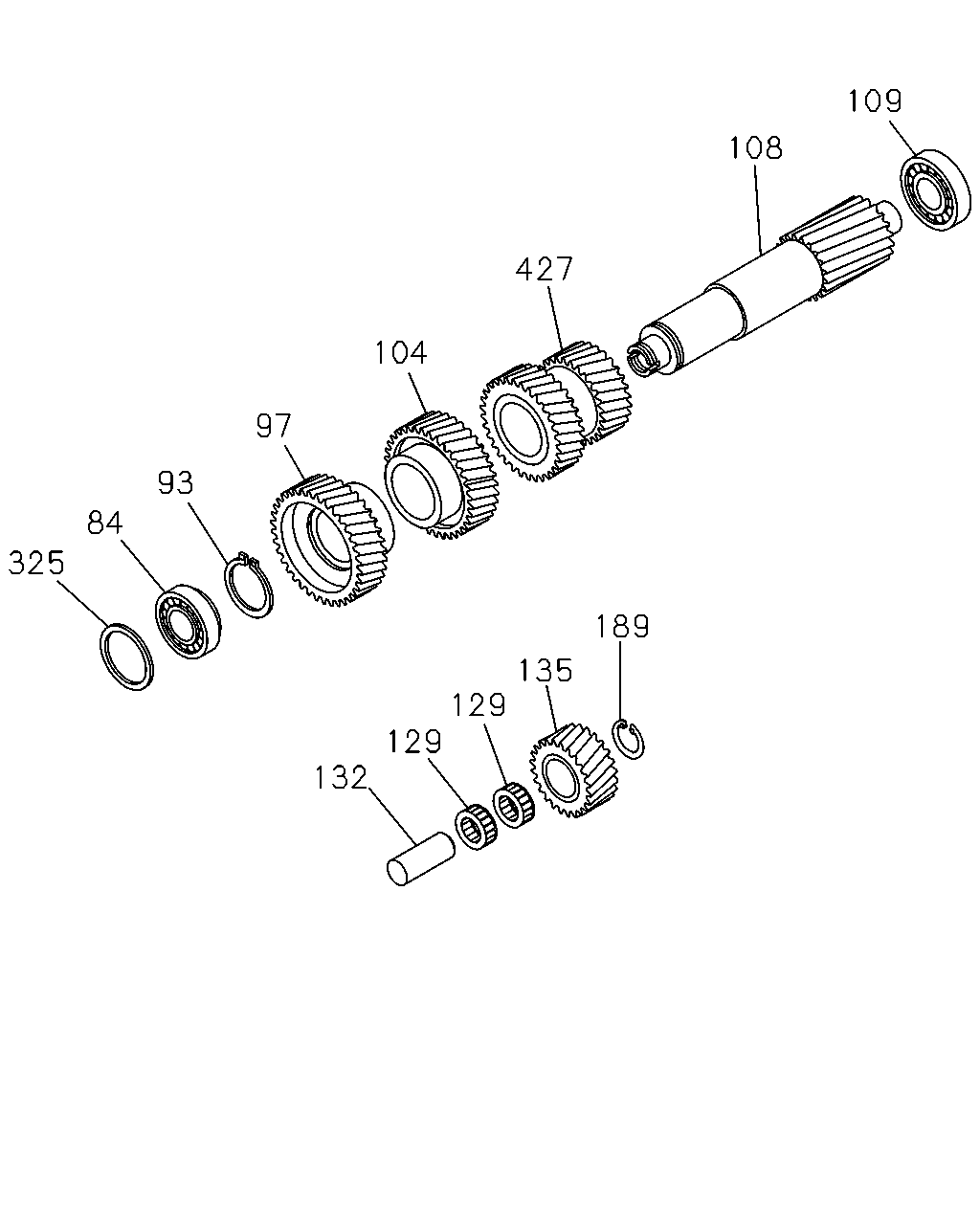

çizim 98326
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 0807- ●
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0807-1102 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 THA 		1-33319-264-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0807-1102 ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0807- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0807-1102 ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0807- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0807-1102 ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0807- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0807-1102 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0807- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0807-1102 ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0807-0912 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1001- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0807-1102 ●
132 SHAFT; REV 1-33351-024-0 01 1 0807- ●
132 SHAFT; REV 1-33351-043-0 01 1 0807-1102 ●
135 GEAR; REV IDLER
IMA 		1-33361-096-0 01 1 1302- ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0807-1305 ●
135 GEAR; REV IDLER 1-33361-094-0 01 1 0807-1102 ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		8-98080-572-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 0807-1305 ●
427 GEAR; 2ND & 3RD,COUNTER
THA 		1-33332-132-0 01 1 1302- ●

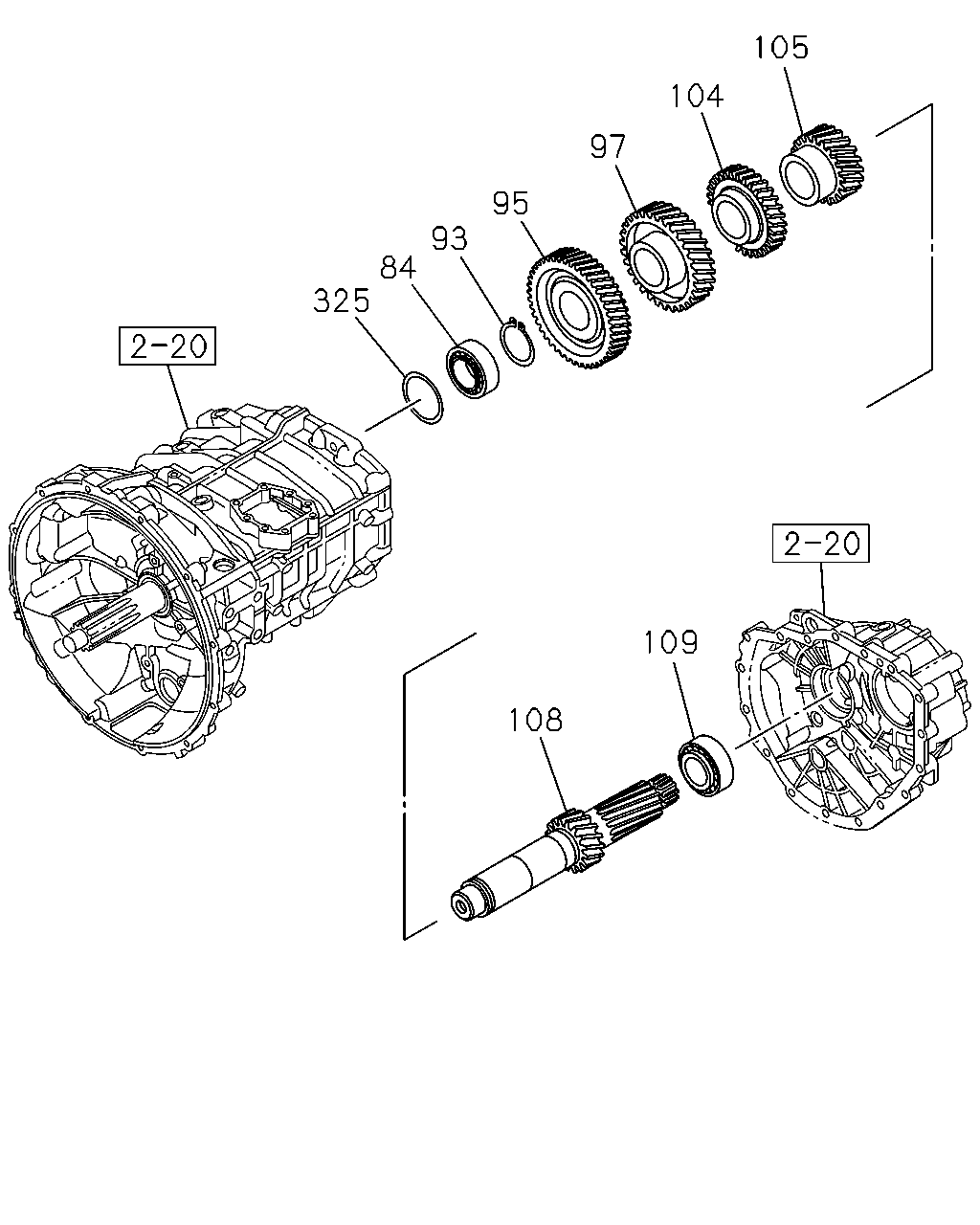

çizim 98370
105 104 97 95 93 84 325 109 108
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 0807- ●
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0807-1102 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 THA 		1-33319-264-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0807- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0807-1102 ●
95 GEAR; REV,COUNTER 1-33338-404-0 01 1 0807-1102 ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0807- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0807-1102 ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0807- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0807-1102 ●
105 GEAR; 3RD,COUNTER 1-33338-399-0 01 1 0807-1102 ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0807- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0807-1102 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0807- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		8-98080-572-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
çizim 98371
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE 1-33262-195-0 01 1 0807- ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0807- ●
323 INSERT
(C) 		1-33263-027-0 09 1 0807- ●
323 INSERT
(B) 		1-33263-043-0 03 1 0807-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102 ● ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
324 HUB; CLU 1-33261-230-0 01 1 0807- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0807- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0807- ●
408 SPRING
(C) 		1-33269-038-0 09 1 0807- ●
408 SPRING
(D) 		1-33269-039-0 09 1 0807- ●
408 SPRING
(B) 		1-33269-099-0 03 1 0807-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ●

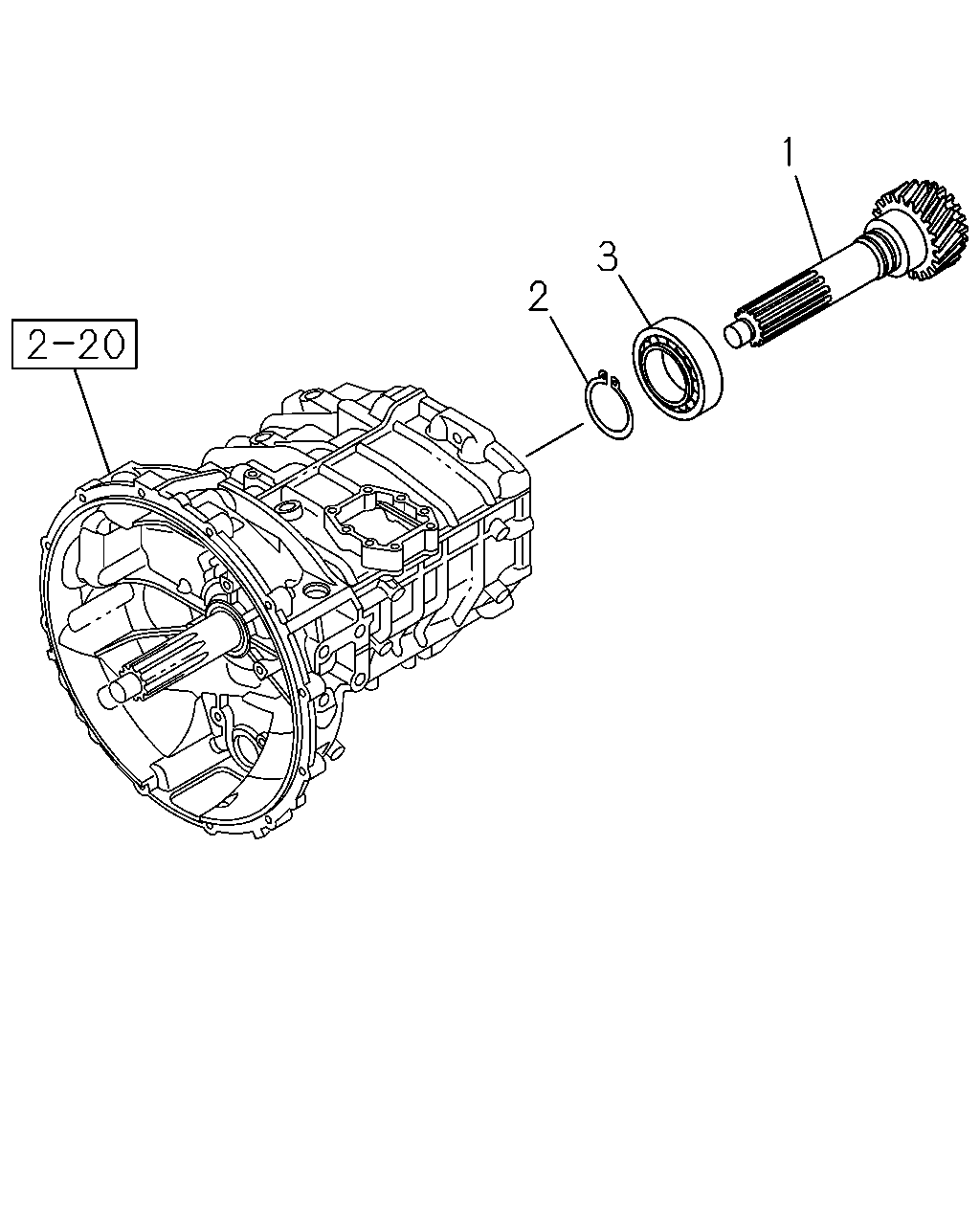

çizim 98475
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0807- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0807-1102 ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-325-0 01 1 0807-1102 ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0807- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0807-1102 ●

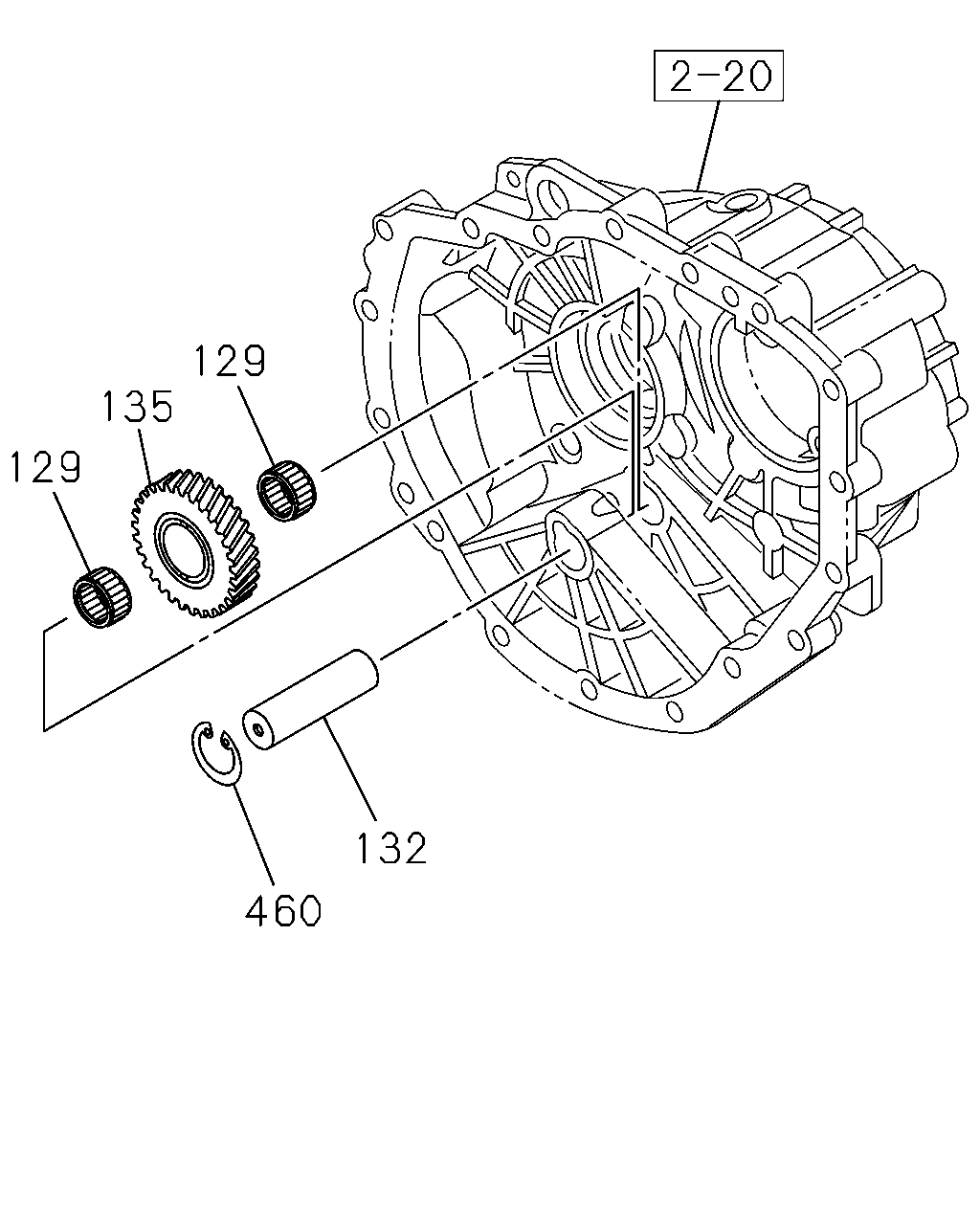

çizim 98483
129 135 129 132 460
BalonParca AdiParca NoAdetTipApplied Date A B
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0807-0912 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1001- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0807-1102 ●
132 SHAFT; REV 1-33351-024-0 01 1 0807- ●
132 SHAFT; REV 1-33351-043-0 01 1 0807-1102 ●
135 GEAR; REV IDLER
IMA 		1-33361-096-0 01 1 1302- ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0807-1305 ●
135 GEAR; REV IDLER 1-33361-094-0 01 1 0807-1102 ●
460 RING; SNAP,REV SHAFT 1-34119-044-0 01 1 0807-1102 ●

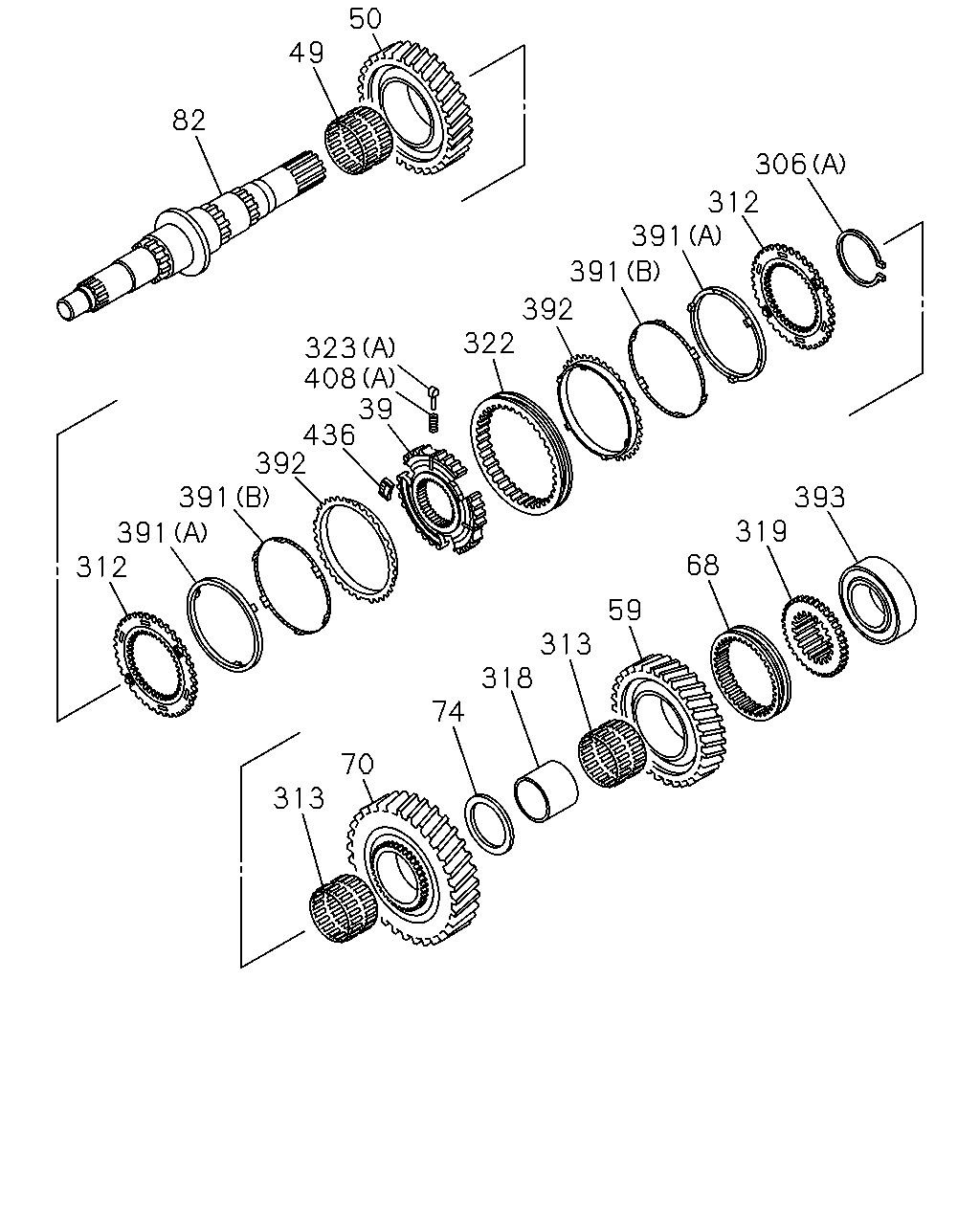

çizim 98485
50 49 82 306 312 391 391 392 322 323 408 39 436 392 391 393 319 391 312 68 59 313 318 74 70 313
BalonParca AdiParca NoAdetTipApplied Date A B
39 HUB; CLU,LOW & 2ND 1-33261-296-0 01 1 0807-1102 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0807-0912 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1001- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0807-1102 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0807-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0807-1102 ●
50 GEAR; 2ND,MAINSHAFT
IMA 		1-33251-448-0 01 1 1302- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0807-1305 ●
59 GEAR; REV MAINSHAFT
IMA 		1-33257-101-0 01 1 1302- ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 0807-1102 ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0807- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0807-1102 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0807- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0807-1102 ●
74 WASHER; THRUST,REV GEAR 1-33259-113-0 01 1 0807-1102 ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0807- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0807-1102 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.20 		1-33319-061-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.15 		1-33319-062-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.10 		1-33319-063-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.05 		1-33319-064-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.00 		1-33319-065-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.95 		1-33319-066-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.90 		1-33319-067-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.85 		1-33319-068-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.80 		1-33319-069-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.75 		1-33319-070-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.70 		1-33319-071-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.65 		1-33319-072-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.60 		1-33319-073-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.55 		1-33319-074-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.50 		1-33319-075-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.45 		1-33319-076-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.40 		1-33319-077-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.35 		1-33319-078-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.30 		1-33319-079-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.25 		1-33319-080-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.20 		1-33319-081-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.15 		1-33319-082-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.10 		1-33319-083-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.5 		1-43319-021-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.4 		1-43319-101-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.3 		1-43319-102-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.0 		1-43319-103-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.1 		1-43319-104-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.2 		1-43319-105-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-111-0 01 1 0807-1102 ●
306 RING; SNAP,MAINSHAFT
(B) 		1-38249-037-0 01 1 0807-1102 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-634-0 02 1 0807-1102 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0807-0912 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1001- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0807-1102 ●
318 COLLAR; DIST,REV GEAR 1-33259-114-0 01 1 0807-1102 ●
319 CLUTCH; SLIDING 1-33265-635-0 01 1 0807-1102 ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-240-0 01 1 0807-1102 ●
323 INSERT
(C) 		1-33263-027-0 09 1 0807- ●
323 INSERT
(B) 		1-33263-043-0 03 1 0807-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102 ● ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 0807-1102 ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 0807-1102 ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 0807-1102 ●
392 RING; OUTSIDE,SYN 1-33259-110-0 02 1 0807-1102 ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0807- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0807-1102 ●
408 SPRING
(C) 		1-33269-038-0 09 1 0807- ●
408 SPRING
(D) 		1-33269-039-0 09 1 0807- ●
408 SPRING
(B) 		1-33269-099-0 03 1 0807-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 0807-1102 ●

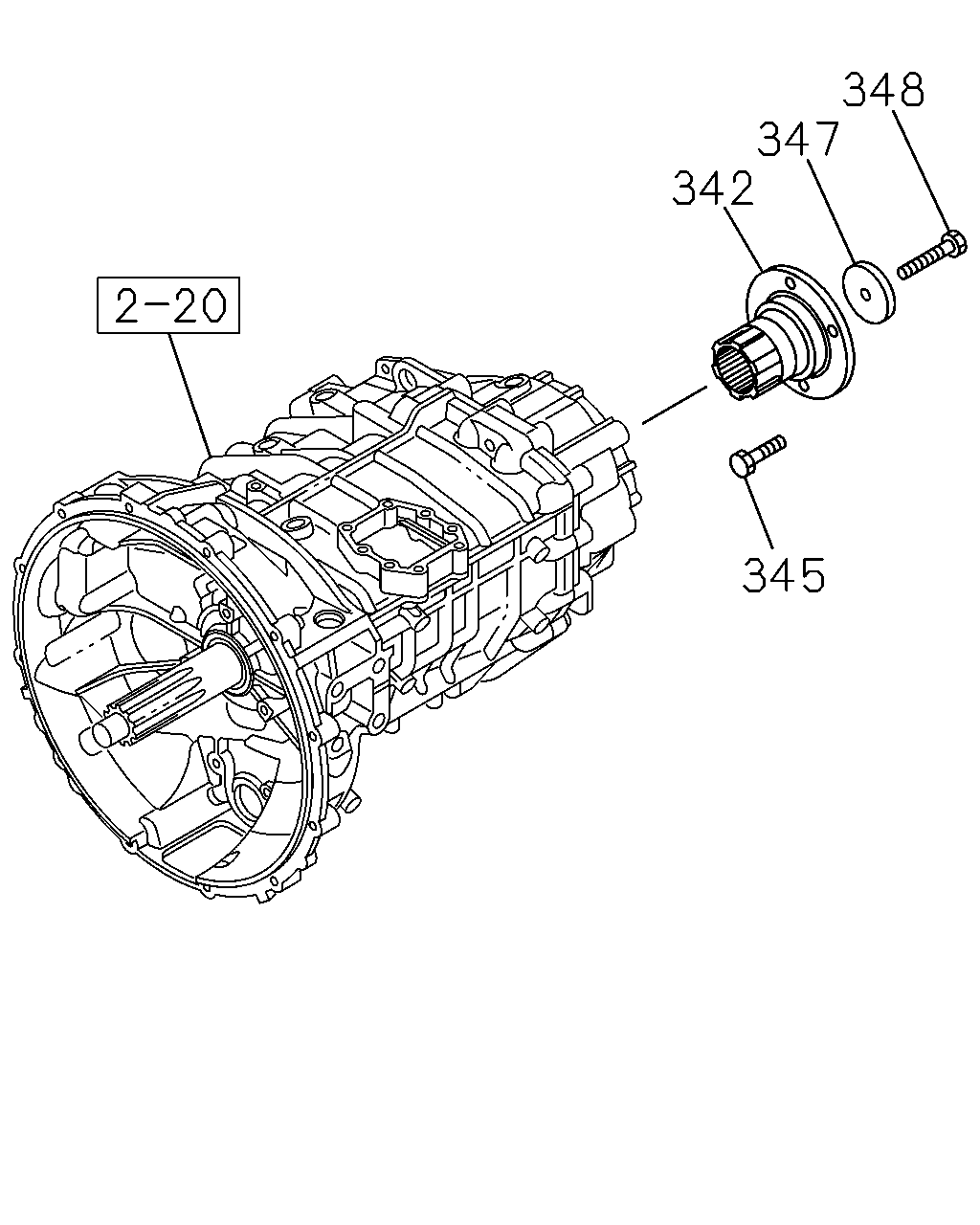

çizim 106935
348 347 342 345
BalonParca AdiParca NoAdetTipApplied Date A B
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0807- ●
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0807-1102 ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0807- ●
345 BOLT; FLANGE TO YOKE
SCREW 		1-37249-210-0 04 1 0807-1102 ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0807- ●
347 WASHER; FLANGE 1-37249-211-0 01 1 0807-1102 ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0807-1305 ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0807-1102 ●
348 BOLT; SHAFT
THA 		1-37249-215-0 02 1 1302- ●
çizim 107119
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0807- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0807-1102 ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0807- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0807-1102 ●
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0807-0912 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1001- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0807- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		8-98080-572-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1001- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0807- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0807-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1103-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0807-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1001-1102 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0807-1102 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
çizim 107134
317 233 323 30 408 49 21 49 50 315 230 233 569 41 323 408 16 9 44 306 316 36 429 33 32 41 311 306 18 27 330 393 59 313 314 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0807- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0807-1102 ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0807-1102 ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0807- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0807-1102 ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0807- ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0807- ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0807- ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0807- ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0807- ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0807- ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0807- ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0807-0912 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1001- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0807-1102 ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0807- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0807-1102 ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0807-1305 ●
32 COLLAR; 3RD GEAR
THA 		1-33259-140-0 01 1 1302- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0807-0912 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1001- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0807-1102 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0807- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0807-1102 ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0807- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0807-1305 ●
44 HUB; CLU,2ND & 3RD,MAIN
IMA 		1-33261-303-0 01 1 1302- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0807-0912 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1001- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0807-1102 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0807-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0807-1102 ●
50 GEAR; 2ND,MAINSHAFT
IMA 		1-33251-448-0 01 1 1302- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0807-1305 ●
59 GEAR; REV MAINSHAFT
IMA 		1-33257-101-0 01 1 1302- ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 0807-1102 ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0807-0912 ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1001- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0807- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0807-1102 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0807- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0807-1102 ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0807- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0807-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0807- ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0807- ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0807- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=3.20 		1-33319-061-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.15 		1-33319-062-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.10 		1-33319-063-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.05 		1-33319-064-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=3.00 		1-33319-065-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.95 		1-33319-066-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.90 		1-33319-067-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.85 		1-33319-068-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.80 		1-33319-069-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.75 		1-33319-070-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.70 		1-33319-071-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.65 		1-33319-072-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.60 		1-33319-073-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.55 		1-33319-074-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.50 		1-33319-075-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.45 		1-33319-076-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(C) T=2.40 		1-33319-077-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.35 		1-33319-078-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.30 		1-33319-079-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.25 		1-33319-080-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.20 		1-33319-081-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.15 		1-33319-082-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(C) T=2.10 		1-33319-083-0 01 1 0807-1305 ●
306 RING; SNAP,MAINSHAFT
(D) T=2.5 		1-43319-021-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.4 		1-43319-101-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.3 		1-43319-102-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.0 		1-43319-103-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.1 		1-43319-104-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(D) T=2.2 		1-43319-105-0 01 1 0807- ●
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-111-0 01 1 0807-1102 ●
306 RING; SNAP,MAINSHAFT
(B) 		1-38249-037-0 01 1 0807-1102 ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0807- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0807-0912 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1001- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0807-1102 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0807-0912 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1001- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0807- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0807- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0807-1102 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0807- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0807-1102 ●
323 INSERT
(C) 		1-33263-027-0 09 1 0807- ●
323 INSERT
(B) 		1-33263-043-0 03 1 0807-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102 ● ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
330 GEAR; SUN 1-33259-105-0 01 1 0807-1305 ●
330 GEAR; SUN
IMA 		1-33259-134-0 01 1 1302- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0807- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0807-1102 ●
408 SPRING
(C) 		1-33269-038-0 09 1 0807- ●
408 SPRING
(D) 		1-33269-039-0 09 1 0807- ●
408 SPRING
(B) 		1-33269-099-0 03 1 0807-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0807-1305 ●
429 SLEEVE; 2ND & 3RD
IMA 		1-33262-244-0 01 1 1302- ●
569 DAM; OIL 1-33269-097-0 01 1 0807- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
