Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25B - SPEEDOMETER DRIVEN GEAR
▶

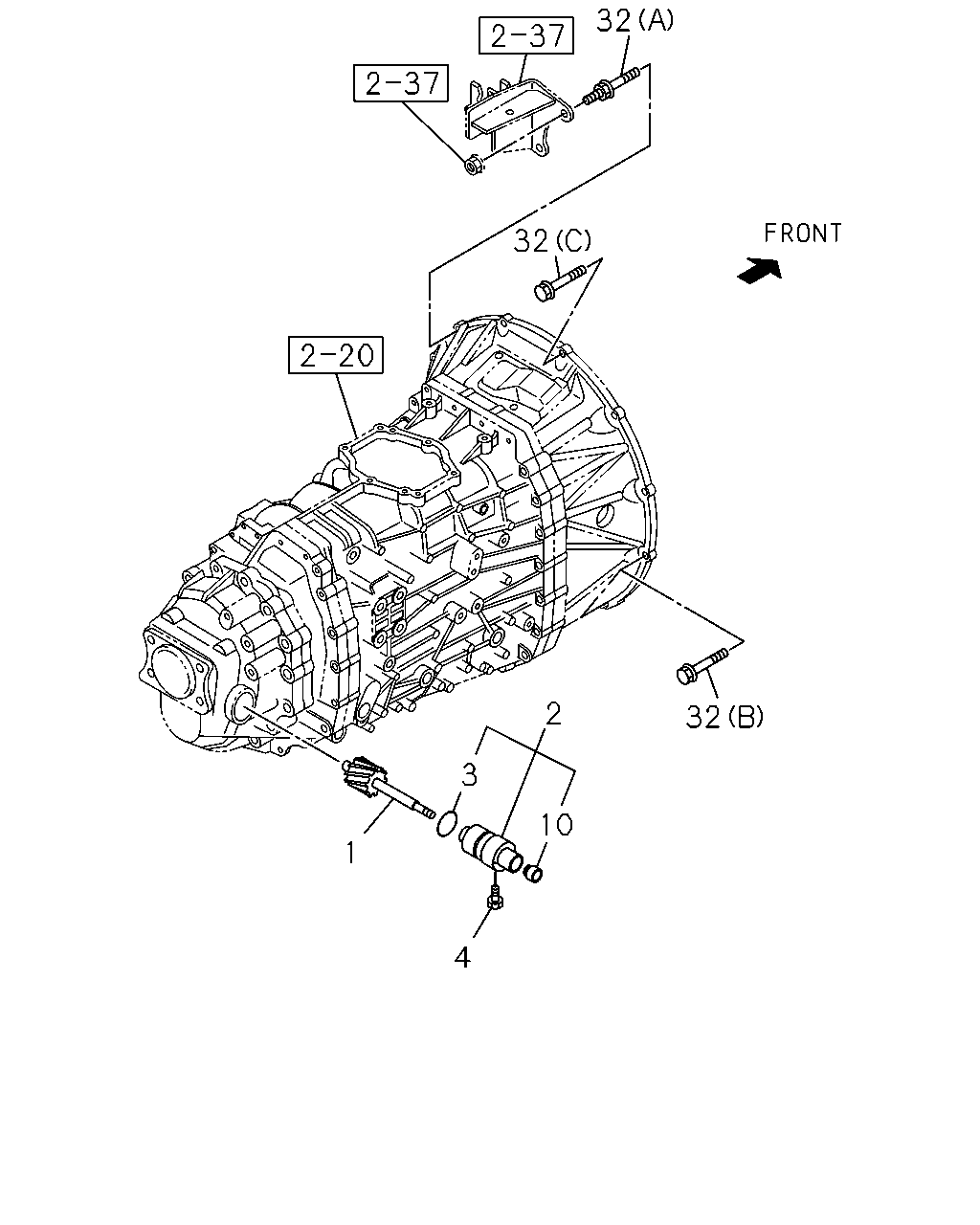

2-25B — SPEEDOMETER DRIVEN GEAR
(#12891) — 9 parça
32
32
2
32
3
10
1
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1103-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1103-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1103-
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE THA
8-98014-141-0
01
1
1103-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1103-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98116-723-0
02
1
1103-1211
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98234-150-0
02
1
1212-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X30 FLANGE
0-28151-030-0
08
1
1103-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56
8-98010-334-0
02
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
