Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶

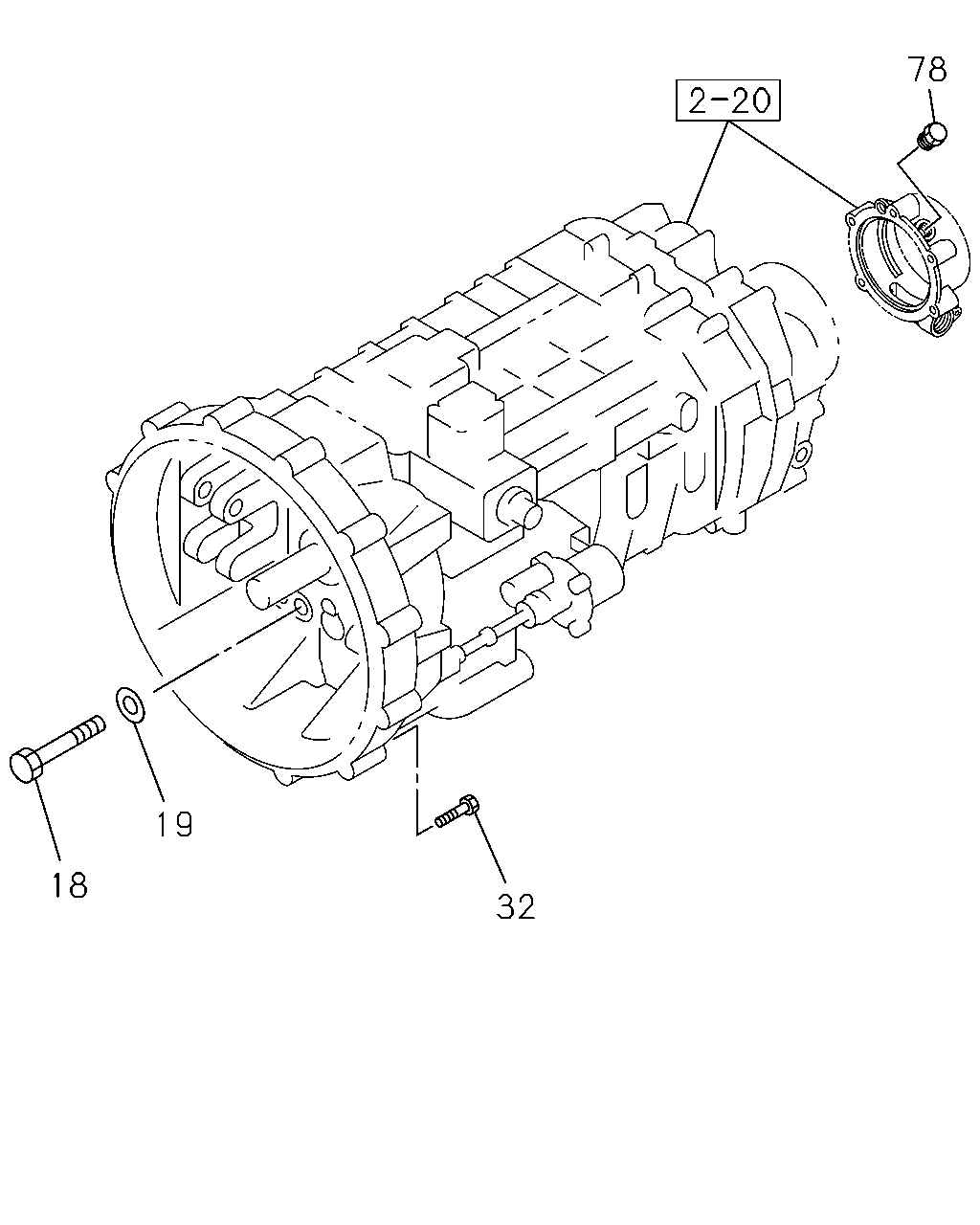

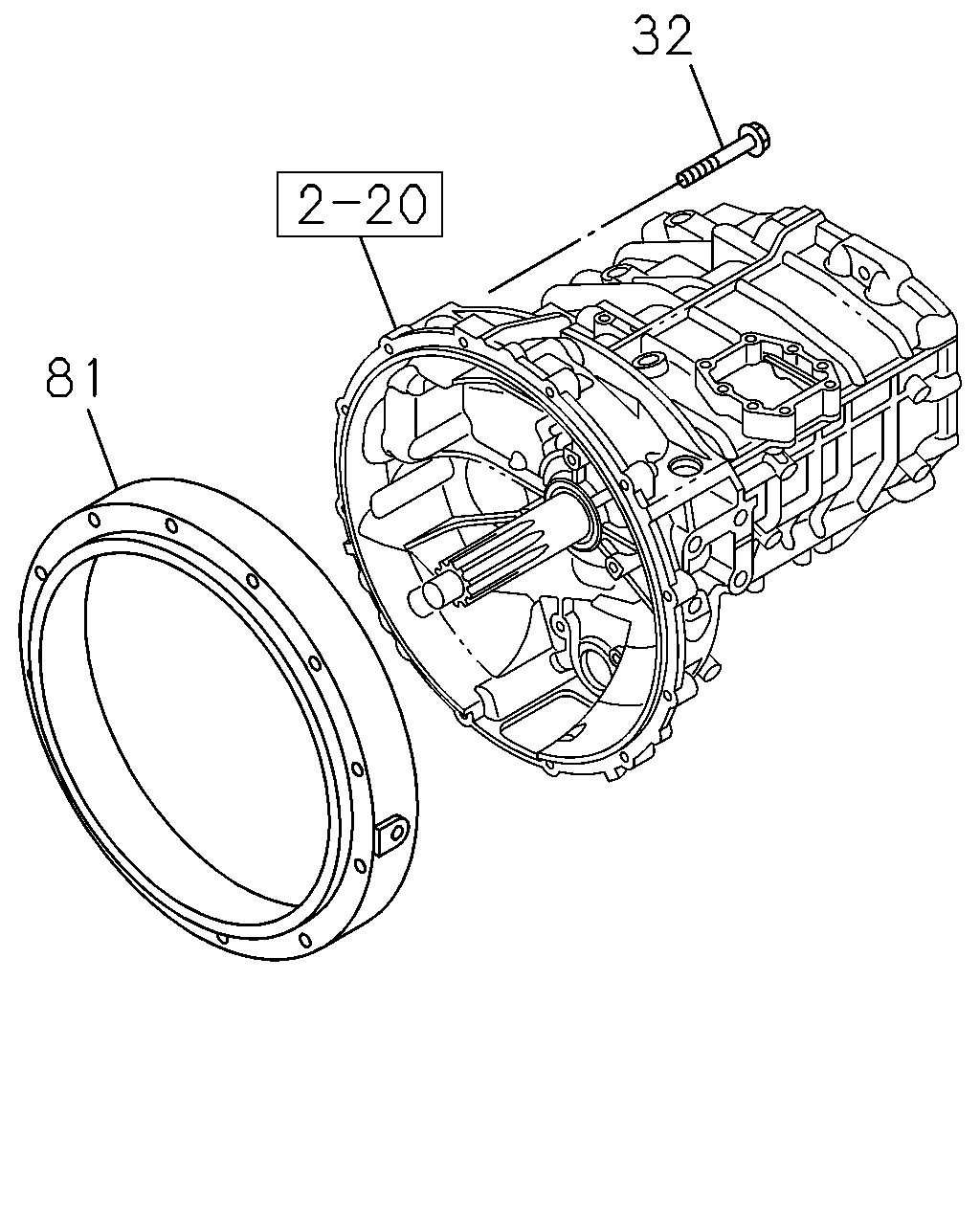

2-25A - SPEEDOMETER DRIVEN GEAR
▶
2-25A — SPEEDOMETER DRIVEN GEAR
(#12890) — 23 parça
Tümü
A - ZF6S1000 M/T
B - ZF9S1110 M/T
◀
[225A] ZF6S1000 (10 parça)
[225A] ZF9S1110 (13 parça)
▶
32
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE BLACK
8-98116-726-0
02
1
0809-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98131-010-0
02
1
0809-1211
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98234-153-0
02
1
1212-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE THA
0-28151-080-0
04
1
0807-0808
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE SILVER THA
0-28151-080-0
02
1
0809-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X65 FLANGE
8-94344-540-1
08
1
0807-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
04
1
0807-0808
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
02
1
0809-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X75 FLANGE
8-94399-669-1
07
1
0807-
●
81
SPACER
1-31119-043-1
01
1
0807-1102
●
78
19
18
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
BOLT; CLU HSG TO TRANS
M18X85
1-31119-048-0
10
1
0807-1305
●
18
BOLT; CLU HSG TO TRANS
M18X85 IMA
1-31119-057-0
10
1
1302-
●
19
WASHER; PL,CLU HSG TO TRANS
1-31119-012-0
10
1
0807-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE BLACK
8-98116-726-0
02
1
0809-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98131-010-0
02
1
0809-1211
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98234-153-0
02
1
1212-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE THA
0-28151-080-0
04
1
0807-0808
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X80 FLANGE SILVER THA
0-28151-080-0
02
1
0809-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X65 FLANGE
8-94344-540-1
08
1
0807-1102
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
04
1
0807-0808
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
02
1
0809-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X75 FLANGE
8-94399-669-1
07
1
0807-
●
78
SENSOR; SPD
1-83227-018-0
01
1
0807-
●
