◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#1289) — 48 parça
çizim 92378
375 376 341 353 354 374 373 374 356 370 369 419 371 352 341 14 357
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 1-65480-727-4 01 1 9202- ● ●
14 FENDER; FRT 1-65480-726-4 01 1 9202- ● ●
341 BOLT; FENDER TO COWL
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9202- ● ●
341 BOLT; FENDER TO COWL
(B) M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9202- ● ●
352 WASHER; NYLON 1-09985-171-0 06 1 9202- ● ●
353 SPACER; FENDER TO CAB
ID=12.5 		1-09503-171-0 02 1 9501- ● ●
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9202- ● ●
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9202- ● ●
357 FINISHER; WIDE FENDER RR 1-71998-311-0 01 1 9202- ● ●
357 FINISHER; WIDE FENDER RR 1-71998-310-0 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9202- ● ●
370 PROTECTOR; NYLON TUBE
SERVICED BY L=240 		1-71998-400-0 01 1 9202- ● ●
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9202- ● ●
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
375 SUPPORT; FENDER REAR 1-65680-663-0 01 1 9202- ● ●
376 BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9202- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●

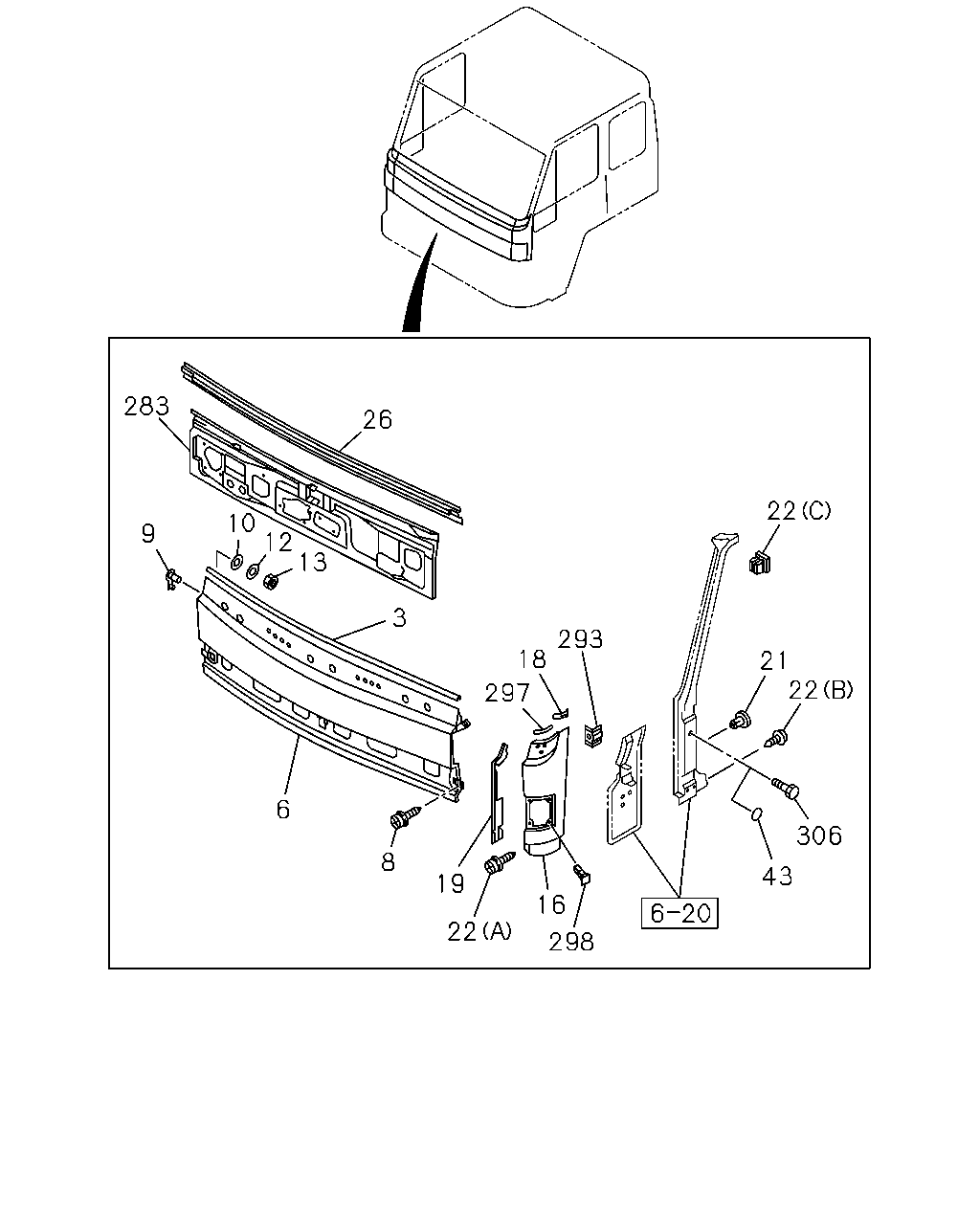

çizim 94547
283 26 3 13 12 10 9 293 18 297 21 22 22 306 43 16 298 22 19 8 6
BalonParca AdiParca NoAdetTipApplied Date A B
3 FINISHER; FRT PANEL UPR
L=2100 		1-71907-093-0 01 1 9202- ● ●
6 PANEL; FRONT 1-65480-934-0 01 1 9202- ●
6 PANEL; FRONT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-65480-934-0 01 1 9202- ●
6 PANEL; FRONT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-65480-976-0 01 1 9202- ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9202- ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9202- ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9202- ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9202- ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9202- ● ●
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9202- ● ●
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9202- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9202- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9202- ● ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9202- ● ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9202- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ● ●
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ● ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ● ●
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-476-3 01 1 9202- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9202- ● ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-478-5 01 1 9202- ● ●
293 BRACKET; PANEL 1-61480-496-1 02 1 9202- ● ●
297 FINISHER; SIDE PANEL,CAB
L=2040 		1-71998-300-0 02 1 9202- ● ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9202- ● ●
306 BOLT; SUPPORT,OUTSIDE MIRROR BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9208-9209 ● ●
