8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#128873) — 84 parça
çizim 380792
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1310-

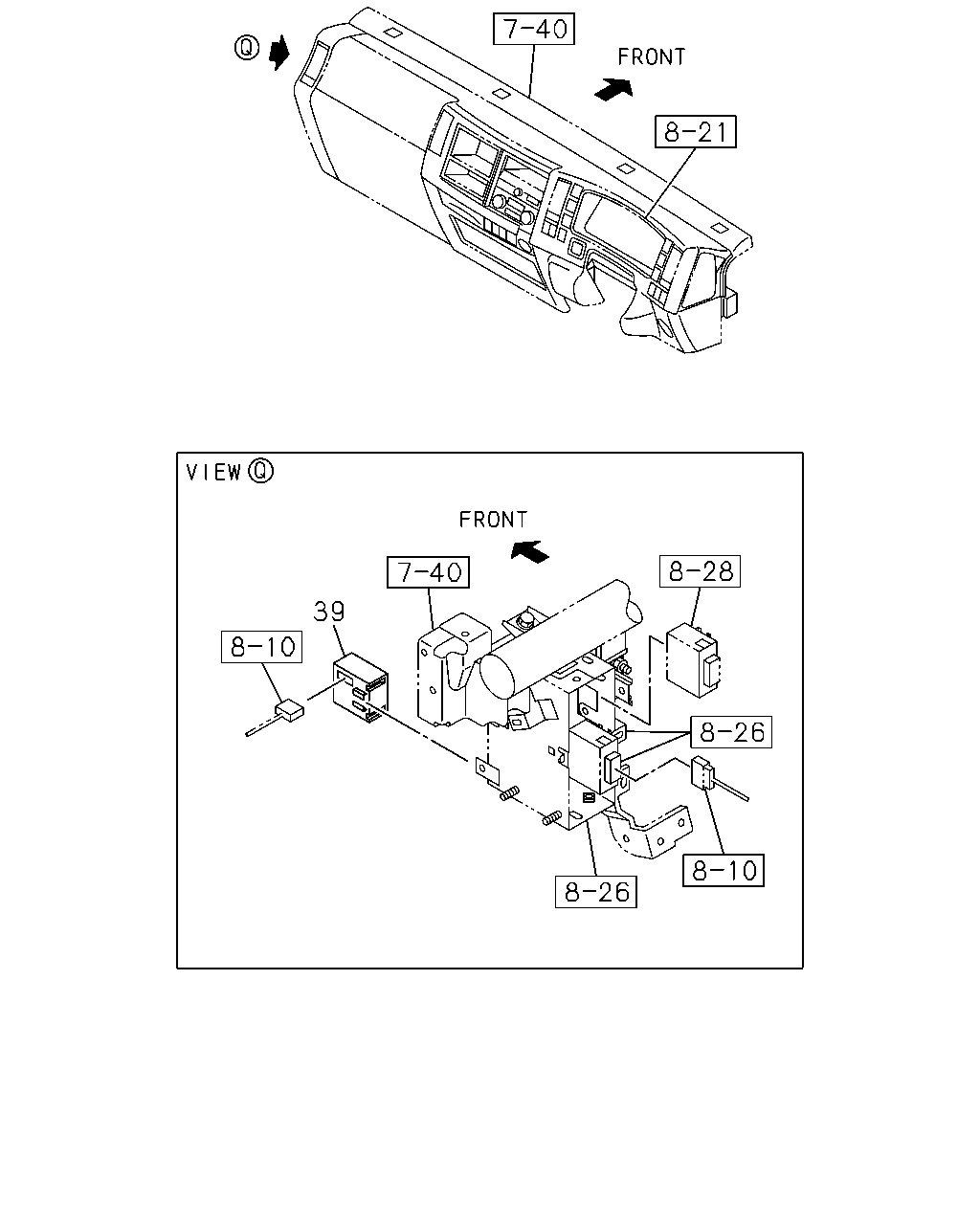

çizim 381561
39
BalonParca AdiParca NoAdetTipApplied Date
39 RELAY; DOOR LK
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1310-

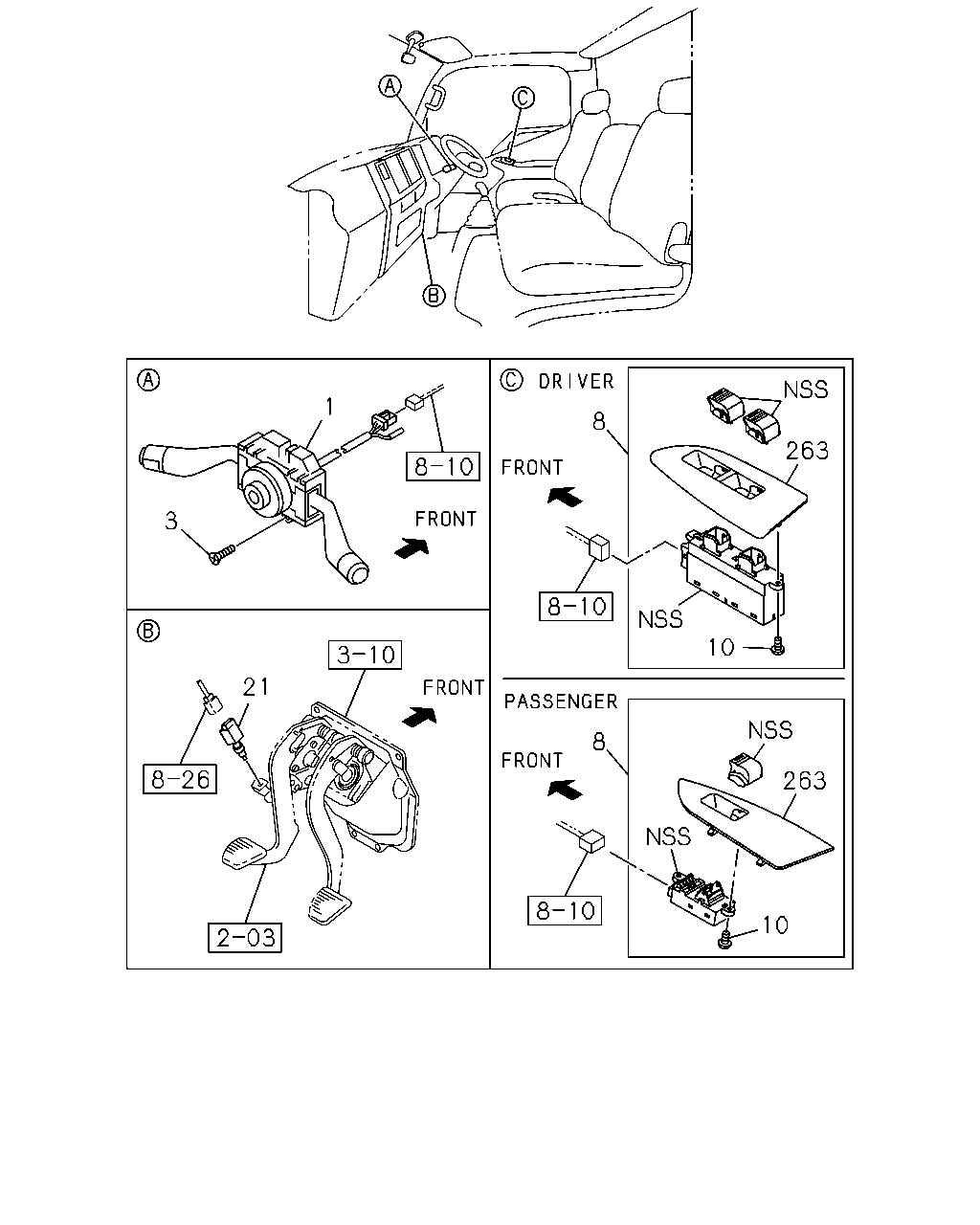

çizim 381664
3 1 21 8 263 10 10 263 8
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98217-821-0 01 1 1310-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311-
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1310-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311-
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30> 		8-98060-302-1 01 1 1310-1310
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311-
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3) 		8-98024-269-1 01 1 1310-1310
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3) 		8-98243-705-0 01 1 1311-
3 SCREW; COMB SW
INTERMITTENT WIPER<C13> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1310-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-97387-034-2 01 1 1310-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98298-750-0 01 1 1510-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-543-0 01 1 1310-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98316-415-0 01 1 1510-
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1310-
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1310-
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1310-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 1310-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 1310-

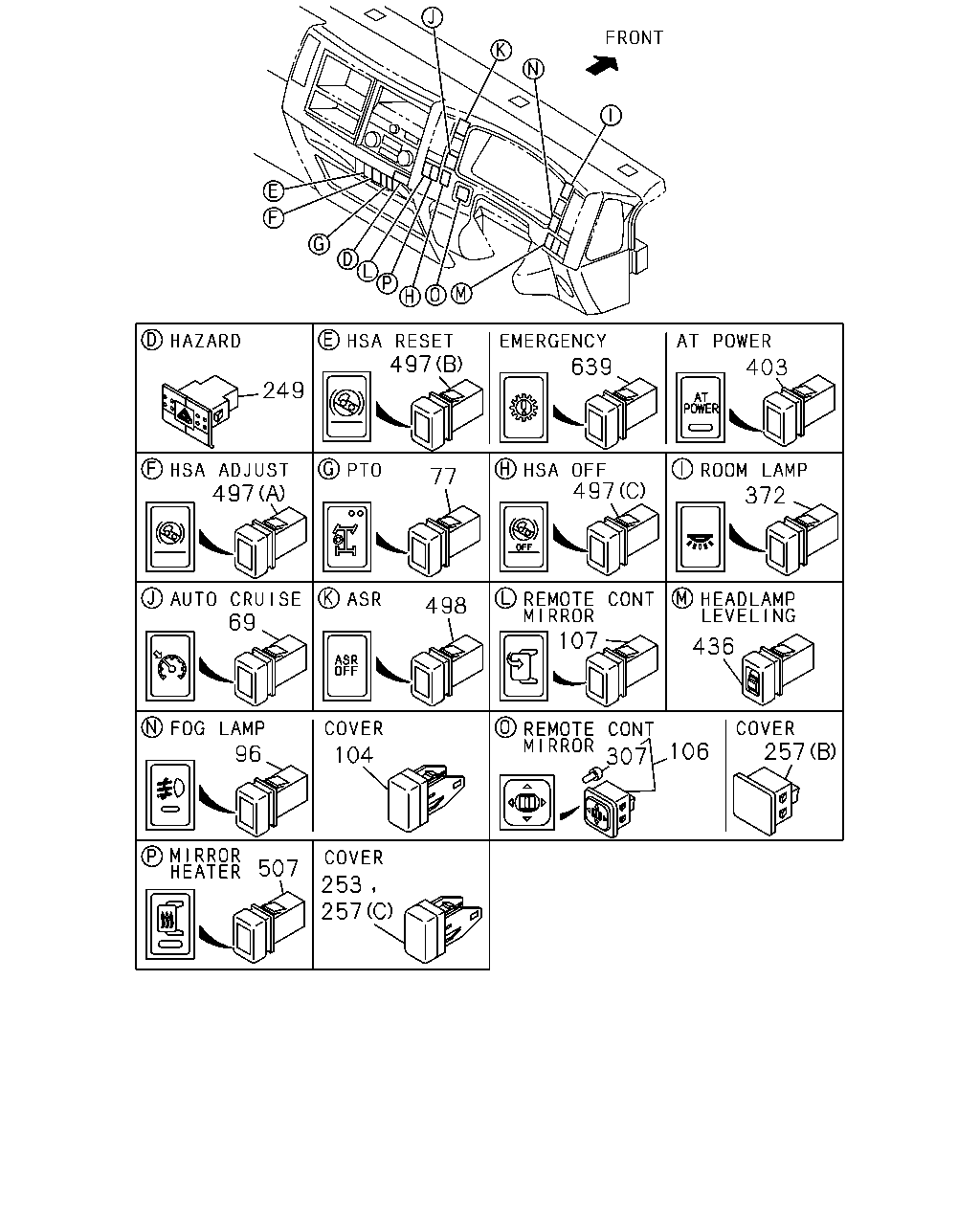

çizim 382115
249 497 639 403 372 497 107 436 257 106 307 104 96 507 253 257 69 498 77 497
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1310-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1310-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1310-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1310-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1310-
106 SWITCH; REMOTE CONT MIRROR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1310-
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98011-343-2 01 1 1310-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1310-
253 COVER; SW HOLE 8-98025-954-1 01 1 1310-
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1310-
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 1310-
253 COVER; SW HOLE
POWER WINDOW FRT DOOR<A32> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 1310-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1310-
307 BULB ASM; SW
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1310-
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1310-
403 SWITCH
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-737-1 01 1 1310-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1310-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF 		8-97386-923-2 01 1 1310-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1310-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) RESET 		8-98119-946-0 01 1 1310-
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 1310-
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1310-
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1310-

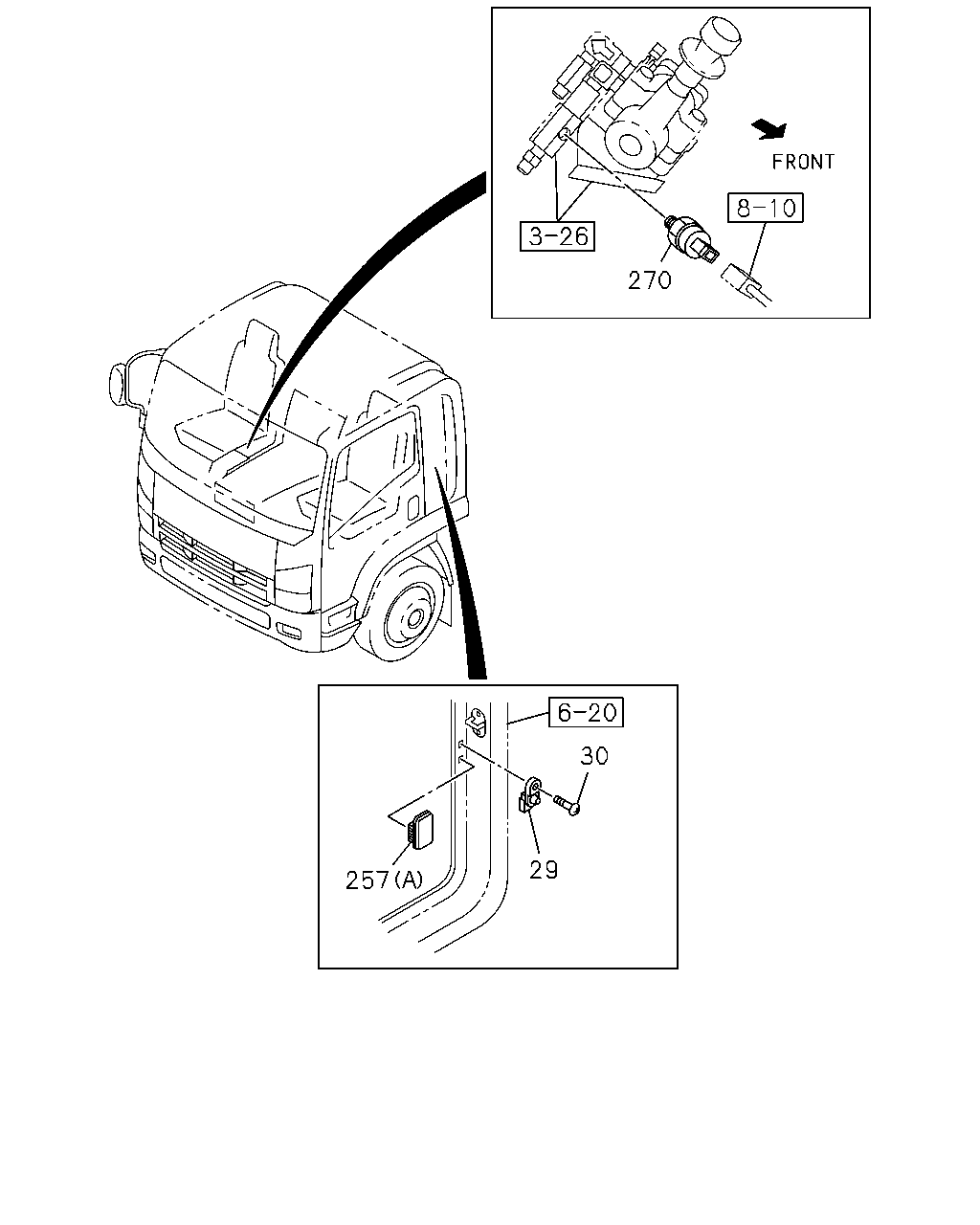

çizim 382184
270 30 29 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1310-
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1310-
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1310-
29 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1310-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1310-
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 1310-
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 1310-
30 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 1310-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 1310-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1310-
257 COVER; HOLE,SW
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1310-
270 SWITCH; PRESS,WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0 		8-98010-856-2 01 1 1310-

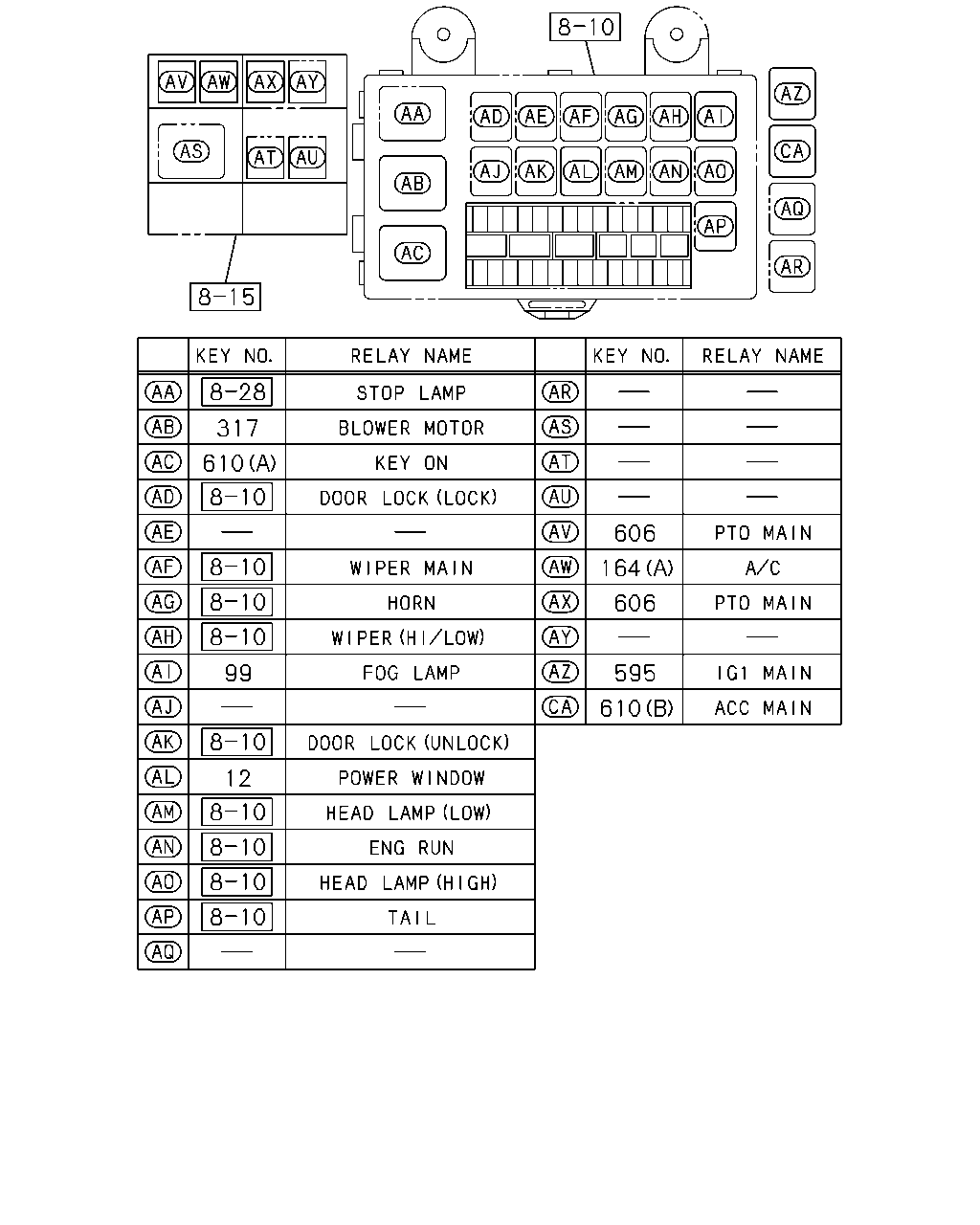

çizim 382288
317 99 12 606 606 595 610 164 610
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1310-
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1310-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1310-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1310-
