◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#128872) — 15 parça

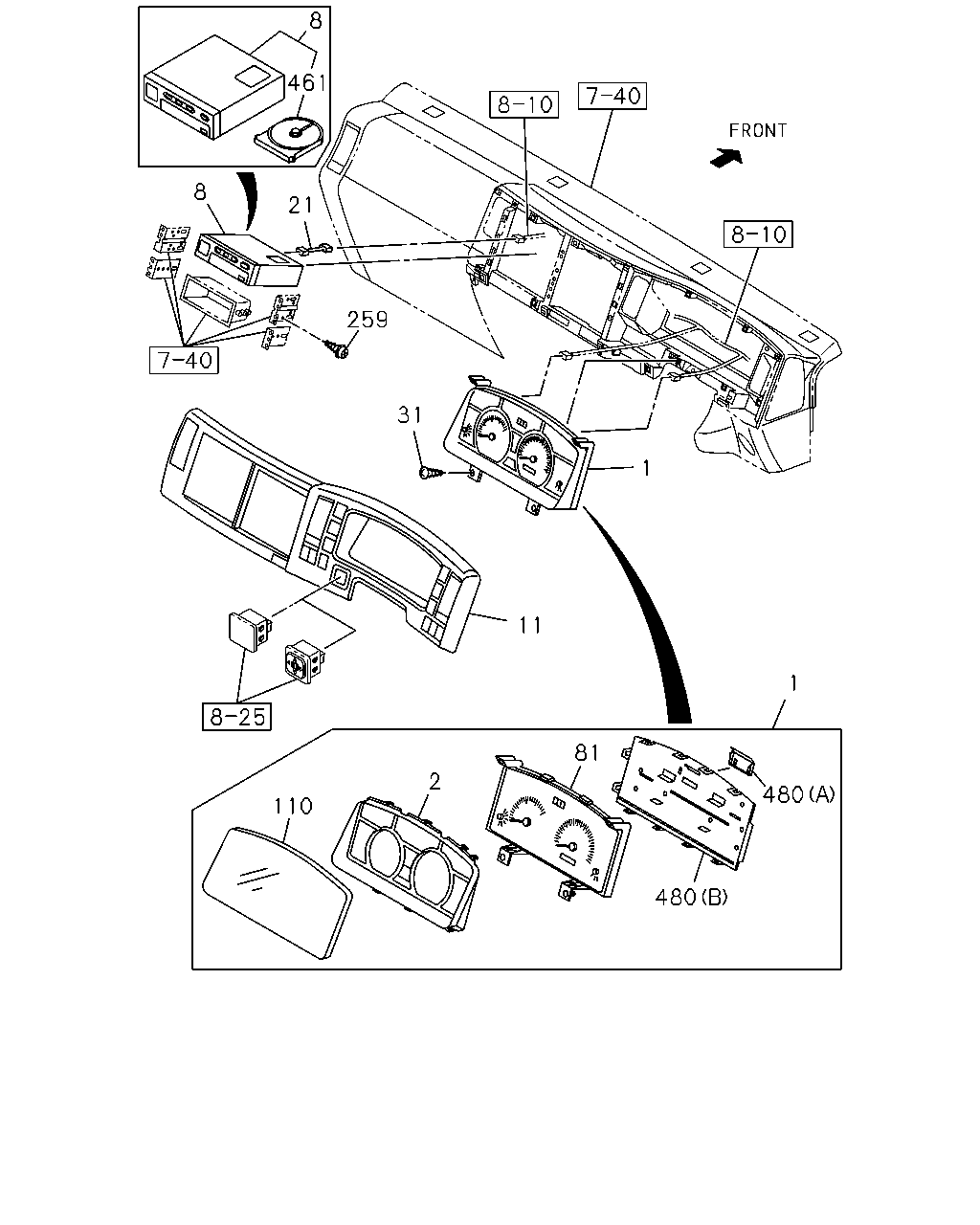

çizim 382347
8 461 8 21 259 1 31 11 1 110 2 81 480 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-692-0 01 1 1310-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98161-851-1 01 1 1310-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1310-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1310-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1310-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1310-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-695-0 01 1 1310-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98162-024-0 01 1 1310-
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-642-0 01 1 1310-
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1310-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1310-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1310-
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1310-
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
