8-15 — FIXING PARTS; WIRING HARNESS (#128870) — 122 parça

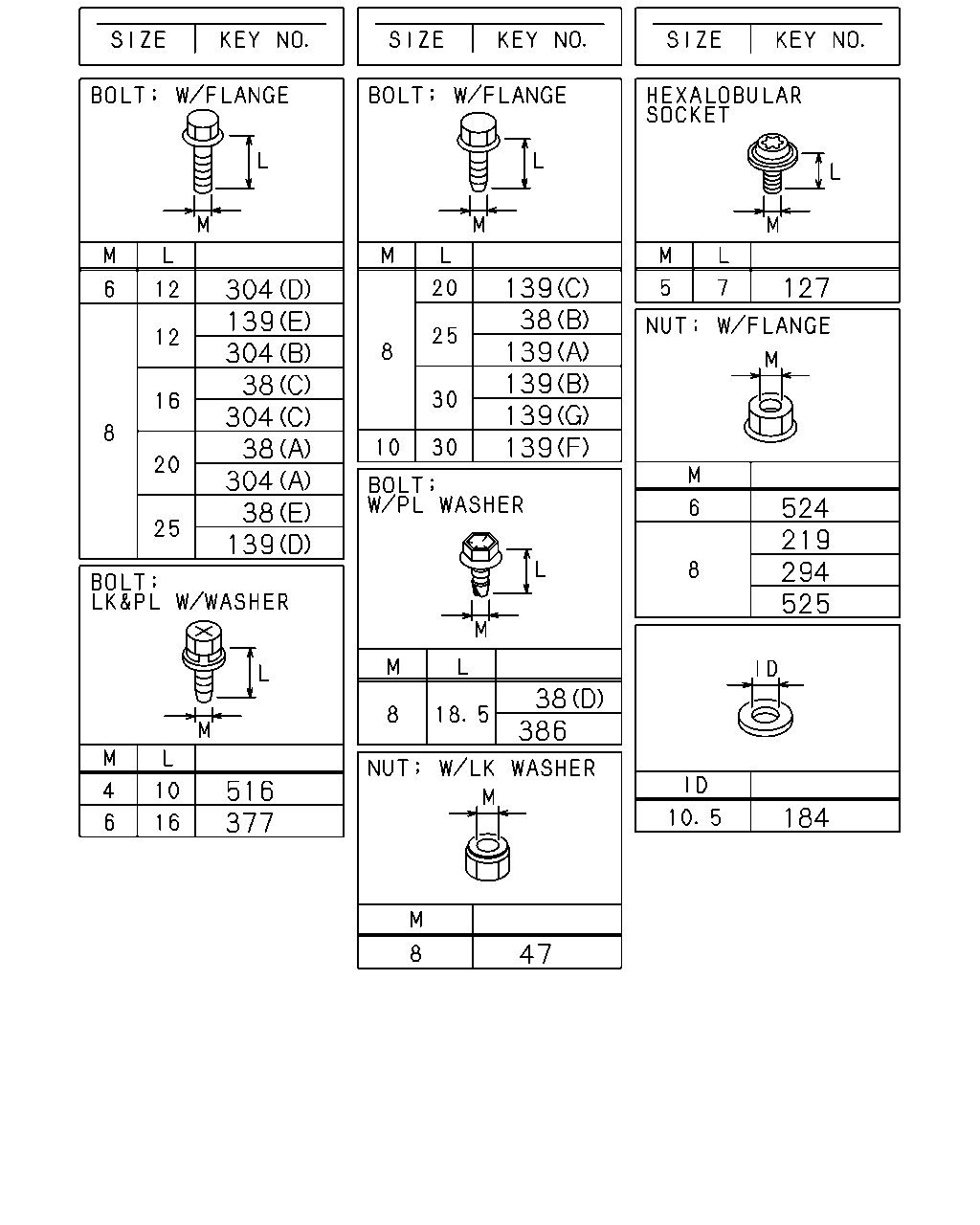

304 304 139 38 38 304 304 139 38 516 377 139 139 38 139 139 139 38 386 47 127 524 294 219 525 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1310-
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1310-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X16 FLANGE	0-28050-816-0	03	1	1310-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28050-820-0	01	1	1310-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M8X25 FLANGE	0-28050-825-0	02	1	1310-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1310-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1310-
139	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-
139	BOLT; BRKT (G) M8X30 FLANGE	0-28650-830-0	02	1	1310-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1310-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1310-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 FLANGE	0-28050-830-0	04	1	1310-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M8X25 FLANGE	0-28050-825-0	02	1	1310-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1310-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1310-
219	NUT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1310-
294	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	1310-
294	NUT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	05	1	1310-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1310-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1310-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1310-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1310-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1310-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1310-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1310-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1310-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1310-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1310-

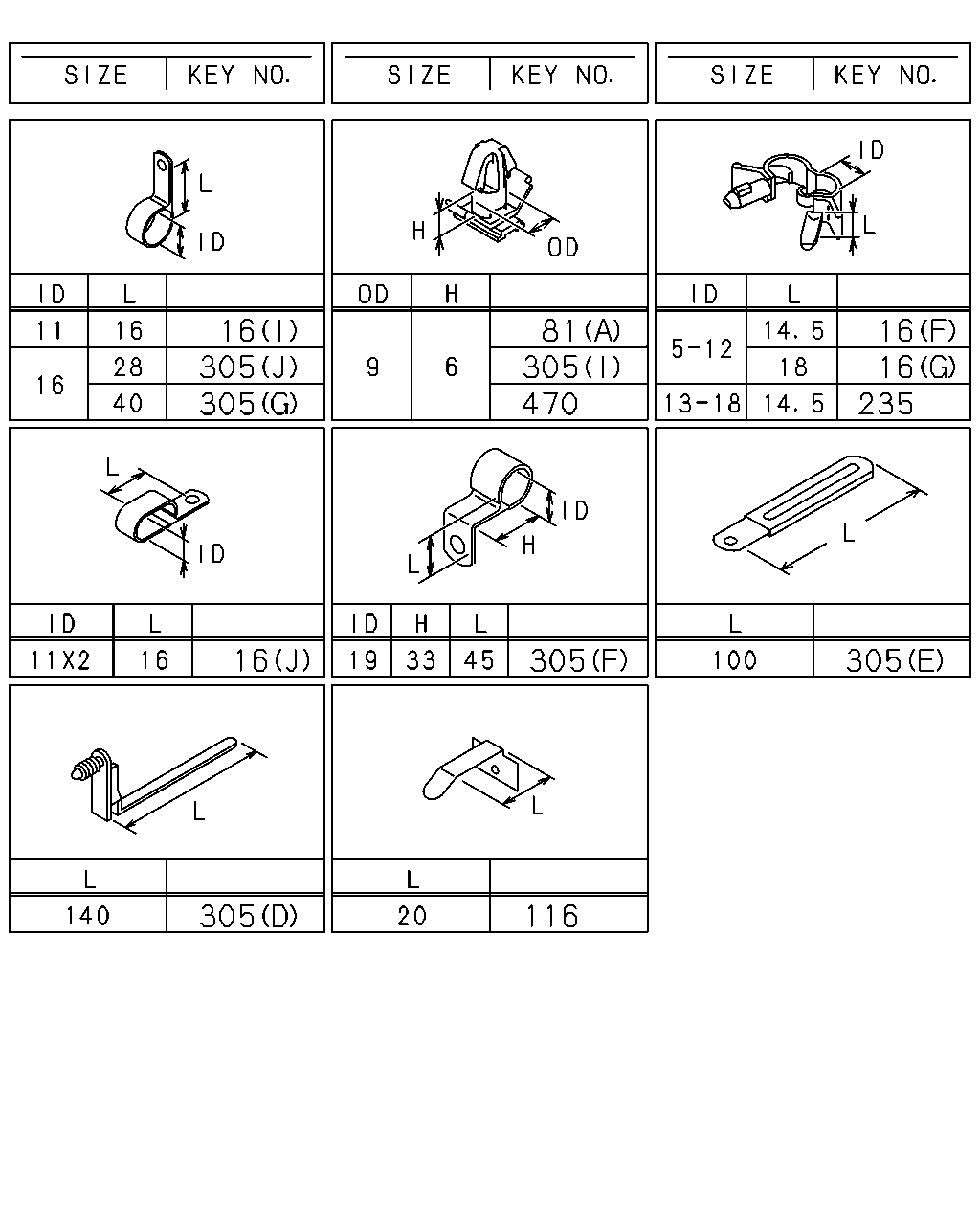

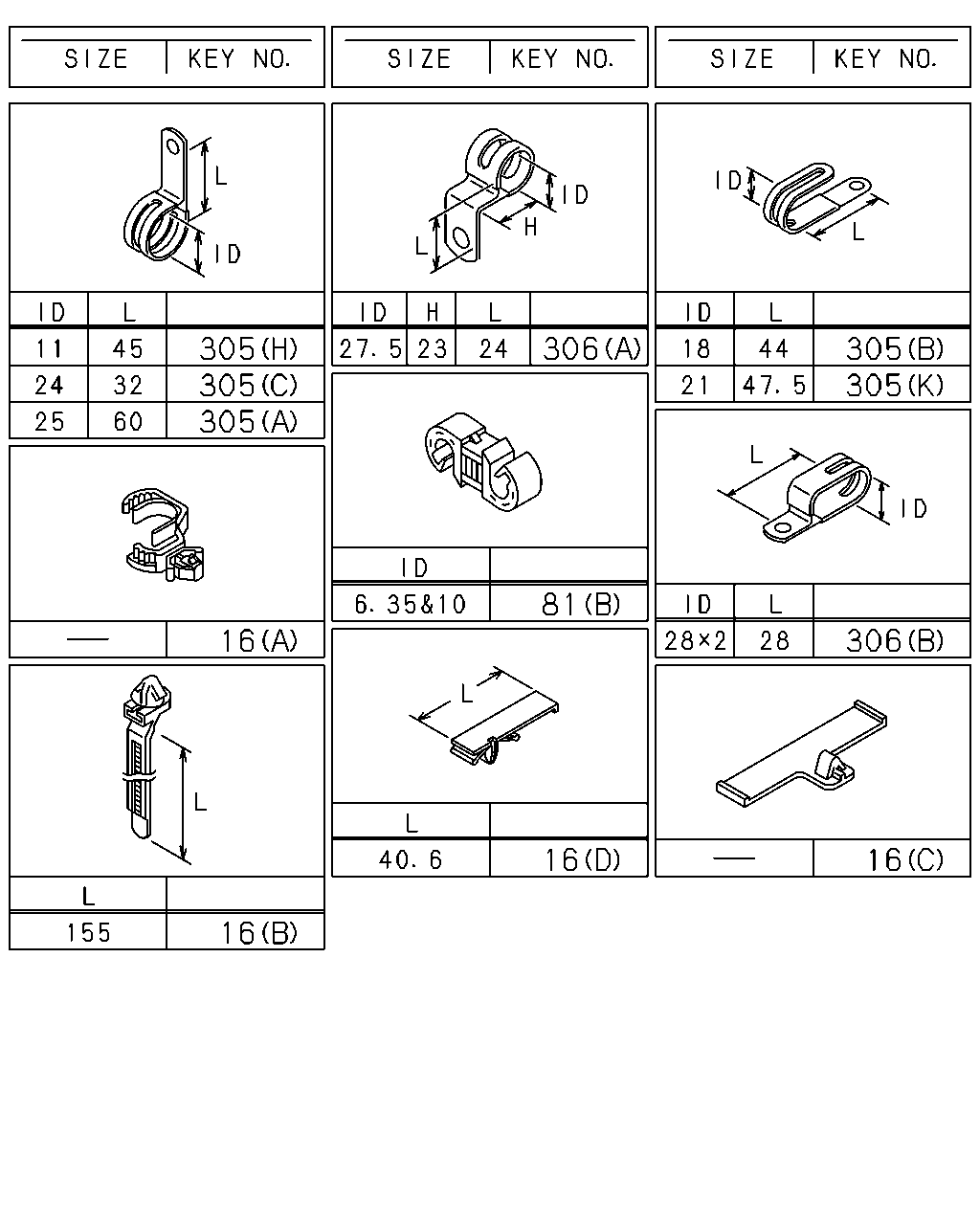

305 305 305 16 16 306 81 16 305 306 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=11 L=16	0-95235-025-0	04	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=11X2 L=16	1-09700-734-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=5-12 L=18	1-09709-287-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=140	5-09707-031-1	01	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1310-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1310-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1310-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1310-
305	CLIP; ENG HARNESS (G) ID=16 L=40	0-95235-576-0	01	1	1310-
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	1310-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1310-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1310-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1310-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1310-
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1310-
305	CLIP; ENG HARNESS (D) L=140	8-97122-360-0	01	1	1310-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1310-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=21 L=47.5	8-94178-108-0	01	1	1310-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1310-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1310-

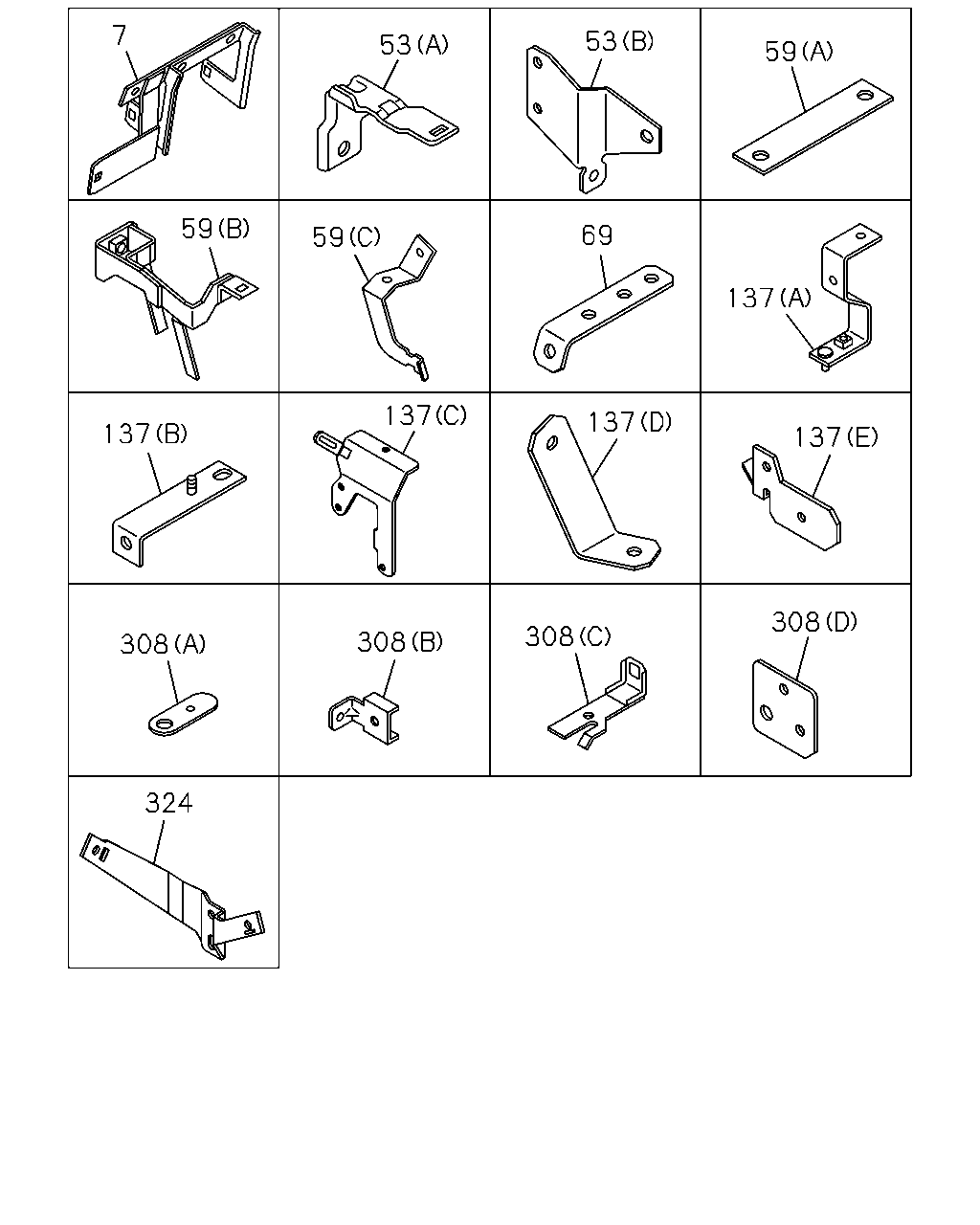

308 308 308 308 324 137 137 137 137 59 59 69 137 59 53 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1310-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1310-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) (B)	8-98047-891-0	01	1	1310-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) (B)	8-98047-890-0	01	1	1310-
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	1310-
59	BRACKET; FRAME HARNESS (C)	8-97616-357-3	01	1	1310-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1310-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82698-167-0	01	1	1310-
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1310-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1310-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-97618-098-2	01	1	1310-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98065-904-0	01	1	1310-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98059-231-1	01	1	1310-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1310-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1310-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1310-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1310-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-649-1	01	1	1310-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-648-1	01	1	1310-

305 235 16 16 81 470 305 305 16 305 305 16 305 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=11 L=16	0-95235-025-0	04	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=11X2 L=16	1-09700-734-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=5-12 L=18	1-09709-287-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=140	5-09707-031-1	01	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1310-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1310-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1310-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1310-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) ID=13-18 L=14.5	1-09709-290-0	01	1	1310-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1310-
305	CLIP; ENG HARNESS (G) ID=16 L=40	0-95235-576-0	01	1	1310-
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	1310-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1310-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1310-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1310-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1310-
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1310-
305	CLIP; ENG HARNESS (D) L=140	8-97122-360-0	01	1	1310-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1310-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=21 L=47.5	8-94178-108-0	01	1	1310-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(B14) OD=9 H=6	1-09709-178-0	01	1	1310-

16 48 14 530 14 538 503 16 1 178 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1310-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1310-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	14	1	1310-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE(JE5) (B) L=250	1-09707-126-0	02	1	1310-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=11 L=16	0-95235-025-0	04	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=11X2 L=16	1-09700-734-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=5-12 L=18	1-09709-287-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1310-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=140	5-09707-031-1	01	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1310-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1310-
48	CLIP; FRAME HARNESS L=250	5-09707-030-1	01	1	1310-
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-
503	CONNECTOR	1-82690-668-0	01	1	1310-
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82690-668-0	01	1	1310-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1310-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1310-
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1310-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1310-
