Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#128869) — 266 parça

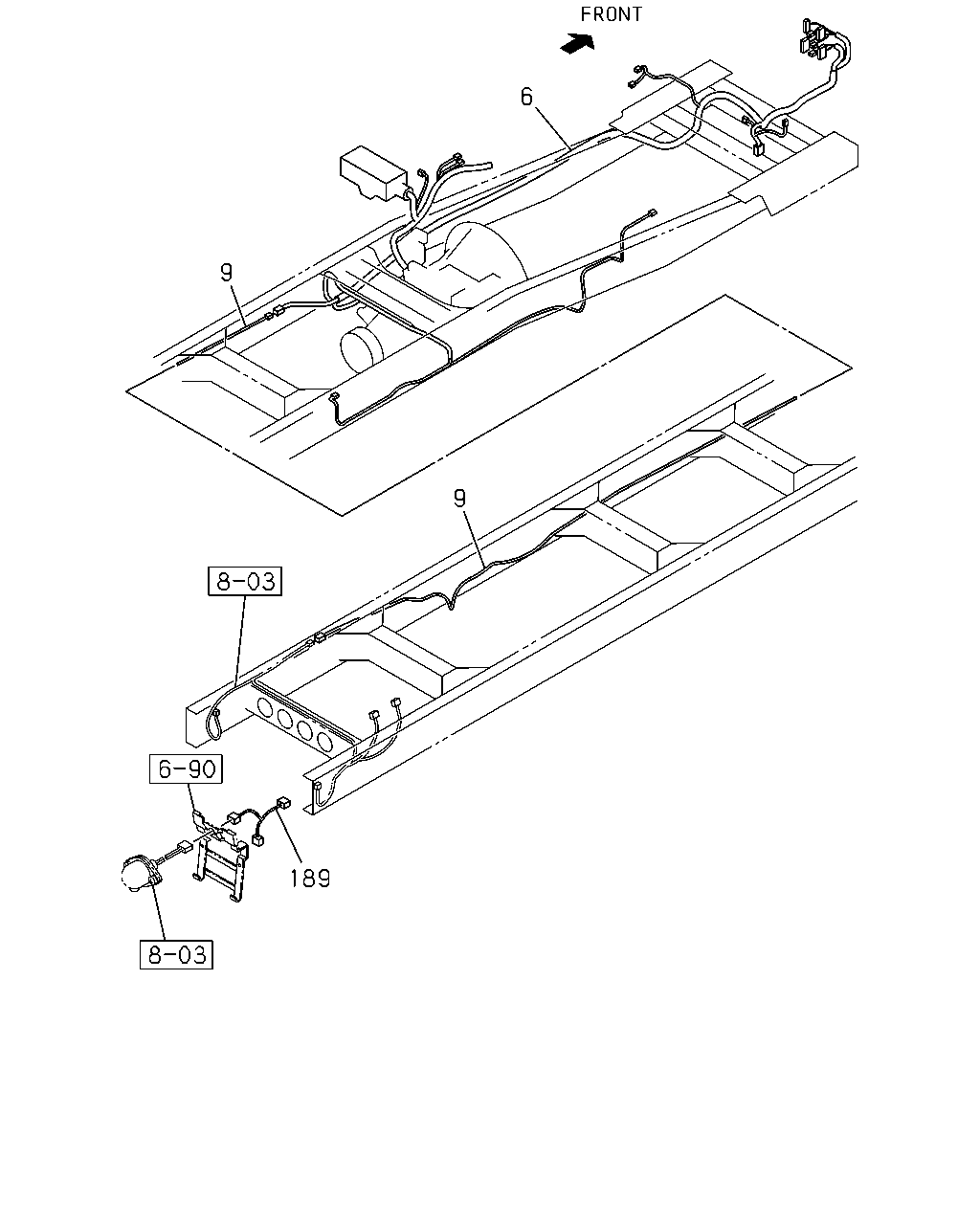

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14)	8-98168-595-0	01	1	1310-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14)	8-98168-583-0	01	1	1310-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5)	8-98168-600-0	01	1	1310-
189	HARNESS; EXT HONG KONG EQUIPMENT(B14)	8-98131-066-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-

1 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-530-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-532-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-

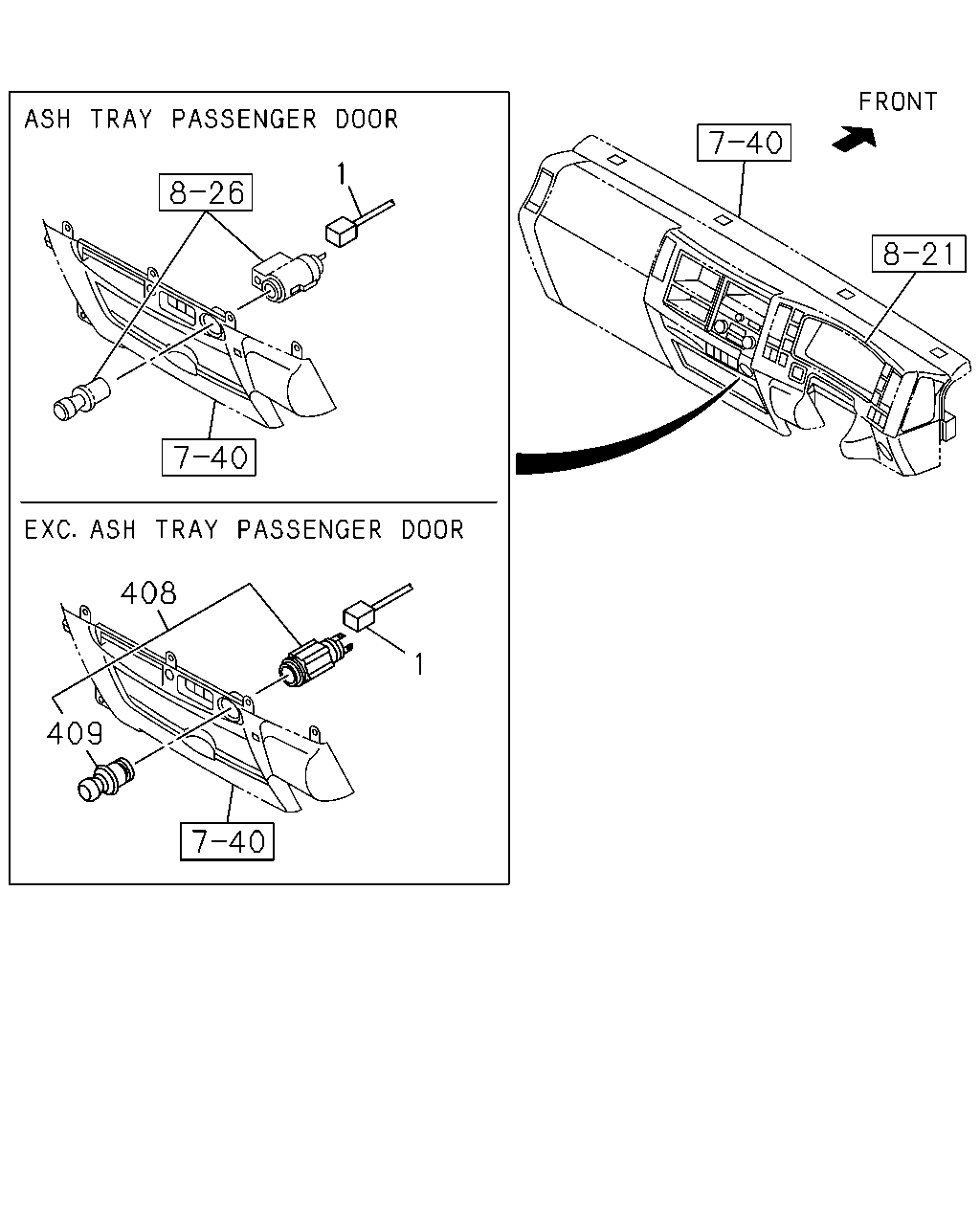

408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1310-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1310-

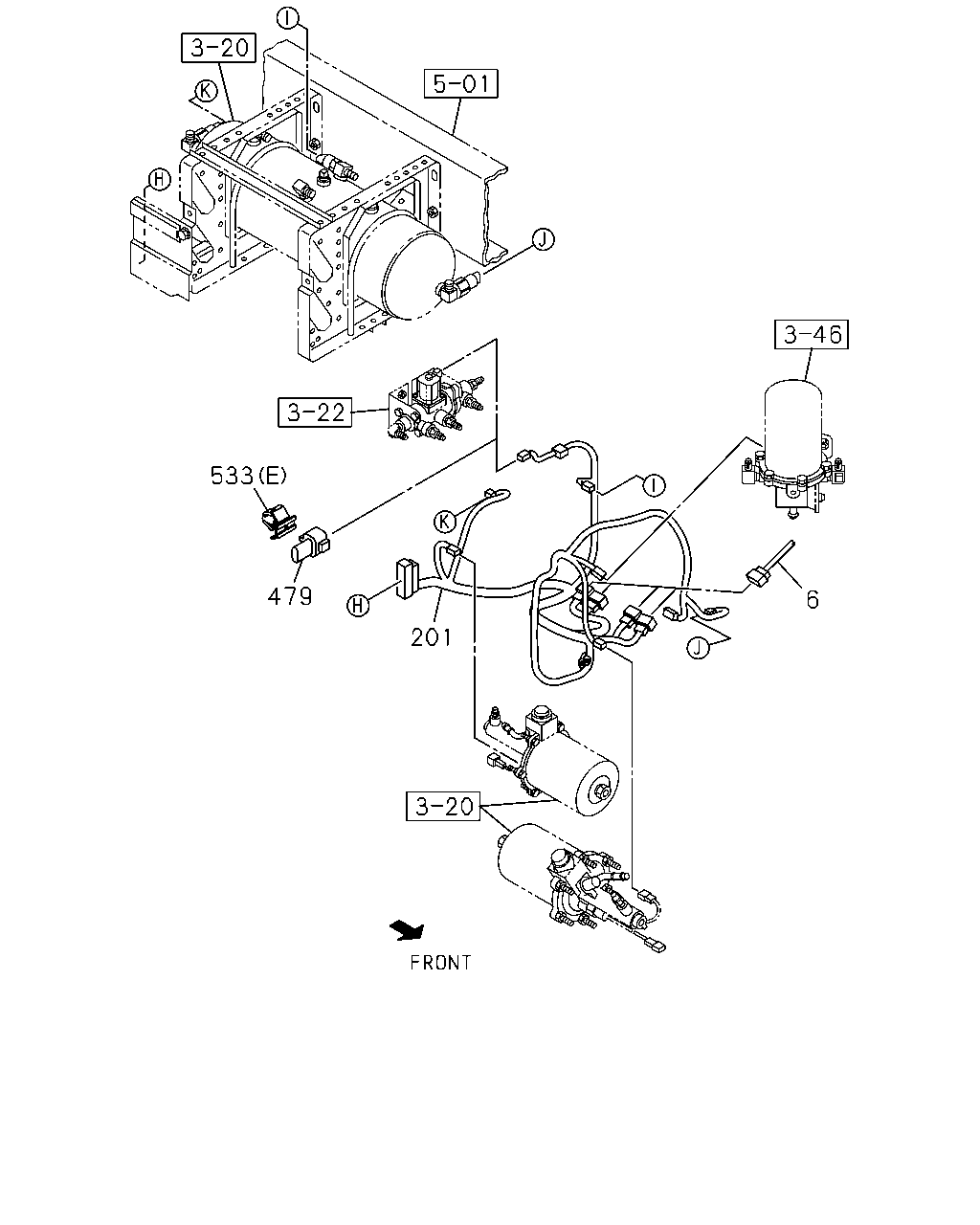

201 479 6 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1310-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1310-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1310-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-707-2	01	1	1310-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98156-706-1	01	1	1310-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98156-708-1	01	1	1310-1401
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98212-309-0	01	1	1402-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1310-

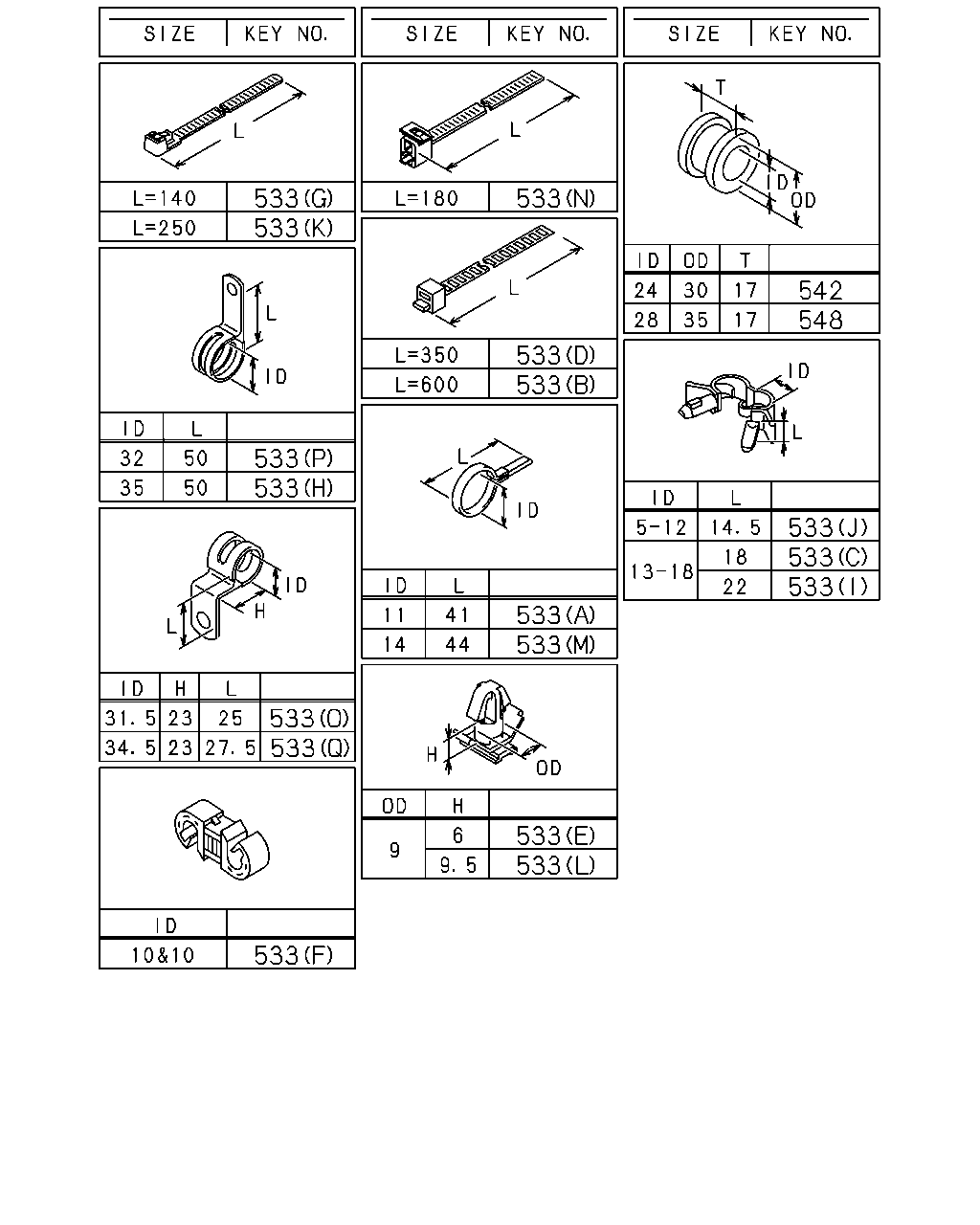

533	CLIP (B) L=600	1-09707-107-1	01	1	1310-
533	CLIP (D) L=350	1-09707-183-0	01	1	1310-
533	CLIP (D) L=350	1-09707-183-0	01	1	1310-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1310-
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1310-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1310-
533	CLIP (K) L=250	5-09707-030-1	02	1	1310-
533	CLIP (G) L=140	5-09707-031-1	02	1	1310-
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1310-
533	CLIP ANTI LOCK BRAKE(JE5) (A) ID=11 L=41	1-09700-403-0	01	1	1310-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP ANTI LOCK BRAKE(JE5) (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP (K) L=250	5-09707-030-1	03	1	1310-
533	CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=250	5-09707-030-1	04	1	1310-
533	CLIP HONG KONG EQUIPMENT(B14) (N) L=180	1-09707-162-1	01	1	1310-
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (N) L=180	1-09707-162-1	01	1	1310-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1310-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1310-
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1310-
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=35 L=50	1-09701-214-0	01	1	1310-
533	CLIP WHEEL BASE 4300MM(43W) (M) ID=14 L=44	9-09917-427-0	13	1	1310-
533	CLIP WHEEL BASE 4800MM(48W) (M) ID=14 L=44	9-09917-427-0	15	1	1310-
533	CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=22	1-09709-292-0	01	1	1310-
533	CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=13-18 L=18	1-09709-291-0	01	1	1310-
533	CLIP WHEEL BASE 5500MM(55W) (M) ID=14 L=44	9-09917-427-0	19	1	1310-

13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-

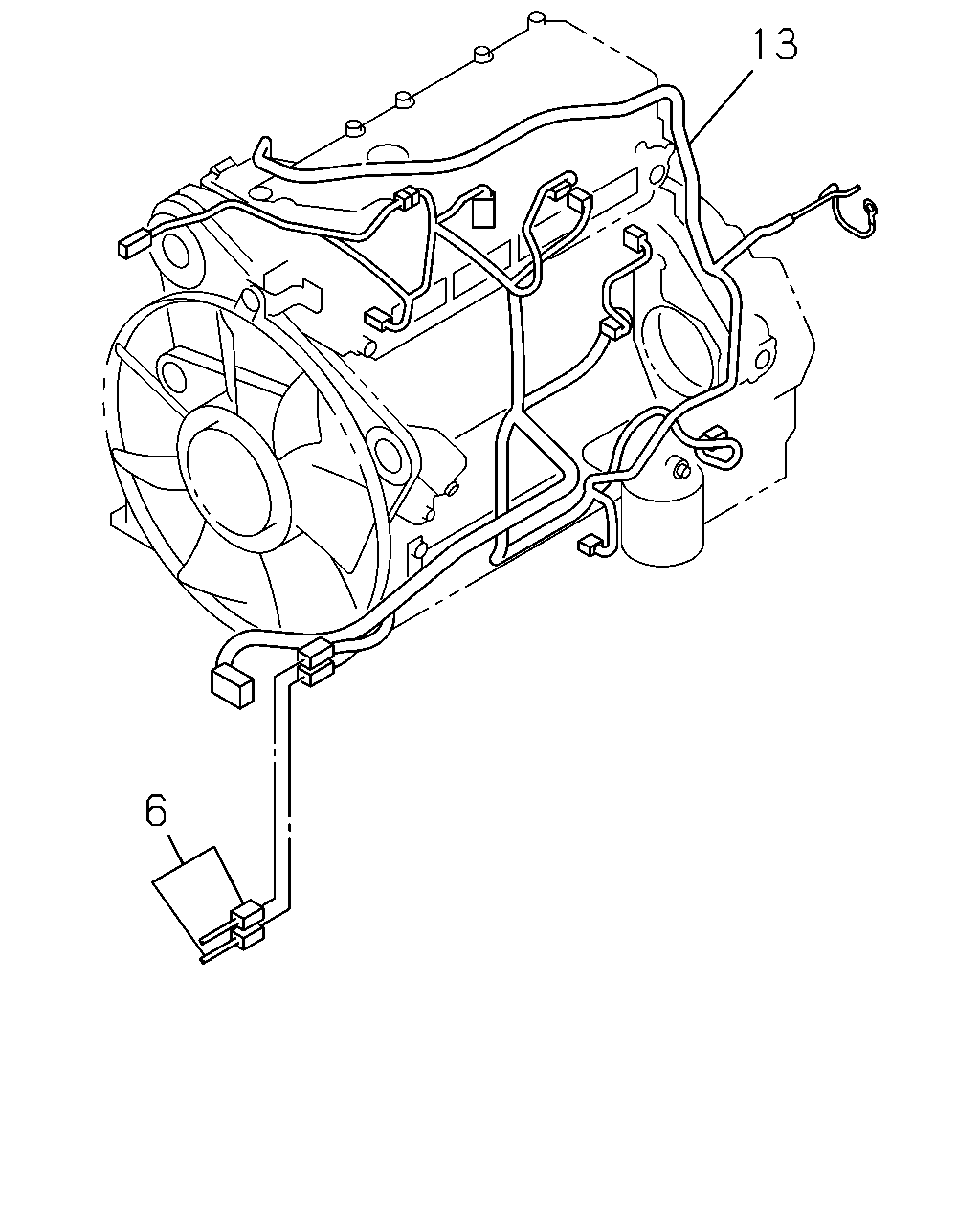

13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98242-595-0	01	1	1310-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98242-596-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-

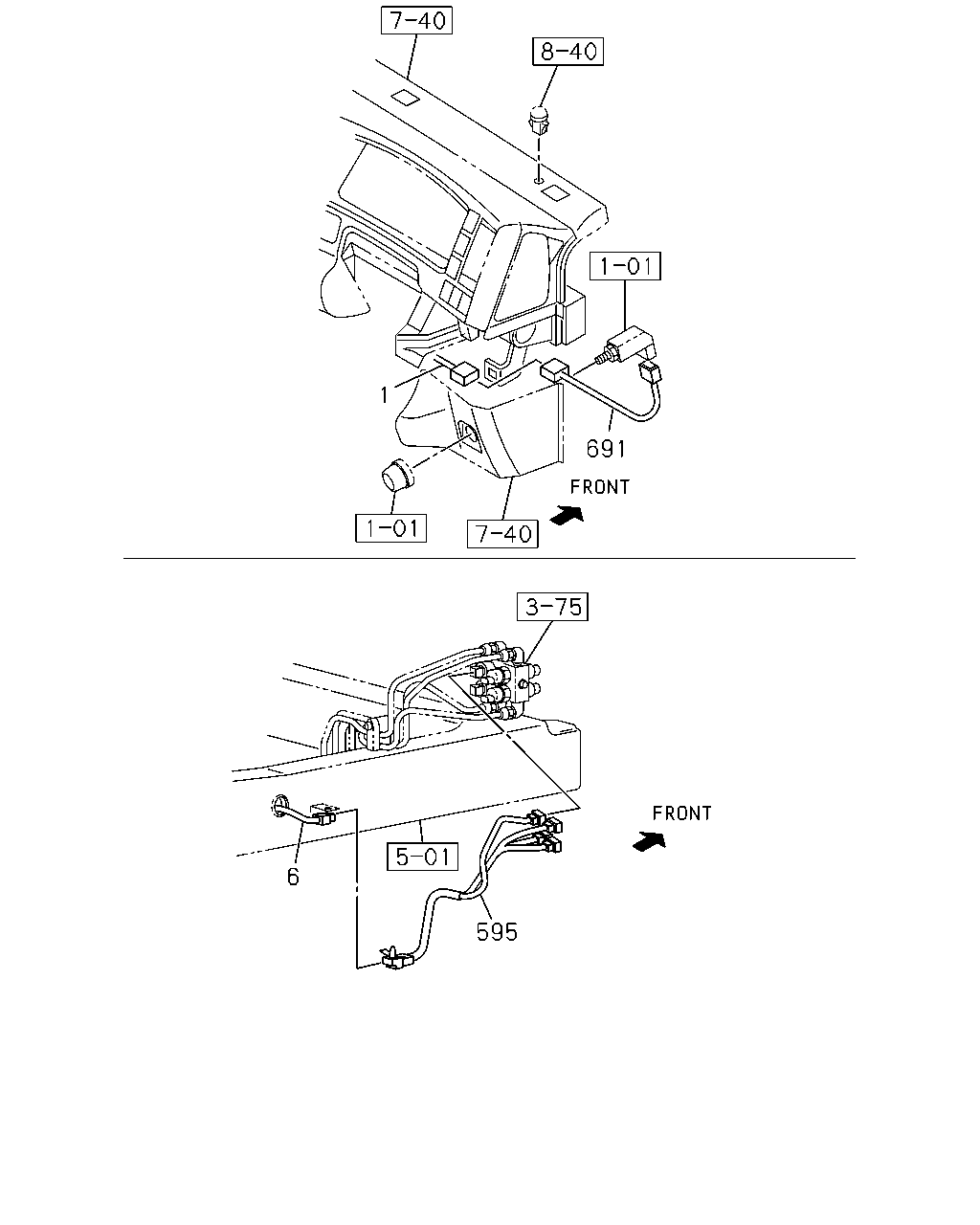

1 691 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-530-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-532-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1310-
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1310-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1310-

535 267 534 267 639 267 267 290 290 293 525 668 668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1310-
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1310-
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1310-
267	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1310-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1310-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1310-
293	NUT M8 FLANGE	0-91180-108-0	01	1	1310-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1310-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1310-
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1310-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1310-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-
535	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1310-
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1310-
668	BRACKET; HARNESS (F)	8-97622-828-0	01	1	1310-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1310-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1310-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1310-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1310-
668	BRACKET; HARNESS (G)	8-98090-952-0	01	1	1310-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H)	8-98095-653-2	01	1	1310-

1 253 339 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-530-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-532-0	01	1	1310-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1310-
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-2	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W)	8-98239-526-1	01	1	1310-
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W)	8-98124-758-0	01	1	1310-
339	HARNESS; EXT,FUEL WHEEL BASE 5500MM(55W)	8-98212-412-0	01	1	1310-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1310-

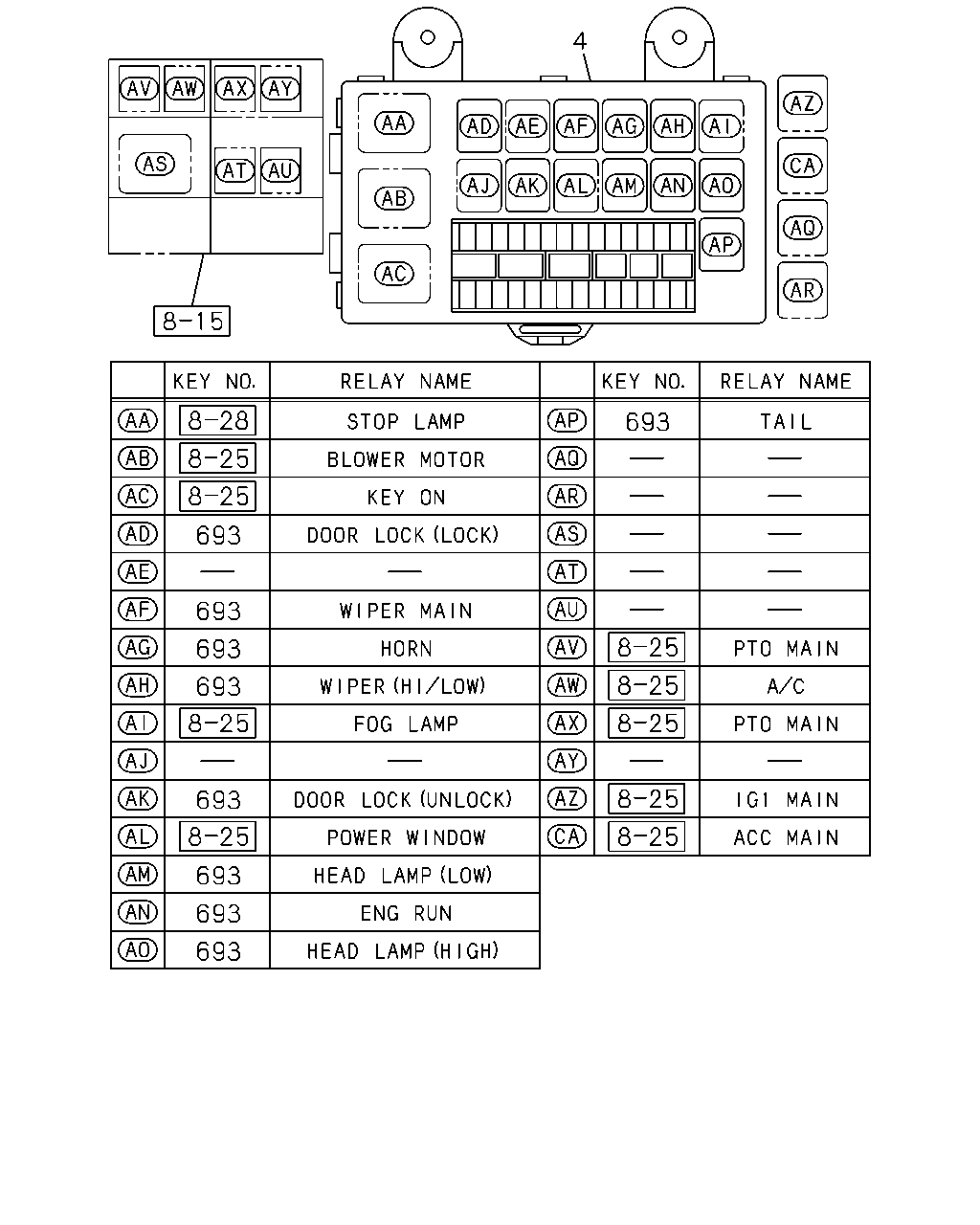

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1310-

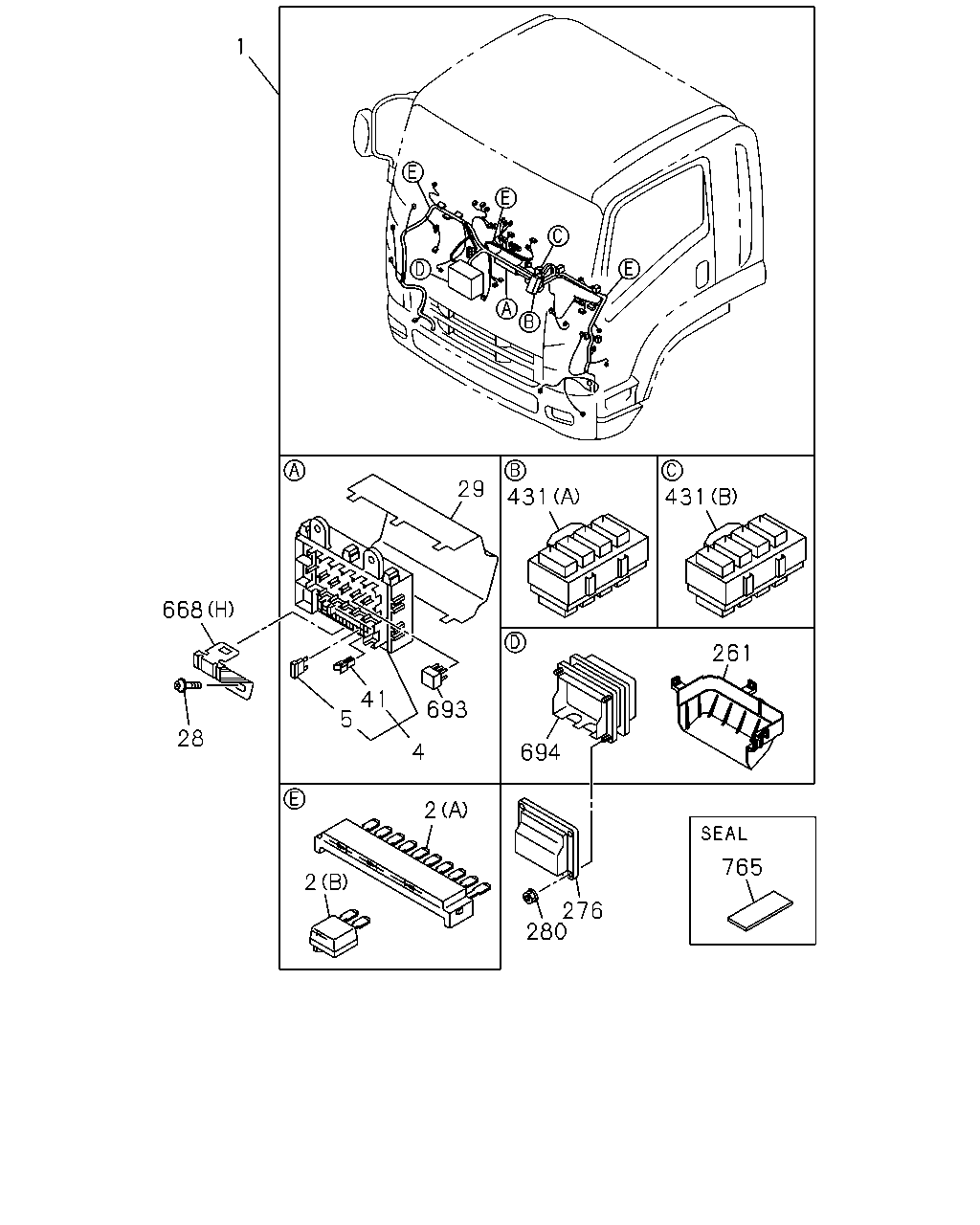

1 29 668 28 5 693 41 4 431 694 2 2 280 261 765 765 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-527-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-529-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-531-0	01	1	1310-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98233-533-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-526-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98233-528-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-530-0	01	1	1310-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98233-532-0	01	1	1310-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1310-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1310-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1310-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1310-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1310-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1310-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1310-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1310-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1310-
41	PULLER; FUSE	8-98054-260-0	01	1	1310-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1310-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1310-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1310-
668	BRACKET; HARNESS (F)	8-97622-828-0	01	1	1310-
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1310-
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1310-
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1310-
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1310-
668	BRACKET; HARNESS (G)	8-98090-952-0	01	1	1310-
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H)	8-98095-653-2	01	1	1310-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1310-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1310-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

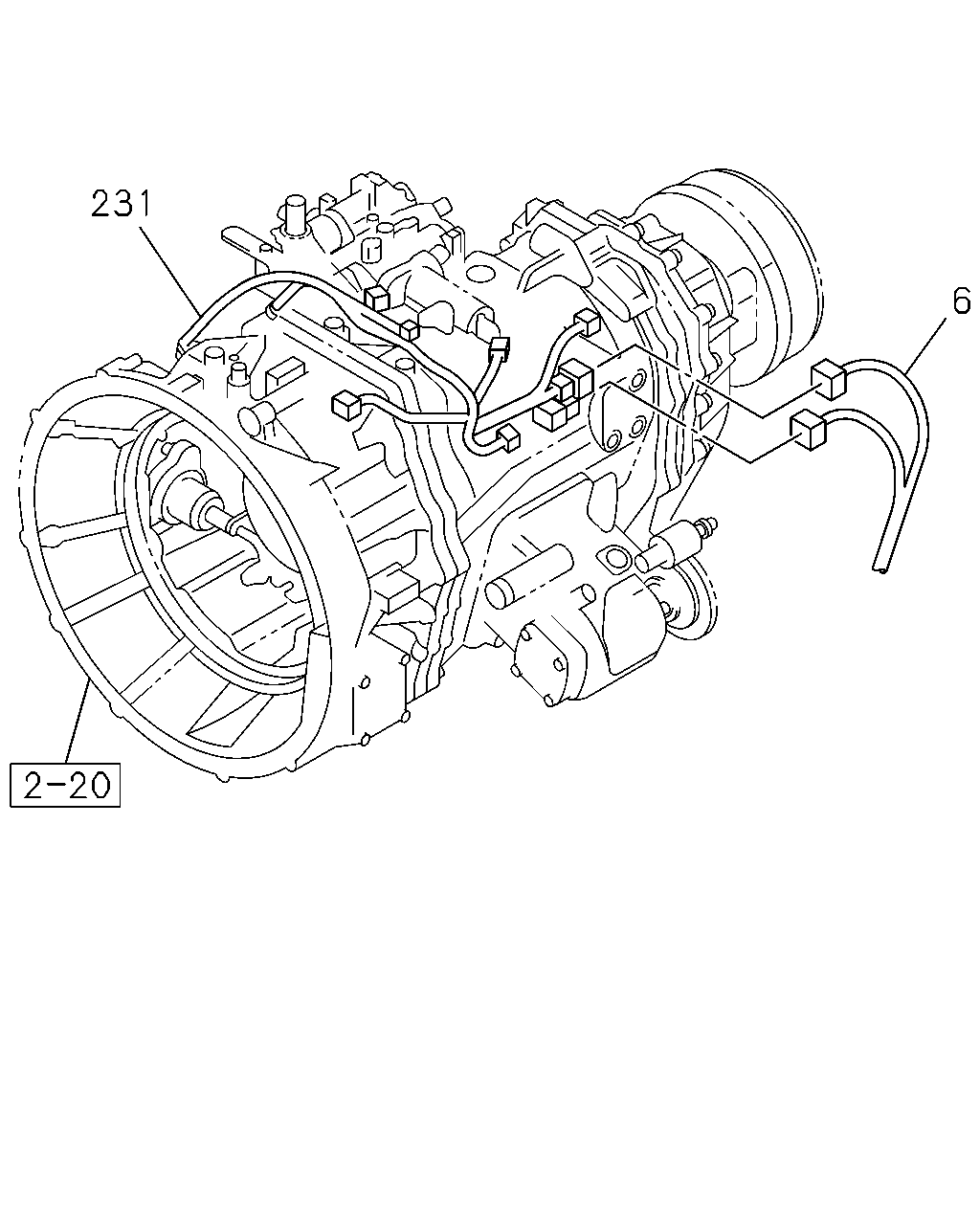

6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1310-
231	HARNESS; TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-722-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-

533 533 533 533 533 533 533 533 533 533 533 533 533 533 542 533 548 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
533	CLIP (B) L=600	1-09707-107-1	01	1	1310-
533	CLIP (D) L=350	1-09707-183-0	01	1	1310-
533	CLIP (D) L=350	1-09707-183-0	01	1	1310-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1310-
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1310-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1310-
533	CLIP (K) L=250	5-09707-030-1	02	1	1310-
533	CLIP (G) L=140	5-09707-031-1	02	1	1310-
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1310-
533	CLIP ANTI LOCK BRAKE(JE5) (A) ID=11 L=41	1-09700-403-0	01	1	1310-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP ANTI LOCK BRAKE(JE5) (E) OD=9 H=6	1-09709-178-0	01	1	1310-
533	CLIP (K) L=250	5-09707-030-1	03	1	1310-
533	CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=250	5-09707-030-1	04	1	1310-
533	CLIP HONG KONG EQUIPMENT(B14) (N) L=180	1-09707-162-1	01	1	1310-
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (N) L=180	1-09707-162-1	01	1	1310-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1310-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1310-
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1310-
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=35 L=50	1-09701-214-0	01	1	1310-
533	CLIP WHEEL BASE 4300MM(43W) (M) ID=14 L=44	9-09917-427-0	13	1	1310-
533	CLIP WHEEL BASE 4800MM(48W) (M) ID=14 L=44	9-09917-427-0	15	1	1310-
533	CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=22	1-09709-292-0	01	1	1310-
533	CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=13-18 L=18	1-09709-291-0	01	1	1310-
533	CLIP WHEEL BASE 5500MM(55W) (M) ID=14 L=44	9-09917-427-0	19	1	1310-
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1310-
542	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) ID=24 OD=30 T=17	9-09956-092-1	01	1	1310-
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-

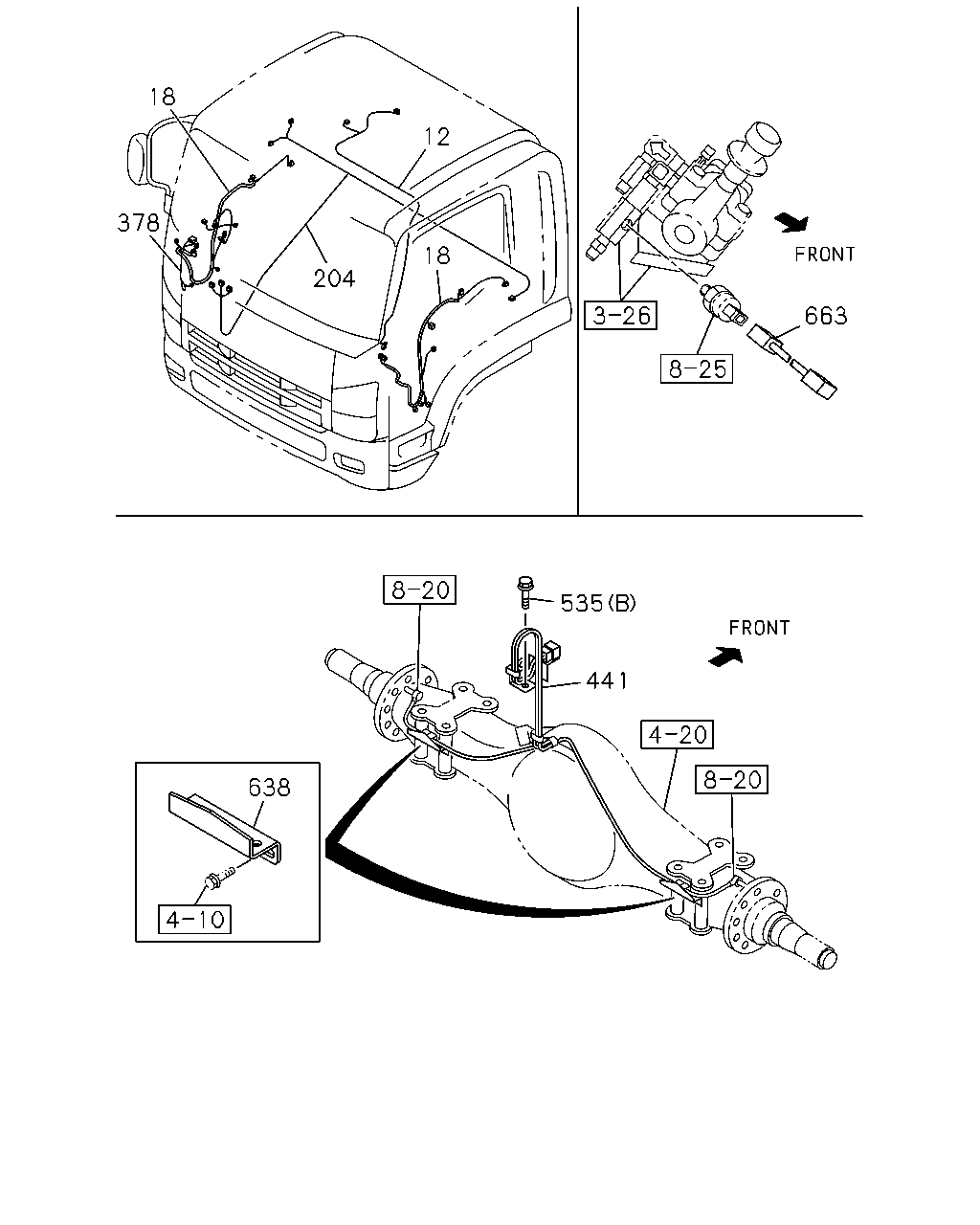

18 378 204 12 18 441 663 638 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-930-2	01	1	1310-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-948-2	01	1	1310-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1310-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1310-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	1310-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-194-0	01	1	1310-
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER(AJ3),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-188-0	01	1	1310-
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-204-0	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98022-717-1	01	1	1310-
441	HARNESS; CABLE,SPEED SENSOR ANTI LOCK BRAKE(JE5)	8-98061-652-0	01	1	1310-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-
535	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1310-
638	BRACKET; SPD SENSOR ANTI LOCK BRAKE(JE5)	8-98012-580-1	02	1	1310-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1310-

6 10 184 27 720 534 290 184 388 453 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0)	8-98232-888-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-890-2	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98245-724-0	01	1	1310-
6	HARNESS; FRAME WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ANTI LOCK BRAKE(JE5)	8-98232-889-0	01	1	1310-
10	BOX; FUSE,HARNESS WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5)	8-98030-762-0	01	1	1310-
10	BOX; FUSE,HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0)	8-98030-762-0	01	1	1310-
27	FUSE UNIT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 15A BLUE	8-98054-258-0	02	1	1310-
27	FUSE UNIT WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 10A RED	8-98054-257-0	01	1	1310-
27	FUSE UNIT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 10A RED	8-98054-257-0	01	1	1310-
27	FUSE UNIT WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 15A BLUE	8-98054-258-0	01	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 60A YELLOW	8-97219-407-0	02	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 40A GREEN	8-98079-192-0	02	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 60A YELLOW	8-97219-407-0	01	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 60A YELLOW	8-97219-407-0	01	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 60A YELLOW	8-97219-407-0	01	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 30A PINK	8-98079-191-0	02	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 30A PINK	8-98079-191-0	02	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	01	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 50A RED	8-98079-193-0	03	1	1310-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) 50A RED	8-98079-193-0	03	1	1310-
184	COVER; RELAY & FUSE BOX WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A)	8-98030-766-0	01	1	1310-
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) (A)	8-98030-766-0	01	1	1310-
184	COVER; RELAY & FUSE BOX WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B)	8-98030-767-1	01	1	1310-
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) (B)	8-98030-767-1	01	1	1310-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1310-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1310-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1310-
388	DIODE; RELAY BOX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0) BLACK 2P-1.5A	8-94422-639-1	02	1	1310-
388	DIODE; RELAY BOX WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) BLACK 2P-1.5A	8-94422-639-1	01	1	1310-
453	PROTECTOR; HARNESS WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5)	1-82699-709-0	02	1	1310-
453	PROTECTOR; HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0)	1-82699-709-0	02	1	1310-
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1310-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1310-
720	ATTACHMENT; CONNECTOR WHEEL BASE 5500MM(55W) SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5)	1-82699-688-0	03	1	1310-
720	ATTACHMENT; CONNECTOR WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. SINGAPORE EQUIPMENT(2G0)	1-82699-688-0	03	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
