◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#12886) — 32 parça

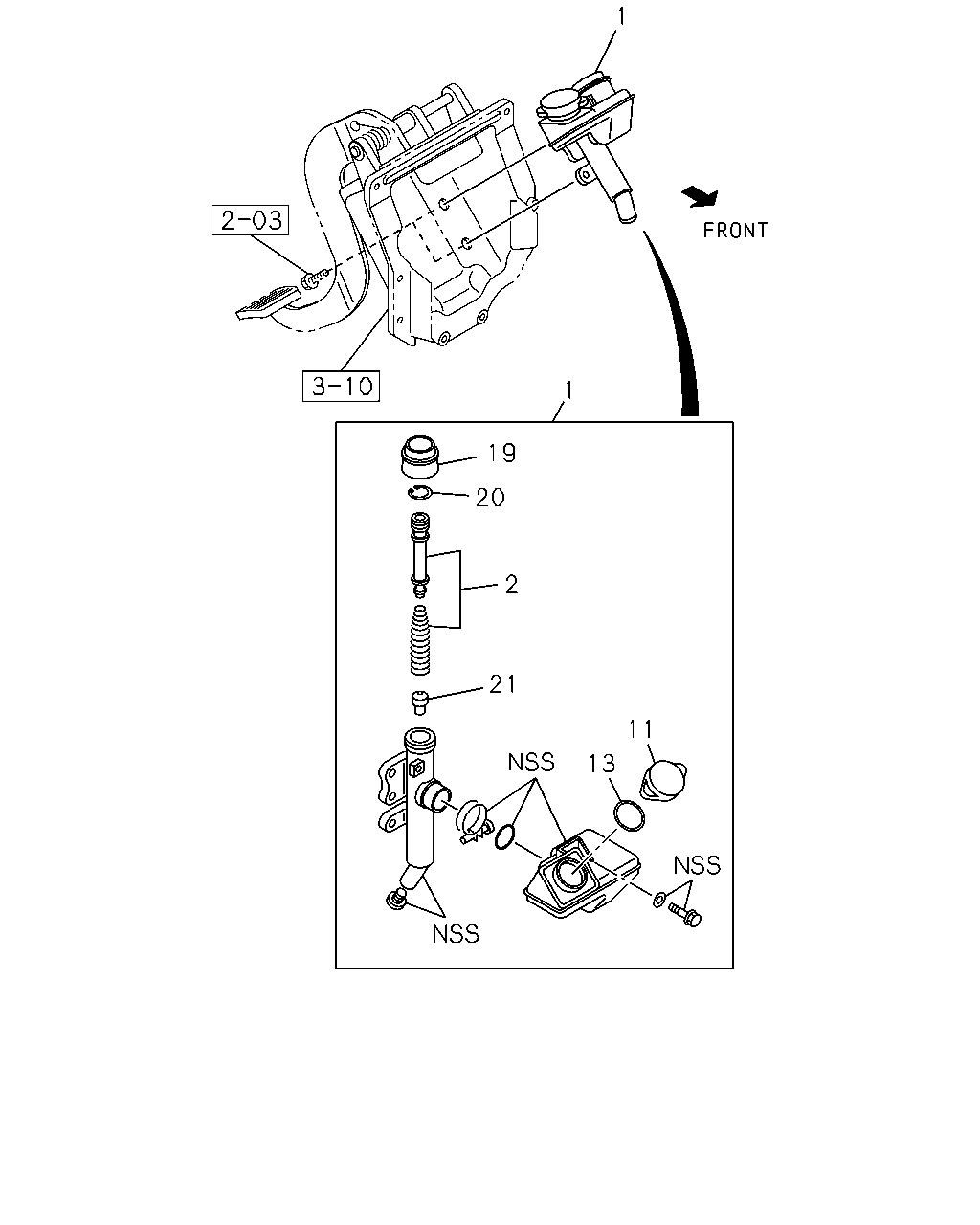

çizim 98267
1 1 19 20 2 21 11 13
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
ZF6S1000 M/T<Y5D> 		1-47500-357-3 01 1 0807-1102
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1110 M/T<Y5E> 		1-47500-250-2 01 1 0807-1102
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1103-
2 REPAIR KIT; CLU M/CYL
ZF6S1000 M/T<Y5D> 		1-47550-052-1 01 1 0807-1102
2 REPAIR KIT; CLU M/CYL
ZF9S1110 M/T<Y5E> 		1-85576-461-0 01 1 0807-1102
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1103-
11 CAP; OUTER,CLU M/CYL
ZF6S1000 M/T<Y5D> 		1-47519-017-0 01 1 0807-1102
13 GASKET; OIL TANK
ZF6S1000 M/T<Y5D> 		1-47519-016-0 01 1 0807-1102
19 BOOT; CLU M/CYL
ZF6S1000 M/T<Y5D> 		1-47519-018-0 01 1 0807-1102
20 RING; SNAP,BODY
ZF6S1000 M/T<Y5D> 		1-47515-009-0 01 1 0807-1102
20 RING; SNAP,BODY
ZF9S1110 M/T<Y5E> 		1-47519-013-0 01 1 0807-1102
20 RING; SNAP,BODY 1-47519-013-0 01 1 1103-
21 VALVE; CHECK
ZF6S1000 M/T<Y5D> 		1-47565-004-0 01 1 0807-1102

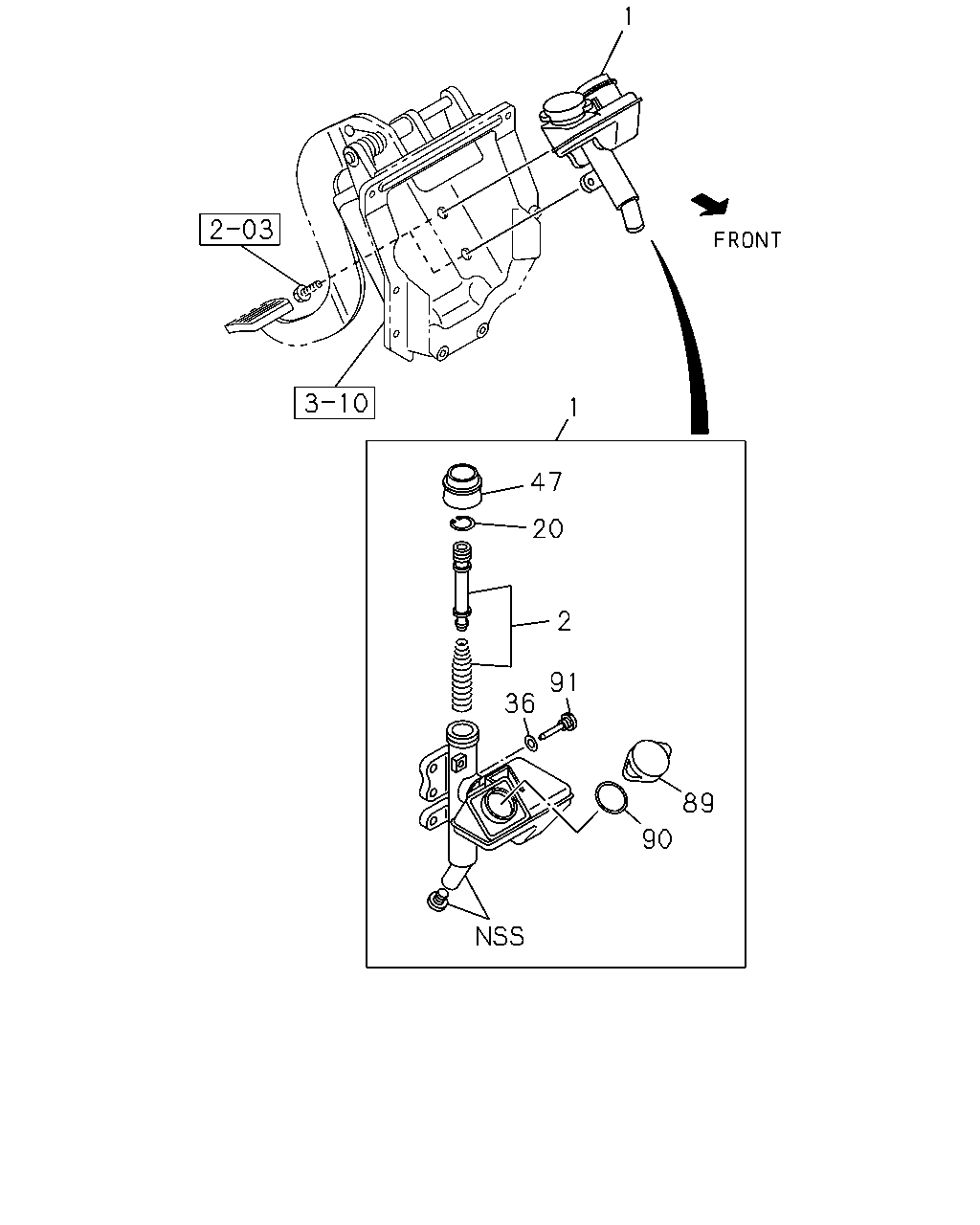

çizim 98372
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
ZF6S1000 M/T<Y5D> 		1-47500-357-3 01 1 0807-1102
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1110 M/T<Y5E> 		1-47500-250-2 01 1 0807-1102
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1103-
2 REPAIR KIT; CLU M/CYL
ZF6S1000 M/T<Y5D> 		1-47550-052-1 01 1 0807-1102
2 REPAIR KIT; CLU M/CYL
ZF9S1110 M/T<Y5E> 		1-85576-461-0 01 1 0807-1102
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1103-
20 RING; SNAP,BODY
ZF6S1000 M/T<Y5D> 		1-47515-009-0 01 1 0807-1102
20 RING; SNAP,BODY
ZF9S1110 M/T<Y5E> 		1-47519-013-0 01 1 0807-1102
20 RING; SNAP,BODY 1-47519-013-0 01 1 1103-
36 GASKET; CLU M/CYL
ZF9S1110 M/T<Y5E> 		1-47519-014-0 01 1 0807-1102
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1103-
47 COVER; DUST,PUSH ROD
ZF9S1110 M/T<Y5E> 		1-47519-018-0 01 1 0807-1102
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1103-
89 CAP; OIL FILLER,CLU M/CYL
ZF9S1110 M/T<Y5E> 		1-47519-017-0 01 1 0807-1102
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1103-
90 GASKET; OIL FILLER,CLU M/CYL
ZF9S1110 M/T<Y5E> 		1-47519-016-0 01 1 0807-1102
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1103-
91 BOLT; STOPPER
ZF9S1110 M/T<Y5E> 		1-47519-015-0 01 1 0807-1102
91 BOLT; STOPPER 1-47519-015-0 01 1 1103-
