◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#128859) — 117 parça

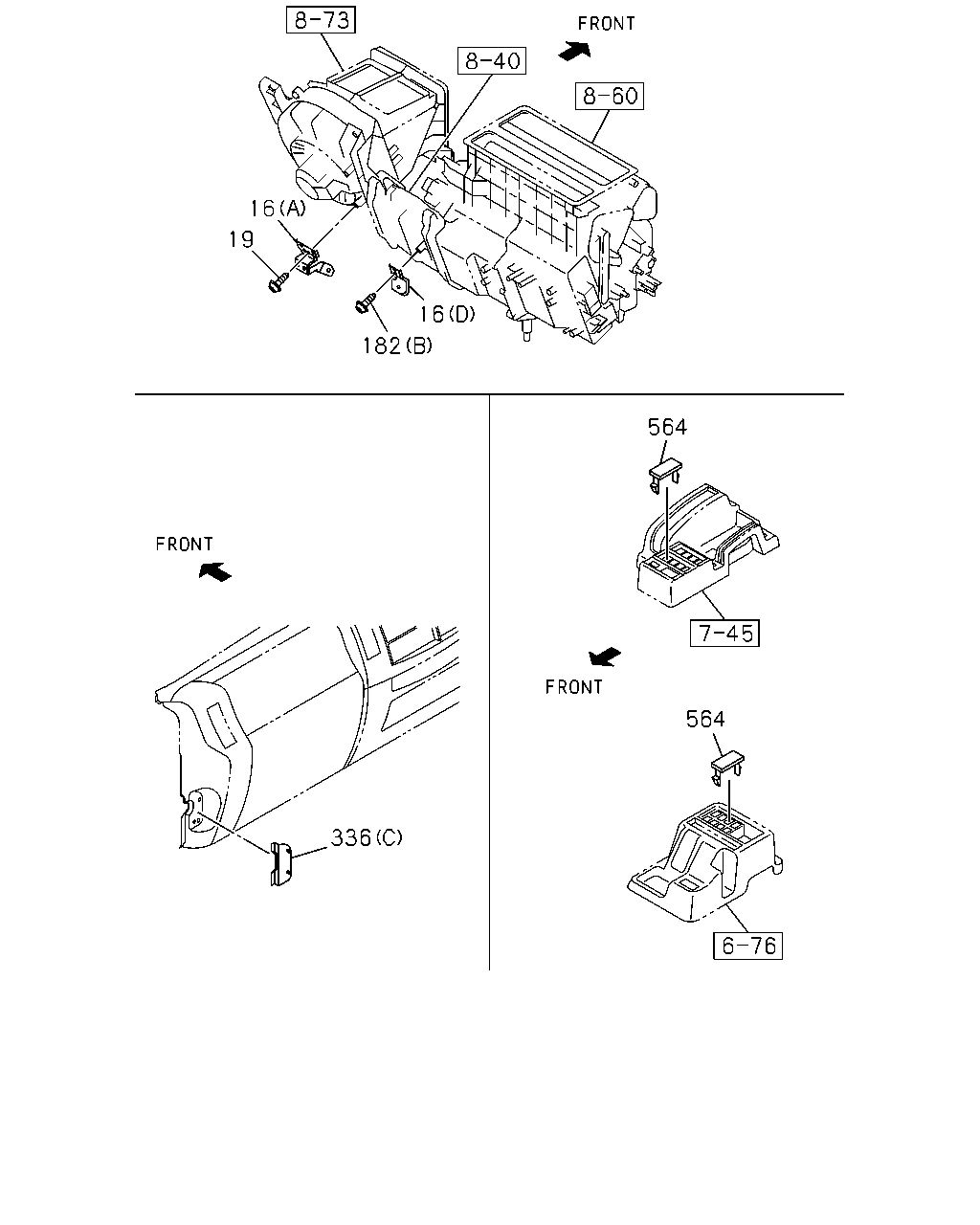

çizim 379748
564 564 336 182 16 19 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1310-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
564 COVER; SW 8-97043-732-1 06 1 1310-

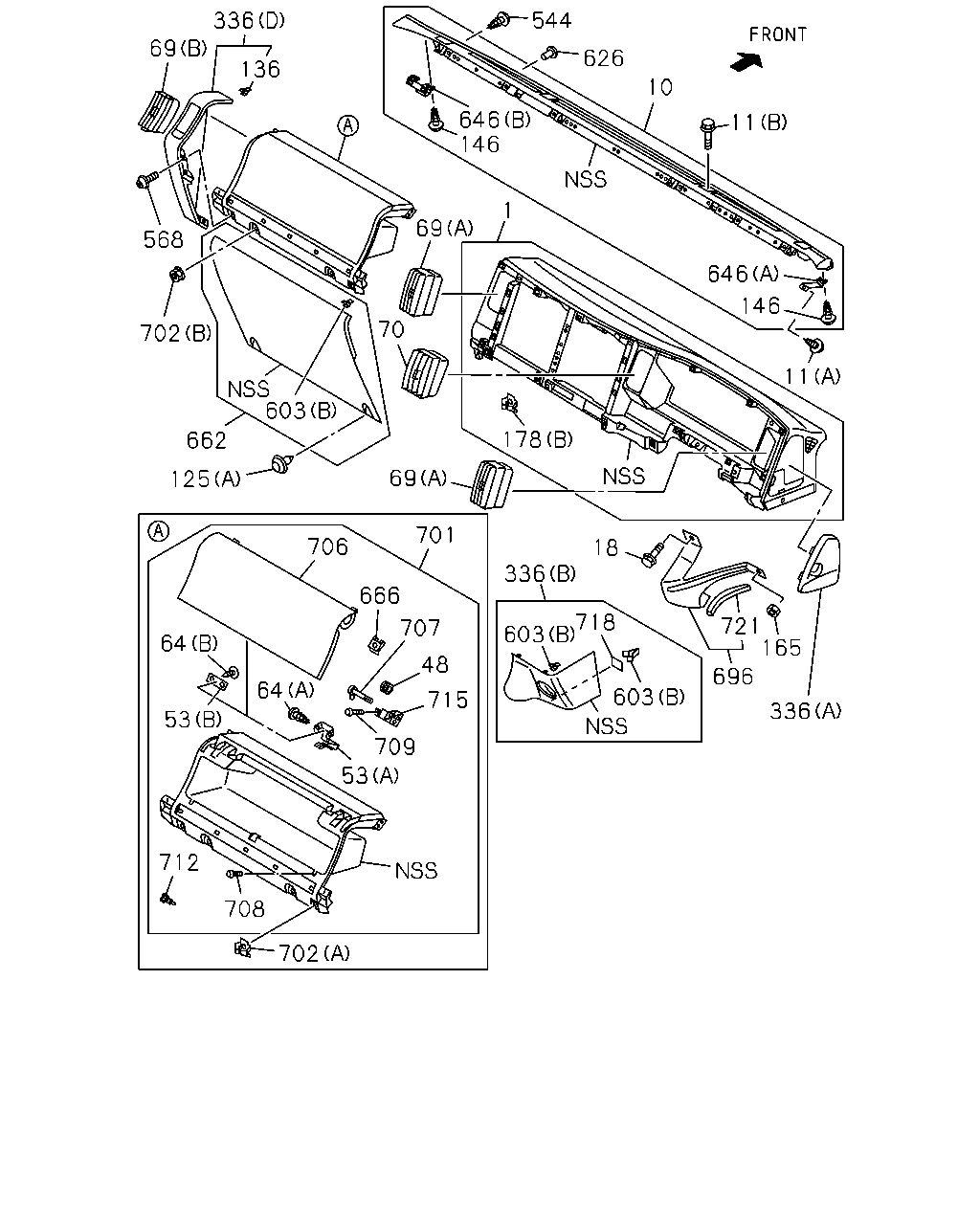

çizim 381434
11 10 626 544 646 146 1 646 146 11 178 18 336 603 603 718 721 165 696 336 69 70 69 136 336 69 568 702 603 662 125 706 701 666 707 48 715 709 53 53 64 64 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1310-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1310-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1310-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1310-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1310-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1310-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1310-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1310-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1310-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1310-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
136 CLIP; INST COVER 8-98076-254-0 02 1 1310-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1310-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1310-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1310-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1310-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1310-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1310-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1310-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1310-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1310-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1310-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1310-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1310-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1310-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1310-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1310-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1310-

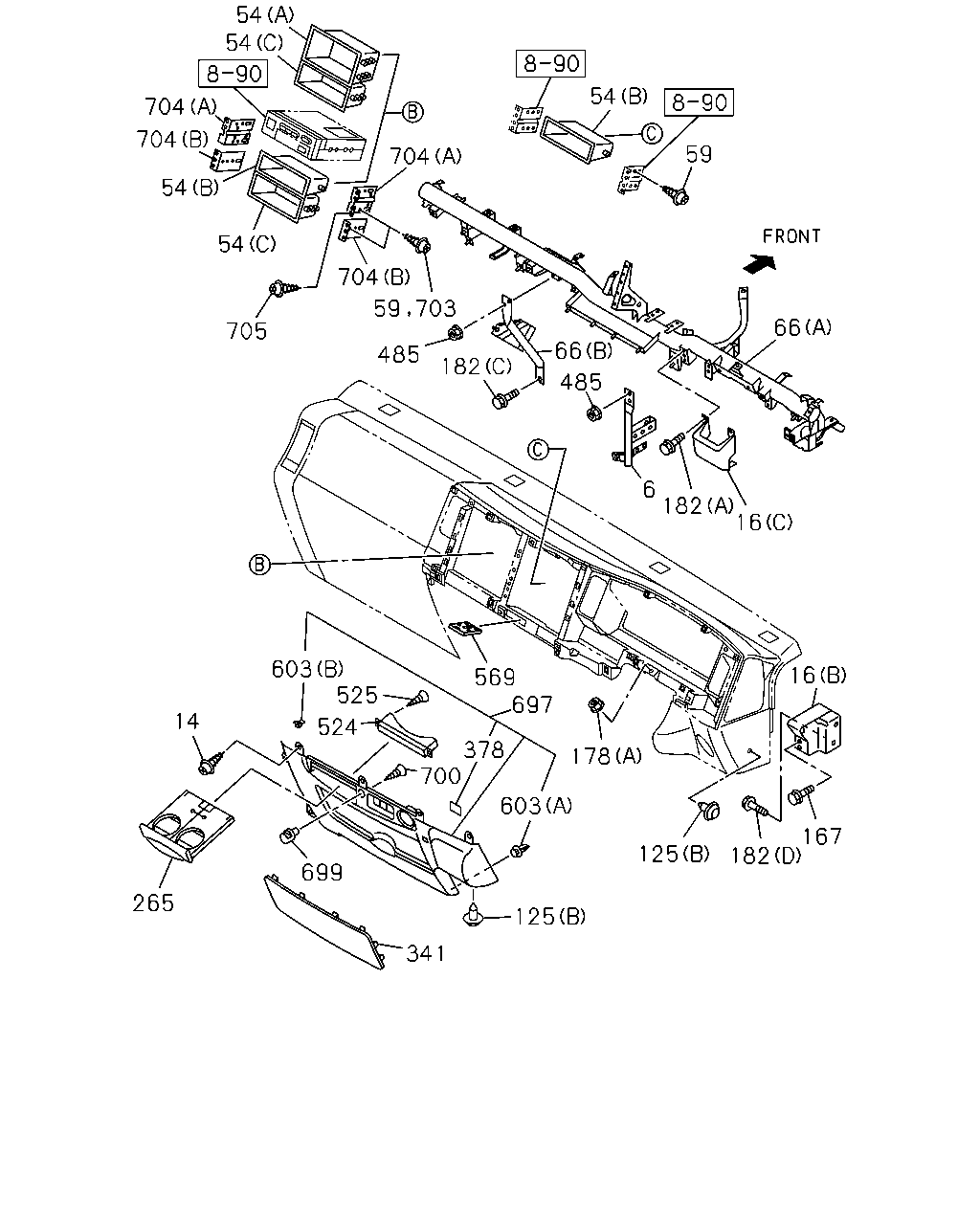

çizim 381455
341 125 699 265 14 524 525 603 569 697 378 700 603 178 125 182 167 16 54 54 704 704 54 54 705 704 59 703 485 182 66 485 6 182 16 66 59 54 704
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1310-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1310-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1310-
54 POCKET; CENTER CLUSTER
POWER WINDOW FRT DOOR<A32> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1310-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1310-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1310-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
POWER WINDOW FRT DOOR<A32> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1310-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 1310-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 1310-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1310-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1310-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1310-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1310-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1310-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
569 HOLDER; CARD 8-97410-276-1 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1310-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1310-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1310-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1310-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1310-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1310-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1310-
