Sayfa 7-20 - Isuzu EPC

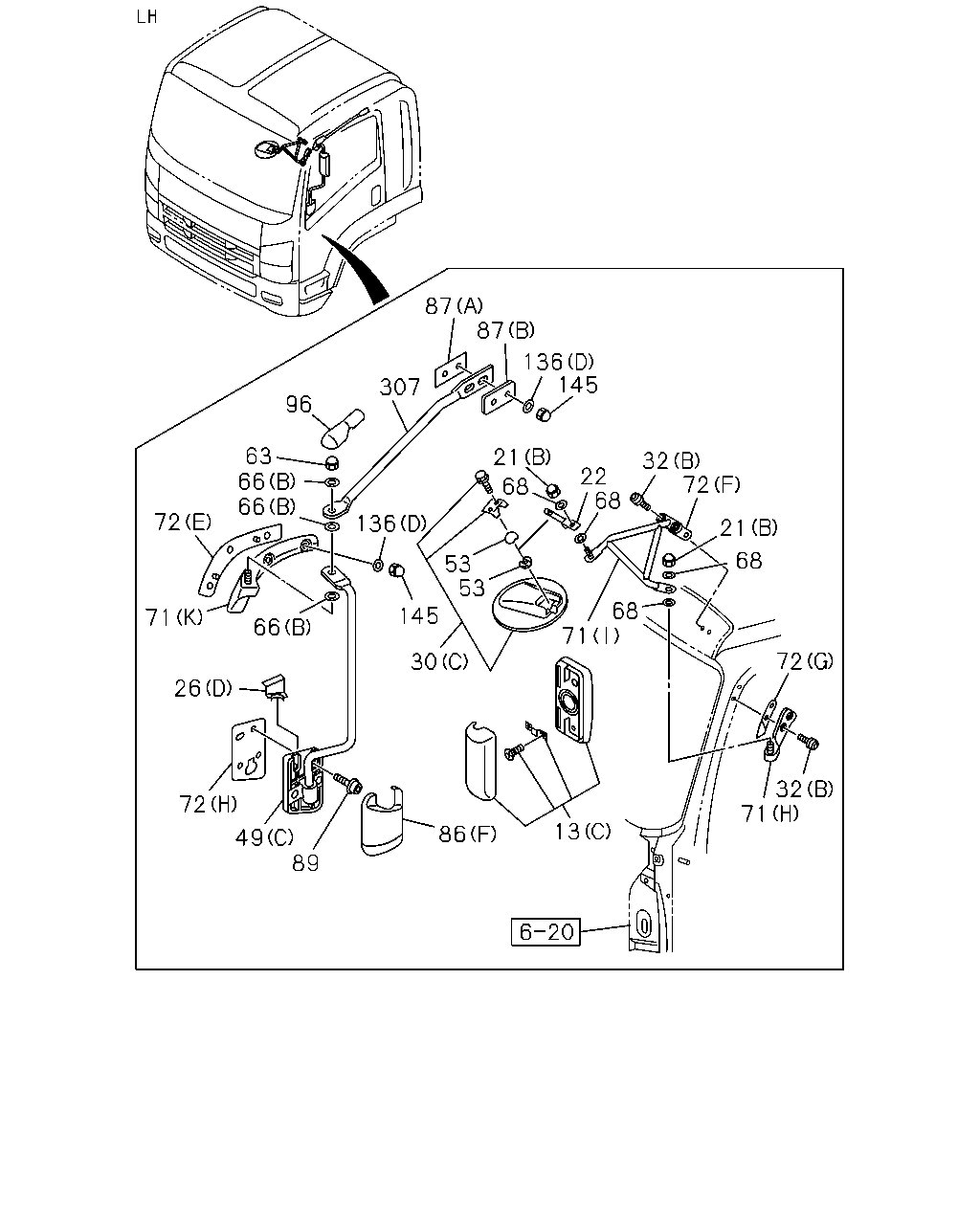

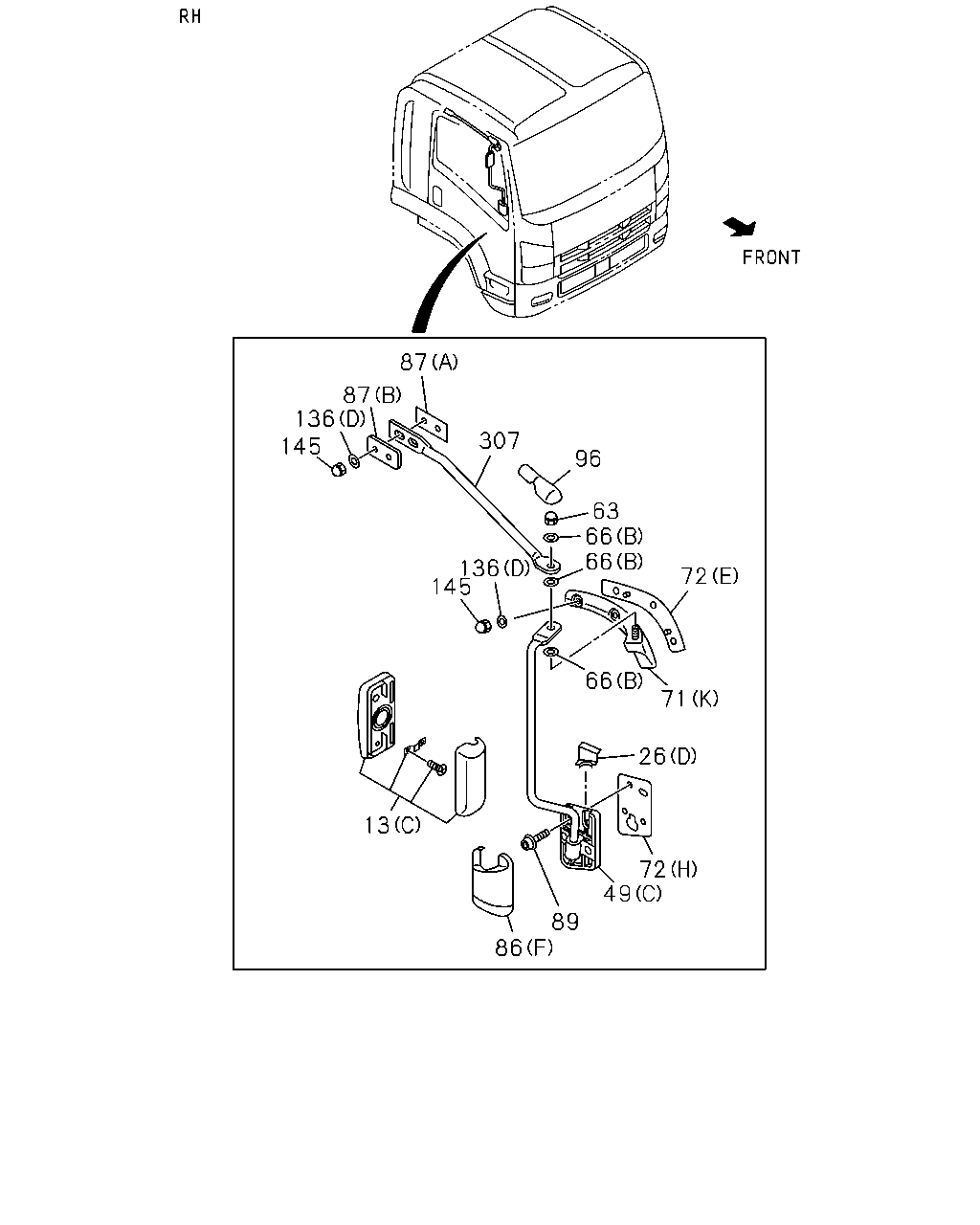

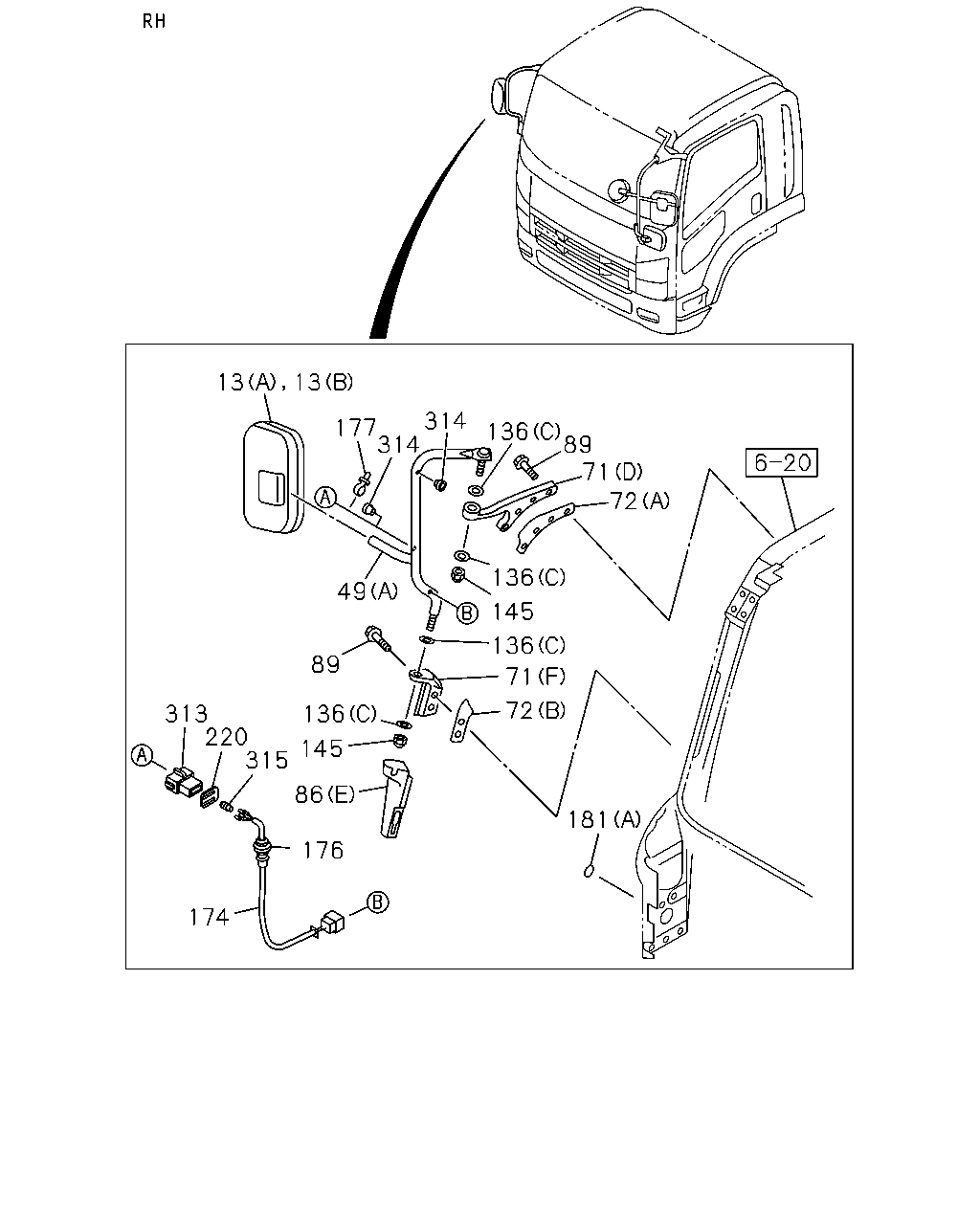

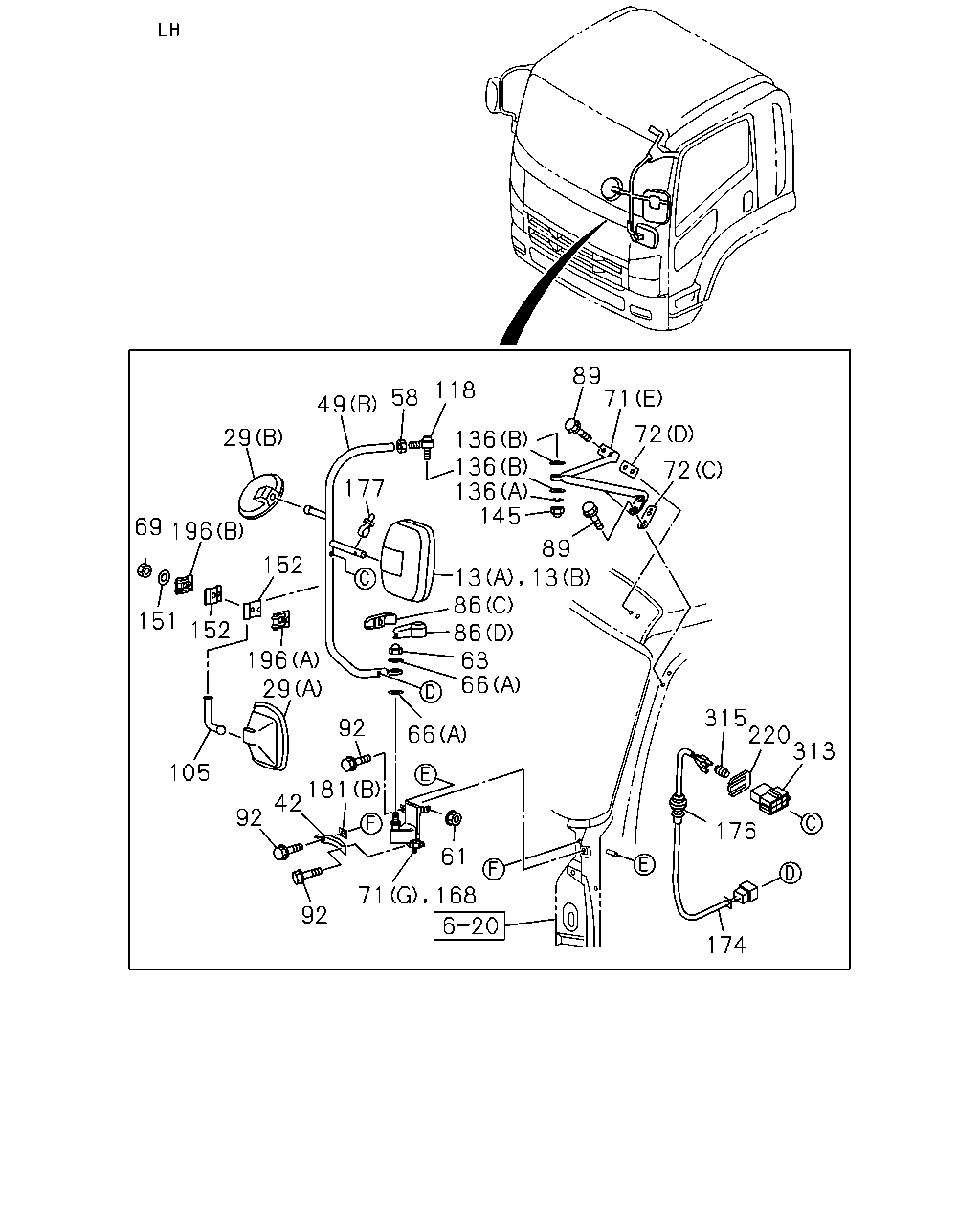

7-20 — MIRROR AND MIRROR STAY (#128857) — 478 parça

13 13 314 314 177 136 72 71 89 49 136 145 136 71 72 89 136 145 86 315 220 313 174 176 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-101-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-100-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-191-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-190-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-456-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98085-112-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-542-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1310-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98047-368-2	01	1	1310-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98047-367-0	01	1	1310-1402
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98258-260-0	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	1310-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	1310-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> L=140	5-09707-031-1	02	1	1310-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	1310-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1310-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	1310-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	1310-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	1310-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	1310-
314	BUFFER; STOPPER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94314-317-0	01	1	1310-
314	BUFFER; STOPPER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94314-317-0	02	1	1310-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	1310-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	1310-

13 53 14 71 53 26 25 13 204 133 206 205 26 23 23 71 25 71 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-101-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-100-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
14	MIRROR ASM; OUTSIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98045-690-0	01	1	1310-1510
14	MIRROR ASM; OUTSIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98324-761-0	01	1	1511-
14	MIRROR ASM; OUTSIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-511-0	01	1	1310-1510
14	MIRROR ASM; OUTSIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98324-760-0	01	1	1511-
23	WASHER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-71797-883-0	04	1	1310-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M5X14	1-71797-881-0	08	1	1310-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) M6X10	1-71797-882-0	08	1	1310-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) M6X40	1-71707-223-0	04	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-879-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-880-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1310-
53	PIVOT; SIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ID=22.2	1-71736-489-2	04	1	1310-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-71797-953-0	01	1	1310-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-71797-952-1	01	1	1310-
204	MOTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-71707-144-0	02	1	1310-
205	CONNECTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-71797-955-0	02	1	1310-
206	SCREW; MOTOR,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98134-316-0	04	1	1310-

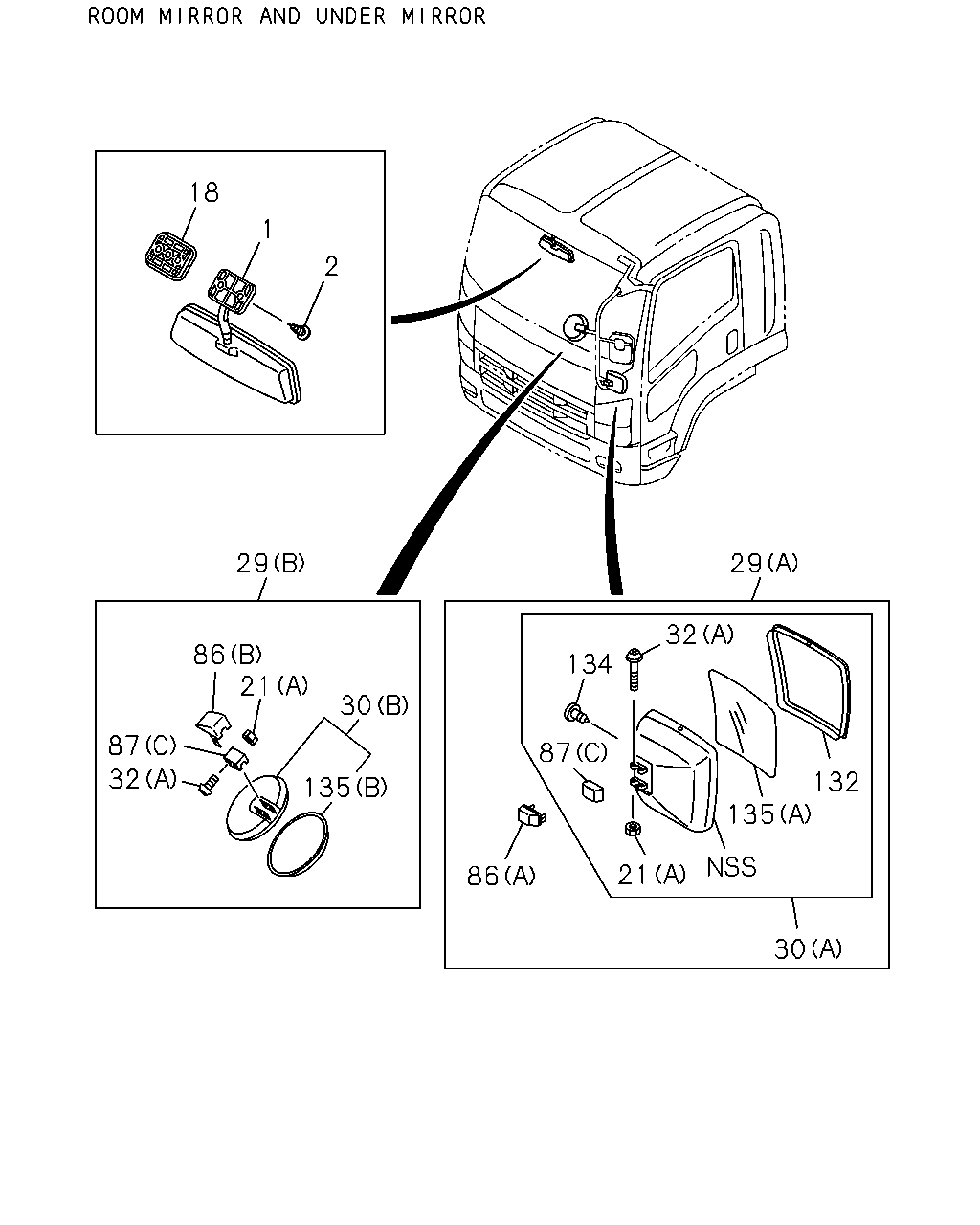

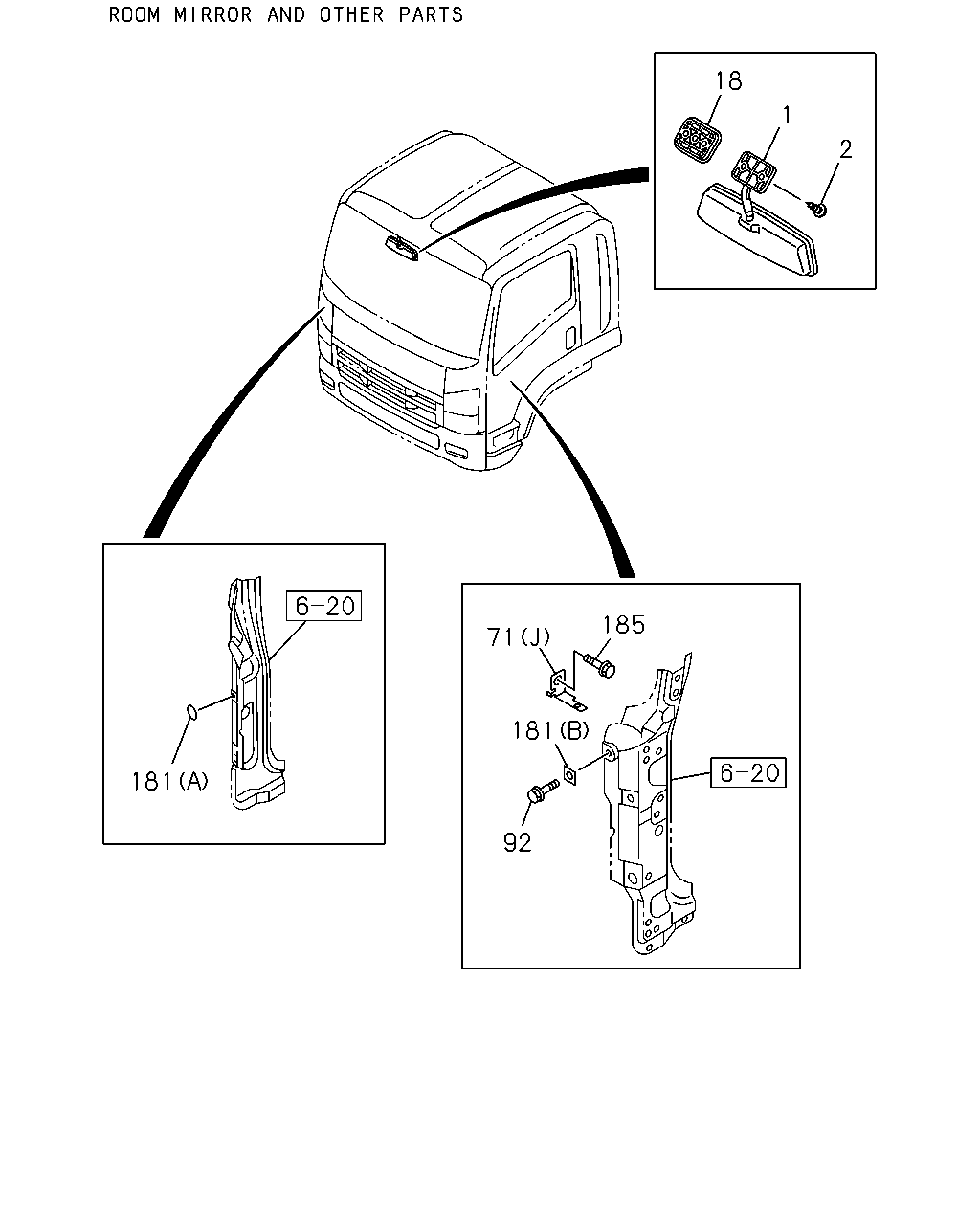

18 2 1 29 29 32 134 87 21 86 135 30 132 135 30 21 86 87 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1310-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1310-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1310-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1310-
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	1310-
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	1310-
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1310-
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	1310-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1310-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1310-
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	1310-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1310-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1310-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-542-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1310-
132	RING; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71737-935-0	01	1	1310-
134	CLIP; MIRROR LENS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	1310-
135	LENS; MIRROR,SIDE UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1310-
135	LENS; MIRROR,SIDE UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	1310-

13 71 32 72 68 21 72 32 22 21 68 68 71 86 89 49 72 26 71 72 66 66 63 96 307 87 136 87 136 145 30 66 53 53 145 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-101-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-100-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1310-
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	1310-
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	1310-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-879-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-880-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1310-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1310-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1310-
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	1310-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1310-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1310-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-191-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-190-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-456-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98085-112-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
53	PIVOT; SIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ID=22.2	1-71736-489-2	04	1	1310-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	02	1	1310-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1310-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1310-
63	NUT; STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1310-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1310-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-542-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-
96	CAP; MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1310-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1310-
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1310-

87 87 136 145 307 96 63 66 66 72 66 71 26 72 49 89 86 13 145 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-101-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-100-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-879-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-880-0	02	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-222-0	01	1	1310-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-221-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-806-0	01	1	1310-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98031-805-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-191-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-190-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-456-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98085-112-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1310-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1310-
63	NUT; STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1310-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-542-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	1310-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	02	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-
96	CAP; MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1310-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1310-
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1310-

18 1 2 71 185 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1310-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1310-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
92	BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1310-
92	BOLT; STAY BRKT,MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1310-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1310-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	0-28050-816-0	02	1	1310-

29 196 69 151 152 152 196 29 105 92 42 181 92 92 71 168 61 66 66 63 86 86 13 145 136 49 58 118 136 13 89 72 71 72 315 220 313 176 174 177 89 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-101-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71707-100-2	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-992-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-991-1	01	1	1310-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98028-332-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98104-068-0	01	1	1310-1510
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98324-749-0	01	1	1511-
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1310-
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	1310-
42	ATTACHMENT; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-191-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-635-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-190-0	01	1	1310-1310
49	STAY; MIRROR SIDE SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98238-634-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1310-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-456-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1310-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98091-477-0	01	1	1310-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98085-112-1	01	1	1310-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	8-98257-748-0	01	1	1403-
58	NUT; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M12	8-98061-883-0	01	1	1310-
58	NUT; MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF> M12	8-98061-883-0	01	1	1310-
61	NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE	0-91180-108-0	01	1	1310-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1310-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> M14 CAP NUT	8-98041-311-1	01	1	1310-
63	NUT; STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (A) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1310-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A) ID=14.5 OD=30	9-09851-946-0	02	1	1310-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1310-
69	NUT; CAP O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-71797-877-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	1-71797-878-0	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98039-277-2	02	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> MIRROR O/S RR VIEW<D37> (G)	8-98201-957-0	01	1	1310-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	1-71707-224-0	04	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-794-2	01	1	1310-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (K)	8-98031-793-2	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-1310
72	SHEET SINGAPORE EQUIPMENT(2G0) MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1310-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-542-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (E)	8-98040-541-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1310-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-
92	BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1310-
92	BOLT; STAY BRKT,MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1310-
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98041-571-2	01	1	1310-1402
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98257-761-0	01	1	1403-
118	JOINT ASM; BALL O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71798-356-2	01	1	1310-
118	JOINT ASM; BALL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71798-356-2	01	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1310-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-
151	WASHER; PL,MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> ID=10.5 T=2.0	1-09985-183-0	01	1	1310-
152	SHEET; MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71798-445-1	02	1	1310-
168	POWER UNIT; MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-97612-287-2	01	1	1310-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98047-368-2	01	1	1310-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98047-367-0	01	1	1310-1402
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-98258-260-0	01	1	1403-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	1310-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	1310-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> L=140	5-09707-031-1	02	1	1310-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	1310-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1310-
181	SEAL; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
181	SEAL; BRKT EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) OD=25 BLACK	1-76798-019-0	01	1	1310-
196	HOLDER; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-442-2	01	1	1310-
196	HOLDER; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-444-2	01	1	1310-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	1310-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	1310-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	1310-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	1310-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	1310-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
