◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#128848) — 19 parça

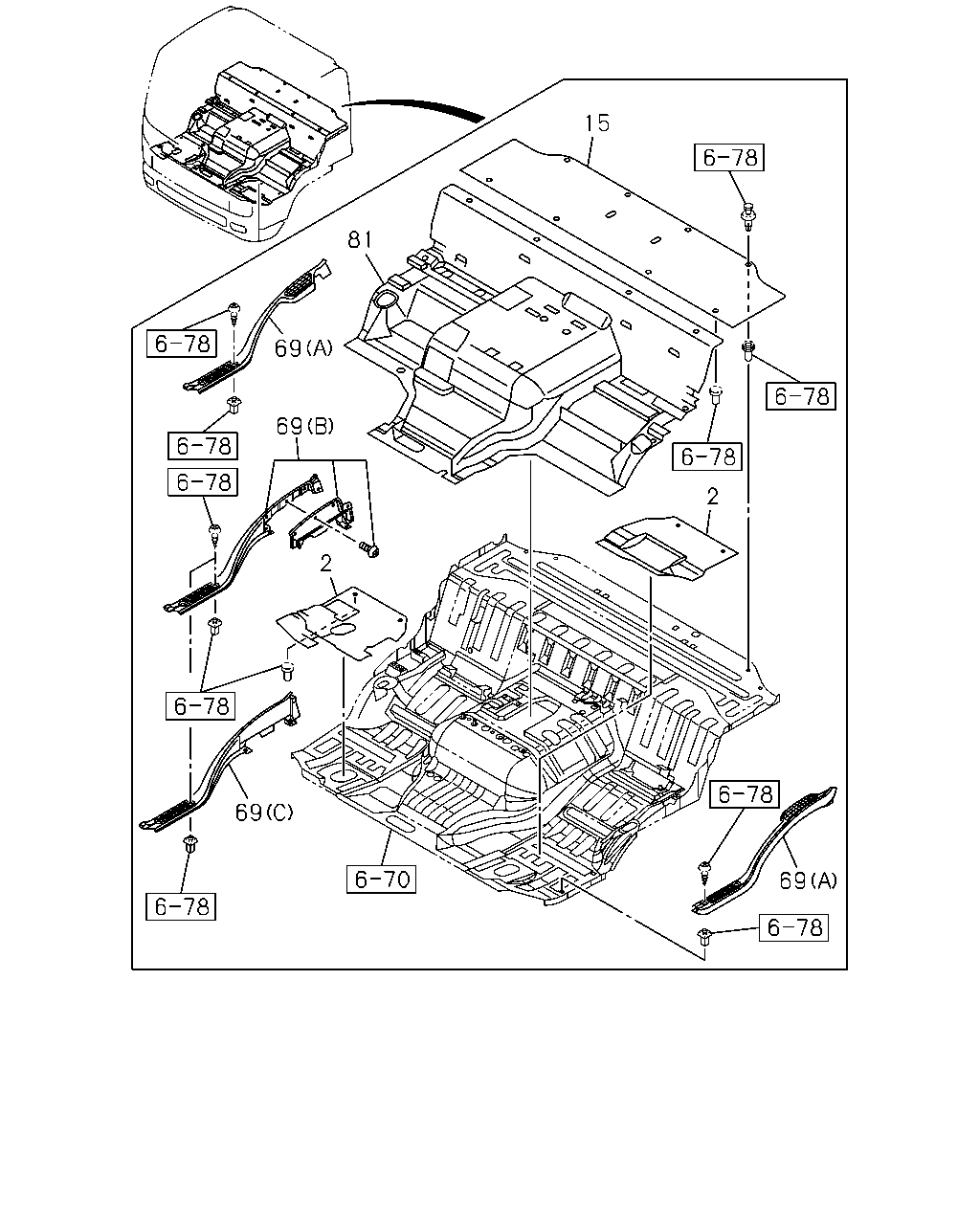

çizim 381747
81 69 69 15 2 69 2 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1310-
2 MAT; FLOOR
HONG KONG EQUIPMENT(B14) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97412-936-2 01 1 1310-
2 MAT; FLOOR
HONG KONG EQUIPMENT(B14) VINYL CARPET<B30> 		8-97421-857-0 01 1 1310-
2 MAT; FLOOR
SINGAPORE EQUIPMENT(2G0) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1310-
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-948-0 01 1 1310-
2 MAT; FLOOR
VINYL CARPET<B30> SINGAPORE EQUIPMENT(2G0) DARK GRAY 		8-97418-946-0 01 1 1310-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-403-1 01 1 1310-
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-950-0 01 1 1310-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(B14) (A) GRAY 		8-97412-927-0 01 1 1310-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(B14) DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97412-928-1 01 1 1310-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(B14) EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97412-926-0 01 1 1310-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(2G0) (A) GRAY 		8-97407-413-1 01 1 1310-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(2G0) DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1310-1503
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(2G0) DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(2G0) EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 1310-
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-405-3 01 1 1310-
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-407-3 01 1 1310-
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> DARK GRAY 		8-97418-937-0 01 1 1310-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DARK GRAY 		8-97418-936-0 01 1 1310-
