Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#12883) — 193 parça

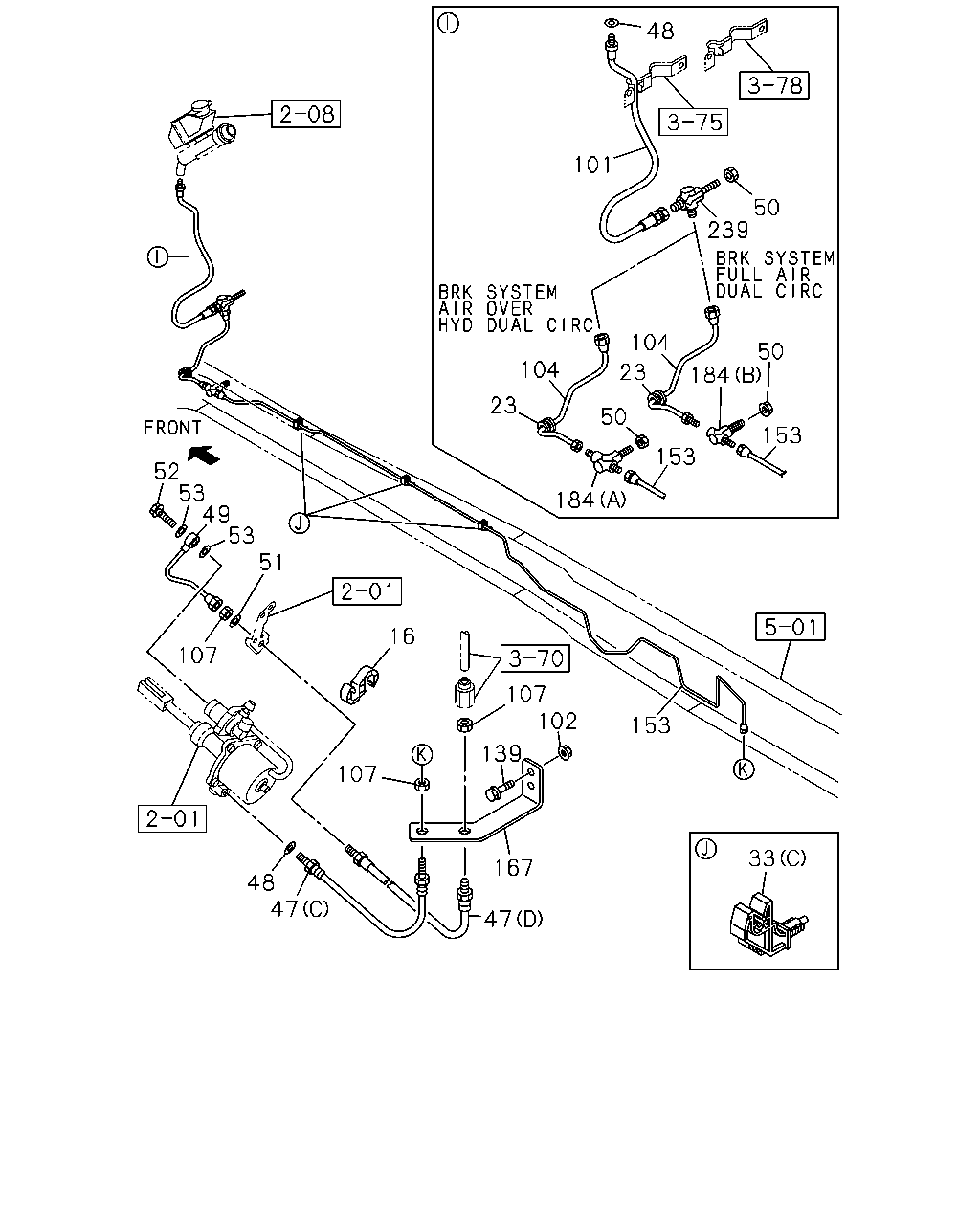

48 101 50 239 104 50 184 104 23 23 50 153 153 52 53 49 53 51 184 16 107 107 102 153 139 107 33 167 48 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0807-
23	GROMMET; CLU PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1108-
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-1107
23	GROMMET; CLU PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=6.35	1-09701-247-1	04	1	1108-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> (C) ID=6.35	1-09701-247-1	05	1	1103-1107
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=6.35	1-09701-247-1	05	1	1108-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	0807-1102
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1103-
33	CLIP; OIL PIPE (A) ID=8.3 & 10	8-94176-792-0	01	1	0807-1102
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (A) ID=8.3 & 10	8-94176-792-0	01	1	1103-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1108-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (B) L=300	1-09363-608-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (D) L=470	1-09363-716-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (A) L=370	8-98072-331-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (C) L=375	1-09364-407-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	0807-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	0807-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0807-1004
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1005-1102
48	GASKET; FLEX HOSE,CLU CONT ZF9S1110 M/T<Y5E> ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1005-1102
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1103-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG<82L> L=239	1-49117-401-0	01	1	1103-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T<Y5E> L=232	1-49124-795-0	01	1	0807-
50	NUT; UNION M12	0-91111-512-0	01	1	0807-
50	NUT; UNION M12	0-91111-512-0	01	1	0807-
51	WASHER; LK ZF9S1110 M/T<Y5E> ID=12.2	0-91510-512-0	01	1	1012-1102
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1103-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T<Y5E> M14X27 FLANGE THA	1-09675-086-0	01	1	0807-1102
52	BOLT; EYE,AIR PIPE M14X27 FLANGE THA	1-09675-086-0	01	1	1103-
53	GASKET; JOINT BOLT ZF9S1110 M/T<Y5E> ID=14.2 OD=19.2	1-09630-085-0	02	1	0807-1102
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1103-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	0807-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	0807-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=585 SERVICED BY L=600 THA	1-47428-725-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> L=554	8-98114-452-0	01	1	1103-1107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=554	8-98114-452-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	0807-1102
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1103-1107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1108-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M12	9-09840-280-0	02	1	1005-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0807-1102
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M14	0-91111-514-0	01	1	1103-
107	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	0807-1004
107	NUT; UNION,OIL PIPE ZF6S1000 M/T<Y5D> M12	9-09840-280-0	01	1	1005-1102
107	NUT; UNION,OIL PIPE MZW6P M/T<RSZ> M12	9-09840-280-0	03	1	1103-
139	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0807-1001
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1002-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2905 SERVICED BY L=3200 THA	1-47428-745-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX ANTI LOCK BRAKE<JE5> L=2221 THA	8-98133-461-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> L=2738 THA	8-98152-246-0	01	1	1103-1107
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX L=2284 SERVICED BY L=2400	1-47428-771-0	01	1	0807-0807
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	0808-0808
153	PIPE ASM; CLU,UNION TO FLEX EXC. ANTI LOCK BRAKE<JE5> L=2227 THA	8-98130-573-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1103-
167	BRACKET; UNION ZF6S1000 M/T<Y5D>	8-98185-051-0	01	1	1012-1102
167	BRACKET; UNION MZW6P M/T<RSZ>	8-98105-654-0	01	1	1103-1107
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98105-654-0	01	1	1108-
167	BRACKET; UNION	8-98077-571-0	01	1	0807-1011
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1012-1107
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98077-571-0	01	1	1108-
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1108-
184	UNION; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 3WAY	1-09654-137-2	01	1	1108-
184	UNION; FLEX HOSE MZW6P M/T<RSZ> (B)	8-98150-865-0	01	1	1103-1107
184	UNION; FLEX HOSE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98150-865-0	01	1	1108-
184	UNION; FLEX HOSE (A) M14 2WAY	1-09654-176-2	01	1	0807-1102
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> (A) M14 2WAY	1-09654-176-2	01	1	1103-1107
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M14 2WAY	1-09654-176-2	01	1	1108-
239	UNION; CLU HOSE MZW6P M/T<RSZ> M12 2WAY	1-09654-059-2	01	1	1103-
239	UNION; CLU HOSE	8-98107-850-0	01	1	0807-1102
239	UNION; CLU HOSE ZF9S1110 M/T<Y5E>	8-98107-850-0	01	1	1103-

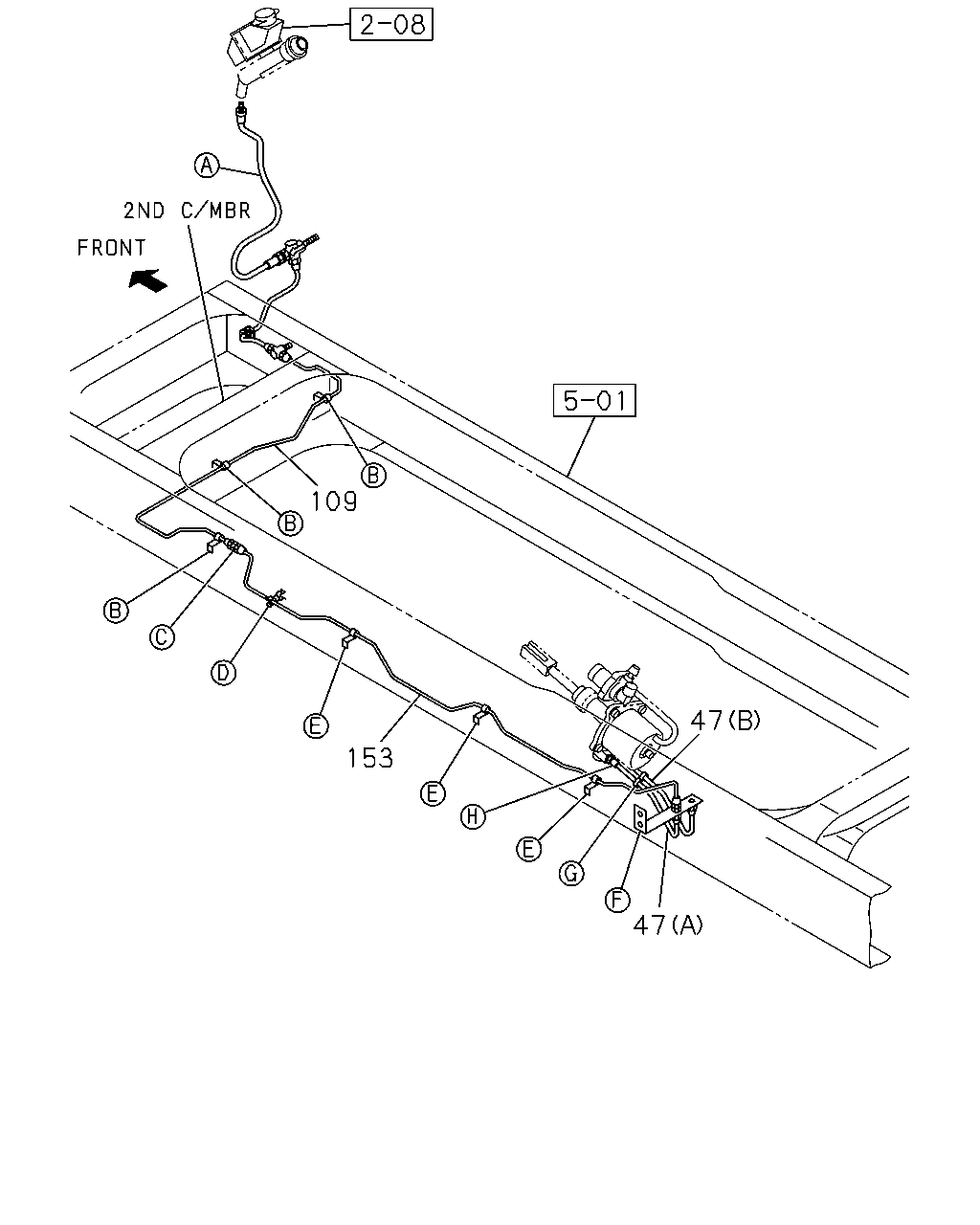

109 47 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1108-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (B) L=300	1-09363-608-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (D) L=470	1-09363-716-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (A) L=370	8-98072-331-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (C) L=375	1-09364-407-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	0807-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	0807-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	0807-1102
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T<Y5E> L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	1103-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2905 SERVICED BY L=3200 THA	1-47428-745-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX ANTI LOCK BRAKE<JE5> L=2221 THA	8-98133-461-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> L=2738 THA	8-98152-246-0	01	1	1103-1107
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX L=2284 SERVICED BY L=2400	1-47428-771-0	01	1	0807-0807
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	0808-0808
153	PIPE ASM; CLU,UNION TO FLEX EXC. ANTI LOCK BRAKE<JE5> L=2227 THA	8-98130-573-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1103-

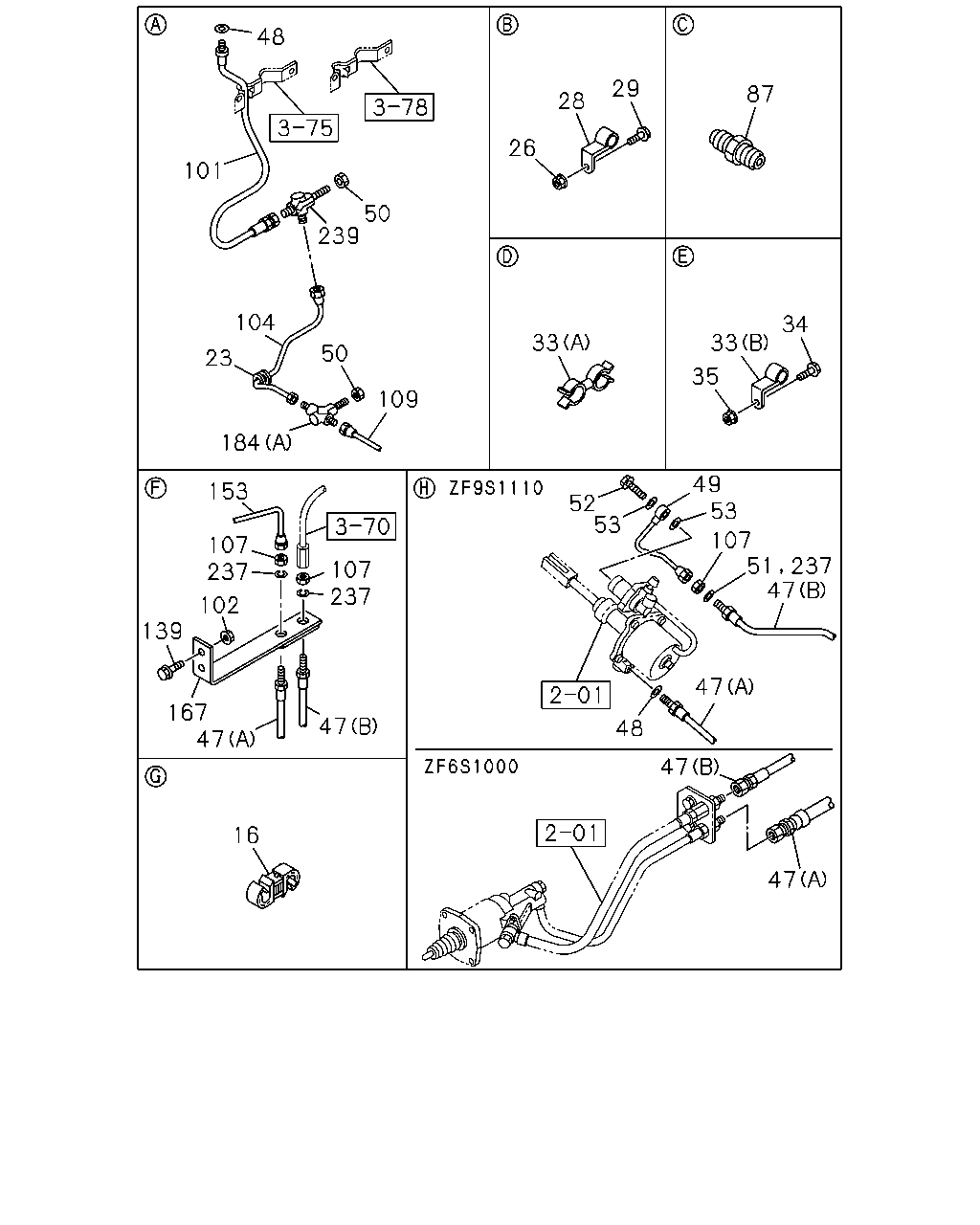

48 29 87 28 26 101 50 239 104 34 33 33 50 23 35 109 184 49 53 153 52 53 107 47 107 237 107 237 102 139 47 167 47 47 48 47 16 47 51 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0807-
23	GROMMET; CLU PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1108-
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-1107
23	GROMMET; CLU PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0807-1102
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	03	1	1103-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0807-1102
28	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> ID=8 H=20 L=20	1-09700-604-0	03	1	1103-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0901-1102
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X25 FLANGE THA	0-28650-825-0	02	1	1103-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	03	1	0807-0812
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	0901-1102
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	01	1	1103-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=6.35	1-09701-247-1	04	1	1108-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> (C) ID=6.35	1-09701-247-1	05	1	1103-1107
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=6.35	1-09701-247-1	05	1	1108-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	0807-1102
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1103-
33	CLIP; OIL PIPE (A) ID=8.3 & 10	8-94176-792-0	01	1	0807-1102
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (A) ID=8.3 & 10	8-94176-792-0	01	1	1103-
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	04	1	0807-1102
34	BOLT; PIPE CLIP ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	04	1	1103-
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	0807-1102
35	NUT; PIPE CLIP ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	04	1	1103-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1108-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (B) L=300	1-09363-608-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (D) L=470	1-09363-716-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T<Y5D> (A) L=370	8-98072-331-0	01	1	0807-1102
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> (C) L=375	1-09364-407-0	01	1	1103-1107
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1108-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	0807-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	0807-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0807-1004
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1005-1102
48	GASKET; FLEX HOSE,CLU CONT ZF9S1110 M/T<Y5E> ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1005-1102
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1103-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG<82L> L=239	1-49117-401-0	01	1	1103-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T<Y5E> L=232	1-49124-795-0	01	1	0807-
50	NUT; UNION M12	0-91111-512-0	01	1	0807-
50	NUT; UNION M12	0-91111-512-0	01	1	0807-
51	WASHER; LK ZF9S1110 M/T<Y5E> ID=12.2	0-91510-512-0	01	1	1012-1102
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1103-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T<Y5E> M14X27 FLANGE THA	1-09675-086-0	01	1	0807-1102
52	BOLT; EYE,AIR PIPE M14X27 FLANGE THA	1-09675-086-0	01	1	1103-
53	GASKET; JOINT BOLT ZF9S1110 M/T<Y5E> ID=14.2 OD=19.2	1-09630-085-0	02	1	0807-1102
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1103-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0807-1102
87	UNION; OIL PIPE ZF9S1110 M/T<Y5E> M14 STRAIGHT	0-92113-008-0	01	1	1103-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	0807-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	0807-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=585 SERVICED BY L=600 THA	1-47428-725-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> L=554	8-98114-452-0	01	1	1103-1107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=554	8-98114-452-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	0807-1102
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1103-1107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1108-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M12	9-09840-280-0	02	1	1005-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0807-1102
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M14	0-91111-514-0	01	1	1103-
107	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	0807-1004
107	NUT; UNION,OIL PIPE ZF6S1000 M/T<Y5D> M12	9-09840-280-0	01	1	1005-1102
107	NUT; UNION,OIL PIPE MZW6P M/T<RSZ> M12	9-09840-280-0	03	1	1103-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	0807-1102
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T<Y5E> L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	1103-
139	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0807-1001
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1002-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2905 SERVICED BY L=3200 THA	1-47428-745-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX ANTI LOCK BRAKE<JE5> L=2221 THA	8-98133-461-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> L=2738 THA	8-98152-246-0	01	1	1103-1107
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX L=2284 SERVICED BY L=2400	1-47428-771-0	01	1	0807-0807
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	0808-0808
153	PIPE ASM; CLU,UNION TO FLEX EXC. ANTI LOCK BRAKE<JE5> L=2227 THA	8-98130-573-0	01	1	0809-1102
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1103-
167	BRACKET; UNION ZF6S1000 M/T<Y5D>	8-98185-051-0	01	1	1012-1102
167	BRACKET; UNION MZW6P M/T<RSZ>	8-98105-654-0	01	1	1103-1107
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98105-654-0	01	1	1108-
167	BRACKET; UNION	8-98077-571-0	01	1	0807-1011
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1012-1107
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98077-571-0	01	1	1108-
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1108-
184	UNION; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 3WAY	1-09654-137-2	01	1	1108-
184	UNION; FLEX HOSE MZW6P M/T<RSZ> (B)	8-98150-865-0	01	1	1103-1107
184	UNION; FLEX HOSE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98150-865-0	01	1	1108-
184	UNION; FLEX HOSE (A) M14 2WAY	1-09654-176-2	01	1	0807-1102
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> (A) M14 2WAY	1-09654-176-2	01	1	1103-1107
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M14 2WAY	1-09654-176-2	01	1	1108-
237	WASHER; BRKT ZF9S1110 M/T<Y5E> ID=12.2	0-91510-512-0	02	1	1005-1011
237	WASHER; BRKT ID=12.2	0-91510-512-0	02	1	0807-1004
237	WASHER; BRKT ZF6S1000 M/T<Y5D> ID=12.2	0-91510-512-0	01	1	1005-1011
237	WASHER; BRKT ID=14.2	0-91510-514-0	01	1	0807-1011
239	UNION; CLU HOSE MZW6P M/T<RSZ> M12 2WAY	1-09654-059-2	01	1	1103-
239	UNION; CLU HOSE	8-98107-850-0	01	1	0807-1102
239	UNION; CLU HOSE ZF9S1110 M/T<Y5E>	8-98107-850-0	01	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
