5-01 — FRAME AND OTHER PARTS (#128828) — 43 parça

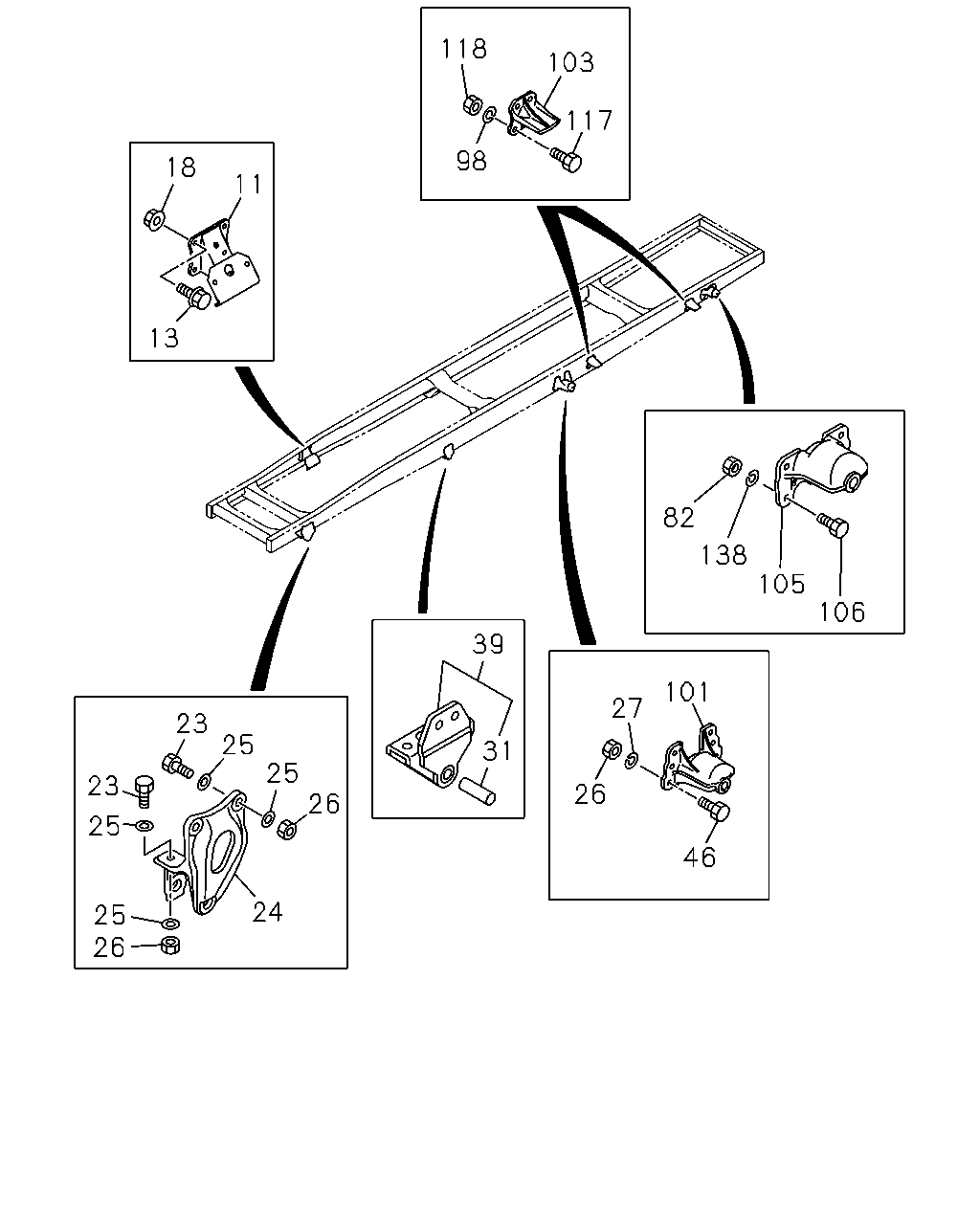

çizim 379851
105 106 138 82 39 31 27 26 46 101 26 25 25 23 23 25 25 26 24 11 13 18 118 117 103 98
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1310- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1310- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1310- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1310- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1310- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1310- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1310- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1310- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1310- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1310- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1310- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1310- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1310- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1310- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1310- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1310- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1310- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1310- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1310- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1310- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1310- ● ● ●

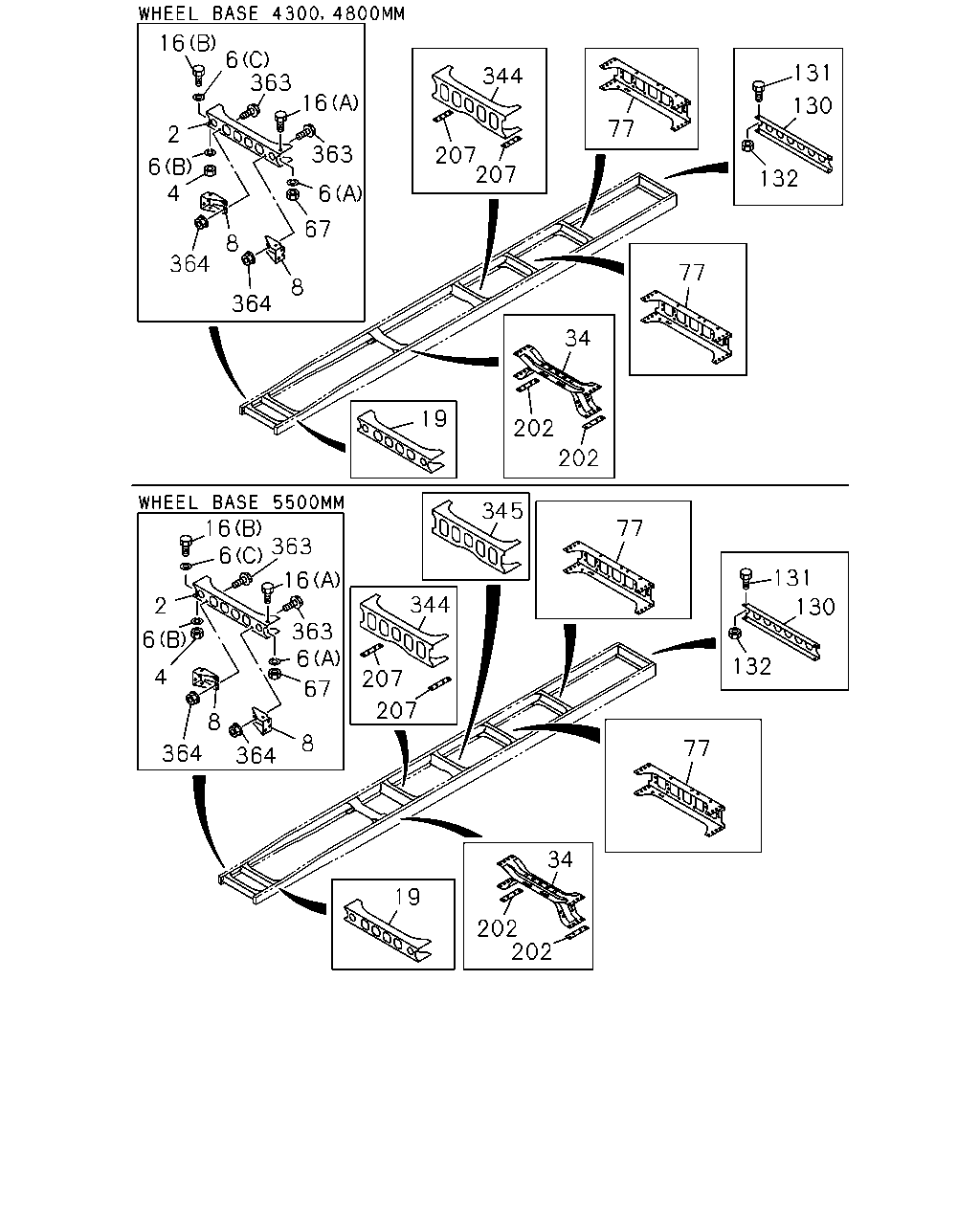

çizim 380234
16 6 363 363 16 6 67 8 364 364 8 4 6 2 19 202 202 34 77 77 207 207 344 131 132 130 131 130 132 77 34 202 202 19 207 207 344 345 77 16 6 363 363 6 67 8 364 364 4 8 6 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1310- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. AUXILIARY STEPS<E29> M14 		0-91110-514-0 02 1 1310- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1310- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. AUXILIARY STEPS<E29> (B) ID=14.2 		0-91510-814-0 02 1 1310- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. AUXILIARY STEPS<E29> (C) ID=15 		8-98010-627-1 02 1 1310- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1310- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1310- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1310- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. AUXILIARY STEPS<E29> (B) M14X40 		0-20851-440-0 02 1 1310- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1310- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1310- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1310- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1310- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1310- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1310- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1310- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1310- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1310- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1310- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1310- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1310- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1310- ● ● ●
