Isuzu WW
▶
TRUCKS
▶
FSR
▶
11554 - FSR-R EU5 EXC.SPACE
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#128823) — 44 parça
◀

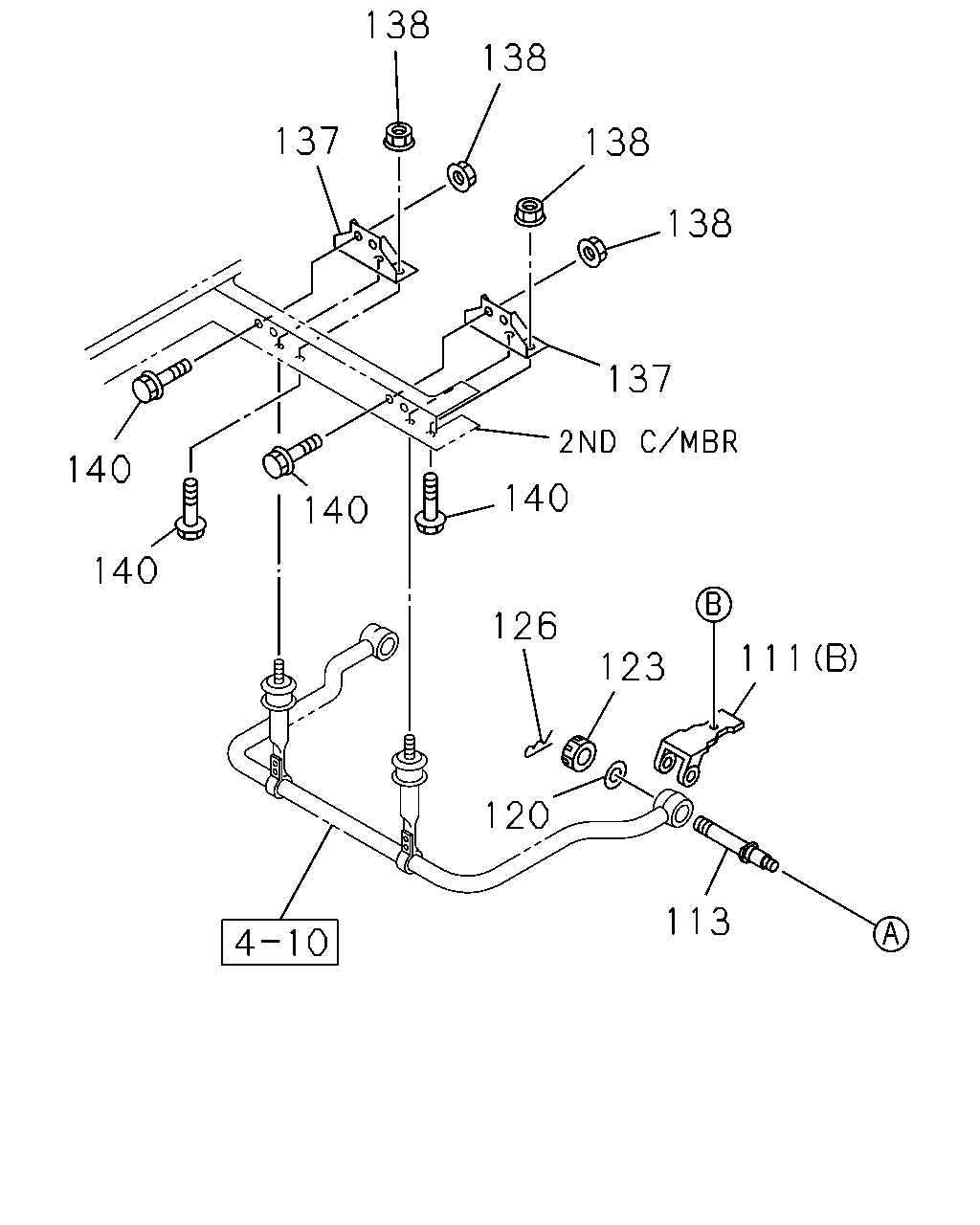

[450A] FRONT STABILIZER SHAFT (11 parça)

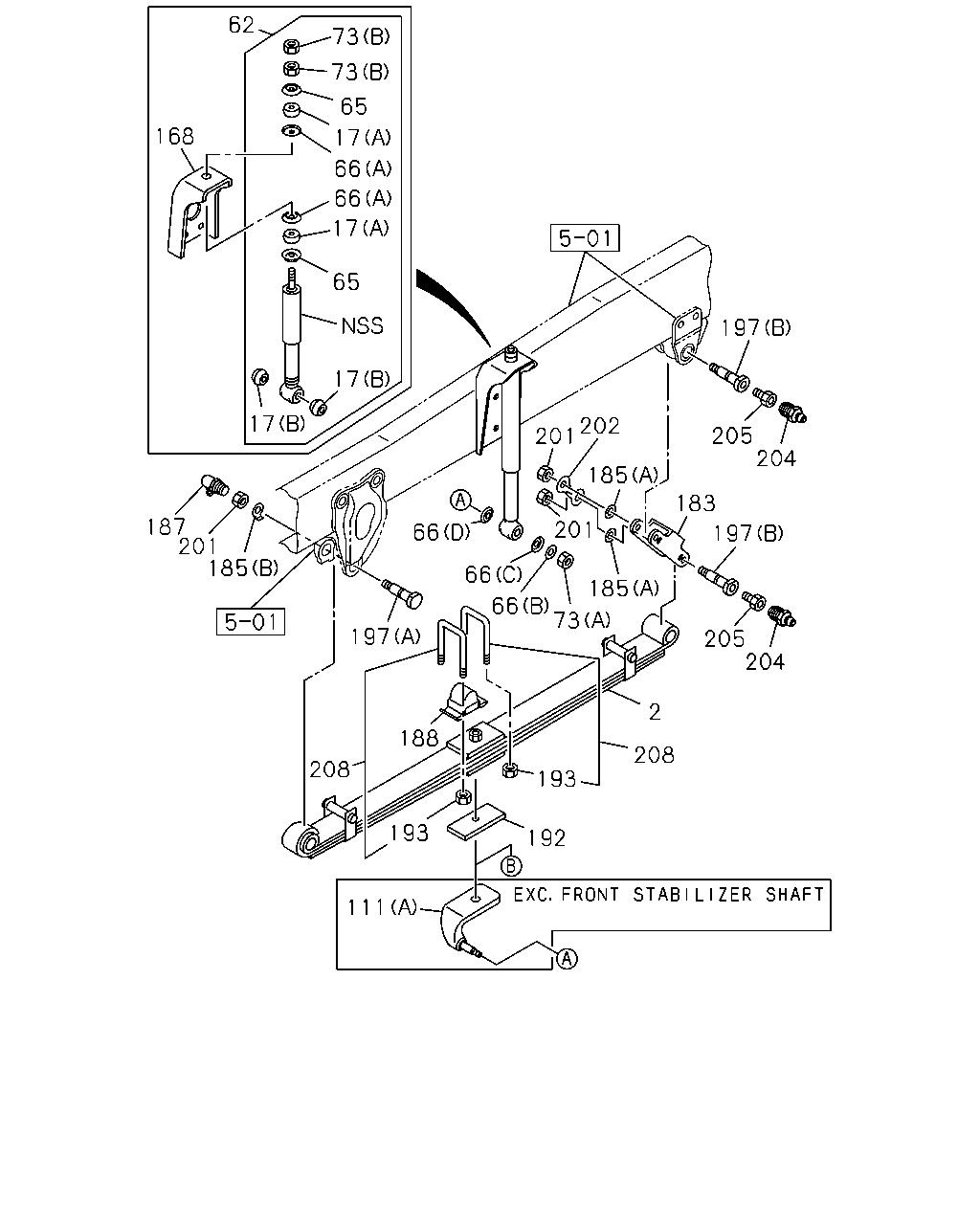

[450A] LEAF SPRING AND SHOCK ABSORBER (33 parça)
▶
113
120
111
123
126
140
140
140
140
137
138
138
138
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-655-1
01
1
1310-
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-654-1
01
1
1310-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-642-2
01
1
1310-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-641-2
01
1
1310-
113
PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59>
8-98019-317-0
02
1
1310-
120
WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> ID=23
0-91614-522-0
02
1
1310-
123
NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22
0-91116-522-0
02
1
1310-
126
PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45
0-81125-045-0
02
1
1310-
137
BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59>
1-51781-060-2
02
1
1310-
138
NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE
0-91180-210-0
08
1
1310-
140
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE
0-28651-025-0
08
1
1310-
62
168
73
65
73
17
66
65
66
17
17
187
201
185
66
197
66
66
185
73
201
202
197
205
183
185
204
197
205
204
2
208
193
192
193
208
11
188
201
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98063-483-0
01
1
1310-1407
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98229-528-0
01
1
1408-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98063-484-0
01
1
1310-1407
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98229-529-0
01
1
1408-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-556-0
01
1
1310-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-557-0
01
1
1310-
17
BUSHING; RUBBER,S/ABS
(B)
1-51631-009-1
04
1
1310-
17
BUSHING; RUBBER,S/ABS
(A)
9-51631-050-0
04
1
1310-
62
ABSORBER ASM; SHOCK,FRT
1-51630-302-1
02
1
1310-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1310-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1310-
66
WASHER; LK,S/ABS SETTING
(D) ID=23
1-51631-019-0
02
1
1310-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1310-
66
WASHER; LK,S/ABS SETTING
(A) ID=16.8
1-51631-022-0
04
1
1310-
73
NUT; BRKT,SHOCK
(A) M16
0-91110-516-0
02
1
1310-
73
NUT; BRKT,SHOCK
(B) M12
8-98010-412-0
04
1
1310-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1310-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1310-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1310-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1310-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1310-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1310-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-124-0
02
1
1310-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1310-
193
NUT; U BOLT
M18 FLANGE
1-09440-039-1
08
1
1310-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1310-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1310-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1310-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1310-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1310-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1310-
208
U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=165
1-87870-444-0
04
1
1310-
208
U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=180
1-87870-484-0
04
1
1310-
