◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#128817) — 24 parça

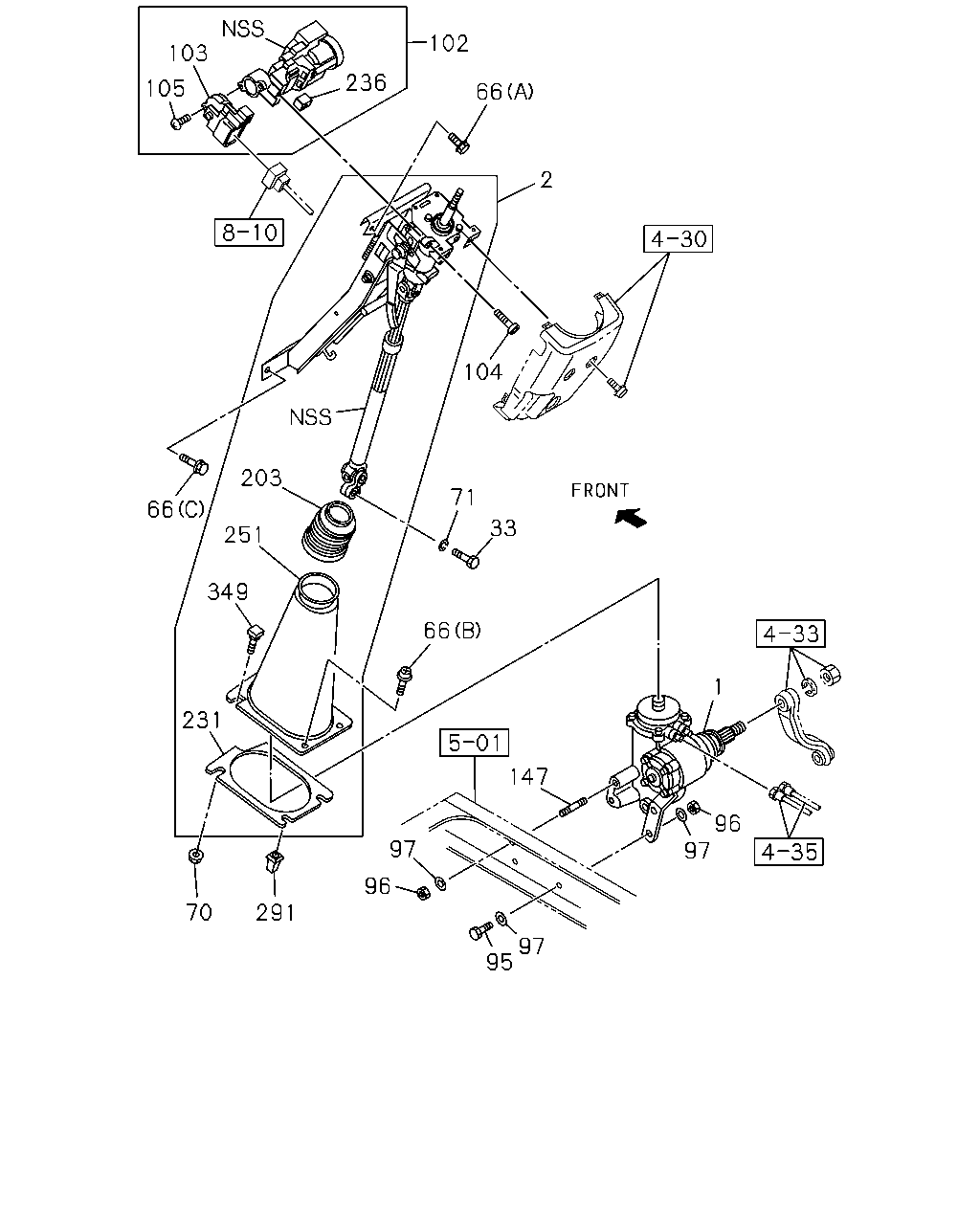

çizim 380240
103 105 236 102 66 2 104 71 33 66 291 70 231 349 251 66 203 97 96 95 97 147 97 96 1
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-952-2 01 1 1310-
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-620-2 01 1 1310-
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-618-2 01 1 1310-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 1310-
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1310-
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1310-
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1310-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1310-
95 BOLT; STRG UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50 		1-09000-787-1 04 1 1310-
96 NUT; STRG UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		1-09440-097-0 05 1 1310-
97 WASHER; PL,STRG UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 09 1 1310-
102 LOCK ASM; STRG
REMOTE CONT DOOR LOCK<6NF> 		8-97387-036-0 01 1 1310-
102 LOCK ASM; STRG
EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98006-150-0 01 1 1310-
103 SWITCH; IGNITION 8-98045-349-0 01 1 1310-
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1310-
105 SCREW; IGN SW 8-98045-346-0 02 1 1310-
147 STUD; STRG UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X37 L=66 		1-09300-125-0 01 1 1310-
203 BOOT; STRG COLUMN LWR
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98137-333-0 01 1 1310-
231 SEAL; RUBBER,STRG COLUMN
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98137-330-0 01 1 1310-
236 SWITCH; DOOR WARNING,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98045-350-0 01 1 1310-
251 COVER; LWR
CAB SUSPENSION SEMI FLOATING<SDK> BLACK 		8-97417-050-0 01 1 1310-
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1310-
349 BOLT; COVER
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98137-334-0 02 1 1310-
