◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#128815) — 81 parça

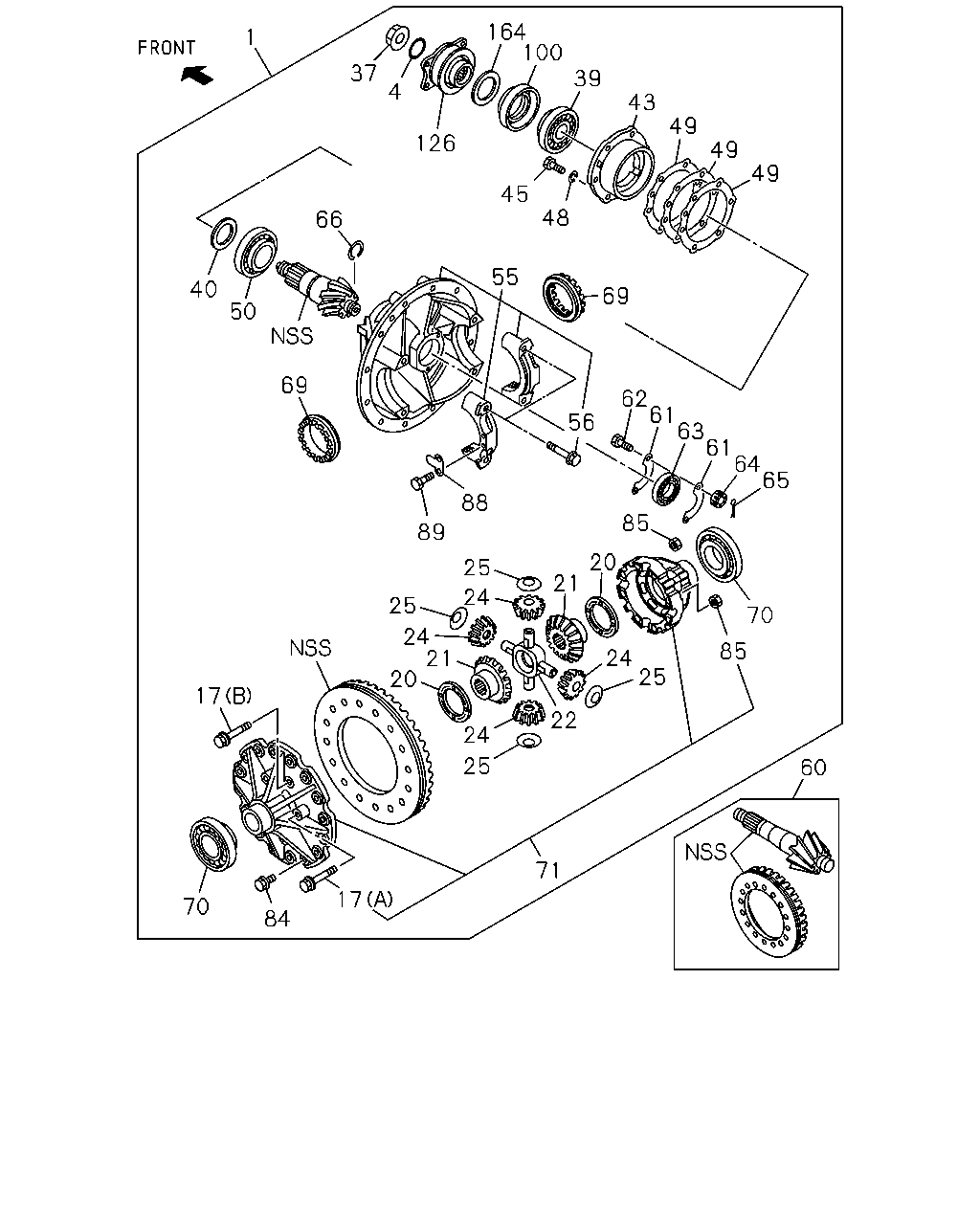

çizim 381283
60 71 17 84 70 17 20 25 24 21 21 20 70 85 25 24 22 25 24 24 25 89 88 56 62 61 64 63 61 69 55 66 1 40 69 50 85 65 126 45 43 49 49 49 39 100 164 4 37 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
39/7 		1-41003-255-0 01 1 1310- ●
1 DRIVE ASM; FINAL,RR
39/8 		1-41003-253-0 01 1 1310- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41003-343-0 01 1 1310- ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 1310- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 1310- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 1310- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 1310- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 1310- ● ● ●
22 SPIDER; DIFF PINION 1-41521-050-2 01 1 1310- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-049-0 04 1 1310- ● ● ●
25 WASHER; THRUST,PINION
ID=29 OD=60 		1-41562-119-0 04 1 1310- ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 1310- ● ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1310- ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 1310- ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 1310- ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 1310- ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 1310- ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 1310- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 1310- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 1310- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 1310- ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 1310- ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1310- ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1310- ● ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1310- ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 1310- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-391-2 01 1 1310- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 1310- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-729-0 01 1 1310- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1310- ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 1310- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 1310- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 1310- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1310- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1310- ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1310- ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1310-1505 ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1506- ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 1310-1505 ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 1506- ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 1310-1505 ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 1506- ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1310-1505 ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1506- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 1310-1505 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 1506- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1310-1505 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1506- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1310- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 1310- ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 1310- ● ● ●
88 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 1310- ● ● ●
89 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 1310- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1310- ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 1310- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-414-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 1310- ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 1310- ● ● ●
