Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#128811) — 191 parça

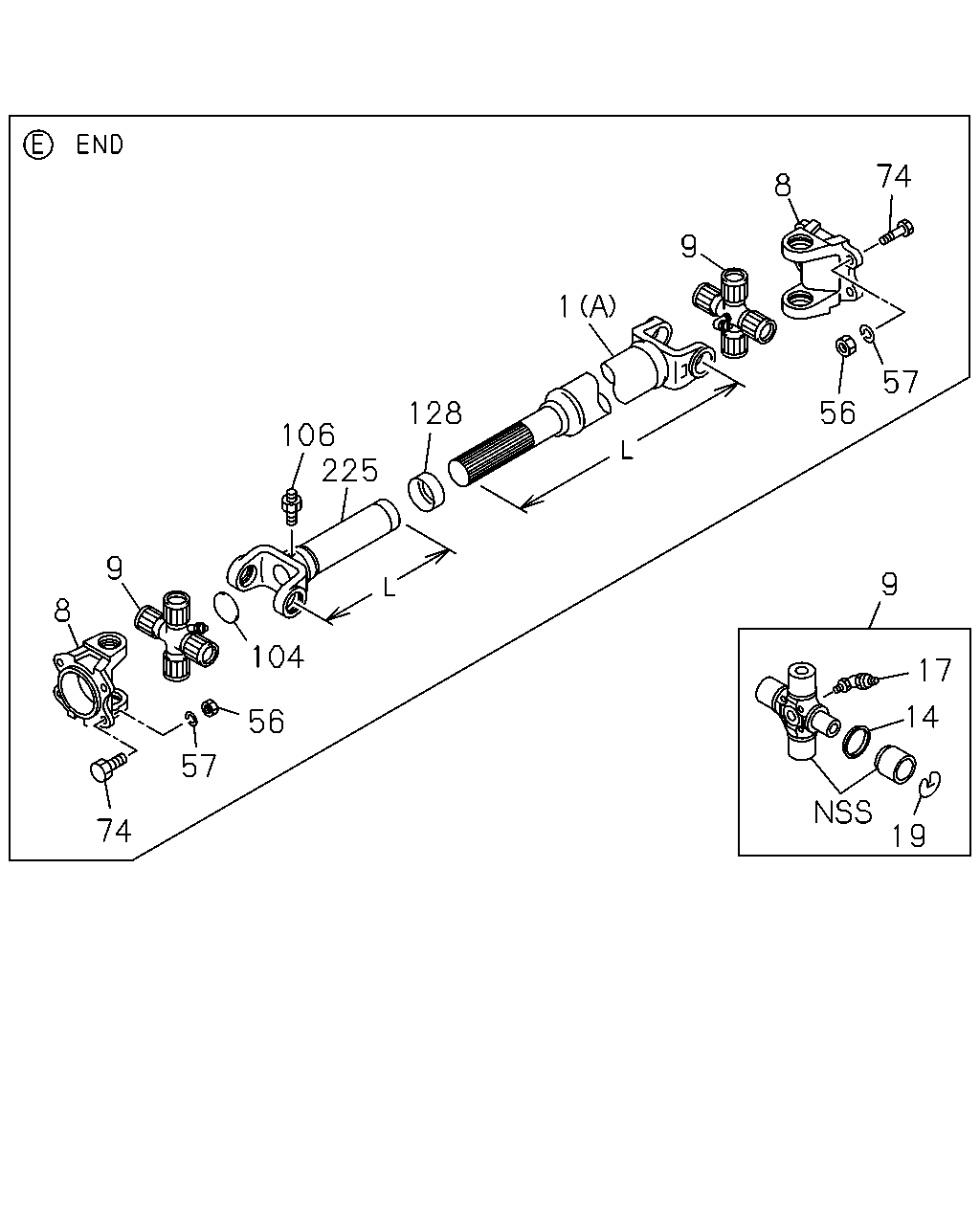

8 9 74 57 104 106 128 225 56 1 9 8 74 57 56 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=1116	8-98069-665-0	01	1	1310-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	1310-	●	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=749	8-98119-422-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98069-569-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98069-568-0	01	1	1310-	●	●
1	SHAFT; PROP (A) L=1381	8-98069-693-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1044	8-98113-450-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059	8-98069-580-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979	8-98069-571-0	01	1	1310-			●
1	SHAFT; PROP (C) L=974	8-98069-610-0	01	1	1310-		●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1310-		●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1310-	●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND,END	1-37211-056-3	03	1	1310-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1310-	●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1310-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1310-	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1310-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1310-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1310-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1310-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1310-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1310-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1310-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1310-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1310-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1310-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1310-	●	●	●

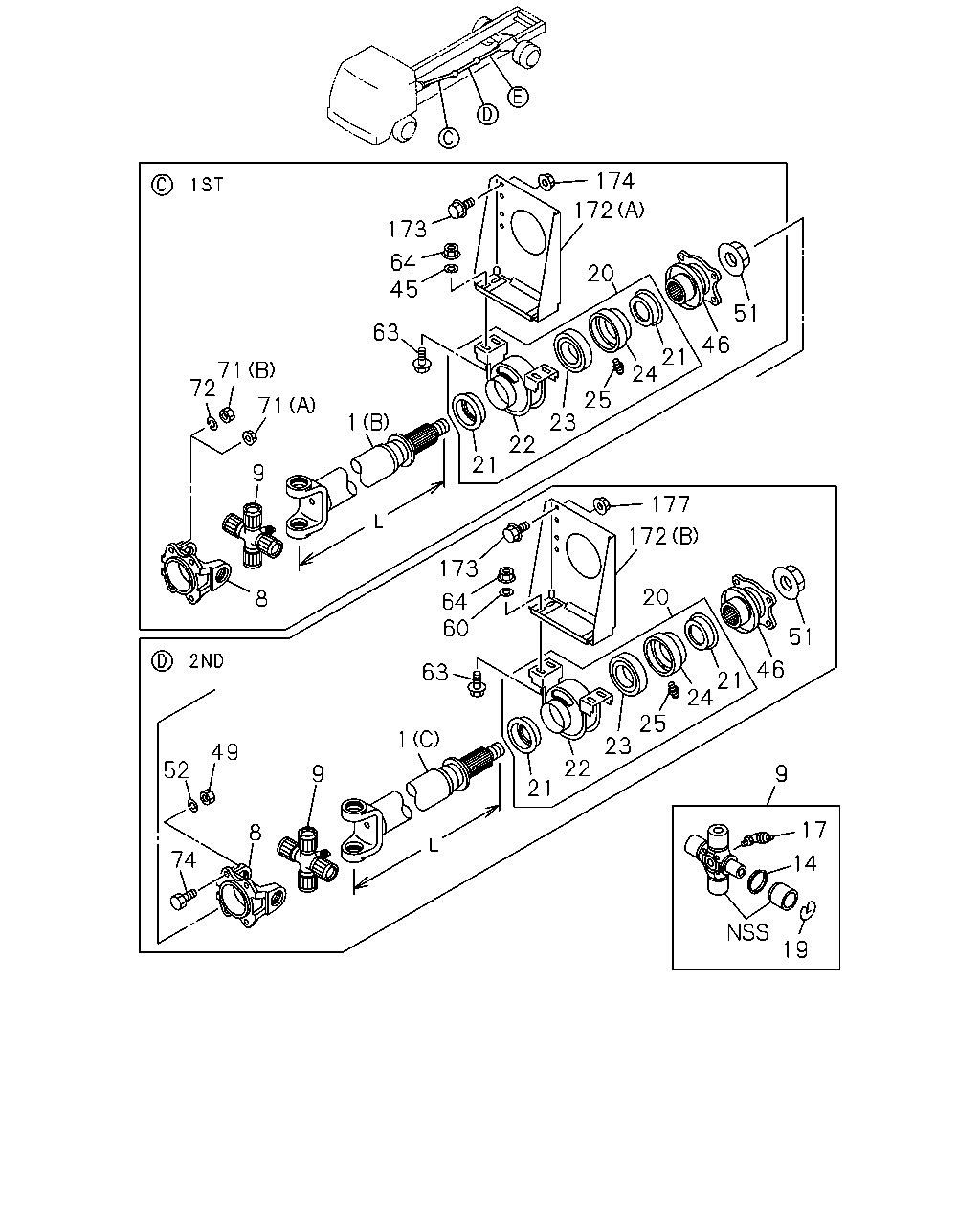

174 20 51 46 21 24 25 23 22 21 178 64 60 63 1 49 9 52 74 21 25 23 22 24 51 46 21 9 17 14 19 173 45 63 64 1 72 71 9 8 177 172 20 172 71 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=1116	8-98069-665-0	01	1	1310-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	1310-	●	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=749	8-98119-422-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98069-569-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98069-568-0	01	1	1310-	●	●
1	SHAFT; PROP (A) L=1381	8-98069-693-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1044	8-98113-450-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059	8-98069-580-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979	8-98069-571-0	01	1	1310-			●
1	SHAFT; PROP (C) L=974	8-98069-610-0	01	1	1310-		●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1310-		●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1310-	●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND,END	1-37211-056-3	03	1	1310-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1310-	●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1310-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1310-	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1310-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1310-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1310-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1310-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1310-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1310-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1310-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1310-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1310-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1310-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1310-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1310-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1310-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1310-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1310-		●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1310-	●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1310-	●	●	●
25	NIPPLE; GREASE,CENTER BRG 2ND	8-98020-889-0	01	1	1310-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1310-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1310-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1310-		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1310-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1310-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1310-		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1310-		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1310-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1310-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1310-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1310-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1310-		●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	1310-	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1310-	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1310-		●
172	BRACKET; CENTER BRG (A)	8-98044-077-0	01	1	1310-	●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1310-			●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1310-		●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	1310-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1310-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1310-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1310-	●	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1310-		●

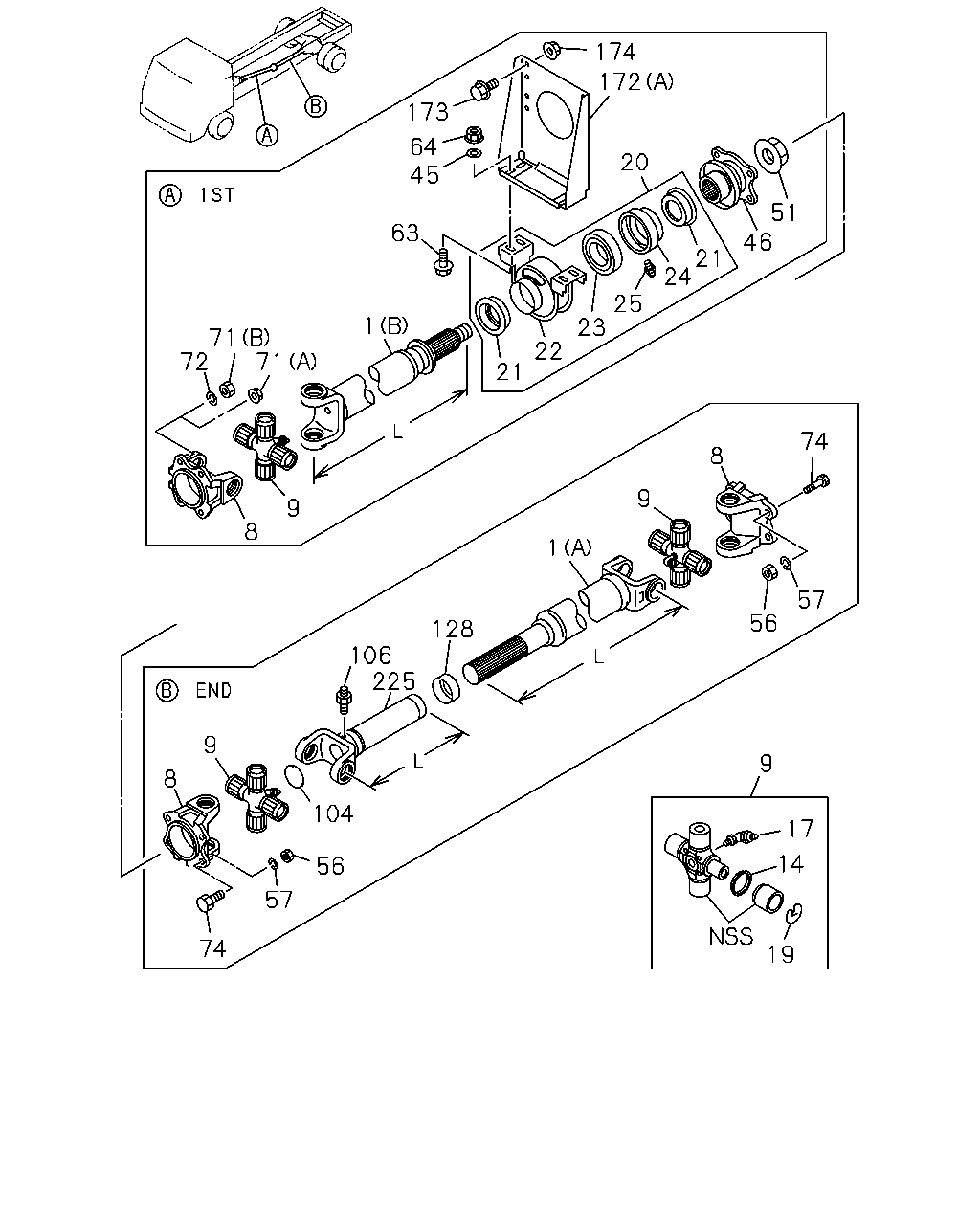

174 20 51 46 21 24 25 23 22 21 1 63 45 64 173 71 72 9 8 8 74 57 56 9 17 14 19 104 56 57 74 225 128 1 106 9 8 71 172 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=1116	8-98069-665-0	01	1	1310-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	1310-	●	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=749	8-98119-422-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98069-569-0	01	1	1310-	●	●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98069-568-0	01	1	1310-	●	●
1	SHAFT; PROP (A) L=1381	8-98069-693-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1044	8-98113-450-0	01	1	1310-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059	8-98069-580-0	01	1	1310-			●
1	SHAFT; PROP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979	8-98069-571-0	01	1	1310-			●
1	SHAFT; PROP (C) L=974	8-98069-610-0	01	1	1310-		●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1310-		●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1310-	●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1310-	●	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND,END	1-37211-056-3	03	1	1310-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1310-	●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-1	01	1	1310-	●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1310-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1310-	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1310-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1310-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1310-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1310-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1310-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1310-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1310-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1310-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1310-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1310-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1310-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1310-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1310-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1310-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1310-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1310-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1310-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1310-		●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1310-	●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1310-	●	●	●
25	NIPPLE; GREASE,CENTER BRG 2ND	8-98020-889-0	01	1	1310-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1310-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1310-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1310-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1310-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1310-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1310-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1310-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1310-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1310-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1310-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1310-		●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	1310-	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1310-	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1310-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1310-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1310-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1310-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1310-	●	●	●
172	BRACKET; CENTER BRG (A)	8-98044-077-0	01	1	1310-	●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1310-			●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1310-		●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	1310-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1310-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1310-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1310-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1310-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
