Sayfa 3-77 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶

3-77 — BRAKE PIPING; AIR,REAR (#128809) — 87 parça

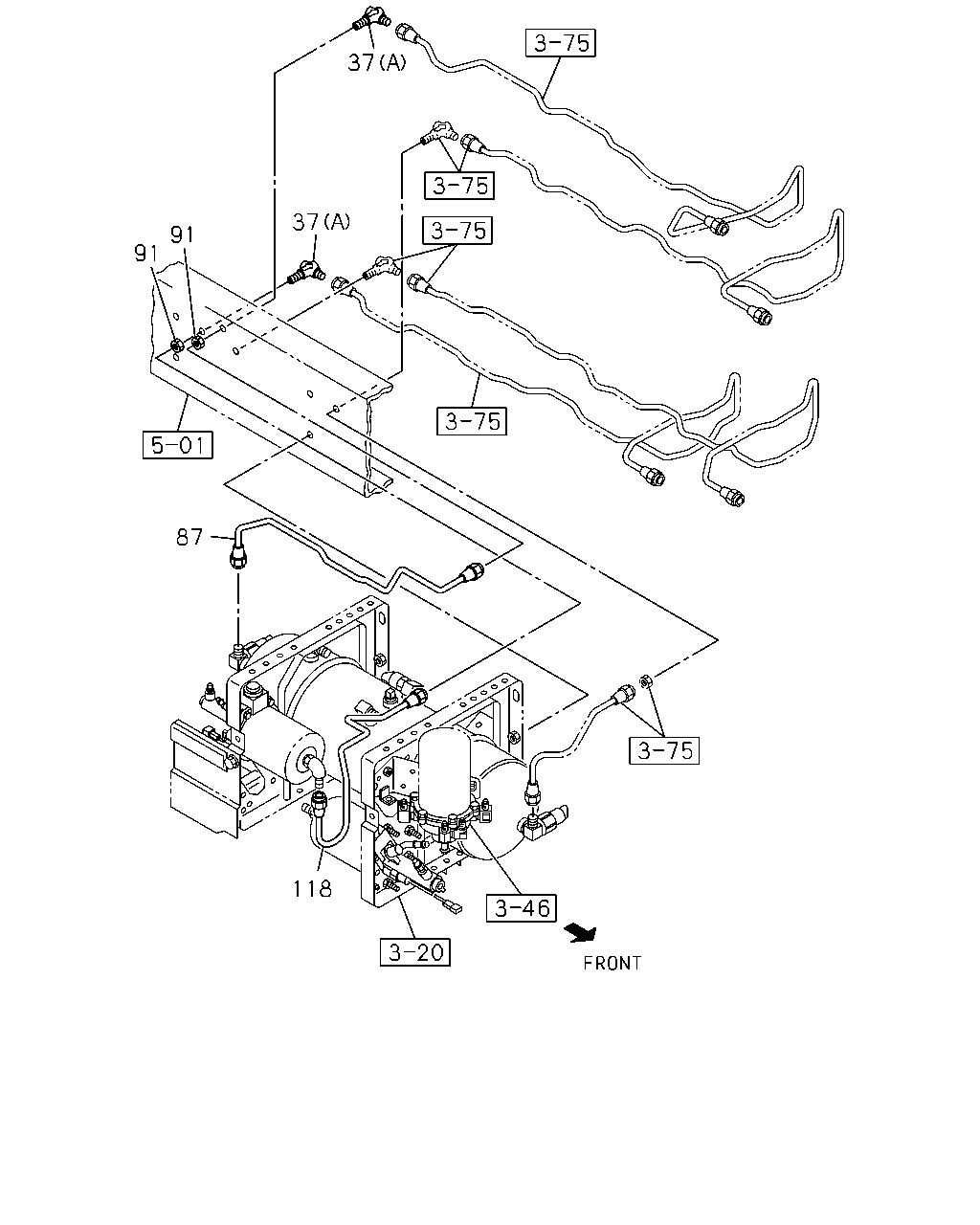

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1310-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1310-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1310-
118	PIPE; AIR,UNION TO AIR MASTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1310-
118	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1310-
118	PIPE; AIR,UNION TO AIR MASTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=729 SERVICED BY L=730	1-47428-871-0	01	1	1310-

318 97 144 98 37 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1310-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1310-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1310-
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1310-
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1310-
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	1310-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 ID=15	1-87411-037-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=6000 ID=15	1-87411-037-0	01	1	1310-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1076 SERVICED BY L=1100	1-47428-875-0	01	1	1310-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1776 SERVICED BY L=1783	1-47428-881-0	01	1	1310-

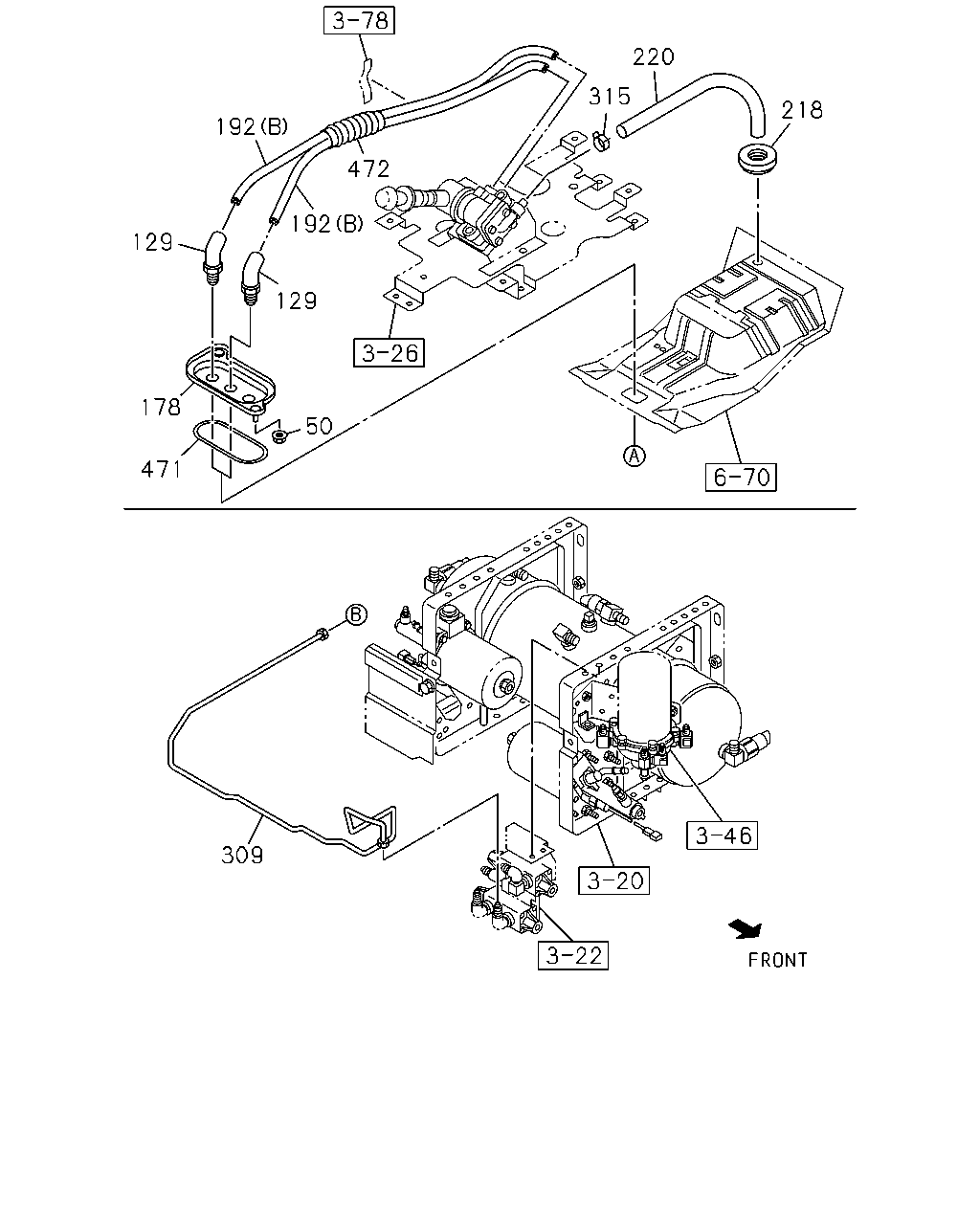

218 220 315 472 192 192 129 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1310-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	1310-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-052-1	01	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	1310-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1310-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1310-
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1336 SERVICED BY L=1400	1-47428-878-0	01	1	1310-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	1310-
471	SEAL; BRKT	1-79738-832-0	01	1	1310-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1310-

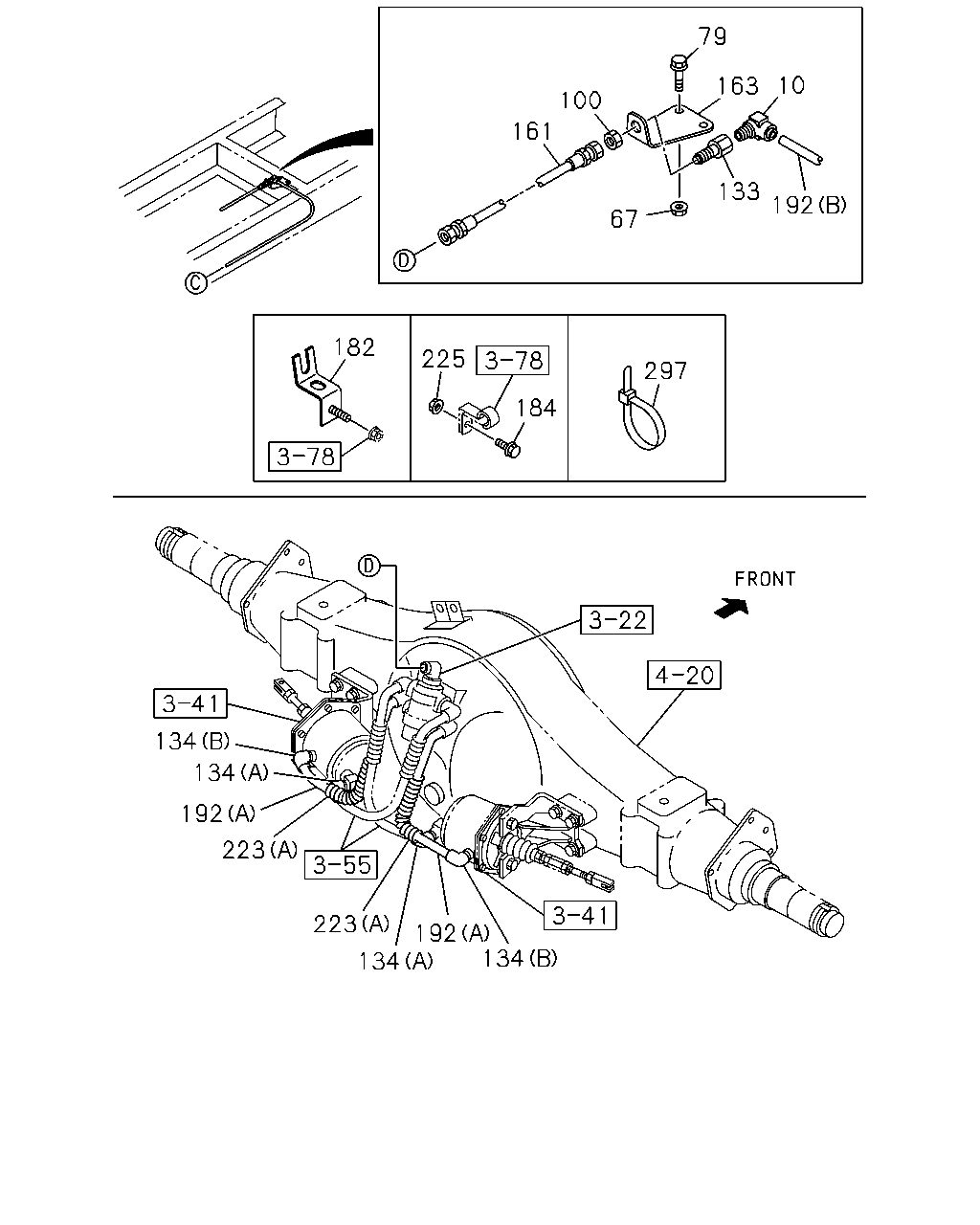

184 225 297 182 161 100 79 133 67 192 163 10 192 134 134 223 223 192 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1310-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1310-
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1310-
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1310-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1310-
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460	1-09363-963-0	01	1	1310-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	1310-
182	BRACKET; TUBE CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	01	1	1310-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1310-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	1310-
192	TUBE; NYLON WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	1310-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 ID=15	1-87411-037-0	01	1	1310-
223	TUBE; CORRUGATE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SERVICED BY L=6000 ID=15	1-87411-037-0	01	1	1310-
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1310-
297	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	05	1	1310-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	06	1	1310-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	07	1	1310-
297	CLIP; BAND WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1310-

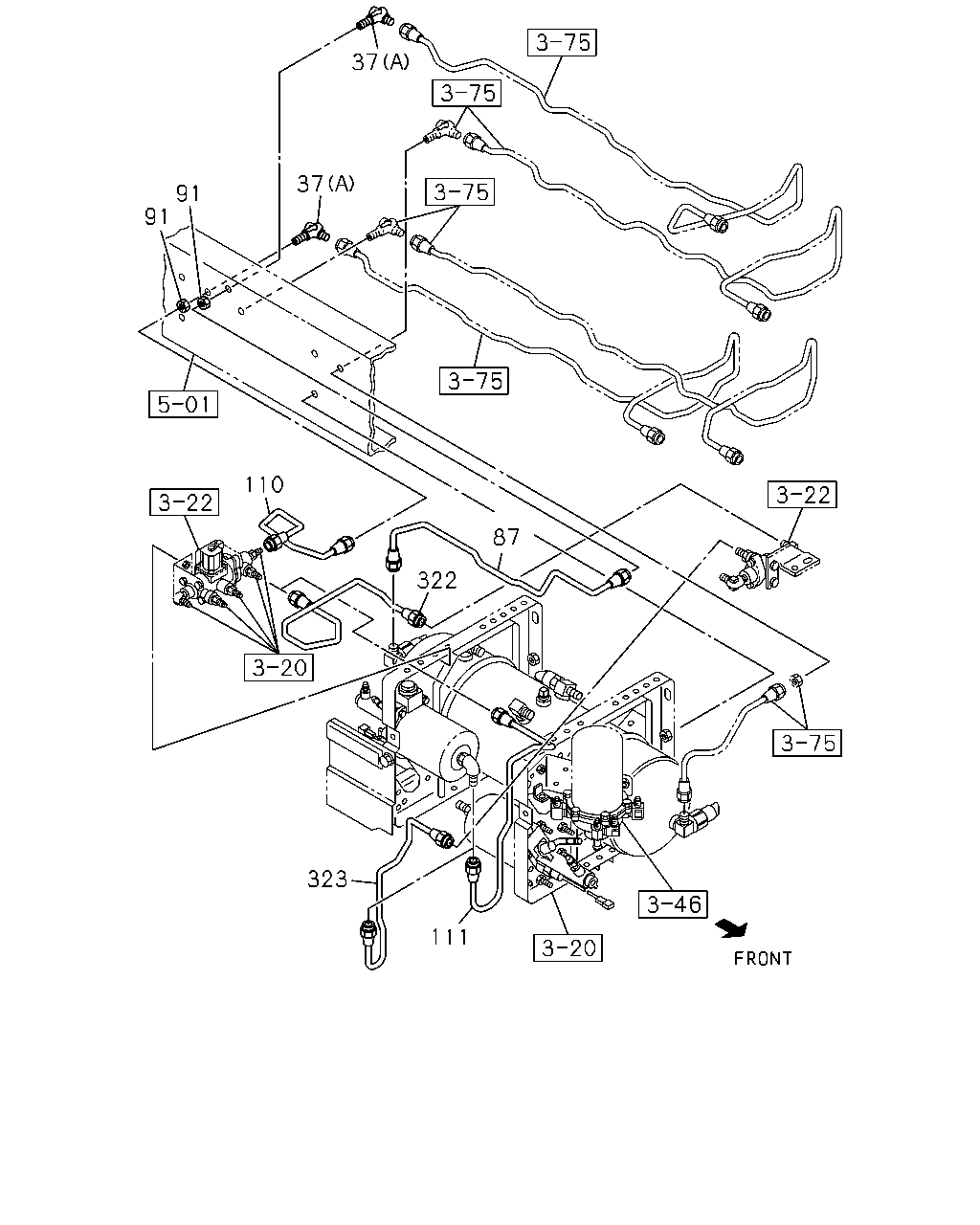

87 322 110 37 91 91 111 323 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1310-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1310-
87	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1310-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1310-
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> L=473	8-98067-756-0	01	1	1310-
111	PIPE; AIR,VLV TO AIR MASTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1310-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1310-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=528 SERVICED BY L=550	1-47428-867-0	01	1	1310-
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	1310-
323	PIPE; AIR,DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660	1-47428-869-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
