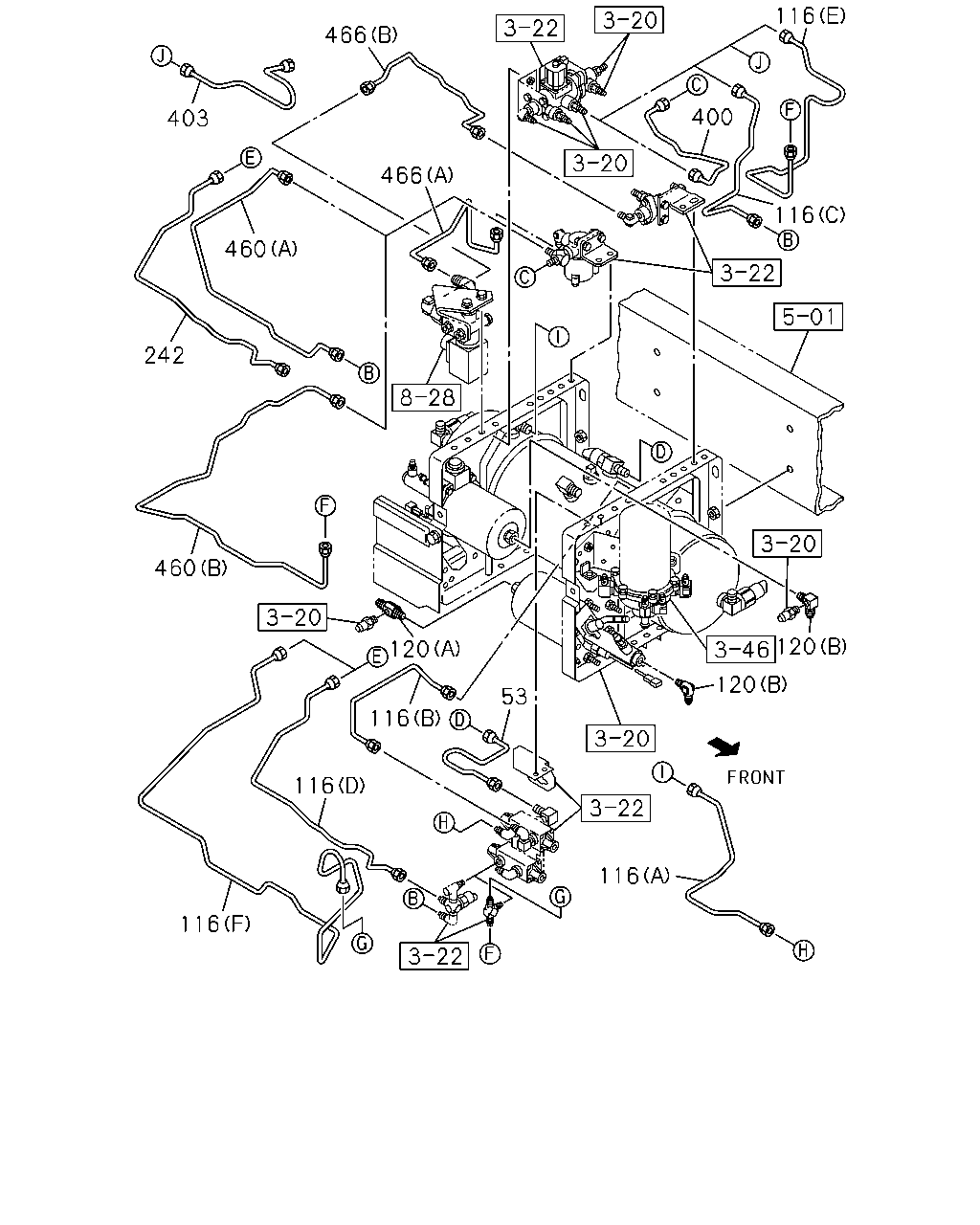

3-70 — BRAKE PIPING; AIR,AIR MASTER (#128807) — 76 parça

116 400 116 120 120 116 116 116 116 120 460 242 460 403 466 466 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98213-331-0	01	1	1310-
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98213-331-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=382	8-98077-880-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=382	8-98077-880-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=480	8-98213-332-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=480	8-98213-332-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E) L=666 SERVICED BY L=700	1-47428-811-0	01	1	1310-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1310-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1310-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1310-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1310-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1310-
403	PIPE; AIR,AIR TANK TO MAG VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=437	8-98213-295-0	01	1	1310-
460	PIPE; AIR,PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-792-0	01	1	1310-
460	PIPE; AIR,PROTECTION VALVE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) L=1036	8-98225-793-0	01	1	1310-
466	PIPE; AIR,ASR H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700	1-47428-870-0	01	1	1310-
466	PIPE; AIR,ASR H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1310-

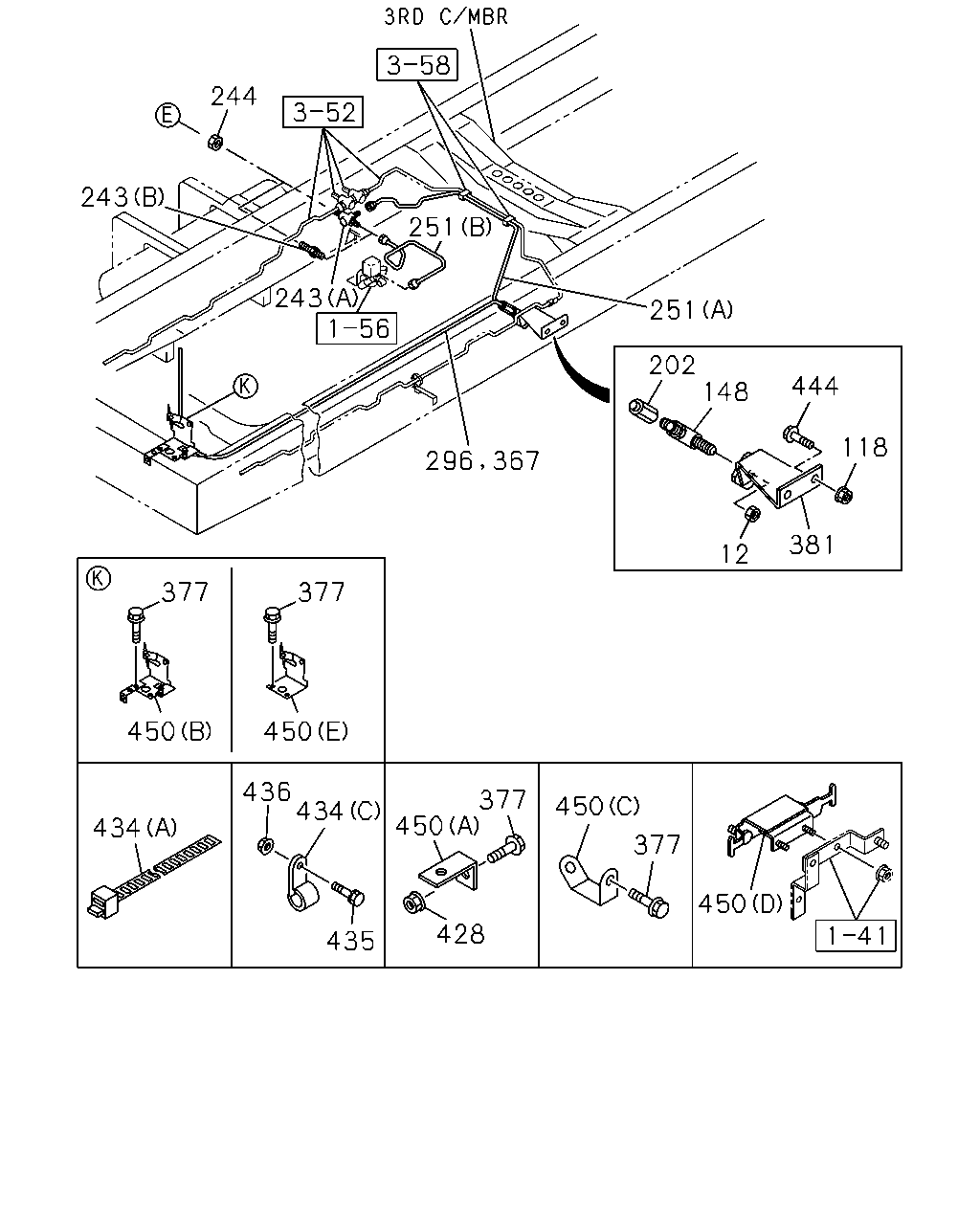

450 377 450 377 450 428 435 434 436 434 450 377 377 450 12 381 118 444 148 202 251 367 296 243 251 244 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	0-91111-512-0	01	1	1310-
118	NUT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1310-
148	CONNECTOR; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY	1-09654-059-2	01	1	1310-
202	ADAPTER AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1310-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 L=66.5	0-92113-306-0	01	1	1310-
243	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	0-92138-906-0	01	1	1310-
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	0-92138-906-0	01	1	1310-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1310-
251	PIPE; AIR,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1310-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56> (B) L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1310-
251	PIPE; AIR,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=456	8-98067-434-0	01	1	1310-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56> (A) L=456	8-98067-434-0	01	1	1310-
251	PIPE; AIR,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=480	8-98120-257-0	01	1	1310-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1310-
367	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1310-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1310-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1310-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1310-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1310-
381	BRACKET AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98119-700-0	01	1	1310-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1310-
428	NUT; BRKT AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1310-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20	0-95234-635-0	01	1	1310-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1310-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1310-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1310-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1310-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	1310-
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28651-030-0	02	1	1310-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98254-305-0	01	1	1501-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1310-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1310-1412
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1310-1412
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1501-
450	BRACKET; CLIP (D)	8-98077-895-1	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1310-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1310-

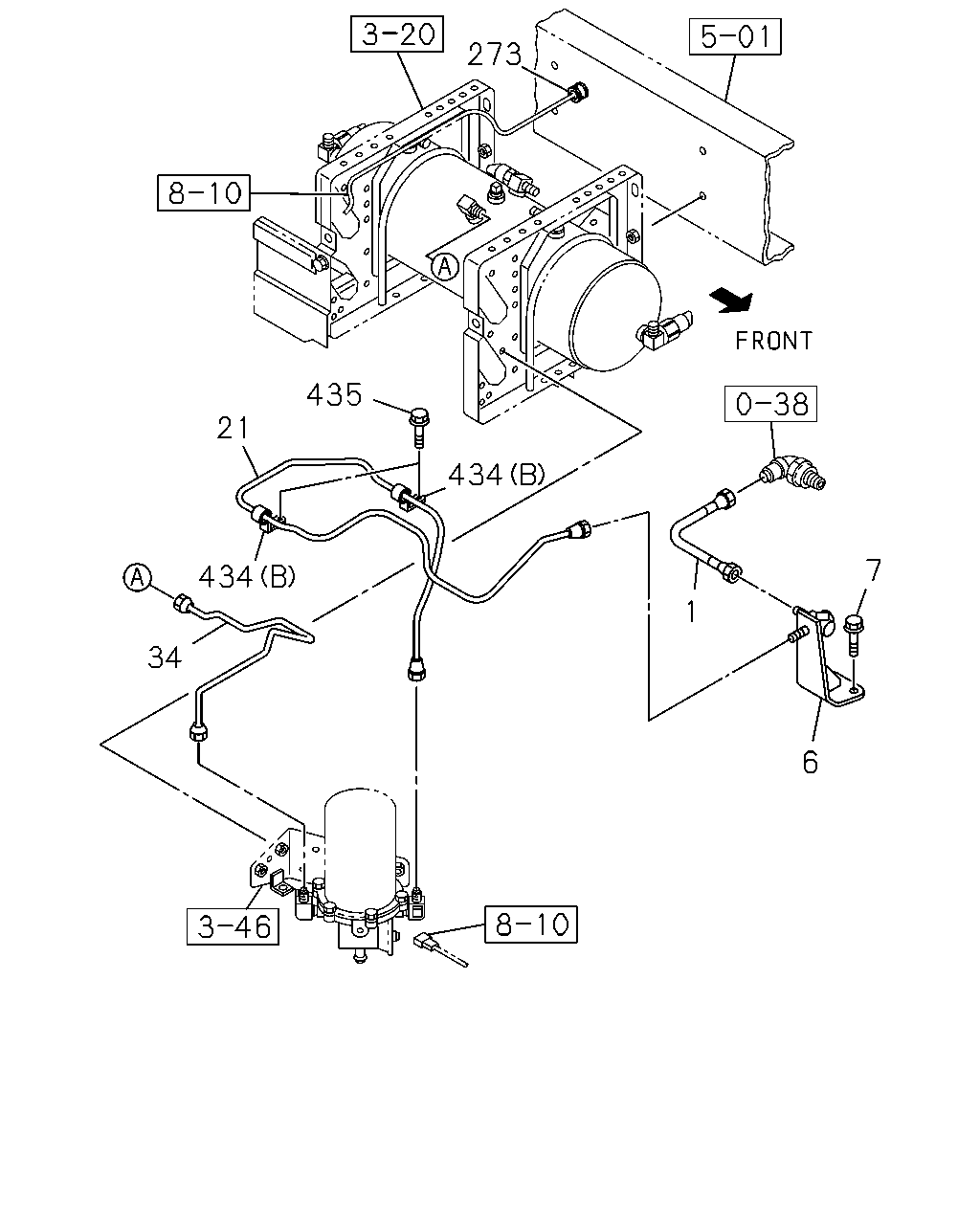

273 435 434 21 434 34 1 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-958-0	01	1	1310-
6	BRACKET; FLEX HOSE,AIR TANK	8-98079-987-1	01	1	1310-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1816	8-98083-100-0	01	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1798	8-98083-099-0	01	1	1310-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1310-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1310-
273	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	1310-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20	0-95234-635-0	01	1	1310-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1310-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1310-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1310-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1310-
