3-58 — FIXING PARTS; OIL PIPING (#128806) — 10 parça

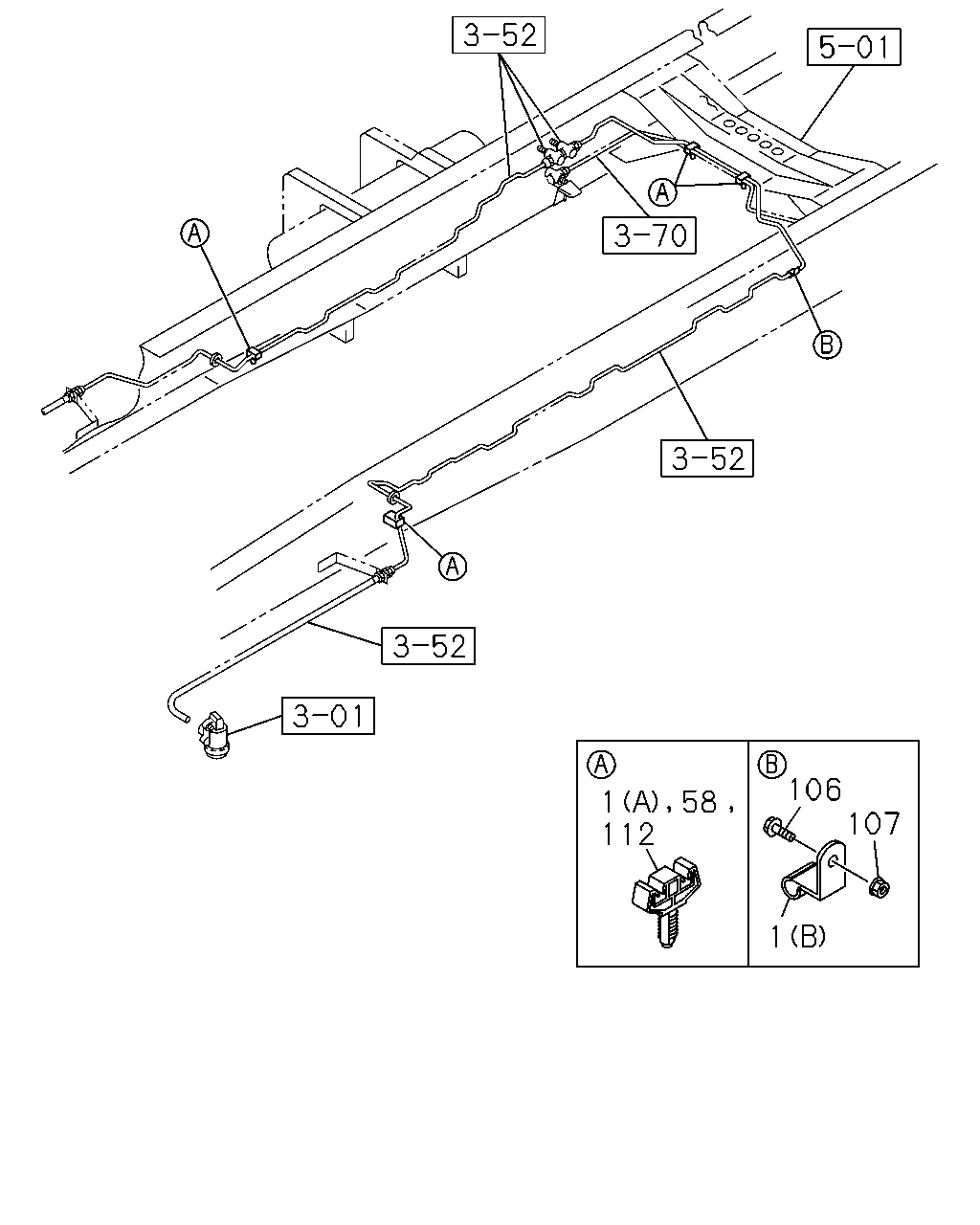

çizim 380174
1 112 58 106 107 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 07 1 1310-
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20 		8-98040-714-0 05 1 1310-
58 CLIP; OIL PIPE 8-98012-254-1 05 1 1310-
106 BOLT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 05 1 1310-
107 NUT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 05 1 1310-
112 CLIP; OIL PIPE
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 04 1 1310-
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 05 1 1310-
112 CLIP; OIL PIPE
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98012-254-1 07 1 1310-

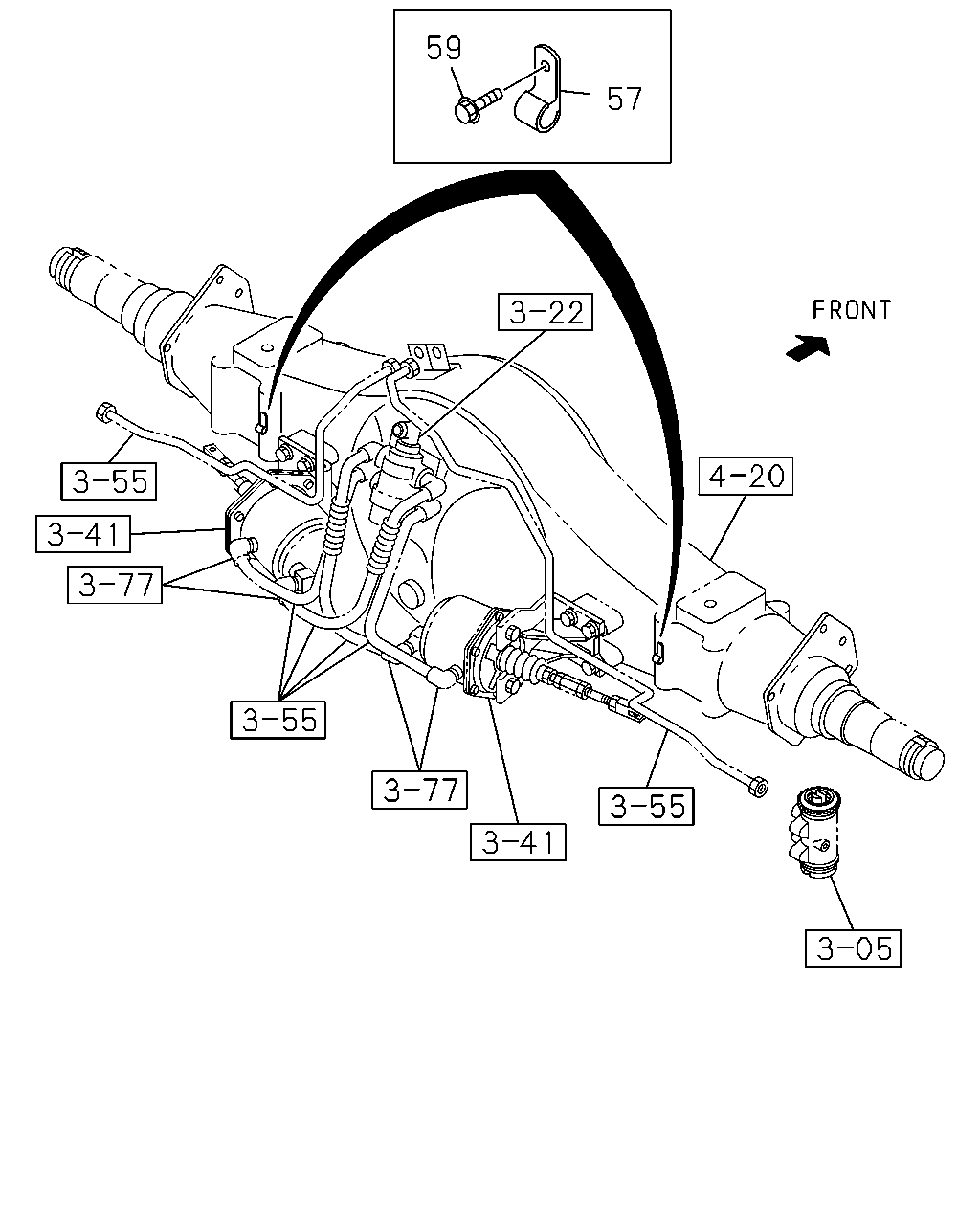

çizim 381666
59 57
BalonParca AdiParca NoAdetTipApplied Date
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 02 1 1310-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 02 1 1310-
