3-55 — BRAKE PIPING; OIL,REAR (#128805) — 82 parça

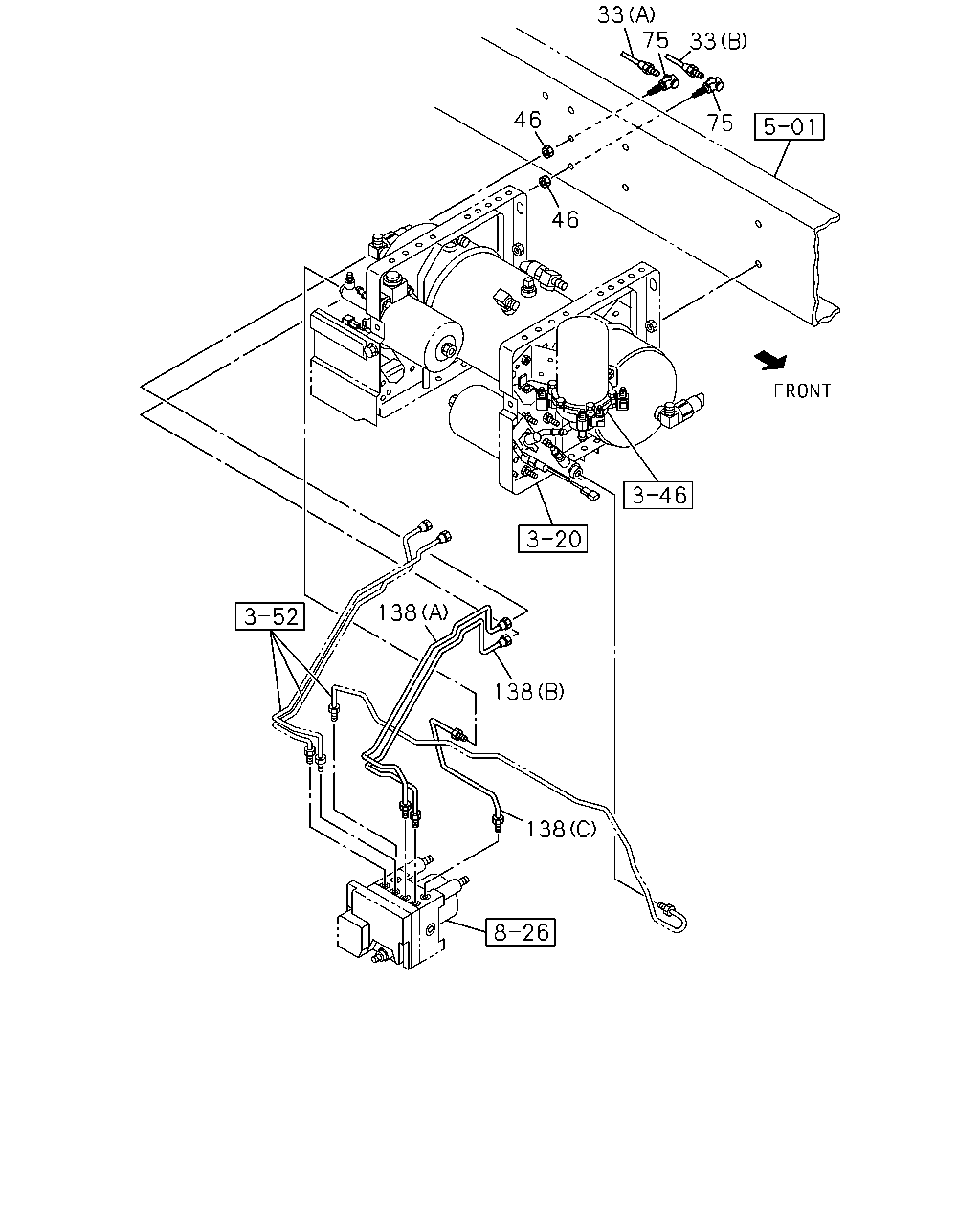

33 33 75 75 46 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1624	8-98232-795-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1579	8-98232-796-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2126	8-98232-797-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2081	8-98232-798-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) L=2824	8-98232-801-0	01	1	1310-
46	NUT; UNION,OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1310-
46	NUT; UNION,OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1310-
75	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1310-
75	UNION; OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=296	8-98066-107-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=657	8-98012-129-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=703	8-98012-146-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=697	8-98213-366-0	01	1	1310-

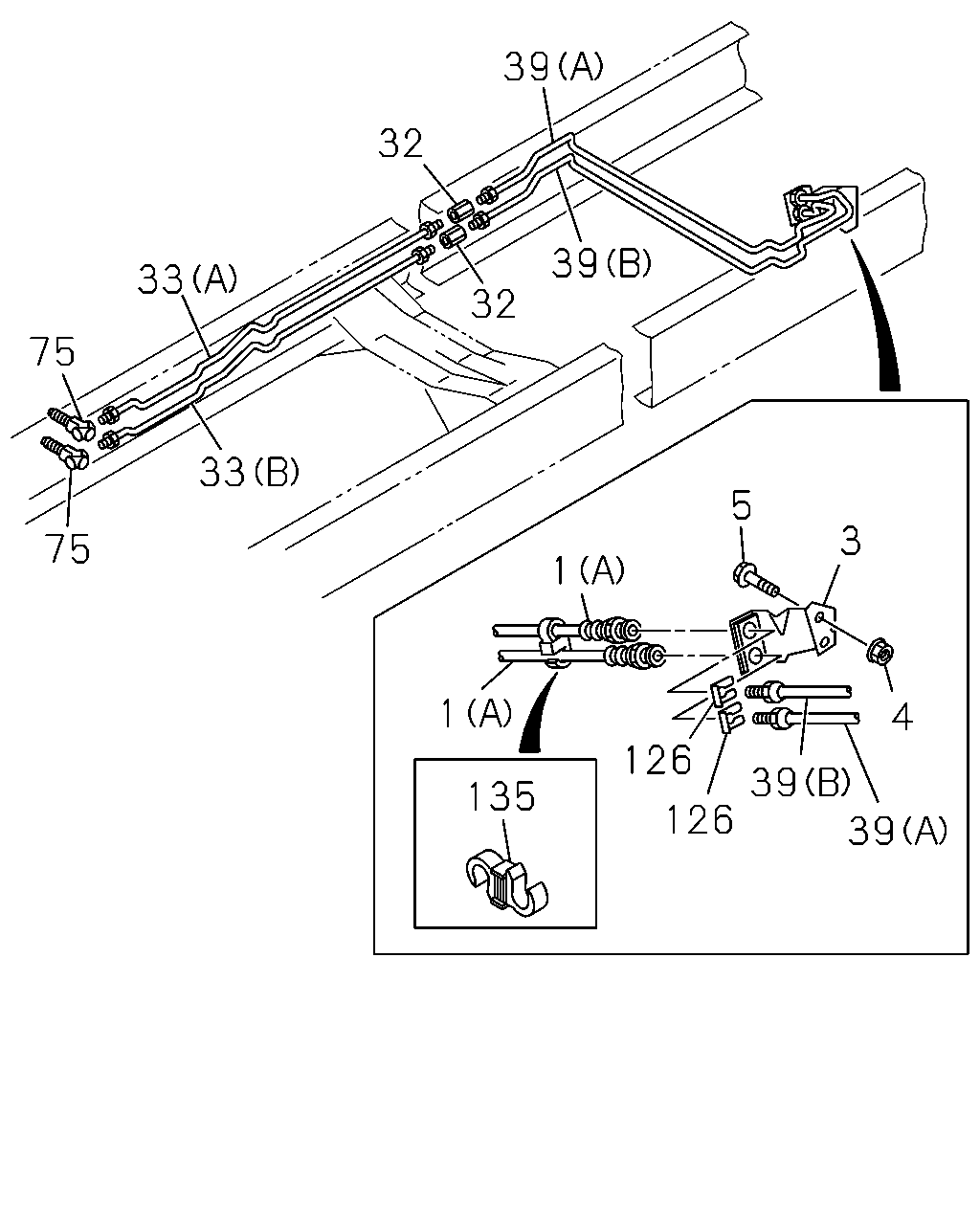

39 126 1 4 3 5 32 39 33 75 46 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1310-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1310-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1310-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1310-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1310-
32	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	02	1	1310-
32	UNION; OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1624	8-98232-795-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1579	8-98232-796-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2126	8-98232-797-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2081	8-98232-798-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) L=2824	8-98232-801-0	01	1	1310-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1710	8-98106-485-0	01	1	1310-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1310-
46	NUT; UNION,OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1310-
46	NUT; UNION,OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1310-
75	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1310-
75	UNION; OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1310-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1310-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=296	8-98066-107-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=657	8-98012-129-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=703	8-98012-146-0	01	1	1310-
138	PIPE; HYDRAULIC UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=697	8-98213-366-0	01	1	1310-

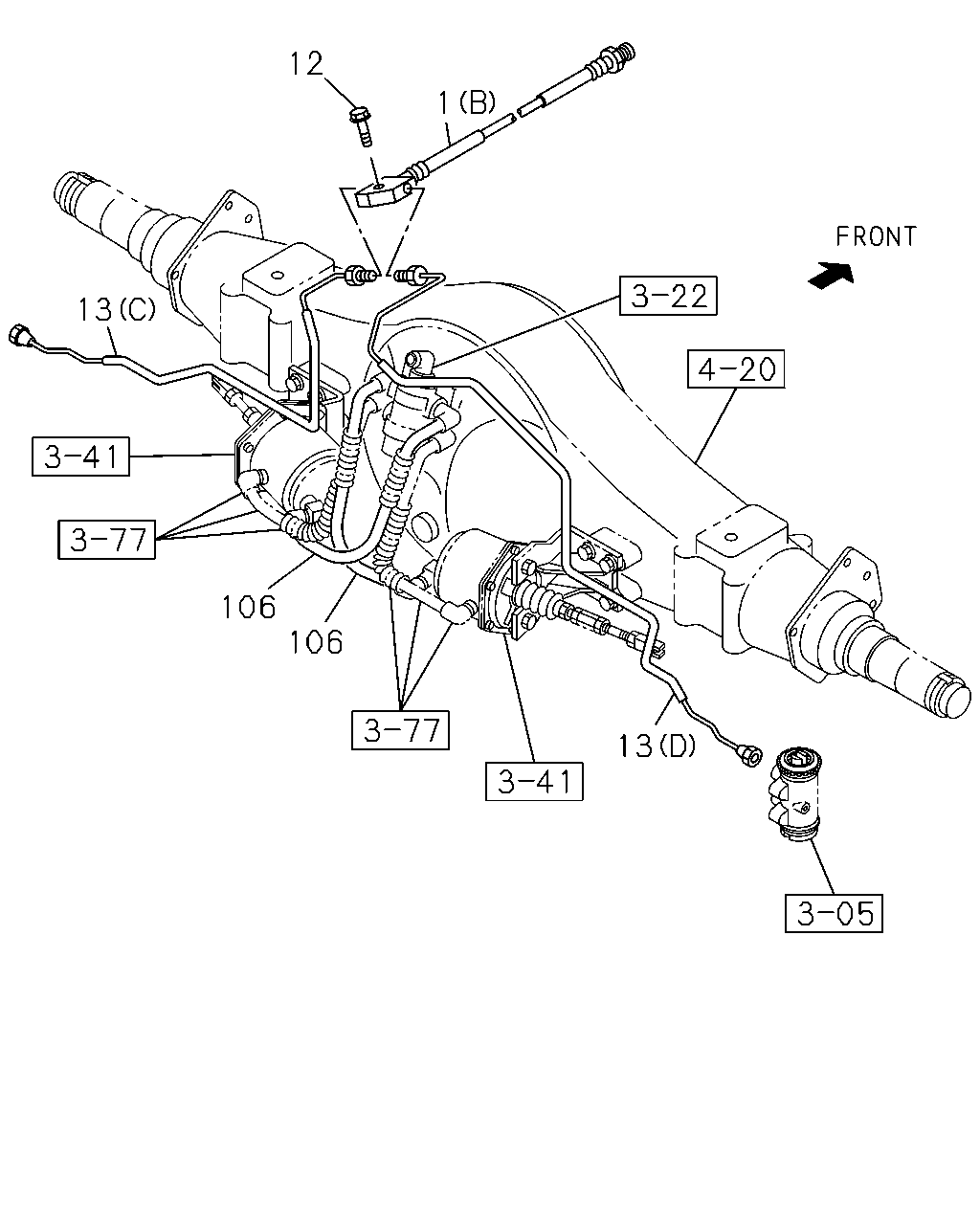

12 1 13 106 106 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1310-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1310-
12	BOLT; FLEX HOSE TO RR AXLE EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1310-
12	BOLT; FLEX HOSE TO RR AXLE EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1310-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98029-683-1	01	1	1310-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98029-684-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98207-113-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98207-114-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98207-111-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98207-112-0	01	1	1310-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-685-1	01	1	1310-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) RH LINE	8-98029-686-0	01	1	1310-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1310-

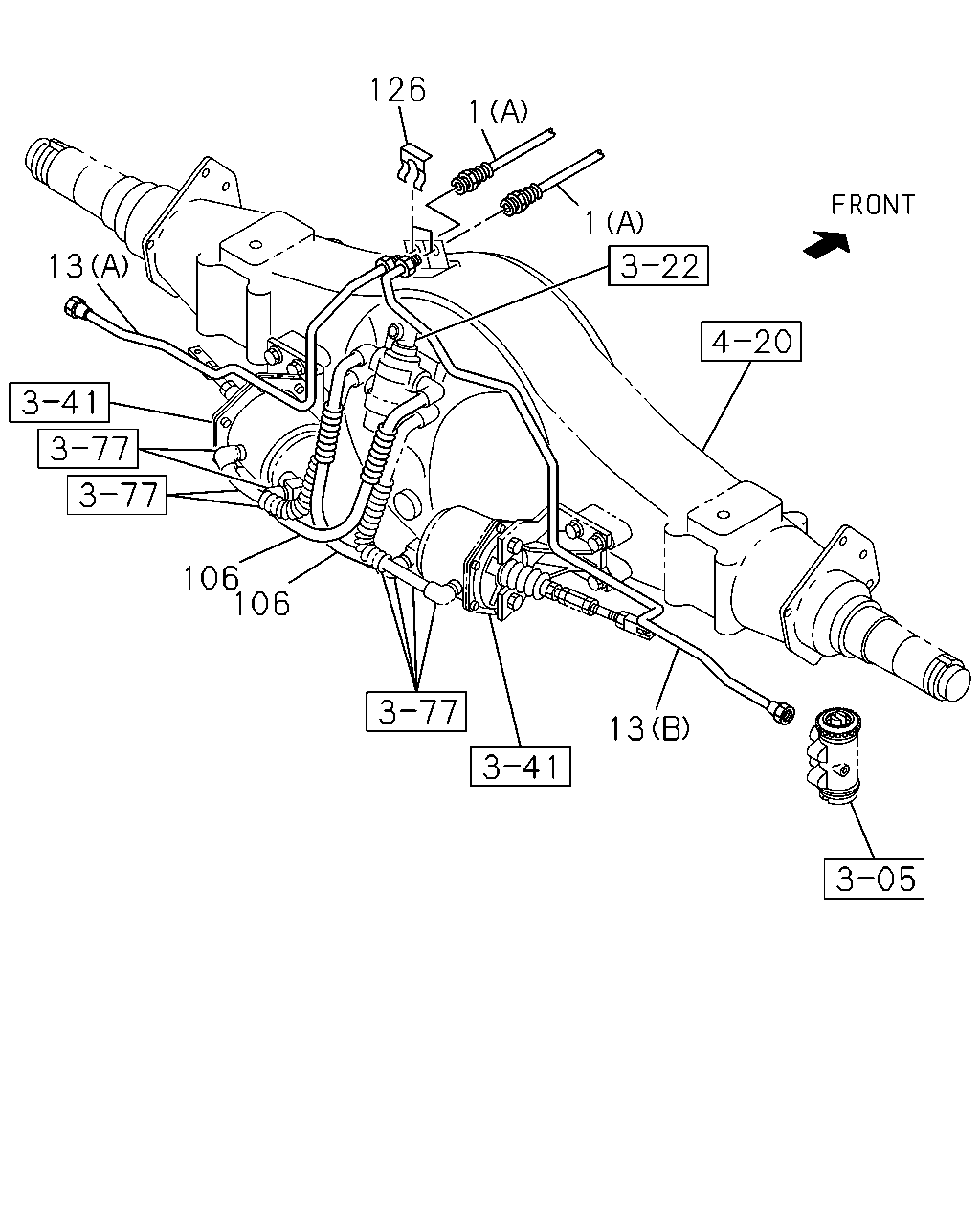

75 75 33 33 32 32 39 39 1 1 135 126 126 5 3 4 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1310-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1310-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1310-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1310-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1310-
32	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	02	1	1310-
32	UNION; OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1624	8-98232-795-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1579	8-98232-796-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2126	8-98232-797-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2081	8-98232-798-0	01	1	1310-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) L=2824	8-98232-801-0	01	1	1310-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1710	8-98106-485-0	01	1	1310-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1310-
75	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1310-
75	UNION; OIL PIPE WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1310-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1310-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1310-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1310-

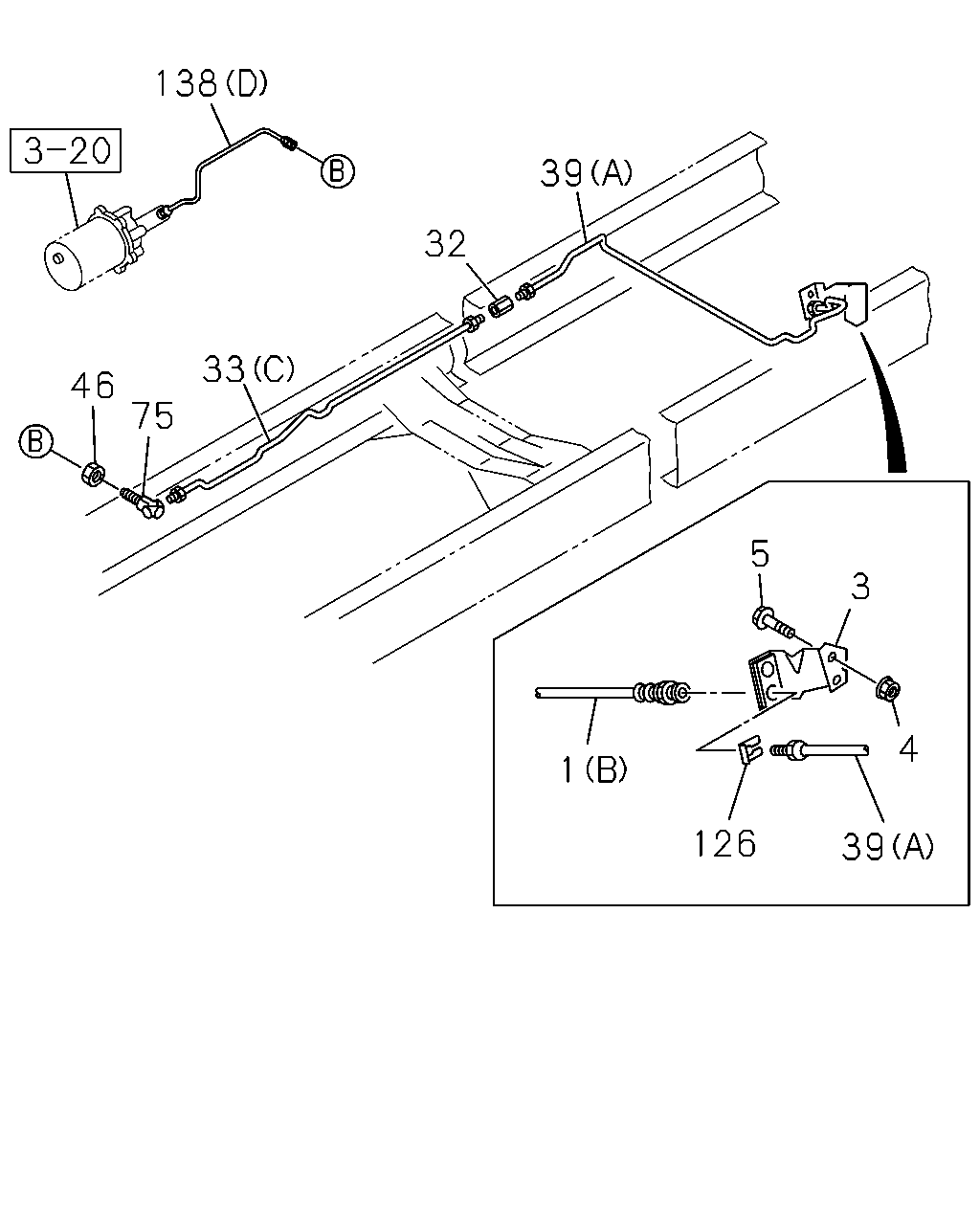

13 126 1 13 106 106 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1310-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1310-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98029-683-1	01	1	1310-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98029-684-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98207-113-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98207-114-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98207-111-0	01	1	1310-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98207-112-0	01	1	1310-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-685-1	01	1	1310-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) RH LINE	8-98029-686-0	01	1	1310-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1310-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1310-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1310-
