◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#128803) — 63 parça

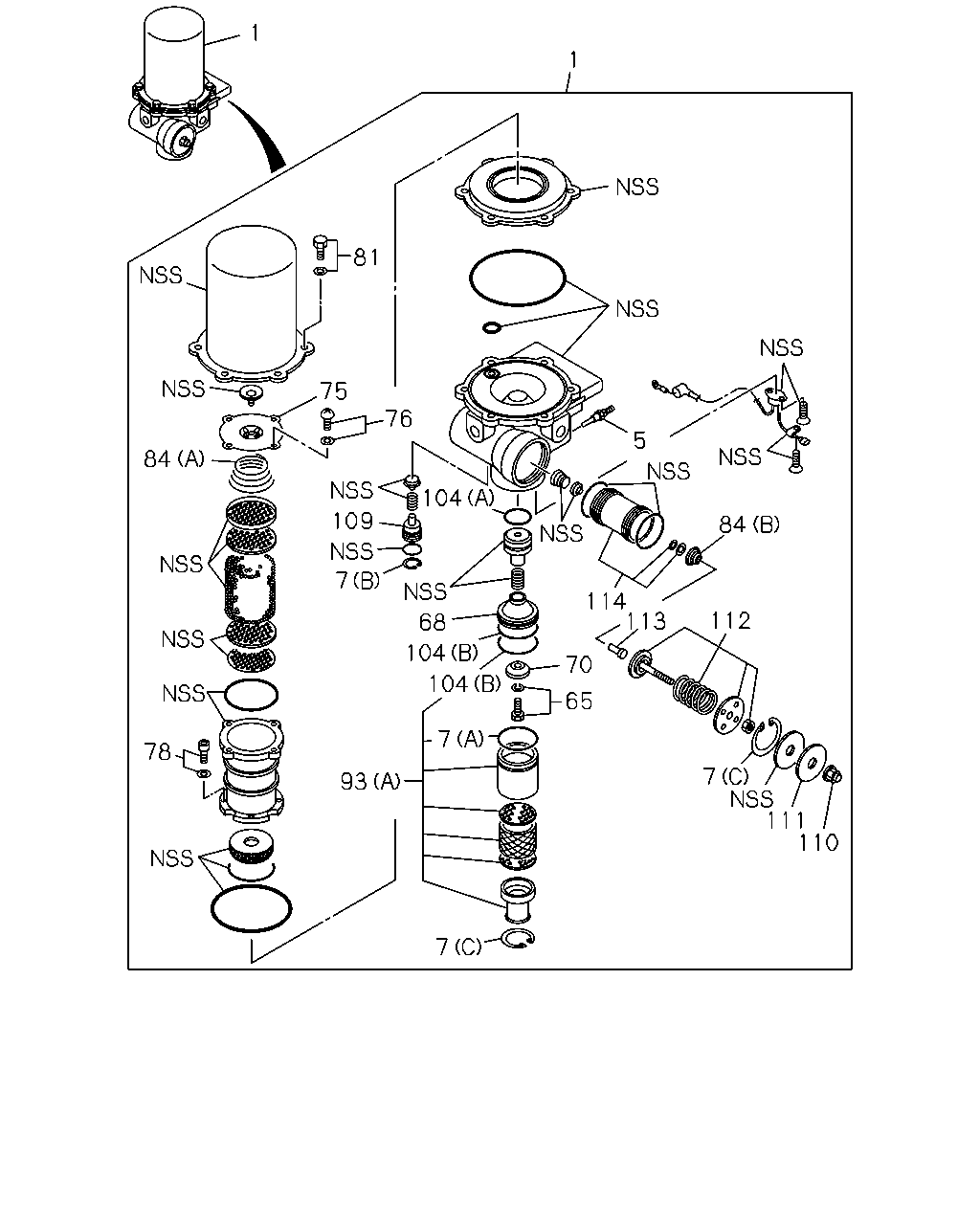

çizim 380542
1 1 81 75 76 84 109 7 104 78 93 7 7 104 104 68 70 65 114 113 112 7 111 110 84 5
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-285-0 01 1 1310-
1 DRYER; AIR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-289-0 01 1 1310-
5 HEATER ASM; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-530-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		1-48199-520-0 02 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-529-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-579-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 1310-
65 BOLT; PURGE VLV
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-517-0 01 1 1310-
68 BODY; VALVE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-515-0 01 1 1310-
70 VALVE; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-504-0 01 1 1310-
75 COVER; CASE,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-427-0 01 1 1310-
75 COVER; CASE,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 1310-
76 BOLT; COVER,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-412-0 04 1 1310-
78 BOLT; OIL FILTER,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-417-0 04 1 1310-
81 BOLT; CASE,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-436-0 06 1 1310-
84 SPRING; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-523-0 01 1 1310-
84 SPRING; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-425-0 01 1 1310-
84 SPRING; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 1310-
93 SILENCER; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-619-0 01 1 1310-
93 SILENCER; AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98226-321-0 01 1 1310-
109 STOPPER; CHECK VALVE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-539-0 01 1 1310-
110 NUT; CAP
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-527-0 01 1 1310-
111 PLATE; GOVERNOR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-526-0 01 1 1310-
112 SCREW & SPRING ASM; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-524-0 01 1 1310-
113 STEM; EXHAUST
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-522-0 01 1 1310-
114 PISTON ASM; GOVERNOR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-521-0 01 1 1310-

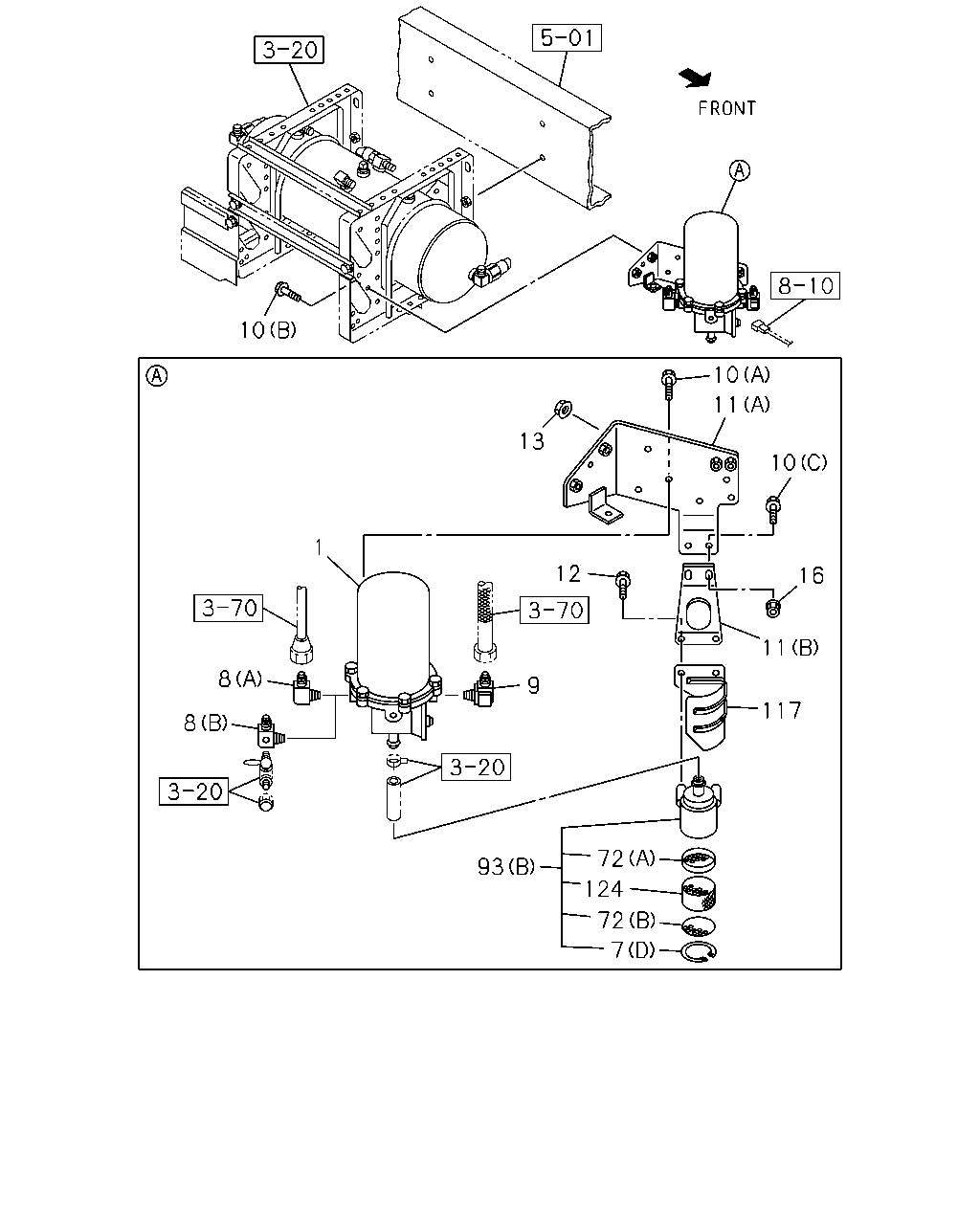

çizim 380612
10 13 10 11 10 16 11 117 72 124 72 7 93 9 12 1 8 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-285-0 01 1 1310-
1 DRYER; AIR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-289-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		1-48199-520-0 02 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-529-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-579-0 01 1 1310-
7 RING; SNAP,AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 1310-
8 CONNECTOR; OUT,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TIRE INFLATOR DEVICE<SG4> (B) 		1-09656-676-0 01 1 1310-
8 CONNECTOR; OUT,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. TIRE INFLATOR DEVICE<SG4> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1310-
9 CONNECTOR; PIPE,AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1310-
10 BOLT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) M8X20 FLANGE 		0-28050-820-0 02 1 1310-
10 BOLT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) M10X25 FLANGE 		0-28051-025-0 03 1 1310-
10 BOLT; AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1310-
11 BRACKET; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98044-548-4 01 1 1310-
11 BRACKET; AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 1310-
12 BOLT; BRKT
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
13 NUT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 1310-
16 NUT; BRKT
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1310-
72 PLATE; FILTER,AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 1310-
72 PLATE; FILTER,AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 1310-
93 SILENCER; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-619-0 01 1 1310-
93 SILENCER; AIR DRYER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 1310-
117 COVER; SILENCER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 1310-
124 FILTER; SILENCER
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 1310-

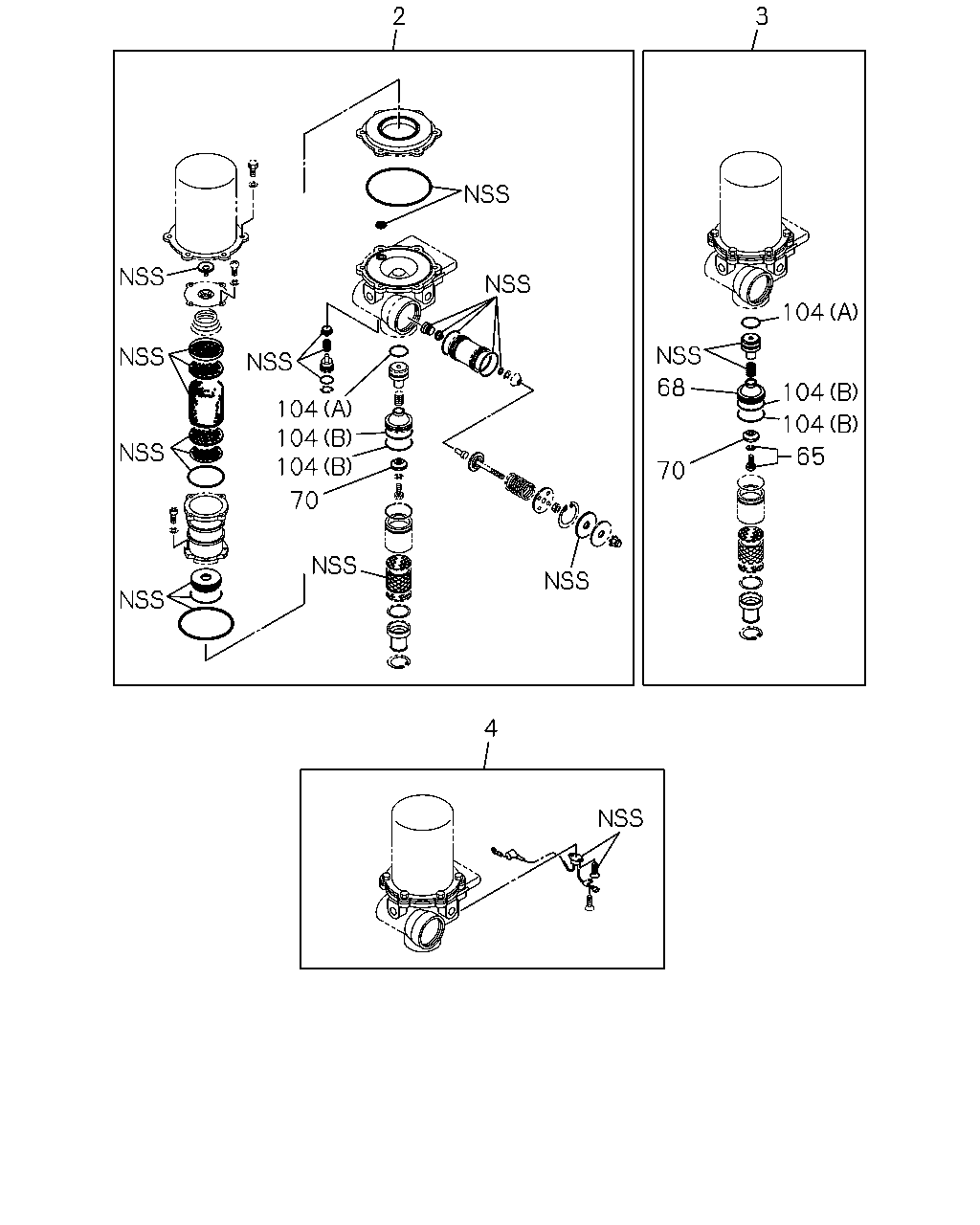

çizim 380614
104 104 104 70 2 3 68 70 65 104 104 104 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98226-323-0 01 1 1310-
2 REPAIR KIT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98226-326-0 01 1 1310-
3 PISTON KIT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98226-322-0 01 1 1310-
4 THERMOSTAT KIT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-443-0 01 1 1310-
4 THERMOSTAT KIT; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-386-0 01 1 1310-
65 BOLT; PURGE VLV
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-517-0 01 1 1310-
68 BODY; VALVE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-515-0 01 1 1310-
70 VALVE; AIR DRYER
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		1-48199-504-0 01 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1310-
104 GASKET
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98226-321-0 01 1 1310-
