Isuzu WW
▶
TRUCKS
▶
FSR
▶
11554 - FSR-R EU5 EXC.SPACE
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶

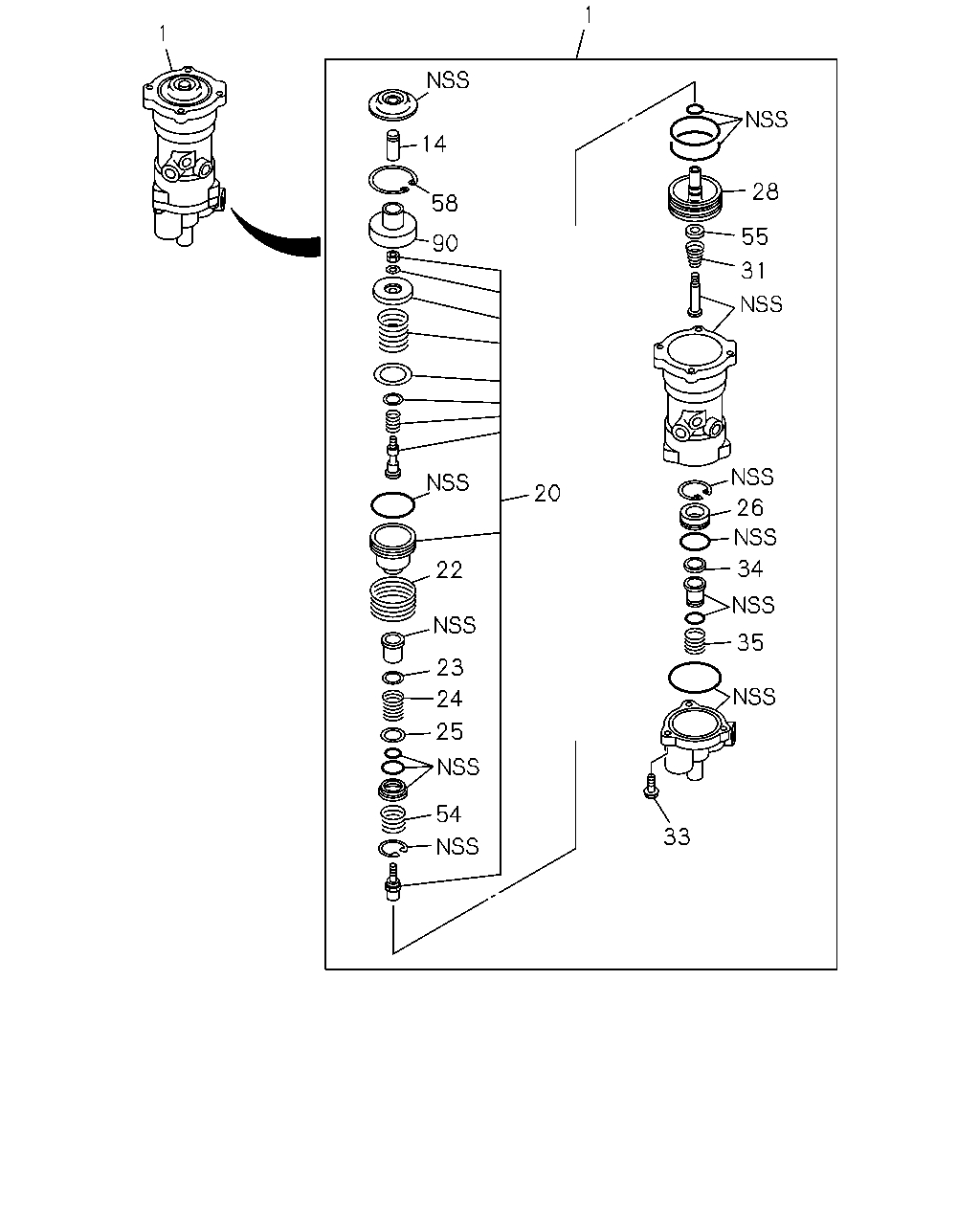

3-34 — BRAKE VALVE; AIR
(#128801) — 19 parça
◀
[334A] REPAIR KIT (2 parça)
[334A] COMPONENT (17 parça)
▶
2
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
8-98222-820-0
01
1
1310-
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1310-
1
1
14
58
90
28
55
31
20
22
23
24
25
54
33
35
34
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
8-98222-789-0
01
1
1310-
14
PLUNGER; BRK VLV
1-48119-641-0
01
1
1310-
20
PISTON; UPR,BRK VLV
1-48119-644-0
01
1
1310-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1310-
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1310-
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1310-
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1310-
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1310-
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1310-
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1310-
33
BOLT; BODY,BRK VLV
1-48119-213-0
03
1
1310-
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1310-
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1310-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1310-
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1310-
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1310-
90
GUIDE; PLUNGER
1-48119-642-0
01
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
