2-01A — CLUTCH (#12880) — 136 parça

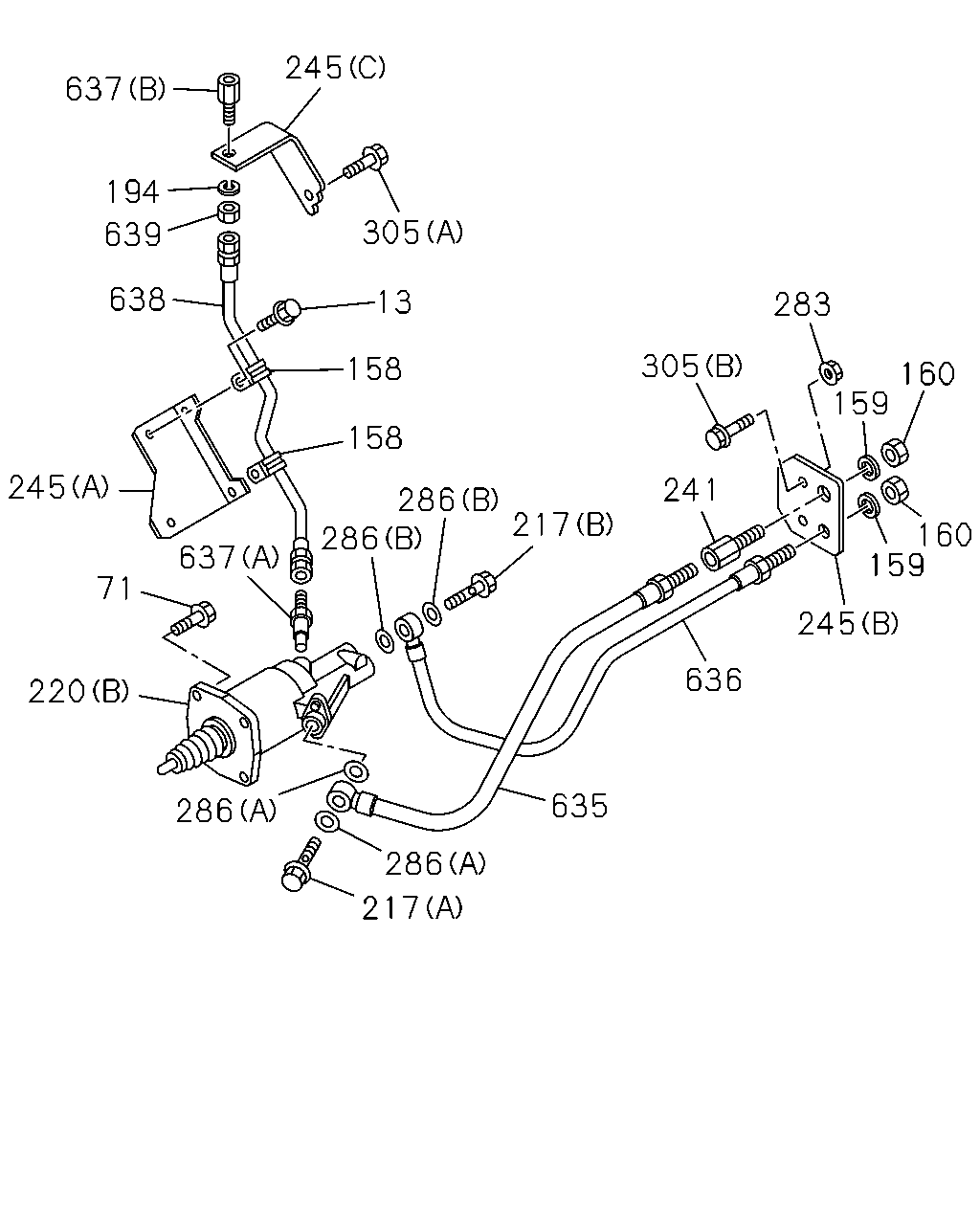

çizim 98348
245 637 194 305 639 638 13 283 305 158 160 159 158 245 241 286 217 286 160 159 637 71 245 636 220 286 635 286 217
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 0807-1102 ●
71 BOLT
M8X30 HEX SOCKET THA 		0-58330-830-0 04 1 0807-1102 ●
158 CLIP; FLEX HOSE
ID=18 L=28 		1-09701-067-0 02 1 0807-1102 ●
159 WASHER; LK
ID=12.2 		0-91510-812-0 02 1 0807-1102 ●
160 NUT
M12 		9-09840-280-0 02 1 0807-1102 ●
194 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 0807-1102 ●
217 BOLT; EYE
(A) M16X30 		1-09675-026-0 01 1 0807-1102 ●
217 BOLT; EYE
(B) M14X30 EYE-BOLT 		8-98037-827-0 01 1 0807-1102 ●
220 BOOSTER ASM; CLU
(B) 		1-31800-537-0 01 1 0807-1102 ●
220 BOOSTER ASM; CLU
(A) SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 0807- ●
220 BOOSTER ASM; CLU
(A) BEST VALUE PARTS SEE FIG-NO 2-07 FOR COMPONENT. 		1-87610-089-0 01 1 1103- ●
241 CONNECTOR 1-09661-823-0 01 1 0807-1102 ●
245 BRACKET; HOSE
(A) 		1-31429-492-0 01 1 0807-1102 ●
245 BRACKET; HOSE
(B) 		1-31429-493-0 01 1 0807-1102 ●
245 BRACKET; HOSE
(C) 		1-47471-476-0 01 1 0807-1102 ●
283 NUT; BRKT
M8 FLANGE THA 		0-91180-208-0 04 1 0807-1102 ●
286 GASKET; BOLT,EYE
(A) ID=16.2 		1-09630-086-0 02 1 0807-1102 ●
286 GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0807-1102 ●
305 BOLT; BRACKET
(A) M12X30 FLANGE 		0-28151-230-0 01 1 0807-1102 ●
305 BOLT; BRACKET
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0807-1102 ●
635 HOSE; AIR 1-09365-395-0 01 1 0807-1102 ●
636 HOSE; OIL 1-09365-098-0 01 1 0807-1102 ●
637 UNION
(A) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 0807-1102 ●
637 UNION
(B) 		1-09654-384-0 01 1 0807-1102 ●
638 HOSE 1-09365-409-0 01 1 0807-1102 ●
639 NUT; UNION
M12 		9-09840-280-0 01 1 0807-1102 ●

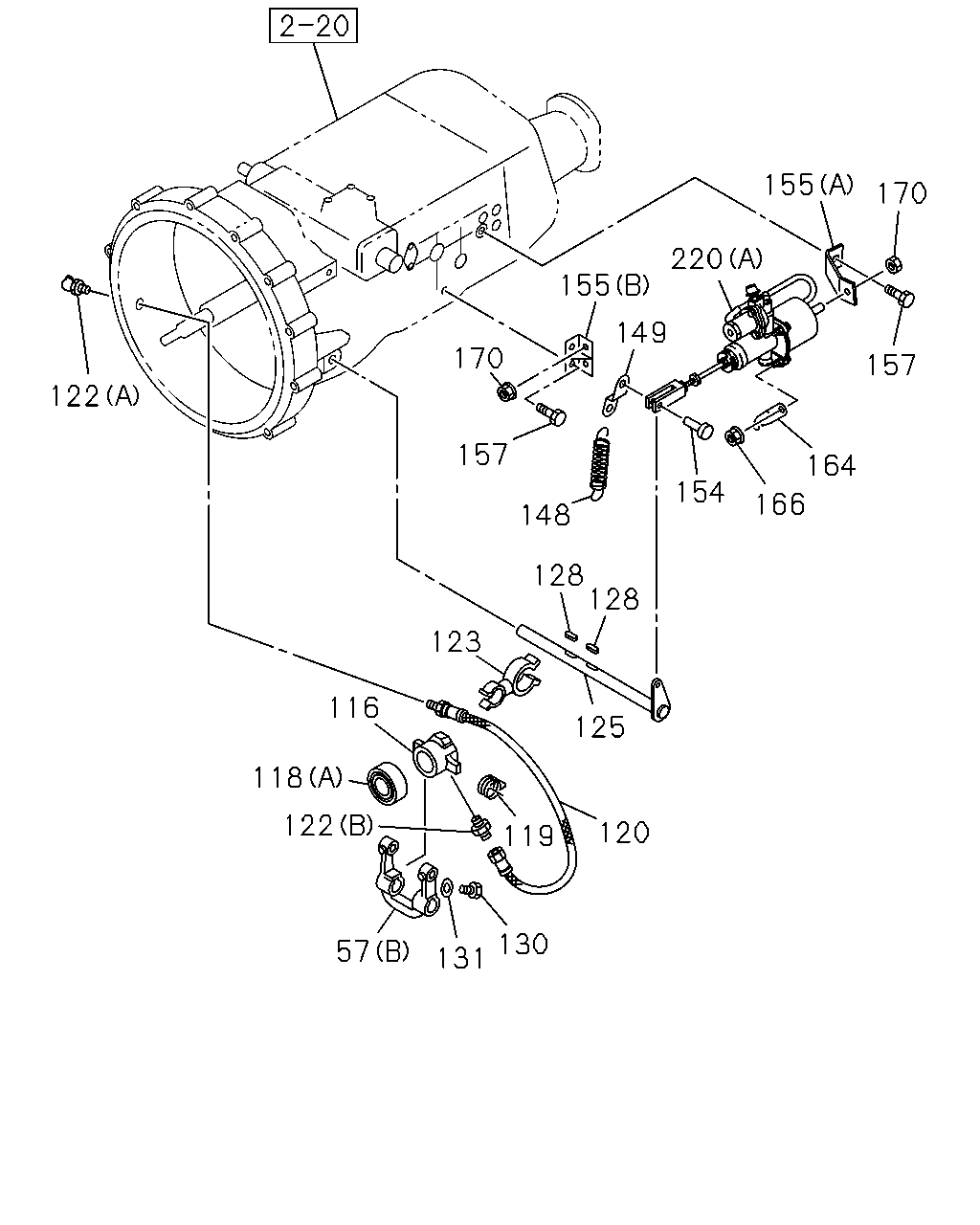

çizim 98389
155 170 220 155 149 170 157 122 157 164 154 166 148 128 128 123 116 125 118 122 120 119 130 57 131
BalonParca AdiParca NoAdetTipApplied Date A B
57 FORK; SHIFT,CLU
(A) 		1-31340-071-0 01 1 0807-1102 ●
57 FORK; SHIFT,CLU
(B) 		1-31341-036-0 01 1 0807- ●
116 BLOCK; SHIFT,CLU 1-31321-086-1 01 1 0807- ●
118 BEARING; CLU RELEASE
(B) 		1-31310-019-1 01 1 0807-1102 ●
118 BEARING; CLU RELEASE
(A) 		1-09820-117-0 01 1 0807- ●
118 BEARING; CLU RELEASE
(A) BEST VALUE PARTS 		1-87610-108-0 01 1 0807- ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0807- ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0807- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=360 		1-09364-881-0 01 1 0807- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0807- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0807- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 0807- ●
125 SHAFT; CLU 1-31342-336-0 01 1 0807- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0807-1102 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1103- ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0807- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 THA 		0-91510-508-0 01 1 0807-1102 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 THA 		0-91510-508-0 01 1 1103- ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0807-1102 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1103- ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0807- ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0807-1102 ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1103- ●
155 BRACKET; MINIPACK
(B) 		1-31429-472-1 01 1 0807- ●
155 BRACKET; MINIPACK
(A) 		1-31429-473-0 01 1 0807- ●
157 BOLT; BRKT
M10X25 FLANGE THA 		0-28151-025-0 03 1 0807- ●
164 EYE; SPRING 1-31426-050-0 01 1 0807- ●
166 NUT; SPRING EYE
M10 FLANGE THA 		0-91180-210-0 01 1 0807- ●
170 NUT; BOOSTER FIX
M10 FLANGE THA 		0-91180-210-0 03 1 0807- ●
220 BOOSTER ASM; CLU
(B) 		1-31800-537-0 01 1 0807-1102 ●
220 BOOSTER ASM; CLU
(A) SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 0807- ●
220 BOOSTER ASM; CLU
(A) BEST VALUE PARTS SEE FIG-NO 2-07 FOR COMPONENT. 		1-87610-089-0 01 1 1103- ●

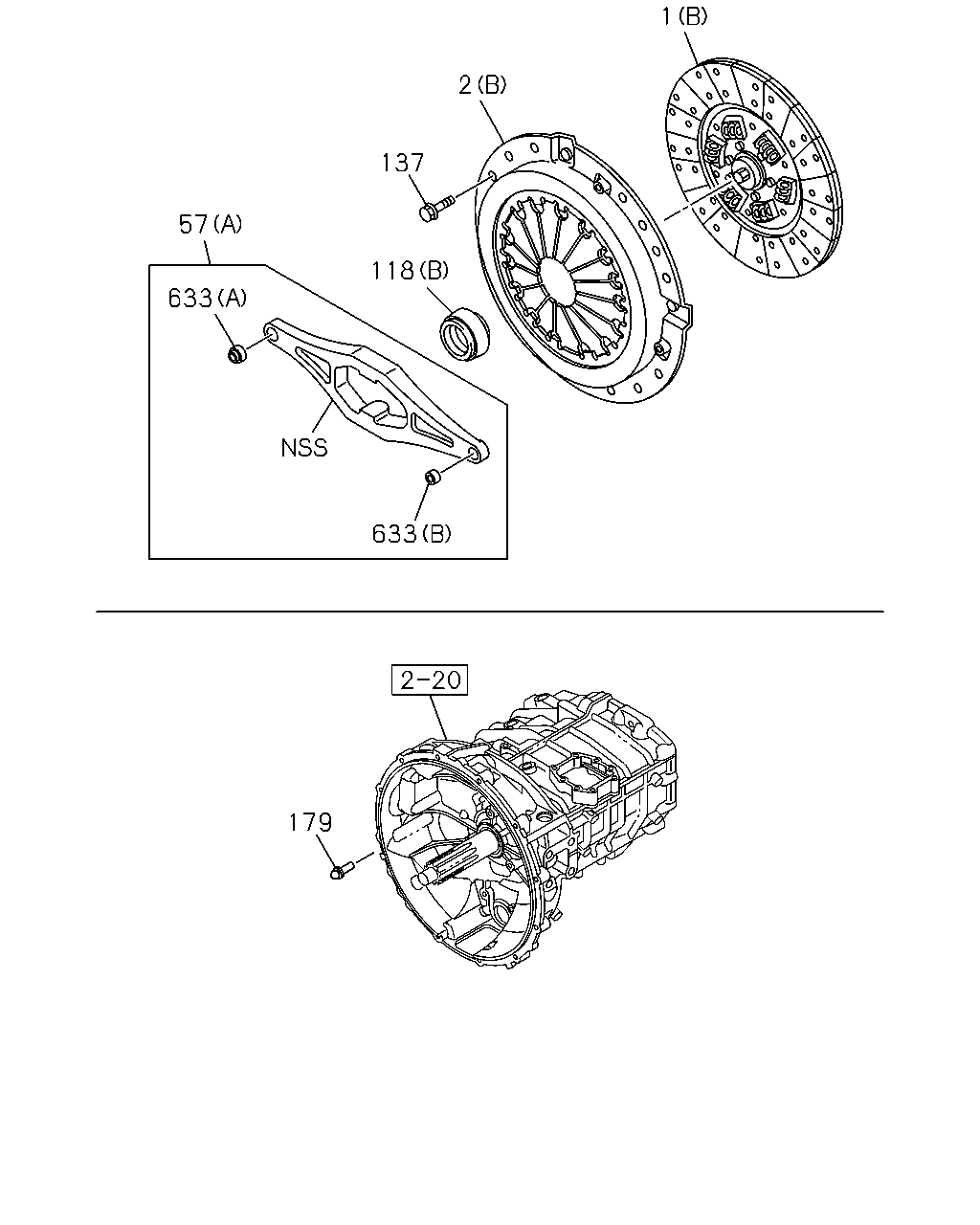

çizim 107090
1 2 137 57 118 633 633 179
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
FINAL GEAR 39/8 17.5"<W4B> (C) 15" 		1-31240-972-1 01 1 1103- ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-1 01 1 0807-1102 ●
1 DISC; CLUTCH
(A) 15" 		1-31240-977-1 01 1 0807-1102 ●
1 DISC; CLUTCH
FINAL GEAR 41/9 17.5"<W4C> (A) 15" 		1-31240-977-2 01 1 1103- ●
1 DISC; CLUTCH
(B) BEST VALUE PARTS 		1-87610-119-0 01 1 0807-1102 ●
1 DISC; CLUTCH
FINAL GEAR 41/9 17.5"<W4C> (A) BEST VALUE PARTS 		1-87610-143-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 39/8 17.5"<W4B> (A) 		1-31220-416-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-412-0 01 1 0807-1102 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-380-2 01 1 0807-1102 ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 41/9 17.5"<W4C> (A) 		1-31220-380-2 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 41/9 17.5"<W4C> (A) BEST VALUE PARTS 		1-87610-145-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
(A) BEST VALUE PARTS 		1-87610-145-0 01 1 0807-1102 ●
57 FORK; SHIFT,CLU
(A) 		1-31340-071-0 01 1 0807-1102 ●
57 FORK; SHIFT,CLU
(B) 		1-31341-036-0 01 1 0807- ●
118 BEARING; CLU RELEASE
(B) 		1-31310-019-1 01 1 0807-1102 ●
118 BEARING; CLU RELEASE
(A) 		1-09820-117-0 01 1 0807- ●
118 BEARING; CLU RELEASE
(A) BEST VALUE PARTS 		1-87610-108-0 01 1 0807- ●
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 0807-1102 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 1103- ●
179 SUPPORT; CLU FORK 1-33119-544-0 01 1 0807-1102 ●
633 SHEET; BALL
(A) 		1-31349-085-0 01 1 0807-1102 ●
633 SHEET; BALL
(B) 		1-31349-086-0 01 1 0807-1102 ●

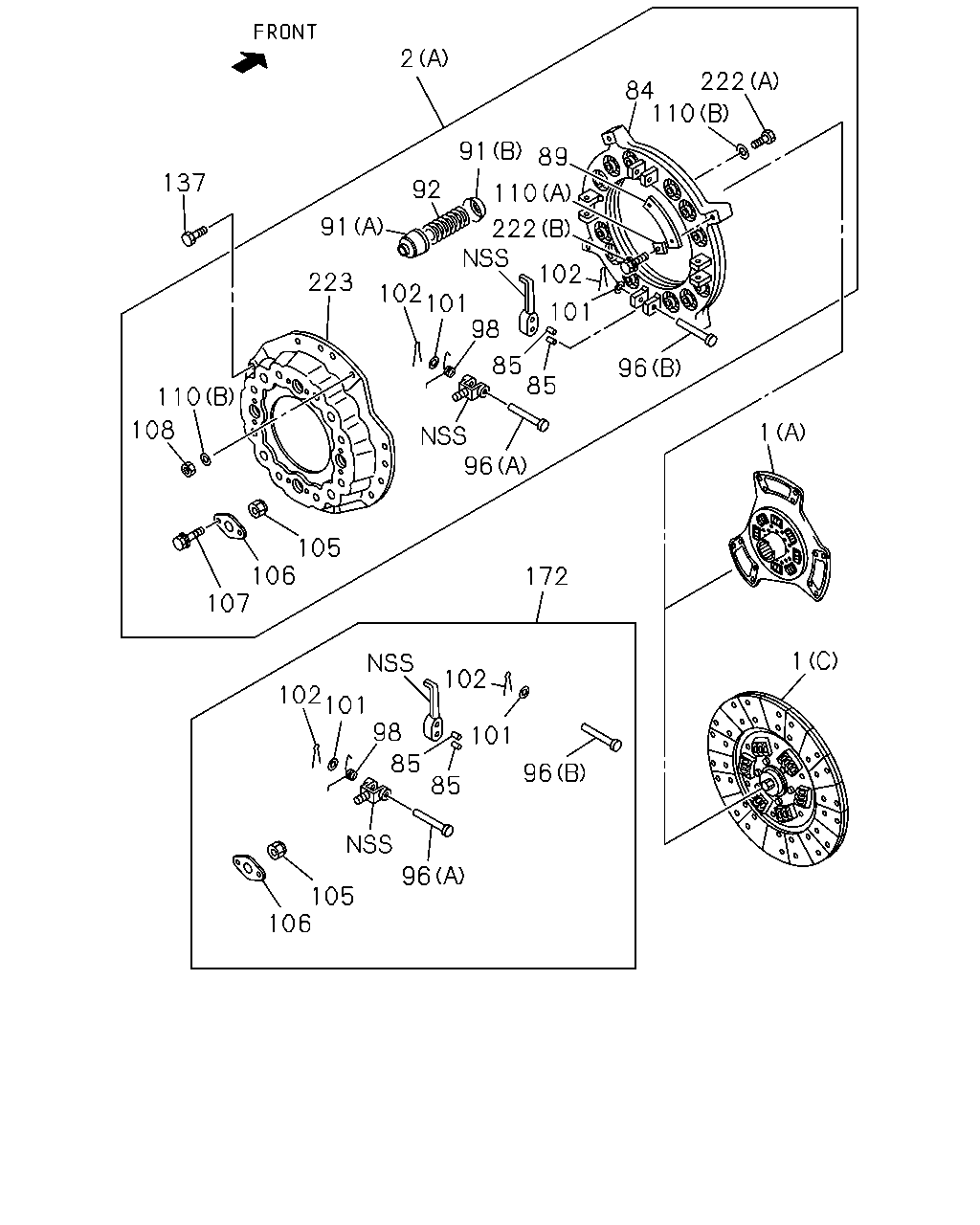

çizim 107138
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 108 1 96 105 106 107 172 1 102 102 101 98 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
FINAL GEAR 39/8 17.5"<W4B> (C) 15" 		1-31240-972-1 01 1 1103- ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-1 01 1 0807-1102 ●
1 DISC; CLUTCH
(A) 15" 		1-31240-977-1 01 1 0807-1102 ●
1 DISC; CLUTCH
FINAL GEAR 41/9 17.5"<W4C> (A) 15" 		1-31240-977-2 01 1 1103- ●
1 DISC; CLUTCH
(B) BEST VALUE PARTS 		1-87610-119-0 01 1 0807-1102 ●
1 DISC; CLUTCH
FINAL GEAR 41/9 17.5"<W4C> (A) BEST VALUE PARTS 		1-87610-143-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 39/8 17.5"<W4B> (A) 		1-31220-416-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
(B) 		1-31220-412-0 01 1 0807-1102 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-380-2 01 1 0807-1102 ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 41/9 17.5"<W4C> (A) 		1-31220-380-2 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 41/9 17.5"<W4C> (A) BEST VALUE PARTS 		1-87610-145-0 01 1 1103- ●
2 PLATE ASM; PRESSURE,CLU
(A) BEST VALUE PARTS 		1-87610-145-0 01 1 0807-1102 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0807-1102 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1103- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0807-1102 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1103- ●
89 PLATE; STRAP 1-31229-050-0 16 1 0807-1102 ●
89 PLATE; STRAP 1-31229-050-0 16 1 1103- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0807-1102 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1103- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0807-1102 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1103- ●
92 SPRING; CLU
FINAL GEAR 39/8 17.5"<W4B> 		1-31214-074-0 12 1 1103- ●
92 SPRING; CLU 1-31214-053-0 12 1 0807-1102 ●
92 SPRING; CLU
FINAL GEAR 41/9 17.5"<W4C> 		1-31214-053-0 12 1 1103- ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0807-1102 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1103- ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0807-1102 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1103- ●
98 SPRING; RETURN 1-31233-003-0 04 1 0807-1102 ●
98 SPRING; RETURN 1-31233-003-0 04 1 1103- ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0807-1102 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1103- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0807-1102 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1103- ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0807-1102 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 1103- ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0807-1102 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1103- ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0807-1102 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 1103- ●
108 NUT; STRAP 1-09449-036-0 04 1 0807-1102 ●
108 NUT; STRAP 1-09449-036-0 04 1 1103- ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0807-1102 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1103- ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0807-1102 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1103- ●
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 0807-1102 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 1103- ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0807- ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0807-1102 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1103- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0807-1102 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1103- ●
223 COVER; CLU 1-31211-019-1 01 1 0807-1102 ●
223 COVER; CLU 1-31211-019-1 01 1 1103- ●
