3-22 — AIR CONTROL PARTS (#128798) — 116 parça

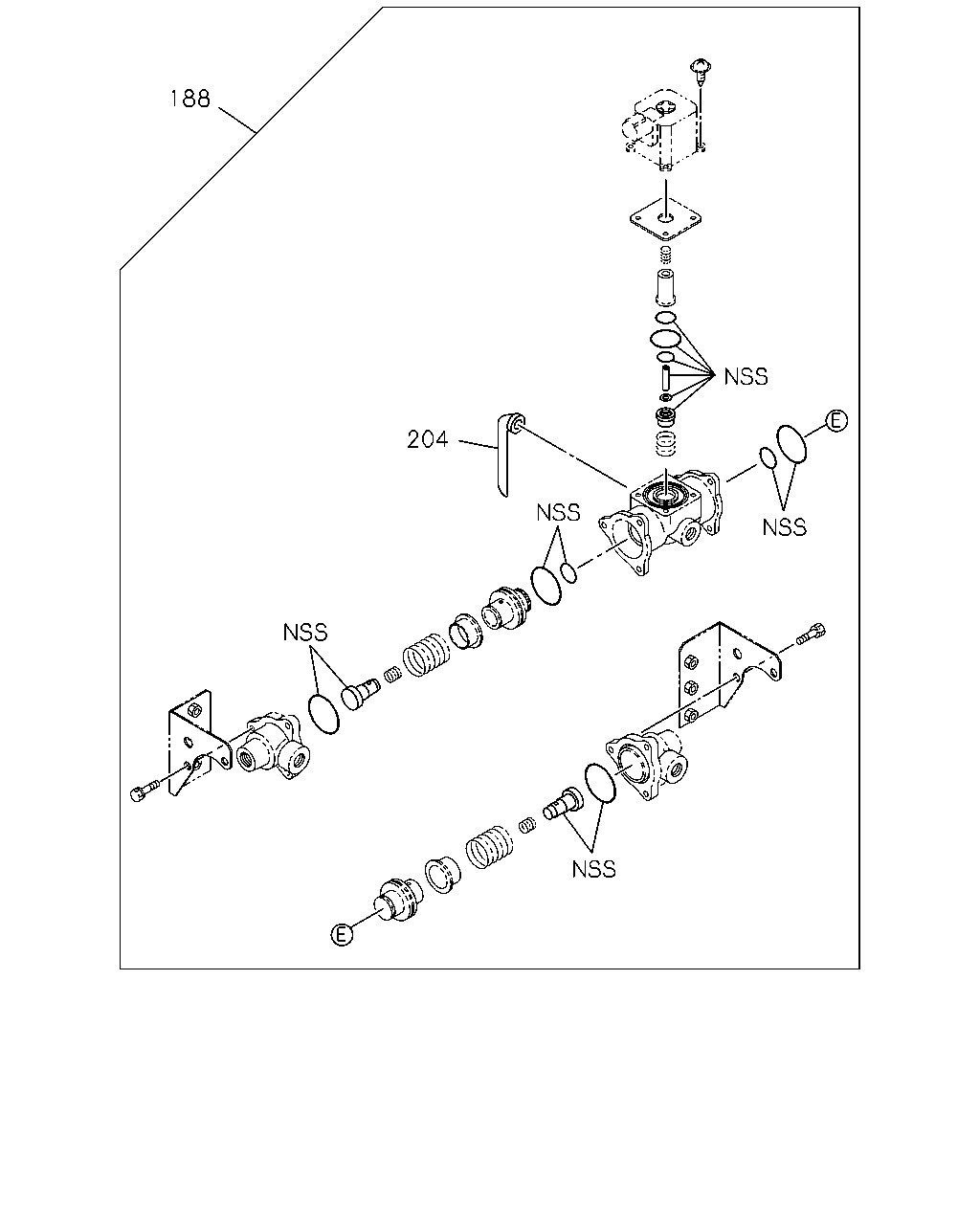

çizim 380107
204 188
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1310-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310-

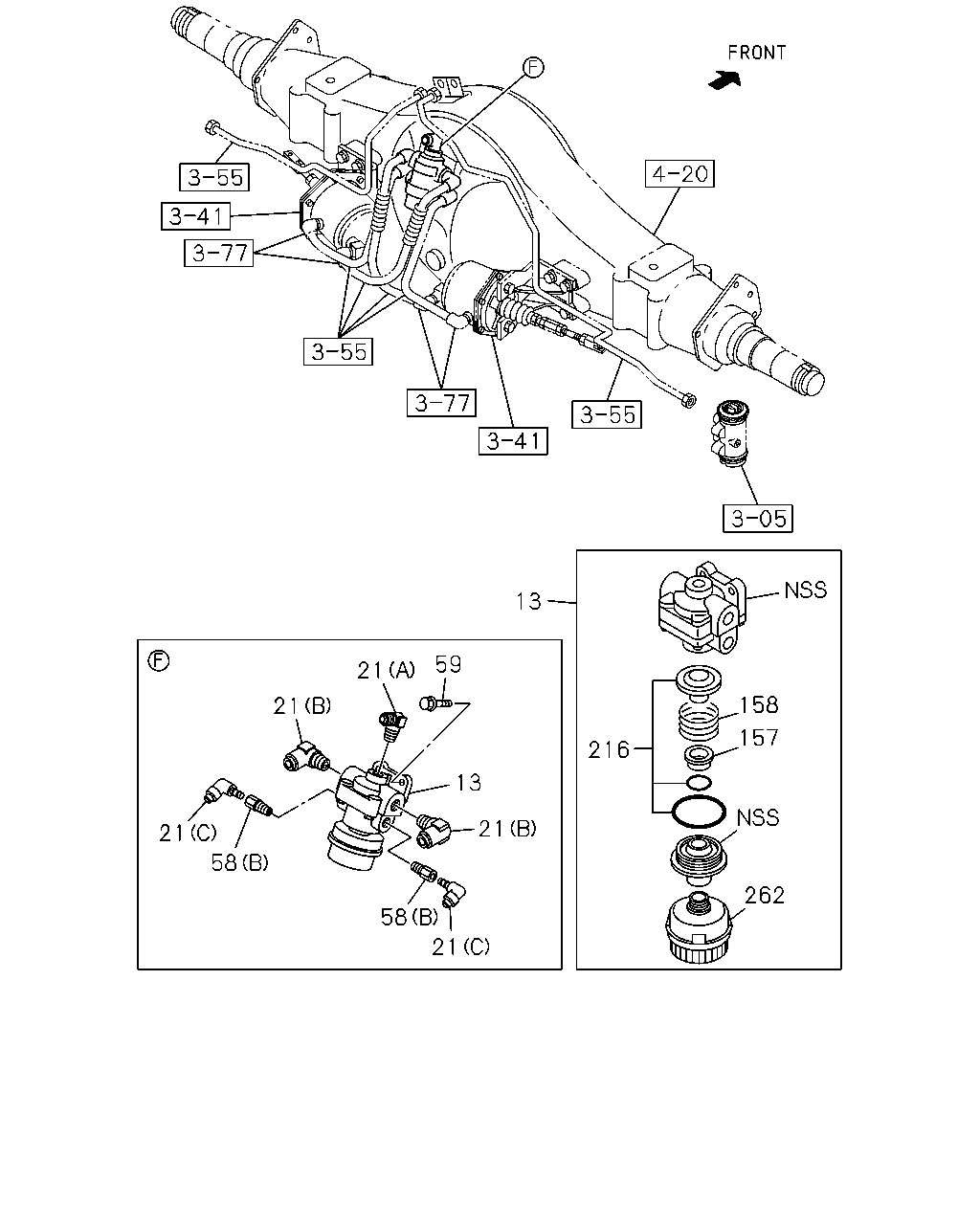

çizim 380172
21 21 59 13 21 58 21 58 21 13 216 158 157 262
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-781-2 01 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1310-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 1310-
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48419-036-0 01 1 1310-
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-48419-003-0 01 1 1310-
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85579-062-0 01 1 1310-
262 SILENCER; RELAY VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48219-149-0 01 1 1310-
çizim 380684
106 204 198 205 203 201 197 200 199 196 198 199 196 200 197 201 205 203 202 190 192 189 195 201
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1310-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1310-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1310-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1310-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1310-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1310-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1310-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1310-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1310-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1310-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1310-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1310-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1310-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1310-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1310-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1310-

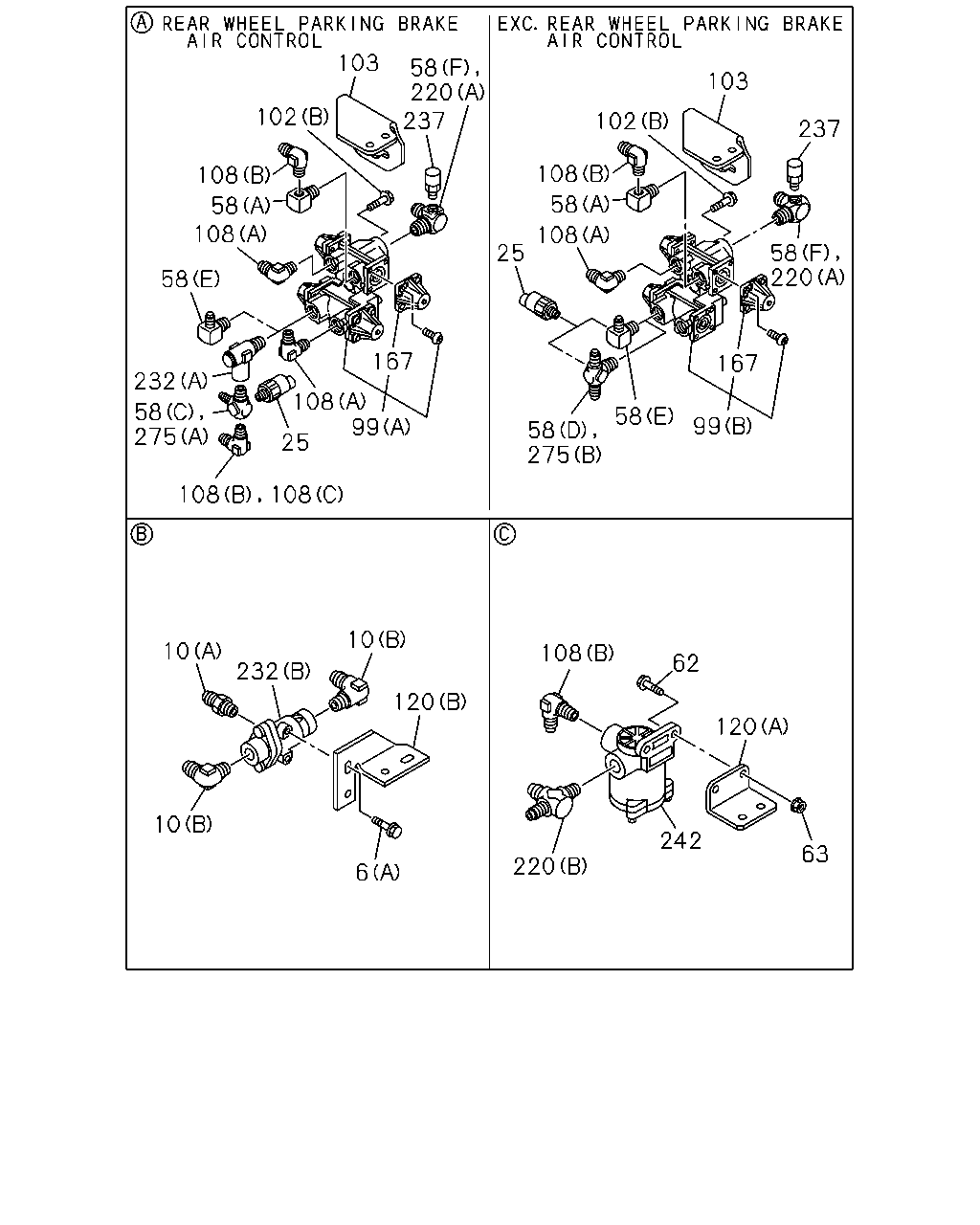

çizim 380728
120 63 242 220 108 62 10 120 232 10 10 6 99 108 25 108 108 275 232 58 58 108 58 108 102 103 237 220 58 167 108 102 103 237 58 167 220 58 25 108 58 58 99 275
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1310-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310-
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1310-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1310-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
58 ADAPTER
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 1310-
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1310-
99 VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-287-3 01 1 1310-
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48110-288-3 01 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1310-1311
103 BRACKET; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1310-1311
103 BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1310-1311
103 BRACKET; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98034-985-1 01 1 1310-1311
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312-
103 BRACKET; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312-
103 BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312-
103 BRACKET; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98221-293-0 01 1 1312-
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 1310-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1310-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310-
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
108 CONNECTOR; ELBOW
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
108 CONNECTOR; ELBOW
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 1310-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 1310-
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 04 1 1310-
167 COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 1310-
220 CONNECTOR; 3WAY
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY 		1-09656-331-1 01 1 1310-
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1310-
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 1310-
237 VALVE; SAFETY
ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-012-2 01 1 1310-
237 VALVE; SAFETY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-012-2 01 1 1310-
237 VALVE; SAFETY
SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) 		1-48320-012-2 01 1 1310-
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 1310-
275 CONNECTOR; 4WAY
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98050-414-0 01 1 1310-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 1310-
çizim 381413
259
BalonParca AdiParca NoAdetTipApplied Date
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) W/GREASE 		1-85576-381-0 01 1 1310-

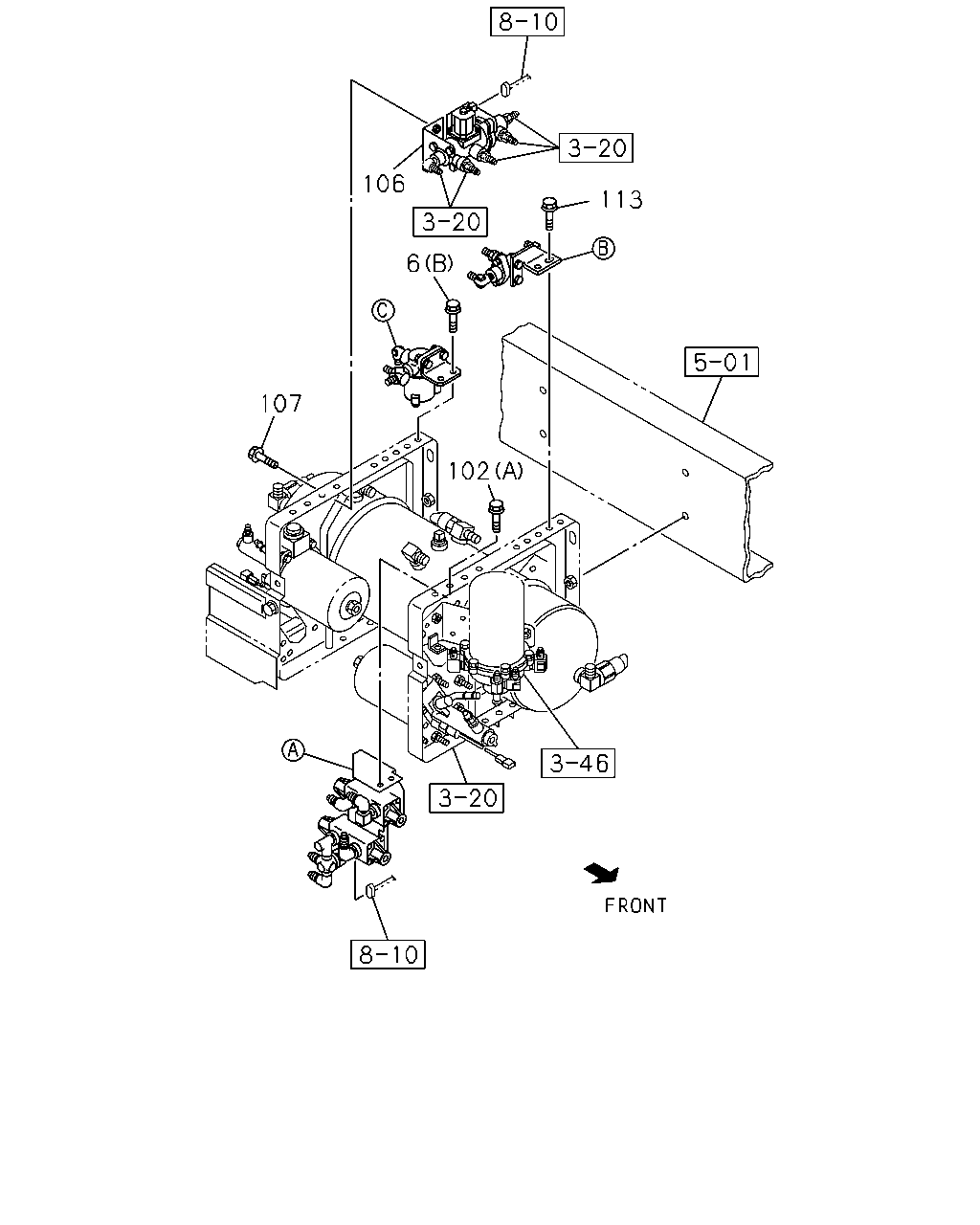

çizim 381495
113 6 6 102 107
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 1310-
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
çizim 432333
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-451-2 01 1 1310-
241 REPAIR KIT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-2 01 1 1310-
