Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#128797) — 146 parça

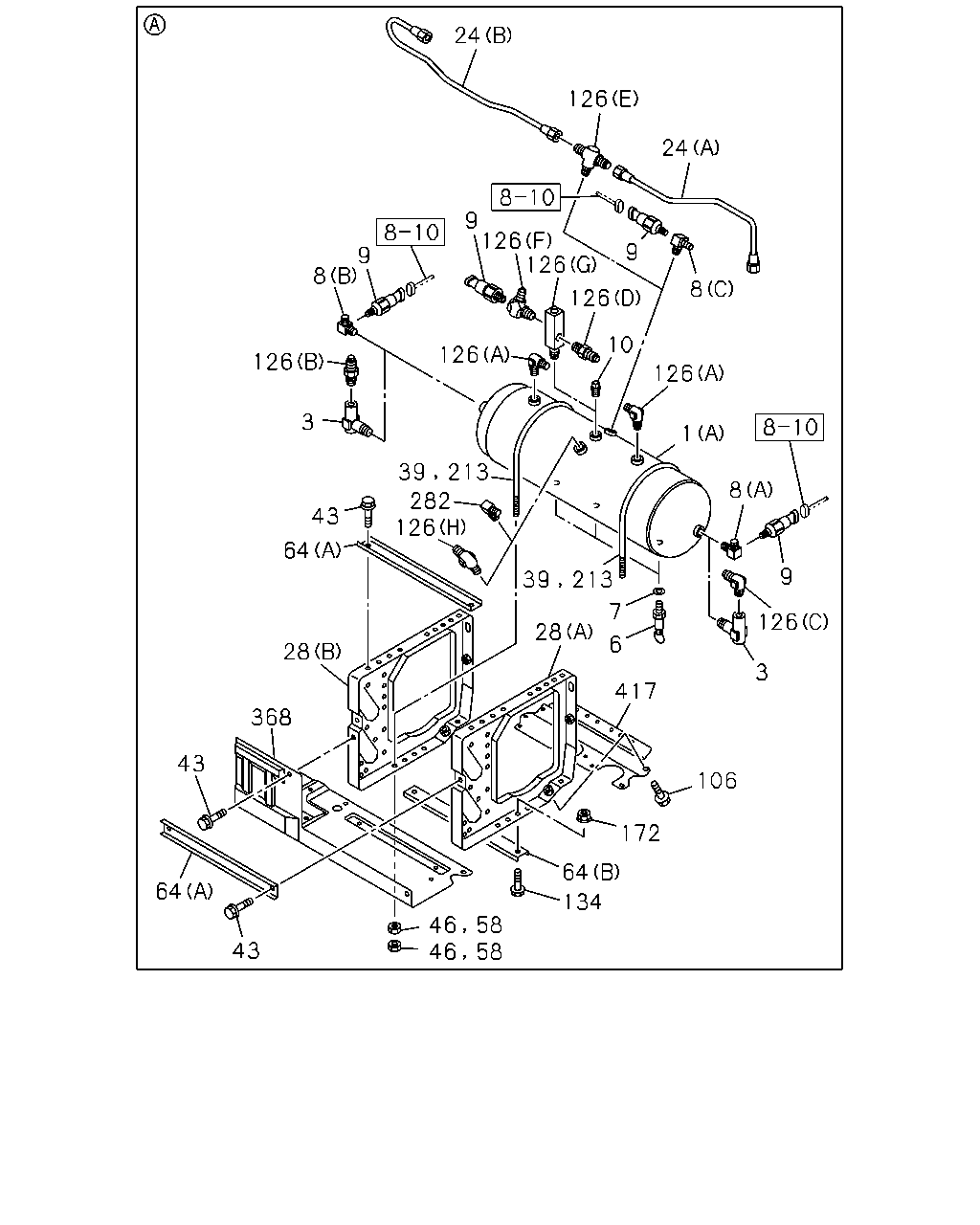

46 58 58 46 43 64 43 368 28 64 43 3 126 8 9 24 9 126 39 282 126 213 126 126 126 10 8 126 24 9 126 1 39 213 7 28 6 417 172 64 134 106 3 126 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1310-
3	VALVE; CHECK,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-48320-031-1	02	1	1310-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48320-031-1	01	1	1310-
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1310-
7	GASKET; DRAIN COCK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) STAMP 5.5	8-97609-249-0	01	1	1310-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	03	1	1310-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	03	1	1310-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
10	PLUG; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A)	8-98178-465-0	01	1	1310-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (B)	8-98178-466-0	01	1	1310-
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98021-918-5	01	1	1310-
28	BRACKET; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98021-918-5	01	1	1310-
28	BRACKET; AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A)	8-98021-918-5	01	1	1310-
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-509-5	01	1	1310-
28	BRACKET; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-509-5	01	1	1310-
28	BRACKET; AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (B)	8-98044-509-5	01	1	1310-
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98022-041-0	02	1	1310-
39	U-BOLT; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98022-041-0	02	1	1310-
43	BOLT; STAY,AIR TANK,MAIN SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	10	1	1310-
43	BOLT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	06	1	1310-
43	BOLT; STAY,AIR TANK,MAIN HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	06	1	1310-
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1310-
46	NUT; U-BOLT HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1310-
58	NUT; BAND,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8	0-91110-508-0	08	1	1310-
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98044-510-3	02	1	1310-
64	STAY; AIR TANK,MAIN HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98044-510-3	02	1	1310-
64	STAY; AIR TANK,MAIN SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A)	8-98044-510-3	02	1	1310-
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-511-2	01	1	1310-
64	STAY; AIR TANK,MAIN HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-511-2	01	1	1310-
64	STAY; AIR TANK,MAIN SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (B)	8-98044-511-2	01	1	1310-
106	BOLT; COVER ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	04	1	1310-
106	BOLT; COVER HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	04	1	1310-
106	BOLT; COVER SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	04	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (B) M20	0-92121-812-0	01	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (H) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (G)	8-98190-623-0	01	1	1310-
126	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1310-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1310-
126	CONNECTOR; ELBOW HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1310-
126	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1310-
134	BOLT; COVER FIX ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	04	1	1310-
134	BOLT; COVER FIX HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	04	1	1310-
172	NUT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1310-
172	NUT; STAY,AIR TANK,MAIN HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1310-
172	NUT; STAY,AIR TANK,MAIN SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	02	1	1310-
213	BOLT; U AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98022-041-0	02	1	1310-
282	UNION; 2 WAY ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1310-
282	UNION; 2 WAY HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1310-
368	COVER; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-625-3	01	1	1310-
368	COVER; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-625-3	01	1	1310-
368	COVER; AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98061-625-3	01	1	1310-
417	COVER; HARNESS ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-401-0	01	1	1310-
417	COVER; HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-401-0	01	1	1310-
417	COVER; HARNESS SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98111-401-0	01	1	1310-

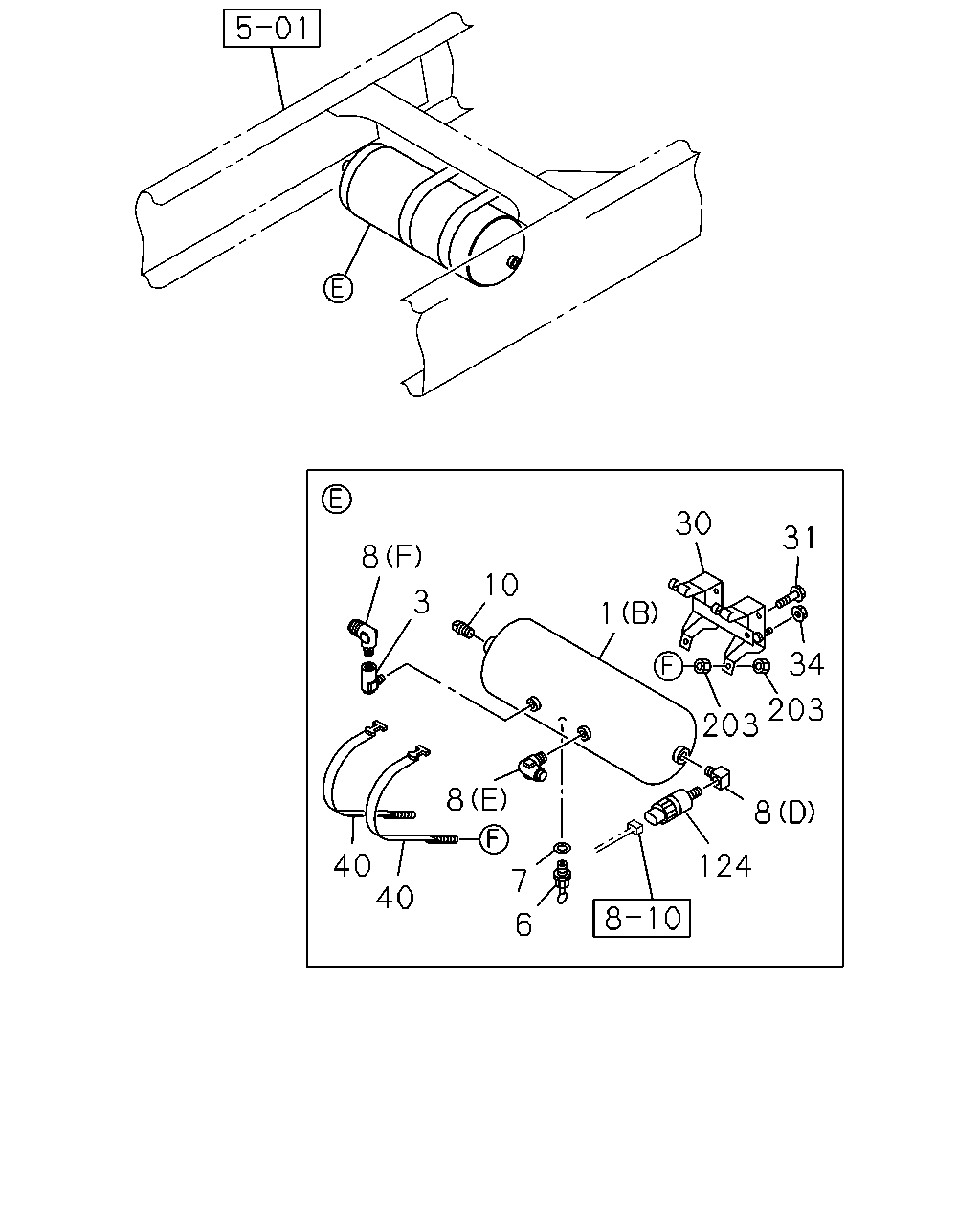

124 8 203 203 34 31 30 1 7 6 8 10 3 8 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A)	8-98018-785-3	01	1	1310-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1310-
3	VALVE; CHECK,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-48320-031-1	02	1	1310-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48320-031-1	01	1	1310-
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-48312-015-0	03	1	1310-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1310-
7	GASKET; DRAIN COCK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) ID=14	1-09630-145-0	03	1	1310-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1310-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1310-
8	CONNECTOR; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1310-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
10	PLUG; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1310-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	1310-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1310-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1310-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	1310-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1310-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	1310-

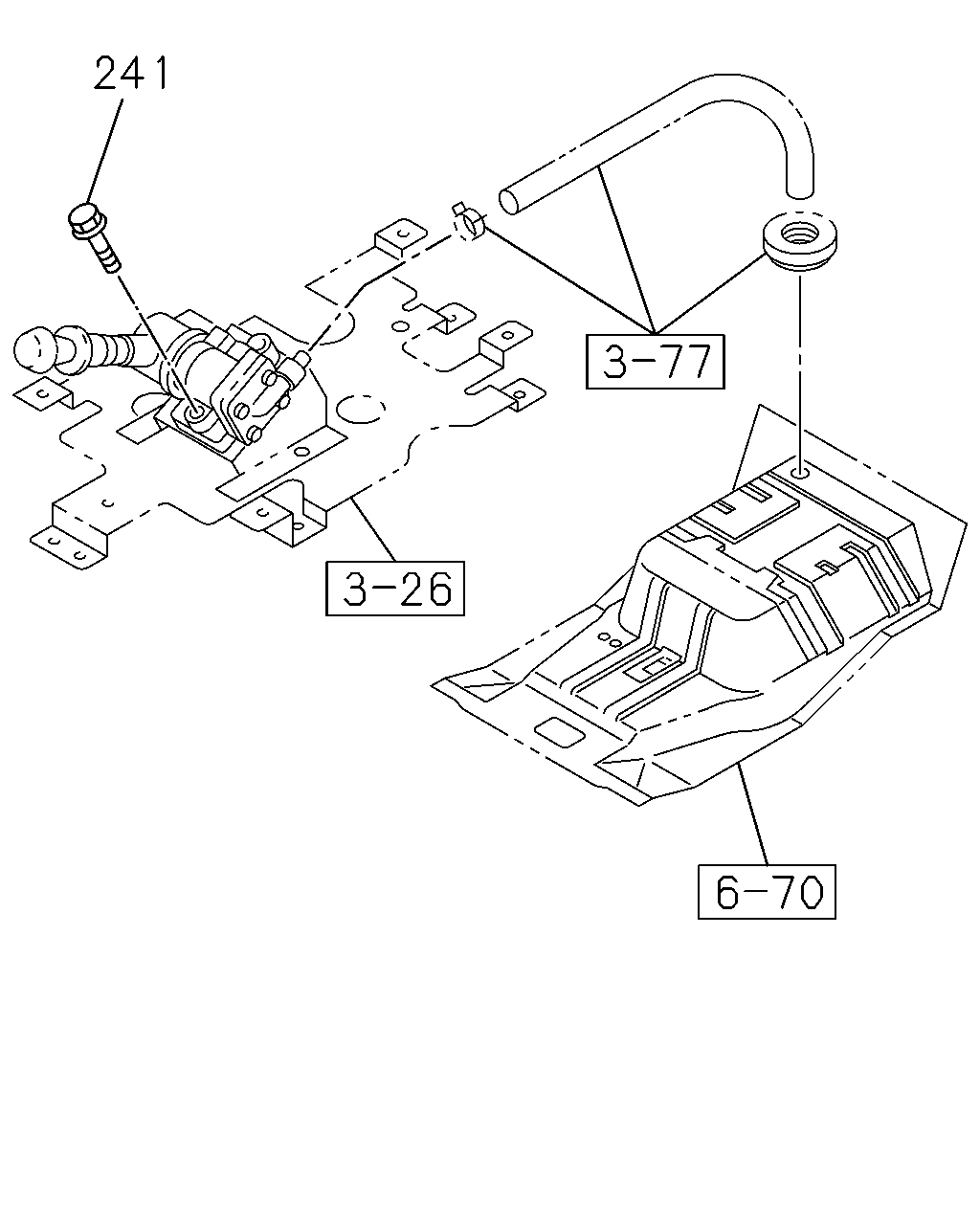

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1310-

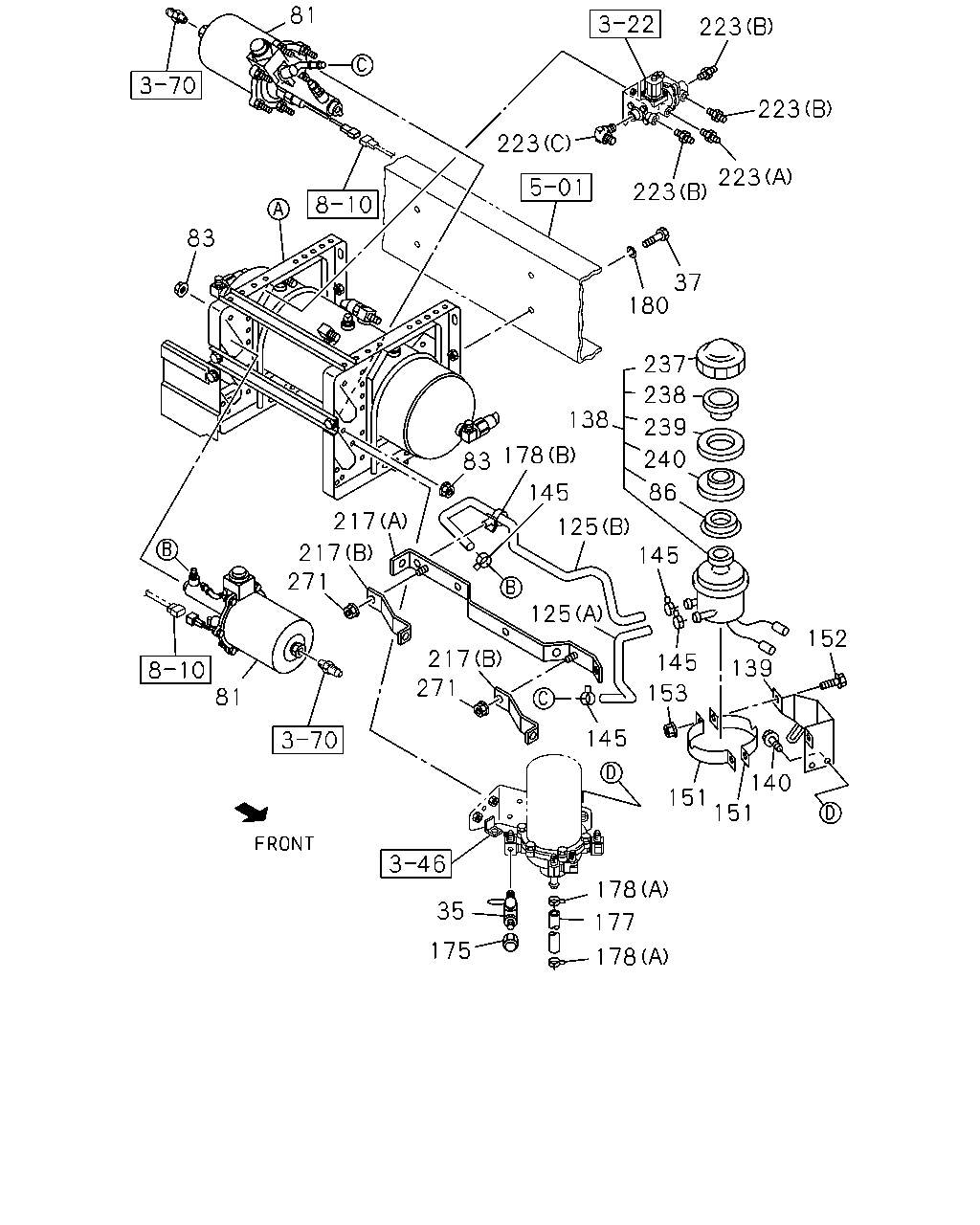

223 223 223 223 37 180 237 239 86 125 145 178 83 125 145 145 152 140 151 151 145 271 217 35 175 178 177 178 81 271 217 217 138 223 81 83 139 153 238 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1310-
37	BOLT; AIR TANK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X40 FLANGE	0-28651-240-0	04	1	1310-
37	BOLT; AIR TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X40 FLANGE	0-28651-240-0	04	1	1310-
37	BOLT; AIR TANK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M12X40 FLANGE	0-28651-240-0	04	1	1310-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	1310-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	1310-
86	SEAL; DUST	1-47529-019-0	01	1	1310-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	1310-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	1310-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1310-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	1310-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1310-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1310-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1310-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1310-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1310-
175	CAP; AIR COCK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1310-
177	HOSE; RUBBER,DRAIN HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1310-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1310-
178	CLIP; HOSE HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	1310-
178	CLIP; HOSE HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	01	1	1310-
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	01	1	1310-
180	WASHER; LK ANTI LOCK BRAKE(JE5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.5 OD=32	0-91614-712-0	04	1	1310-
180	WASHER; LK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.5 OD=32	0-91614-712-0	04	1	1310-
180	WASHER; LK SINGAPORE EQUIPMENT(2G0) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) ID=12.5 OD=32	0-91614-712-0	04	1	1310-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	1310-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	1310-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1310-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1310-
237	CAP; OIL TANK	1-47525-030-0	01	1	1310-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1310-
239	FILTER; DUST	1-47529-017-0	01	1	1310-
240	HOLDER; FILTER	1-47529-018-0	01	1	1310-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	1310-
