◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11554 - FSR-R EU5 EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#128795) — 44 parça

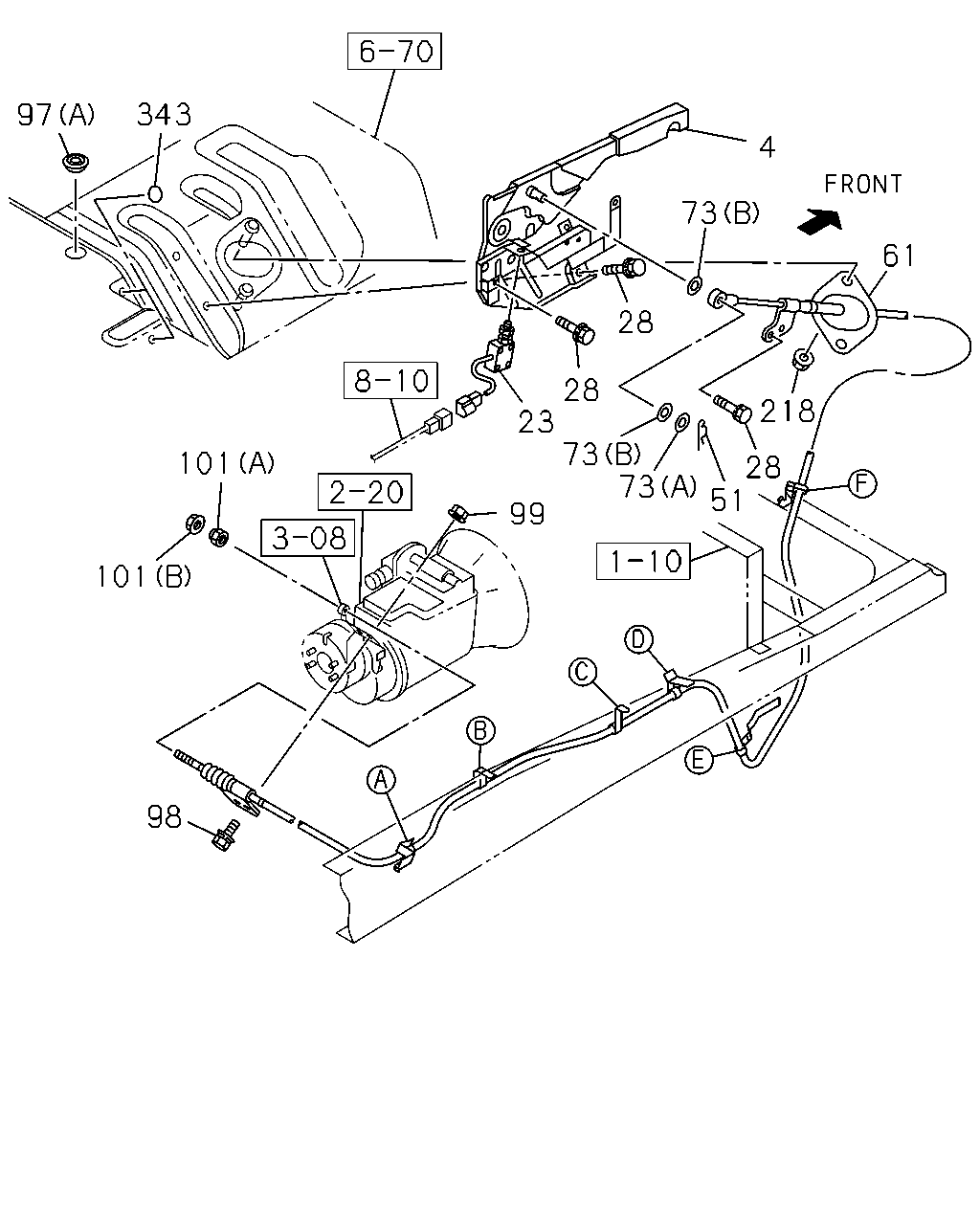

çizim 380555
99 73 51 73 23 28 28 73 4 61 218 28 101 101 97 343 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 1310-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1310-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1310-
51 PIN; JOINT,RELAY LEVER
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) 		1-09987-243-1 01 1 1310-
61 CABLE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=4736 		8-98102-331-3 01 1 1310-
61 CABLE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) L=4816 		8-98102-332-3 01 1 1310-
73 WASHER; PL,CABLE
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) ID=17 OD=30 		0-91610-516-0 01 1 1310-
73 WASHER; PL,CABLE
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) ID=19 		8-94206-429-1 02 1 1310-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98029-219-1 01 1 1310-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35 		8-94122-971-0 01 1 1310-
98 BOLT; RR COVER
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10X30 FLANGE 		0-28651-030-0 02 1 1310-
99 NUT; CONT CABLE
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10 FLANGE 		0-91180-210-0 02 1 1310-
101 NUT; CABLE TO LEVER
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M8 FLANGE 		0-91180-108-0 01 1 1310-
101 NUT; CABLE TO LEVER
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M8 		1-46259-007-0 01 1 1310-
218 NUT; BRKT,PARKING BRK CABLE
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8 FLANGE 		0-91180-108-0 02 1 1310-
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 1310-

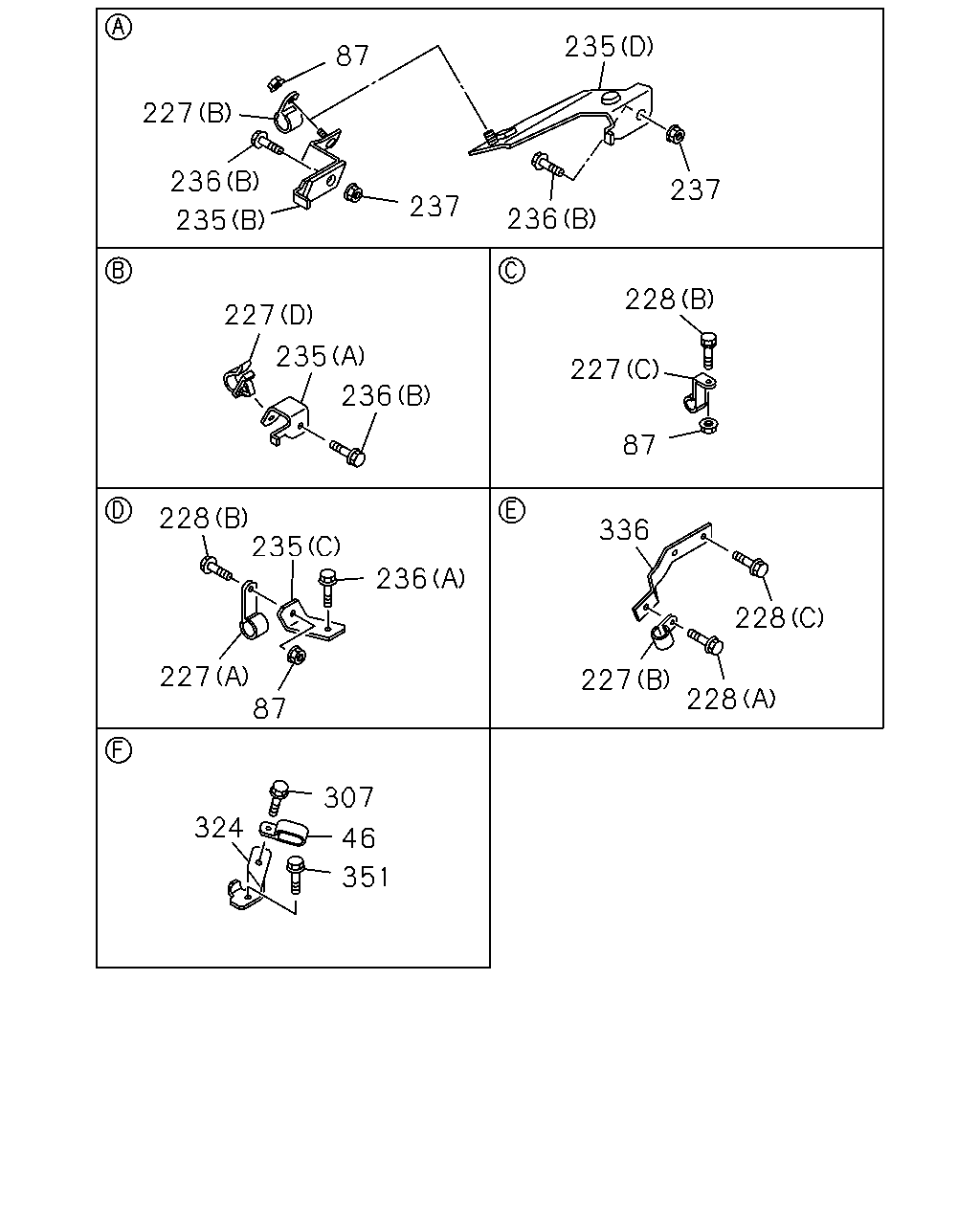

çizim 380602
228 227 336 228 87 227 228 237 235 236 237 87 235 236 227 236 235 227 228 236 87 227 324 46 351 307 235
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) ID=16 L=20 		0-95235-535-0 01 1 1310-
87 NUT
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 03 1 1310-
87 NUT
PARKING BRAKE DRUM 8.5"(B1S) M8 FLANGE 		0-91180-108-0 02 1 1310-
87 NUT
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=20 		0-95235-235-0 03 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 8.5"(B1S) (B) ID=13 L=20 		0-95235-235-0 02 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 L=20 		0-95235-235-0 02 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) ID=13 L=32 		0-95235-265-0 01 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1310-
227 CLIP; RAD
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (D) ID=9.5 		5-09709-020-0 01 1 1310-
228 BOLT; CLIP RAD MTG
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
228 BOLT; CLIP RAD MTG
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
228 BOLT; CLIP RAD MTG
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1310-
235 BRACKET; CONT CABLE TO FRAME
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98148-112-0 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
PARKING BRAKE DRUM 8.5"(B1S) (B) 		8-98077-903-2 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98077-903-2 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) 		1-82699-199-0 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) 		8-98100-151-0 01 1 1310-
236 BOLT; BRKT TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
236 BOLT; BRKT TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M10X30 FLANGE 		0-28651-030-0 02 1 1310-1504
236 BOLT; BRKT TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M10X30 FLANGE 		0-28051-030-0 02 1 1505-
237 NUT; BRKT TO FRAME
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10 FLANGE 		0-91180-210-0 01 1 1310-
307 BOLT; BRKT,PARKING BRK CABLE
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X25 W/WASHER 		0-51640-825-0 01 1 1310-
324 BRACKET
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) 		8-98067-482-1 01 1 1310-
336 BRACKET; RADIATOR
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) 		8-98044-680-0 01 1 1310-
351 BOLT; CLIP
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X25 W/WASHER 		0-51640-825-0 03 1 1310-
çizim 380885
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98029-219-1 01 1 1310-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35 		8-94122-971-0 01 1 1310-
