Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#128792) — 195 parça

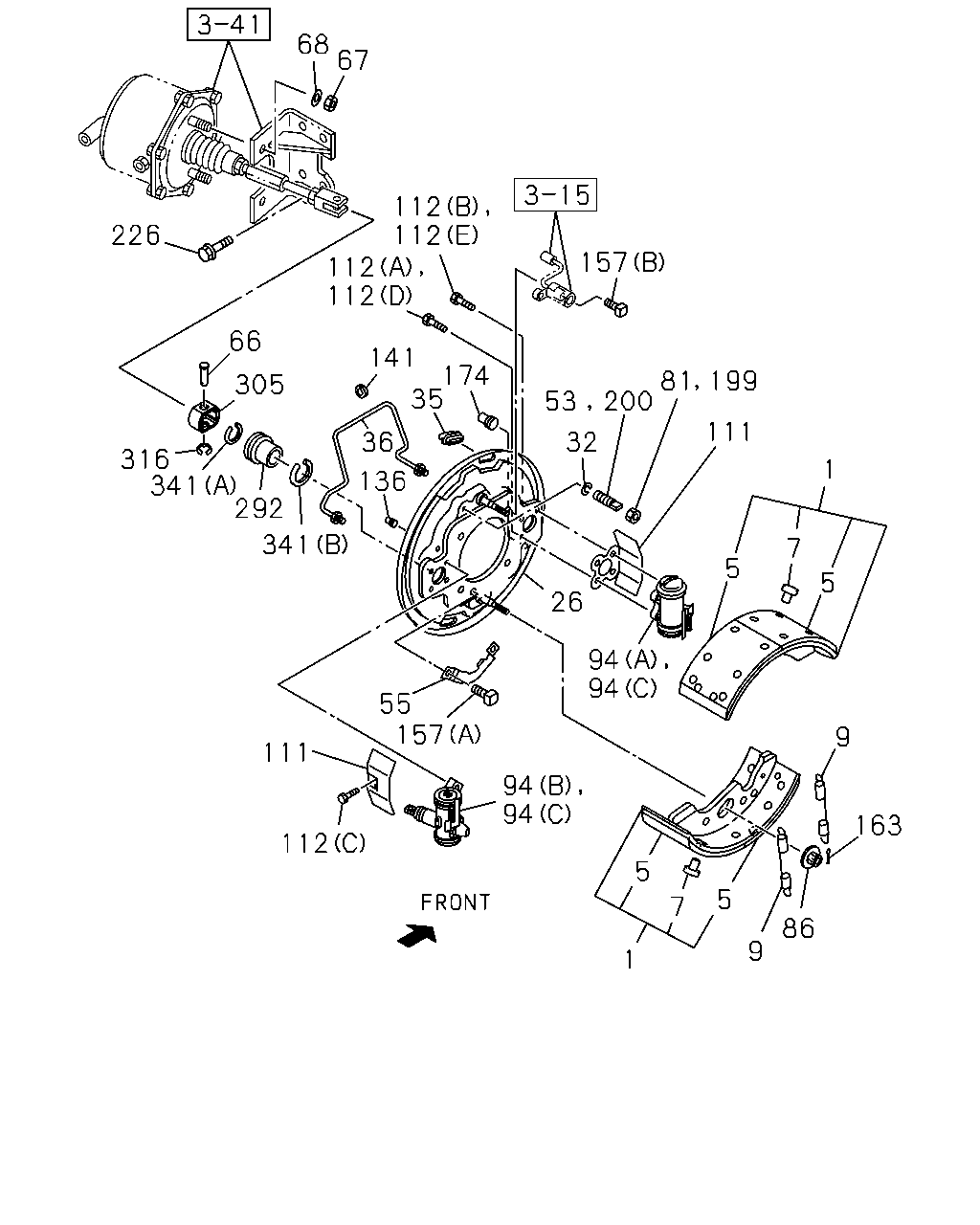

226 68 67 112 112 112 112 66 305 316 341 292 341 141 174 35 36 136 157 53 200 81 199 32 111 1 5 7 5 9 163 86 9 5 7 1 5 94 94 94 94 26 55 157 111 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-003-0	04	1	1310-
1	SHOE; BRK,RR EXC. ANTI LOCK BRAKE(JE5)	1-47170-003-0	04	1	1310-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47170-466-0	04	1	1310-
5	LINING; RR BRK SHOE,STANDARD	1-47126-161-0	08	1	1310-
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	1310-
9	SPRING; RETURN,BRK SHOE	1-09583-346-0	04	1	1310-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-612-1	01	1	1310-1505
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-612-1	01	1	1506-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-613-1	01	1	1310-1505
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-613-1	01	1	1506-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47150-642-0	01	1	1310-1505
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47150-642-0	01	1	1506-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47150-643-0	01	1	1310-1505
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47150-643-0	01	1	1506-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-47150-644-0	01	1	1310-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-47150-645-0	01	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-47150-676-0	01	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-47150-677-0	01	1	1310-
32	WASHER; LK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1310-1410
32	WASHER; LK EXC. ANTI LOCK BRAKE(JE5) ID=12.2	0-91510-512-0	04	1	1310-1410
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1411-
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-09985-346-0	04	1	1310-1410
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09985-346-0	04	1	1411-
35	GROMMET; CHECK HOLE	1-09333-033-0	04	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-49167-875-0	01	1	1310-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-875-0	01	1	1411-1505
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-875-0	01	1	1506-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-49167-876-0	01	1	1310-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-876-0	01	1	1411-1505
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-876-0	01	1	1506-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-49162-056-0	01	1	1310-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-49162-057-0	01	1	1310-1410
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-727-0	02	1	1310-
53	BOLT; LOCK PLATE	1-47162-050-0	02	1	1310-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-47139-169-0	04	1	1411-
55	PLATE; LK,RR WHEEL CYL ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	02	1	1310-
55	PLATE; LK,RR WHEEL CYL EXC. ANTI LOCK BRAKE(JE5)	1-47139-064-0	04	1	1310-1410
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-47139-064-0	04	1	1411-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47139-169-0	02	1	1310-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-128-0	02	1	1310-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	1310-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	1310-
81	NUT ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1310-1410
81	NUT EXC. ANTI LOCK BRAKE(JE5)	1-09400-100-0	02	1	1310-1410
81	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1411-
81	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-09400-167-0	02	1	1310-1410
81	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-167-0	02	1	1411-
86	NUT; FLANGE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1310-1410
86	NUT; FLANGE EXC. ANTI LOCK BRAKE(JE5)	1-09440-003-0	04	1	1310-1410
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1411-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-09440-102-0	04	1	1310-1410
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-102-0	04	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-186-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-187-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. ANTI LOCK BRAKE(JE5) (C) FORWARD	1-47601-010-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. ANTI LOCK BRAKE(JE5) (C) FORWARD	1-47601-011-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) FORWARD	1-47601-184-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	8-98289-367-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) FORWARD	1-47601-185-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-198-0	01	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-199-0	01	1	1310-
111	COVER; WHEEL CYL ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-164-0	04	1	1310-1410
111	COVER; WHEEL CYL EXC. ANTI LOCK BRAKE(JE5)	1-47159-164-0	04	1	1310-1410
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-164-0	04	1	1411-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47159-233-0	04	1	1310-1410
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-233-0	04	1	1411-
112	BOLT; WHEEL CYL SETTING (C) M6X10 FLANGE	8-94134-103-0	08	1	1310-
112	BOLT; WHEEL CYL SETTING ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	1310-1410
112	BOLT; WHEEL CYL SETTING EXC. ANTI LOCK BRAKE(JE5) (D) M14	1-47159-183-0	08	1	1310-1410
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A)	1-47159-231-0	08	1	1310-1410
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47159-231-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B)	1-47159-232-0	06	1	1310-1410
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47159-232-0	06	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (E) M12	1-47159-184-0	06	1	1310-1410
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12	1-47159-184-0	08	1	1310-
136	GROMMET	9-09956-640-0	04	1	1310-
141	PROTECTOR; RR BRK PIPE	1-47143-008-0	02	1	1310-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A)	1-09060-021-0	16	1	1411-
157	BOLT; RR BRK SET ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X50 SQUARE HEAD	1-09060-013-0	12	1	1310-
157	BOLT; RR BRK SET ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X55 SQUARE HEAD	1-09060-014-0	04	1	1310-
157	BOLT; RR BRK SET EXC. ANTI LOCK BRAKE(JE5) (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1310-1410
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1411-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A)	1-09060-021-0	12	1	1310-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B)	1-09060-022-0	04	1	1310-
163	PIN; SPLIT,SHOE HOLD ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1310-1410
163	PIN; SPLIT,SHOE HOLD EXC. ANTI LOCK BRAKE(JE5)	9-09874-040-0	04	1	1310-1410
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1411-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-09740-098-0	04	1	1310-1410
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09740-098-0	04	1	1411-
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47154-008-0	04	1	1310-
174	COVER; CYL,RR WHEEL CYL ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47154-008-0	04	1	1310-
174	COVER; CYL,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	1-47154-008-0	02	1	1310-
199	NUT ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1310-1410
199	NUT EXC. ANTI LOCK BRAKE(JE5)	1-09400-100-0	02	1	1310-1410
199	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1411-
199	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-09400-167-0	02	1	1310-1410
199	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-167-0	02	1	1411-
200	BOLT	1-47162-050-0	02	1	1310-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	1310-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-107-0	02	1	1310-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46346-023-0	02	1	1310-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-175-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-176-0	02	1	1310-

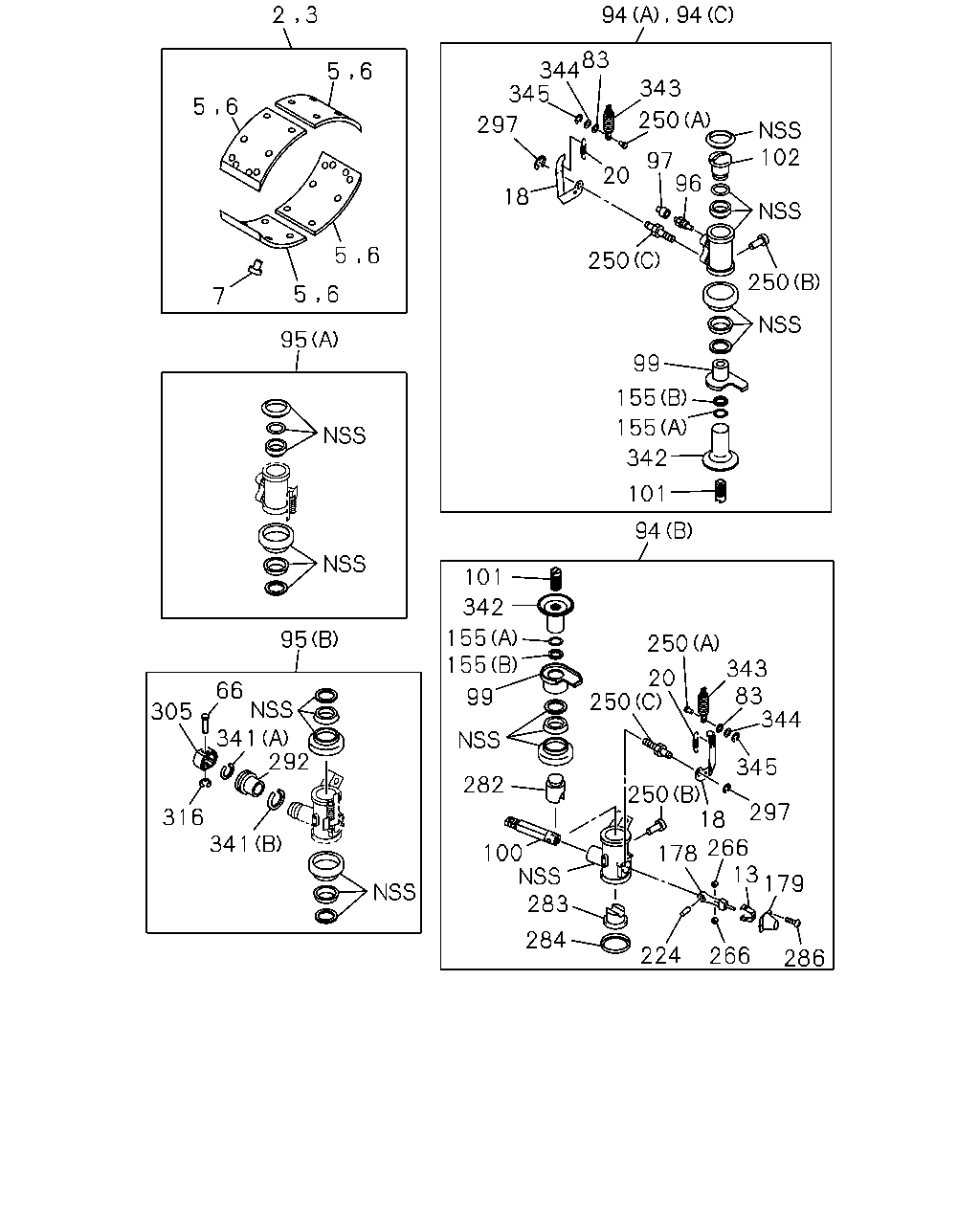

2 5 3 6 5 7 6 5 5 6 6 95 66 305 341 316 341 292 95 101 342 155 155 99 282 100 250 283 284 224 266 286 179 13 178 250 250 20 83 344 343 345 297 18 266 94 342 155 101 155 99 250 250 18 297 94 343 20 102 96 97 250 345 94 83 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD	1-88310-839-1	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE	1-88310-840-1	02	1	1310-
5	LINING; RR BRK SHOE,STANDARD	1-47126-161-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-162-0	08	1	1310-
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	1310-
13	CLIP; ROLLER PIN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-139-0	02	1	1310-
18	LEVER; AUTO ADJ	1-47629-164-0	02	1	1310-1505
18	LEVER; AUTO ADJ	1-47629-164-0	02	1	1506-
18	LEVER; AUTO ADJ	1-47629-165-0	02	1	1310-1505
18	LEVER; AUTO ADJ	1-47629-165-0	02	1	1506-
20	SPRING; ADJ LEVER	1-09583-345-0	04	1	1310-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-128-0	02	1	1310-
83	WASHER; PL	1-47619-108-0	04	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-186-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-187-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. ANTI LOCK BRAKE(JE5) (C) FORWARD	1-47601-010-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. ANTI LOCK BRAKE(JE5) (C) FORWARD	1-47601-011-1	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) FORWARD	1-47601-184-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	8-98289-367-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) FORWARD	1-47601-185-0	01	1	1310-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-198-0	01	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-199-0	01	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	02	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87831-246-1	02	1	1310-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	04	1	1310-
96	SCREW; BLEEDER,RR BRK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-476-0	02	1	1310-
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	8-98050-477-0	02	1	1310-
96	SCREW; BLEEDER,RR BRK EXC. ANTI LOCK BRAKE(JE5)	8-98050-477-0	02	1	1310-
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-349-0	01	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-350-0	01	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-351-0	01	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-352-0	01	1	1310-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-349-0	02	1	1310-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-350-0	02	1	1310-
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-169-0	02	1	1310-1410
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98290-467-0	02	1	1411-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-053-0	02	1	1310-1505
101	SCREW; ADJ,RR WHEEL CYL	1-47622-053-0	02	1	1506-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-054-0	02	1	1310-1505
101	SCREW; ADJ,RR WHEEL CYL	1-47622-054-0	02	1	1506-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-47624-333-0	02	1	1411-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	02	1	1310-1410
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47624-333-0	02	1	1411-1505
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47624-333-0	01	1	1506-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	04	1	1310-
155	WASHER; PL,WHEEL CYL (A)	1-47629-150-0	04	1	1310-
155	WASHER; PL,WHEEL CYL (B)	1-47629-151-0	04	1	1310-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-168-0	02	1	1310-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-141-0	02	1	1310-
224	PIN; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-130-0	02	1	1310-
250	PIN; RETAINING (A)	1-47619-106-0	04	1	1310-
250	PIN; RETAINING (B)	1-47629-112-0	04	1	1310-
250	PIN; RETAINING (C)	1-47629-262-0	04	1	1310-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-138-0	04	1	1310-
282	PLUNGER; INNER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-255-0	02	1	1310-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	1-47629-257-0	02	1	1411-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-256-0	01	1	1310-1410
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47629-256-0	01	1	1411-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-257-0	01	1	1310-1410
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5)	1-47629-257-0	01	1	1411-
284	BOOT; PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-093-0	02	1	1310-
286	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-132-0	06	1	1310-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-107-0	02	1	1310-
297	RING; SNAP	1-47629-263-0	04	1	1310-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46346-023-0	02	1	1310-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-175-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-176-0	02	1	1310-
342	GEAR; WHEEL CYL	1-47629-158-0	02	1	1310-1505
342	GEAR; WHEEL CYL	1-47629-158-0	02	1	1506-
342	GEAR; WHEEL CYL	1-47629-159-0	02	1	1310-1505
342	GEAR; WHEEL CYL	1-47629-159-0	02	1	1506-
343	SPRING; WHEEL CYL	1-47629-141-0	04	1	1310-
344	WASHER; WAVE	1-47619-107-0	04	1	1310-
345	RETAINER; LEVER	1-47619-109-0	04	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
