◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#12879) — 28 parça

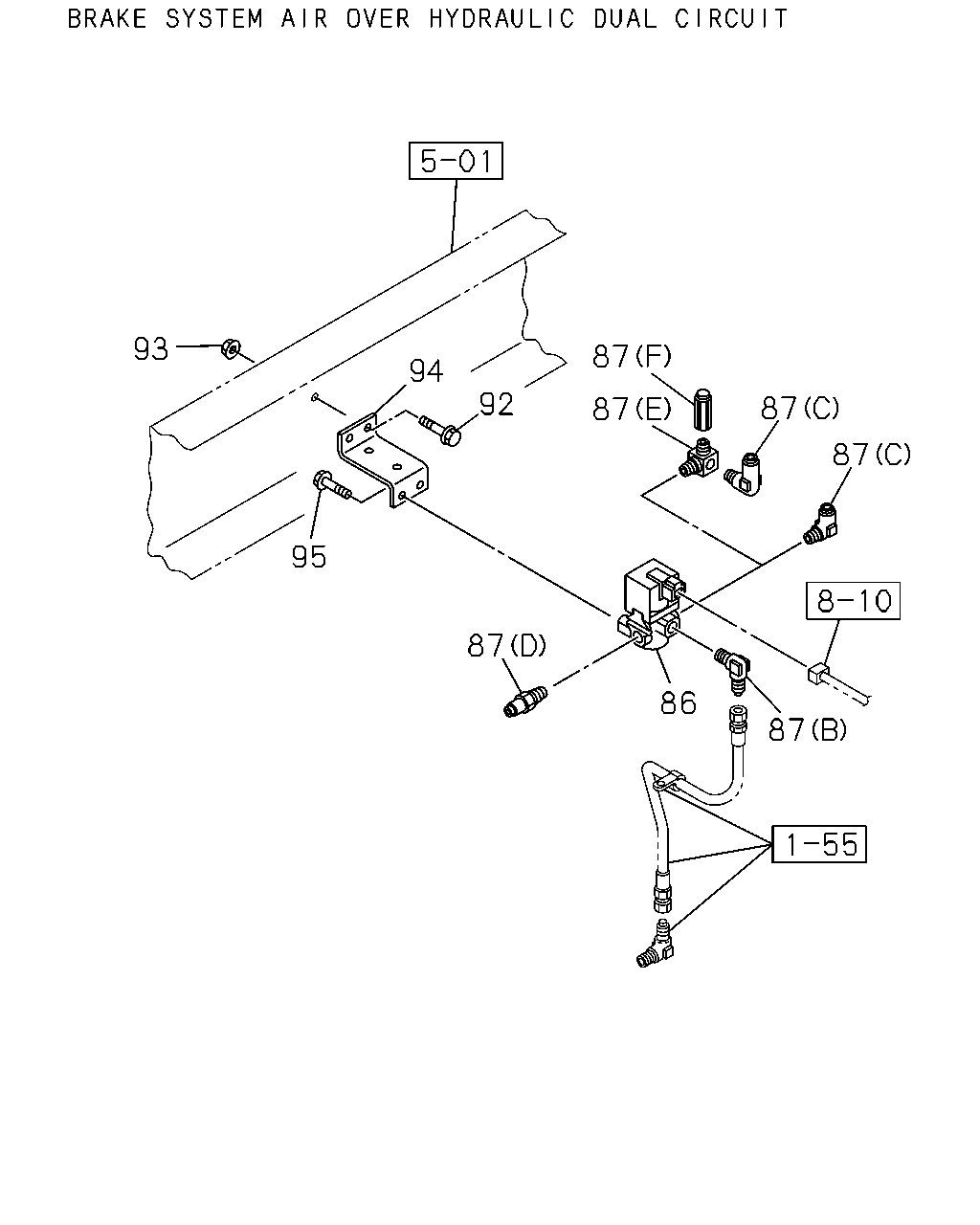

çizim 98217
93 87 94 92 87 87 87 95 87 86 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-82563-871-2 01 1 1108- ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0807-1102 ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PTO CONTROL<SV6> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PTO CONTROL<SV6> (F) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1108- ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0807-1102 ● ●
87 CONNECTOR
(A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0807-0808 ● ●
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0809-1102 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X35 FLANGE THA 		0-28650-835-0 02 1 1108- ● ●
92 BOLT; MAG VLV
M8X35 FLANGE THA 		0-28650-835-0 02 1 0807-1102 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 02 1 1108- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98154-633-0 01 1 1108- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 02 1 1108- ● ●
çizim 98290
87 86 88 87 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-82563-871-2 01 1 1108- ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0807-1102 ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PTO CONTROL<SV6> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1108- ● ●
87 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PTO CONTROL<SV6> (F) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1108- ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0807-1102 ● ●
87 CONNECTOR
(A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0807-0808 ● ●
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0809-1102 ● ●
88 PLUG
PT1/4 THA 		9-99204-513-0 01 1 0807-0808 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X35 FLANGE THA 		0-28650-835-0 02 1 1108- ● ●
92 BOLT; MAG VLV
M8X35 FLANGE THA 		0-28650-835-0 02 1 0807-1102 ● ●
