2-53 — TRANSMISSION OIL COOLER SYSTEM
(#128788) — 38 parça
◀

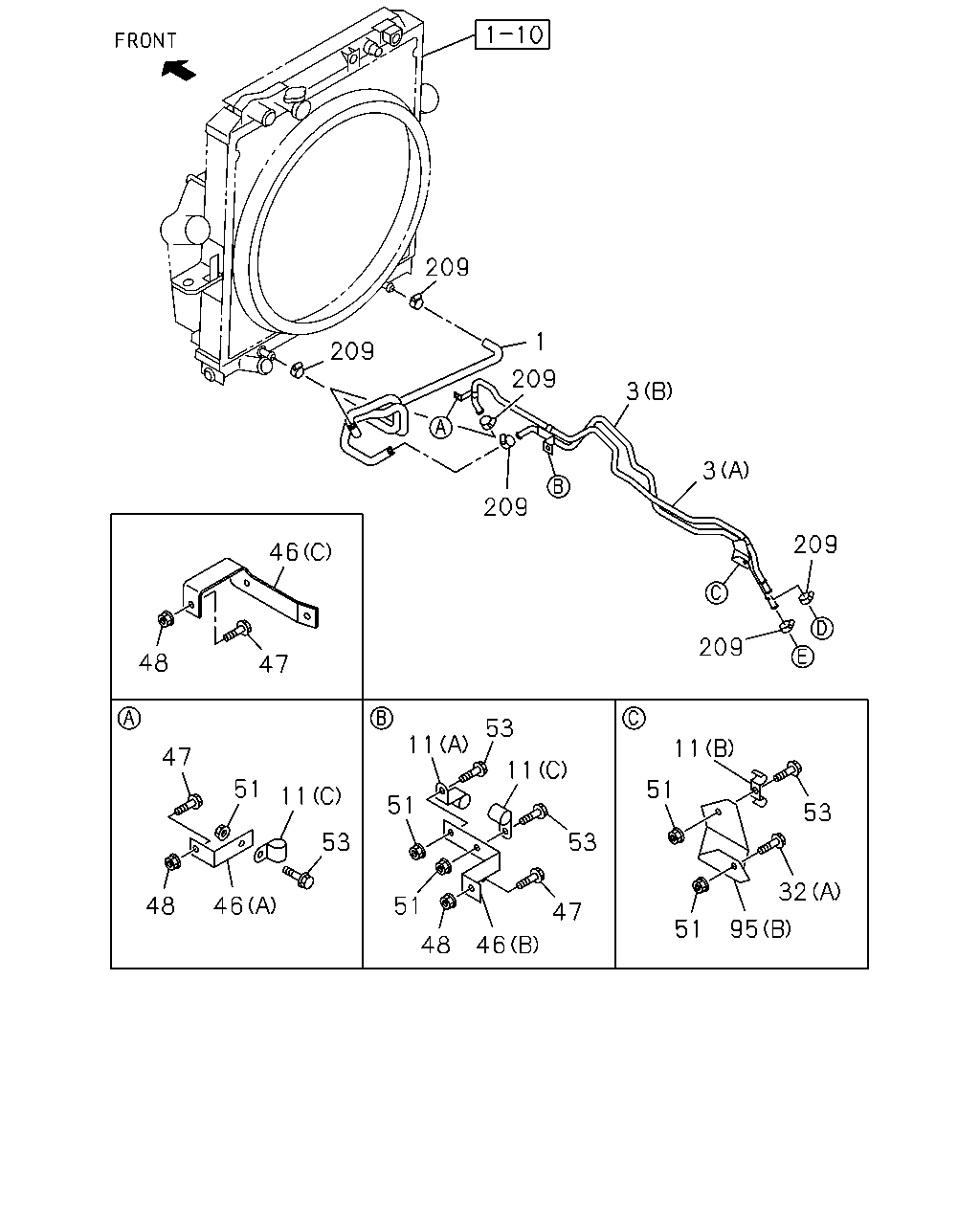

[253A] NO.1 (18 parça)

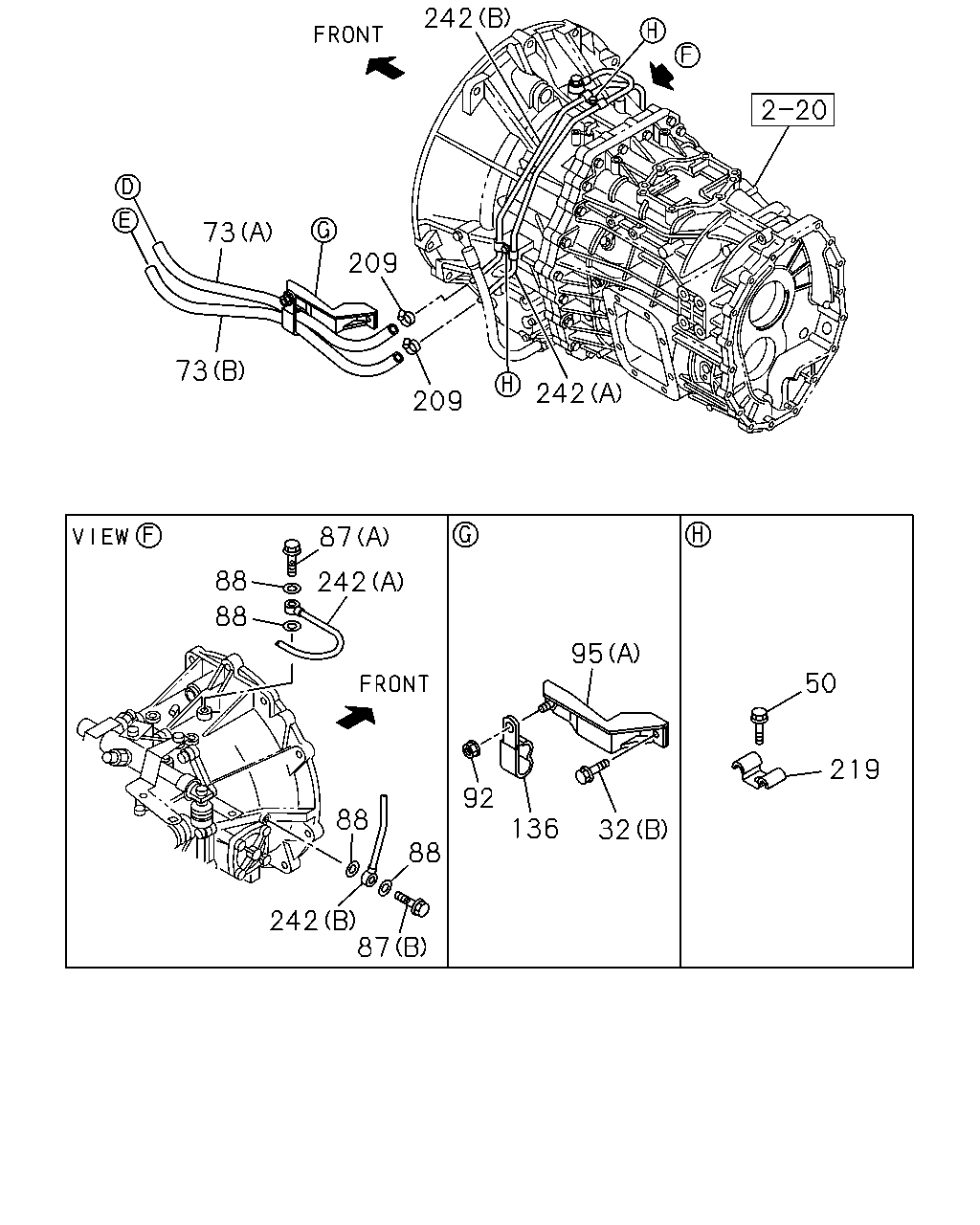

[253A] NO.2 (18 parça)

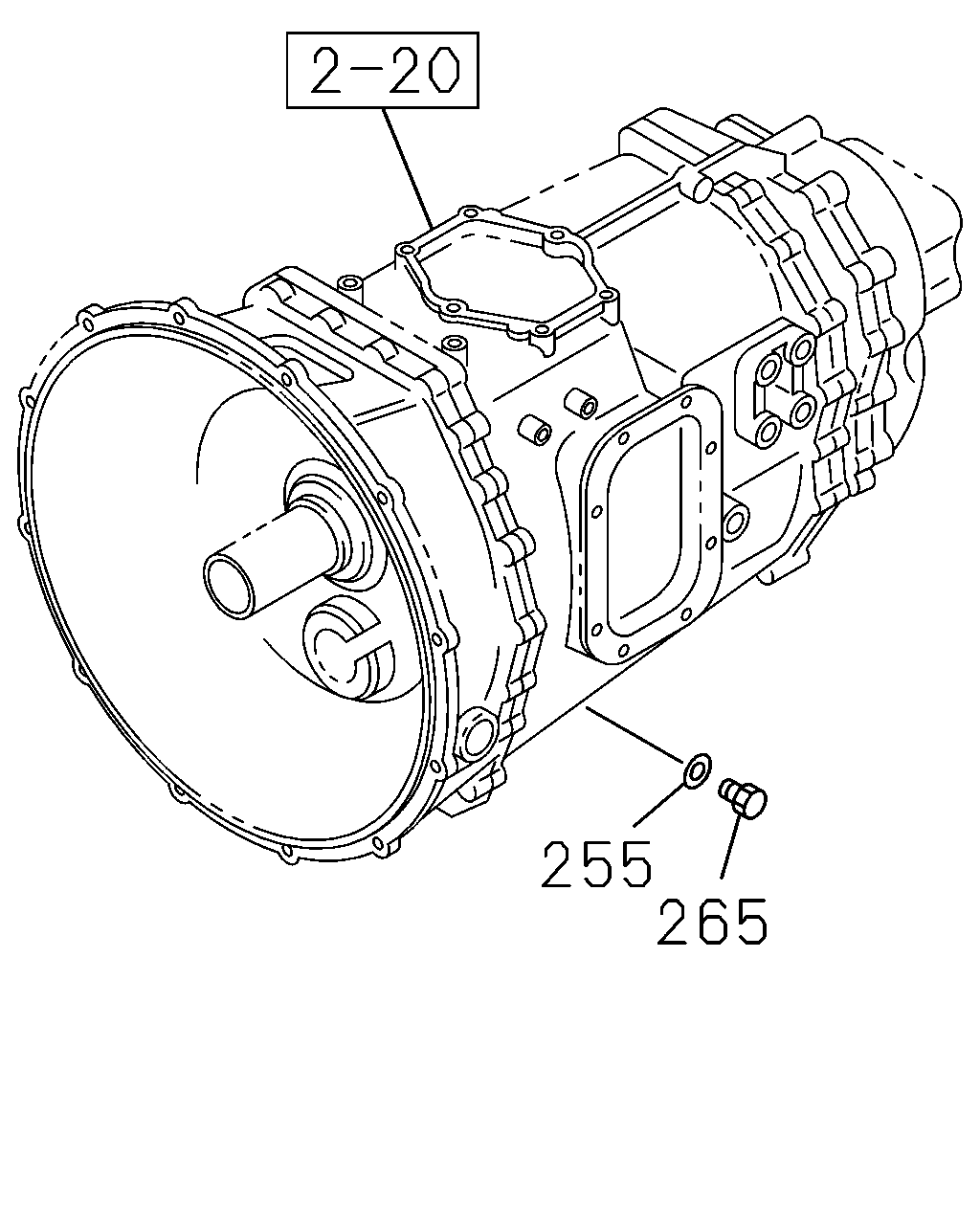

[253A] PLUG;OIL TEMP SENSOR (2 parça)
▶
209
209
209
209
3
1
3
209
209
46
48
47
47
51
11
53
46
48
51
51
11
48
46
53
47
11
53
11
51
51
95
32
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-911-1
01
1
1310-
3
PIPE; OIL,A/T TO OIL COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144
8-98072-012-0
01
1
1310-
3
PIPE; OIL,A/T TO OIL COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009
8-98079-824-0
01
1
1310-
11
CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28
0-95235-055-0
02
1
1310-
11
CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
02
1
1310-
11
CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20
8-98033-780-0
01
1
1310-
32
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE
0-28650-820-0
01
1
1310-
32
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE
0-28650-830-0
01
1
1310-
46
BRACKET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
1-47471-051-0
01
1
1310-
46
BRACKET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98050-824-0
01
1
1310-
46
BRACKET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98080-171-0
01
1
1310-
47
BOLT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE
0-28650-830-0
03
1
1310-
48
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
02
1
1310-
51
NUT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
05
1
1310-
53
BOLT; CLIP,FLEX HOSE,A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE
0-28650-820-0
04
1
1310-
95
BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98072-008-0
01
1
1310-
95
BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98072-016-0
01
1
1310-
209
CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98192-447-0
08
1
1310-
242
87
88
88
136
92
32
95
50
219
242
87
88
88
73
73
209
209
242
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE
0-28650-820-0
01
1
1310-
32
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE
0-28650-830-0
01
1
1310-
50
BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE
0-28650-820-0
02
1
1310-
73
HOSE; FLEX,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480
8-98081-845-0
01
1
1310-
73
HOSE; FLEX,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500
8-98081-853-0
01
1
1310-
87
BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT
8-98037-827-0
01
1
1310-
87
BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE
8-98060-612-0
01
1
1310-
88
GASKET; EYE BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0
9-09571-414-0
04
1
1310-
92
NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
01
1
1310-
95
BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98072-008-0
01
1
1310-
95
BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98072-016-0
01
1
1310-
136
CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98084-148-0
01
1
1310-
209
CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98192-447-0
08
1
1310-
219
CLIP; ATF PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
1310-
242
PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98003-674-0
01
1
1310-1507
242
PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98303-637-0
01
1
1508-
242
PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98003-675-0
01
1
1310-1507
242
PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98303-638-0
01
1
1508-
255
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
GASKET; SENSOR
ID=12.2
9-09571-412-0
01
1
1405-
265
PLUG; HOLE
M12X9
0-92002-412-0
01
1
1405-
